Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 14 illustrations

Illustrations

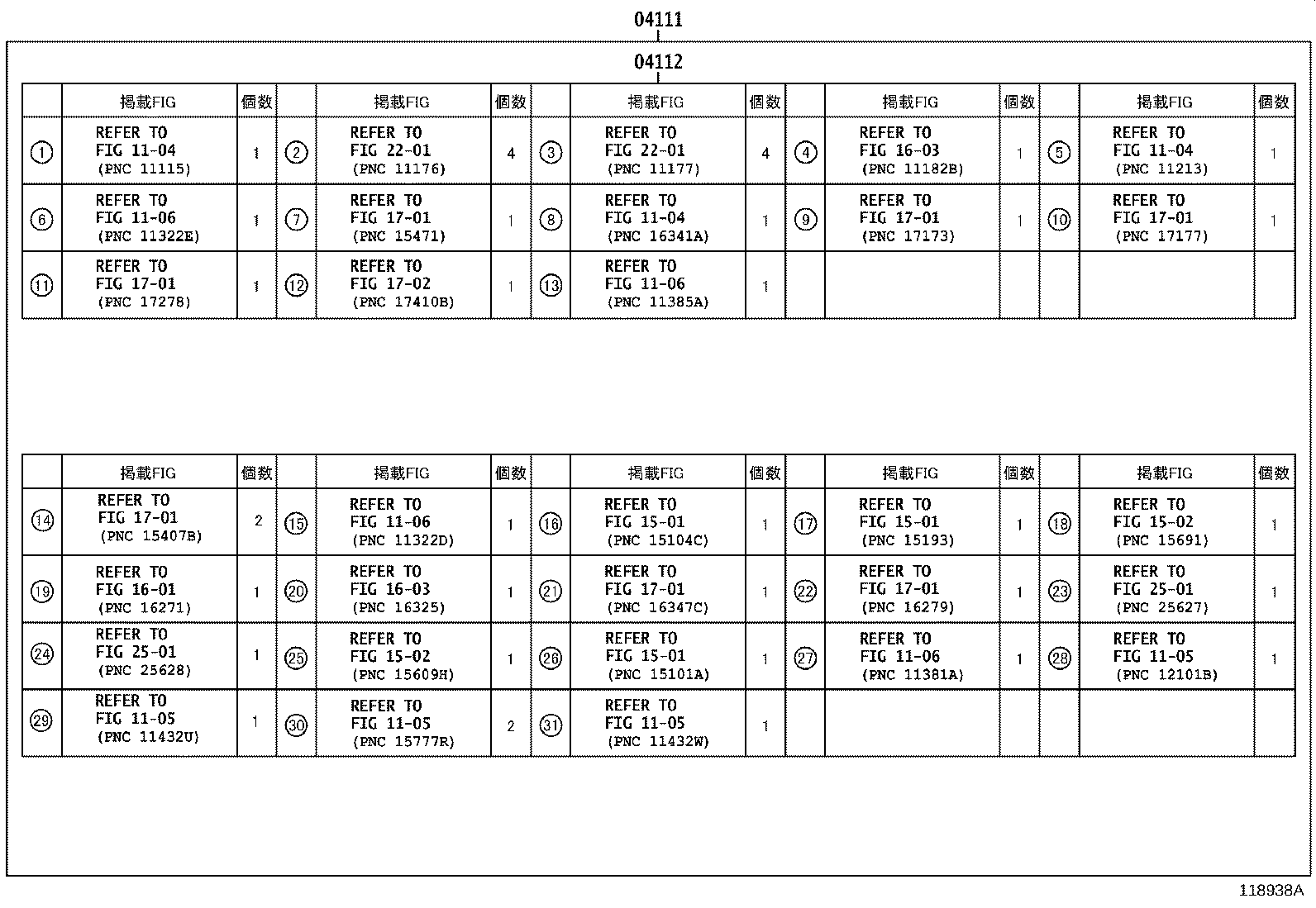

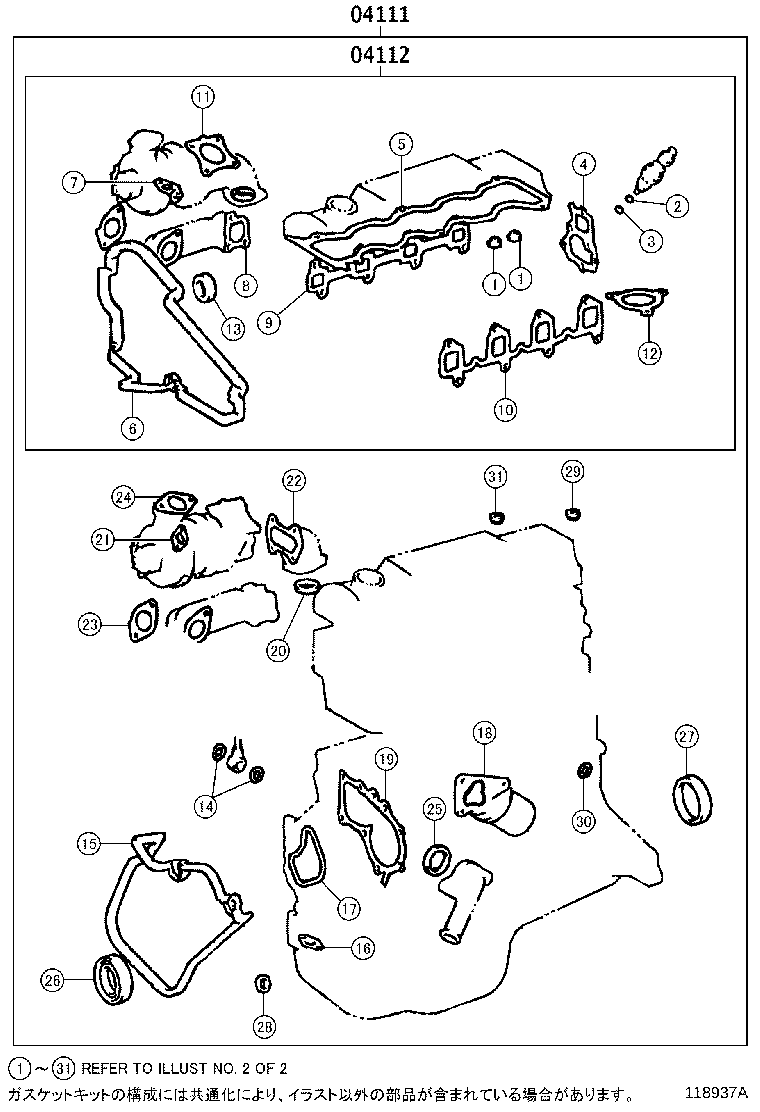

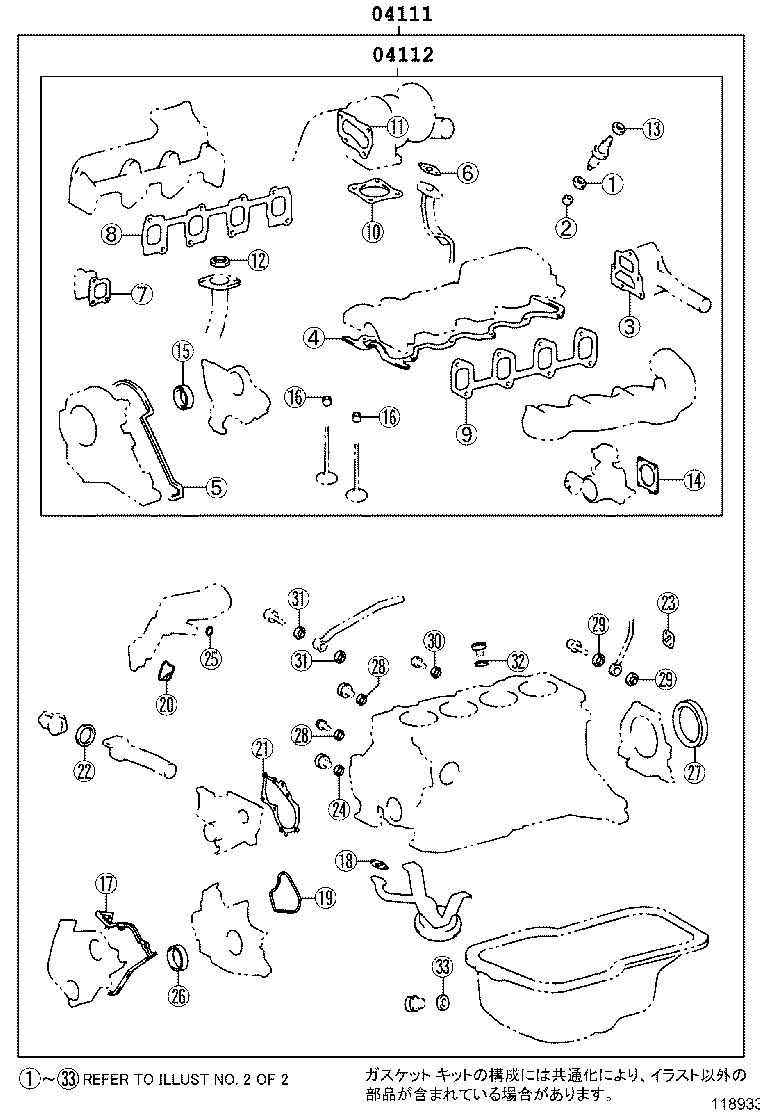

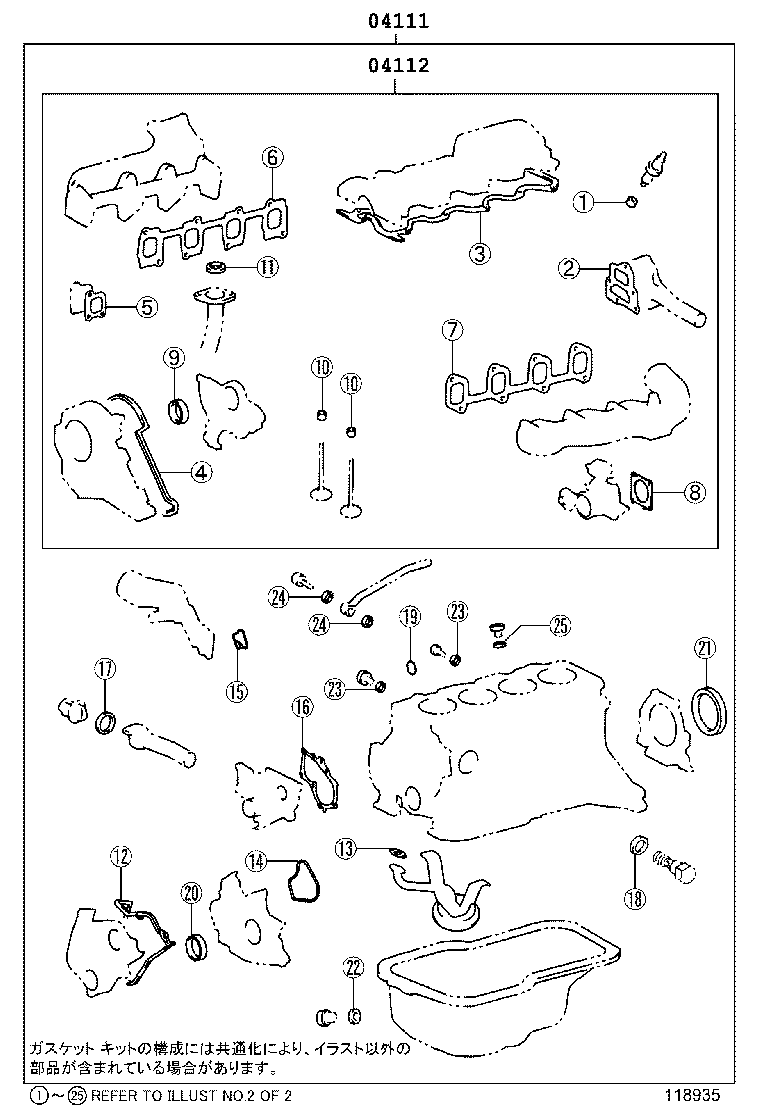

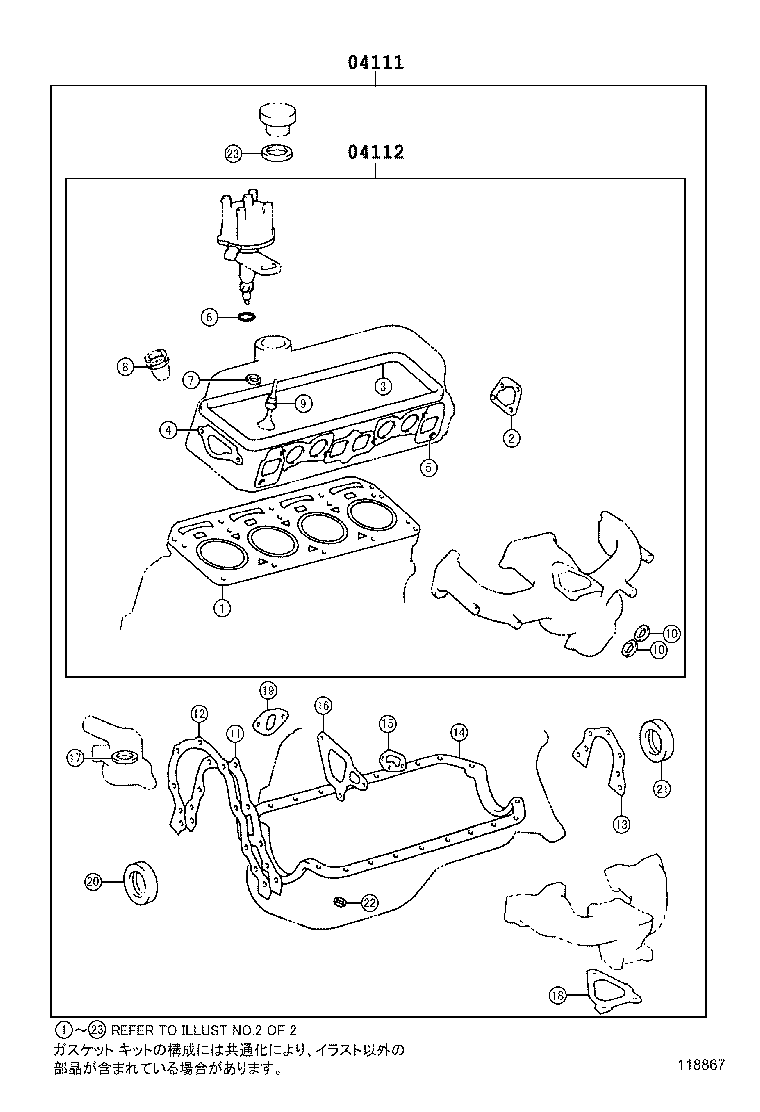

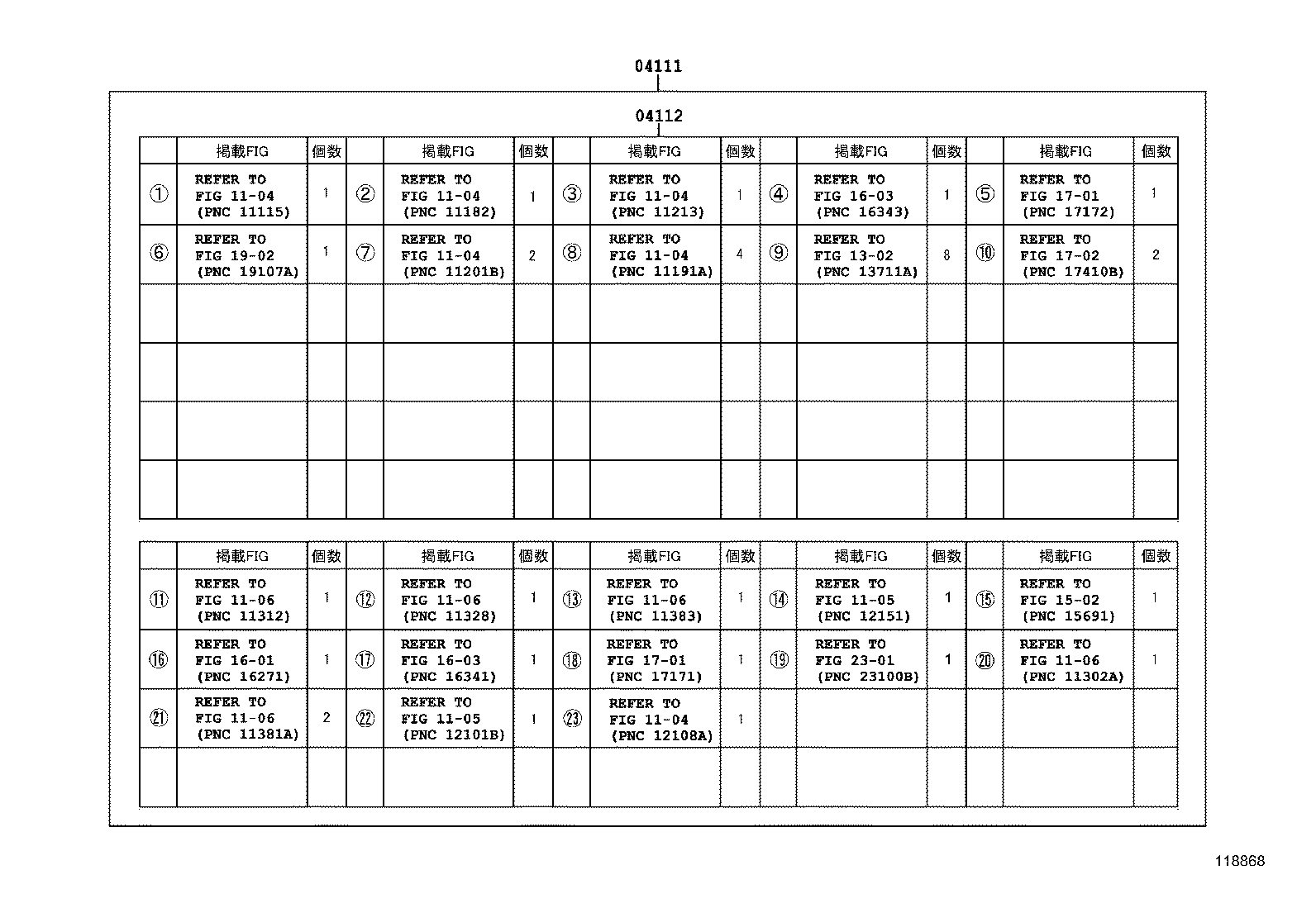

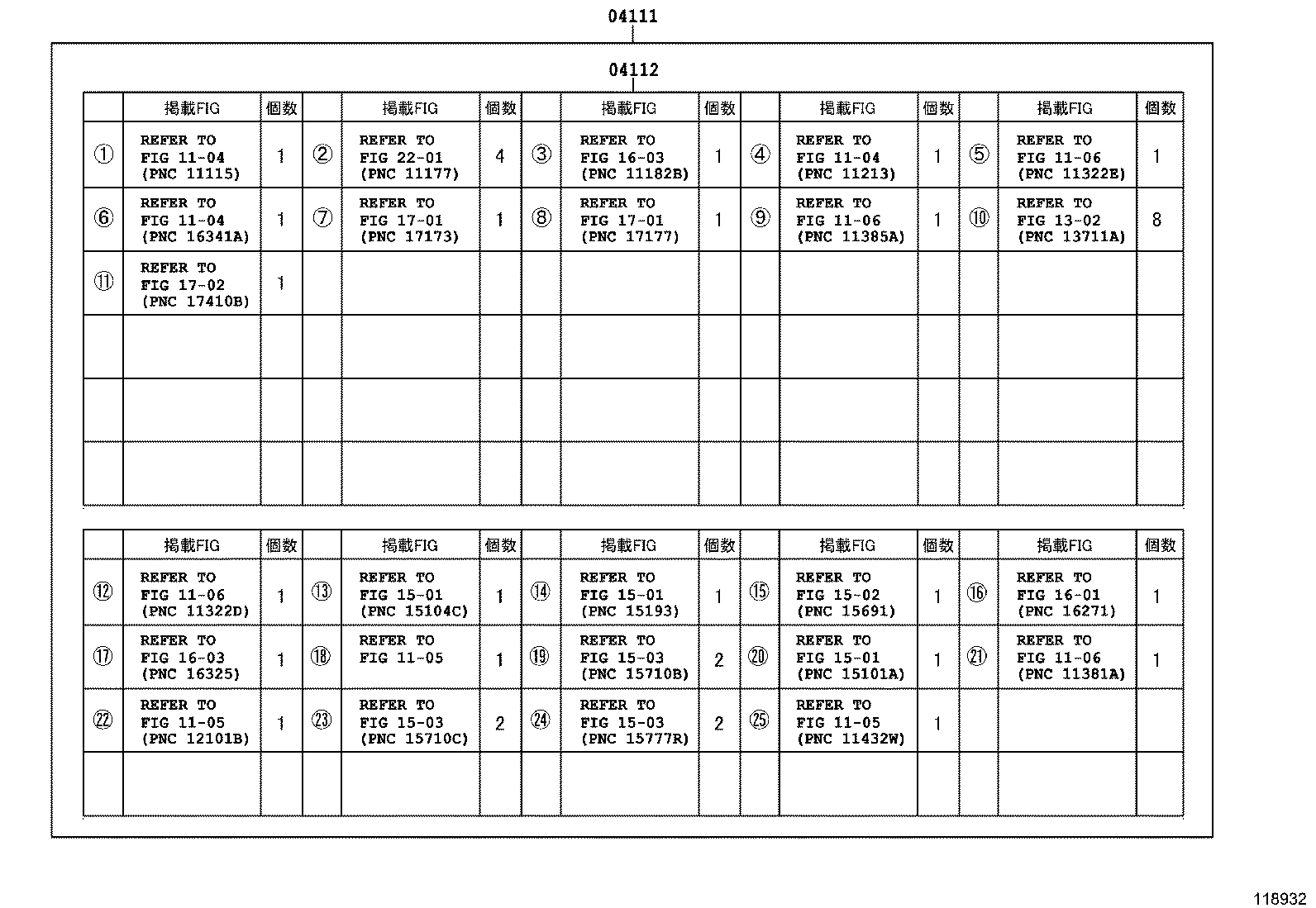

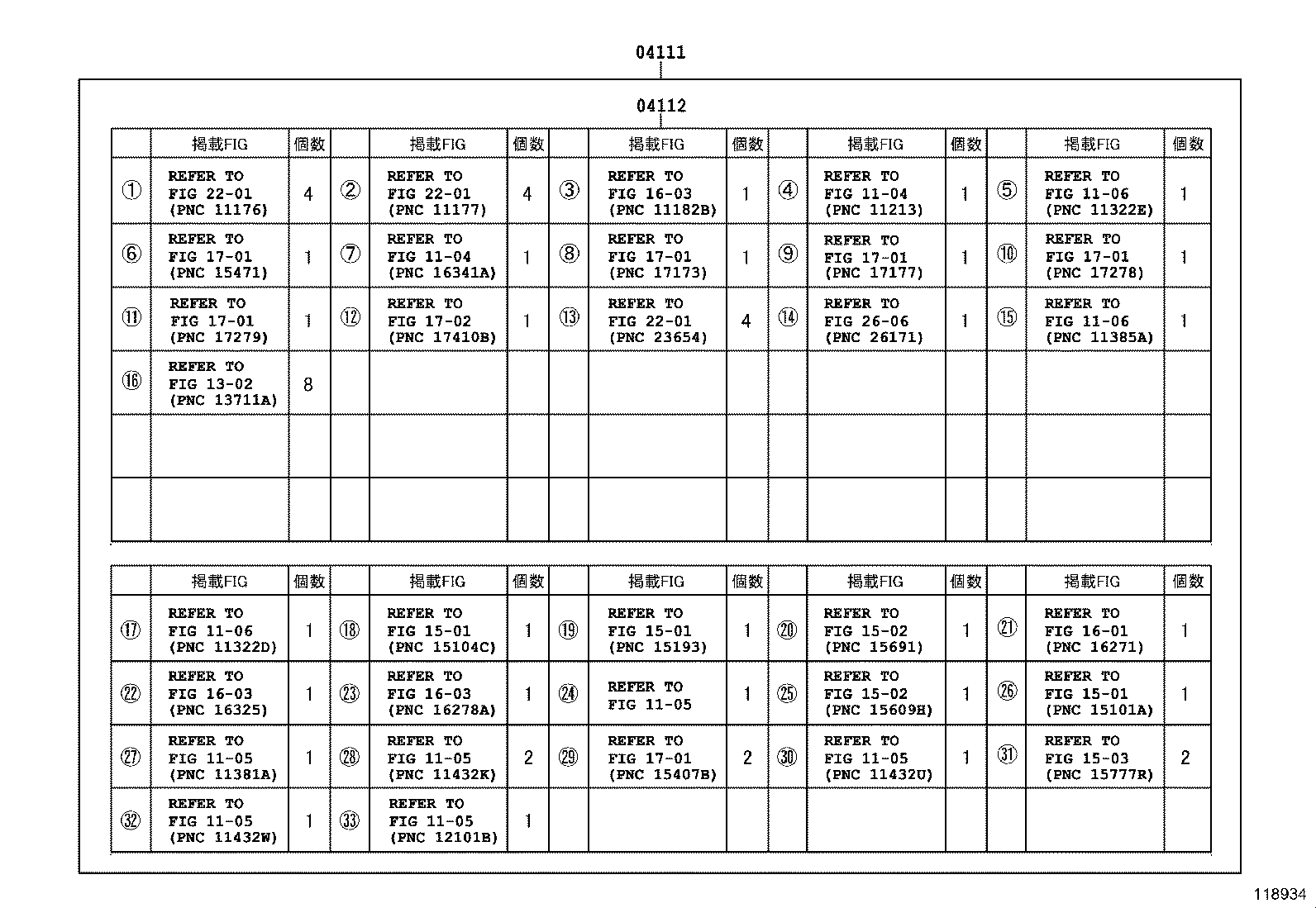

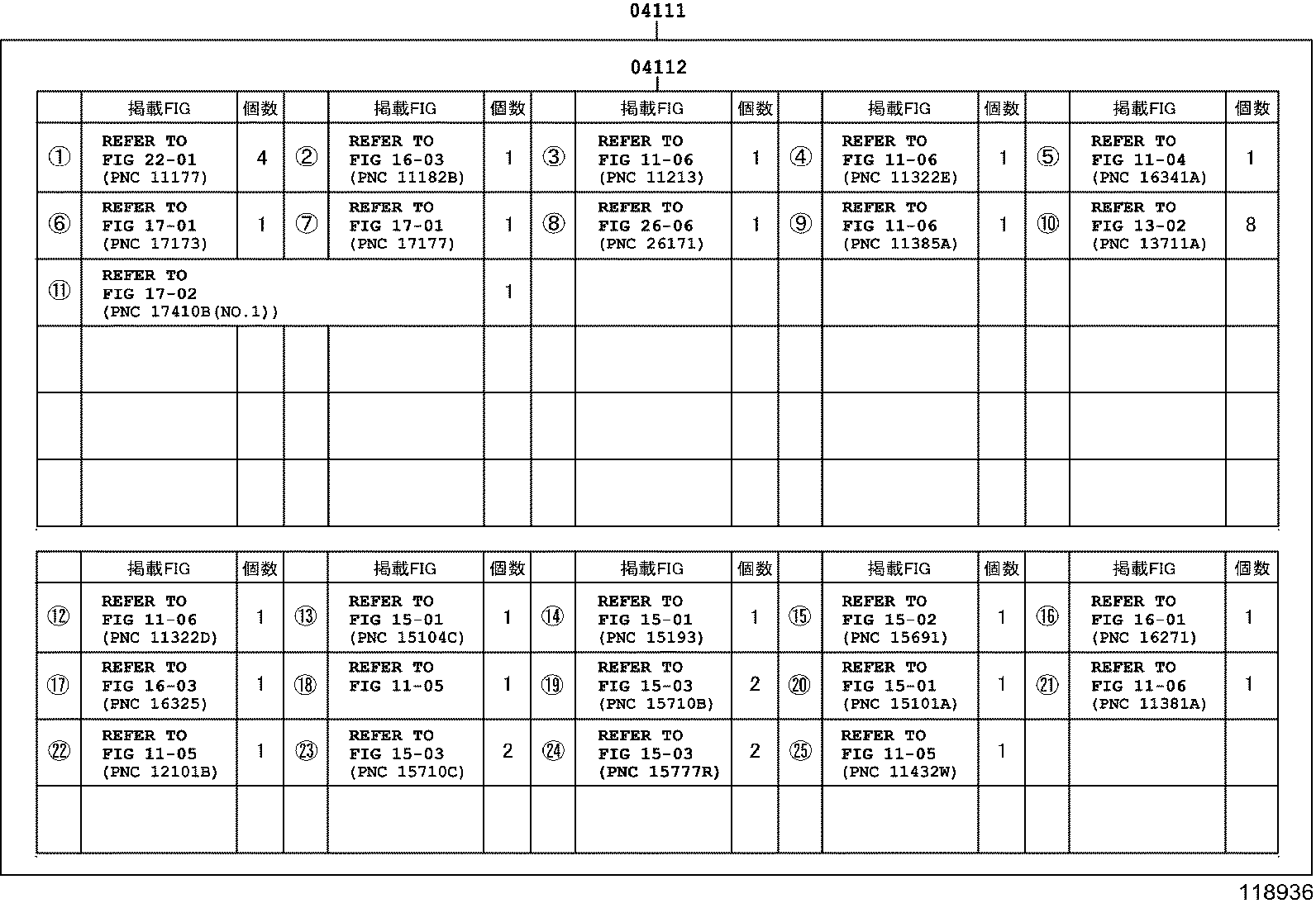

Figure 118931A 118931A 1996-11 → 1998-12 Figure 118932 118932 1996-11 → 1998-12 Figure 118937A 118937A 1996-10 → 1998-12 Figure 118938A 118938A 1996-10 → 1998-12 Figure 118935 118935 1998-12 → — Figure 118936 118936 1998-12 → — Figure 118933 118933 1998-12 → — Figure 118934 118934 1998-12 → — Figure 118867 118867 1996-11 → 1998-12 Figure 118868 118868 1996-11 → 1998-12 Figure 118869 118869 1998-12 → — Figure 118871 118871 1998-12 → — Figure 110016A 110016A 1996-10 → — Figure 117946 117946 1996-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
