Toyota Lite/Townace Noah,V
1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan
Discontinued model
Data version 2008-04

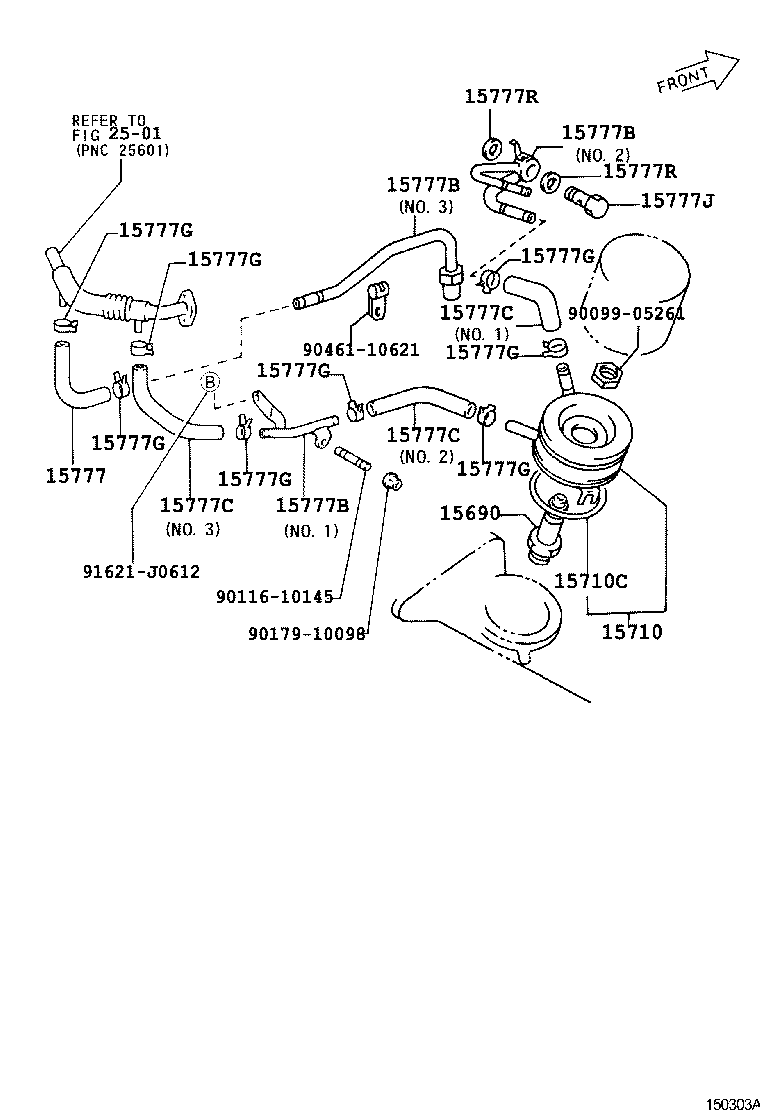

Engine Oil Cooler
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15690 | Valve Assy, Oil Cooler Relief |
| 15710 | Cooler Assy, Oil |
| 15710C | Gasket(FOR OIL COOLER) |
| 15777 | Hose, Oil Cooler |
| 15777B | Pipe, Oil Cooler |
| 15777C | Hose, Oil Cooler |
| 15777G | Clamp OR Crip, Hose |
| 15777J | Bolt, Union(FOR OIL COOLER PIPE) |
| 15777R | Gasket(FOR OIL COOLER PIPE UNION BOLT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
