Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

16 part groups · 10 illustrations

Illustrations

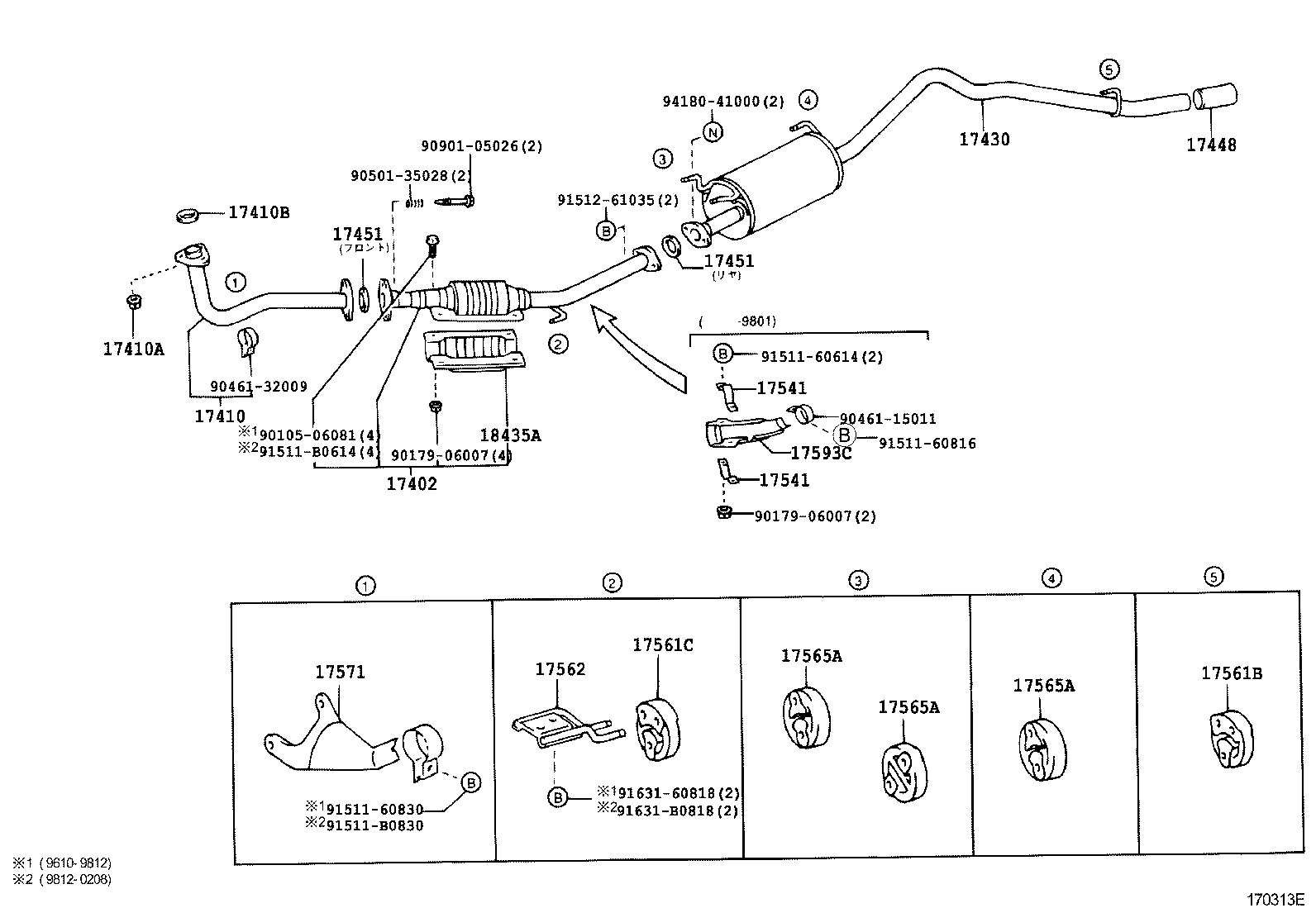

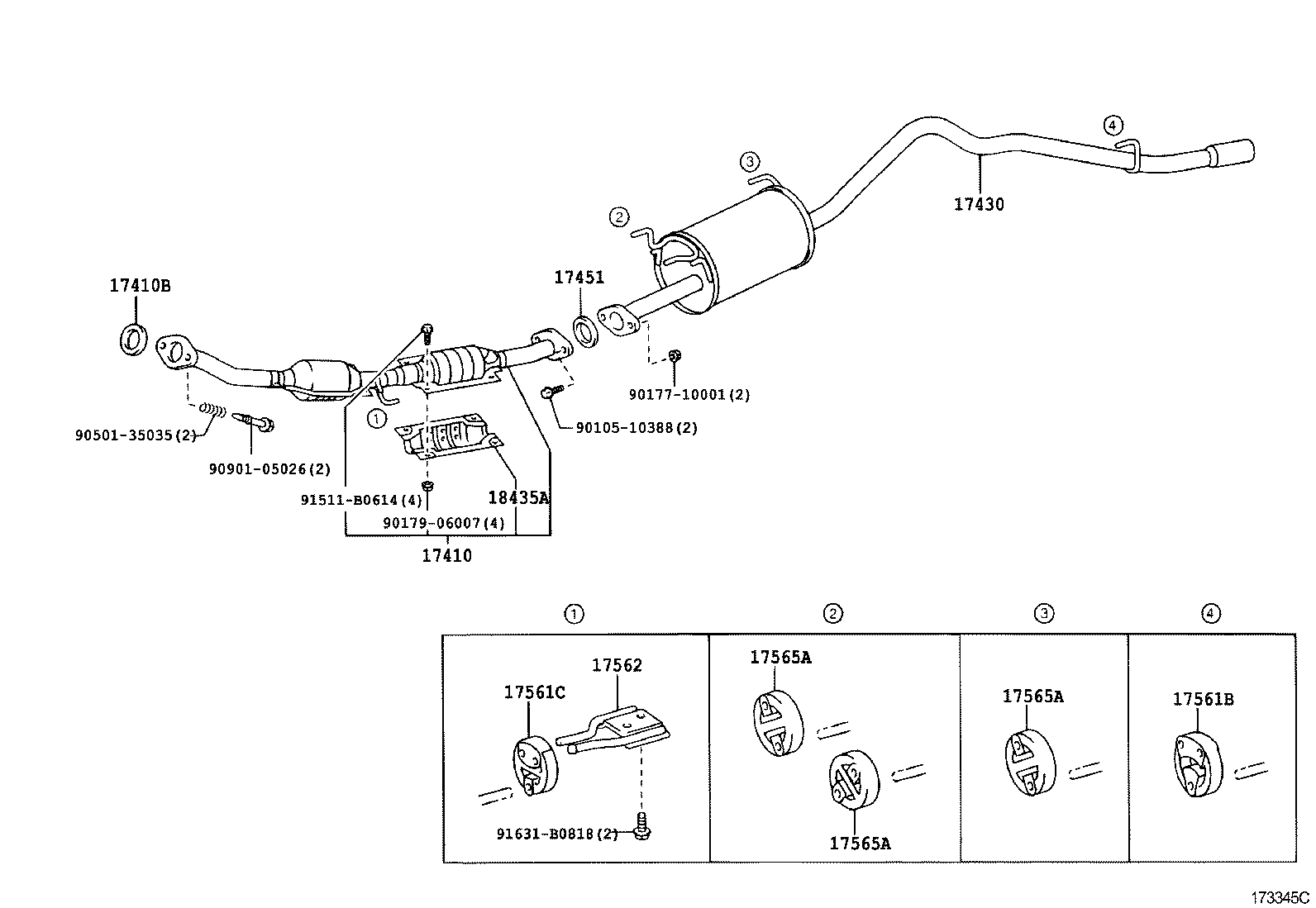

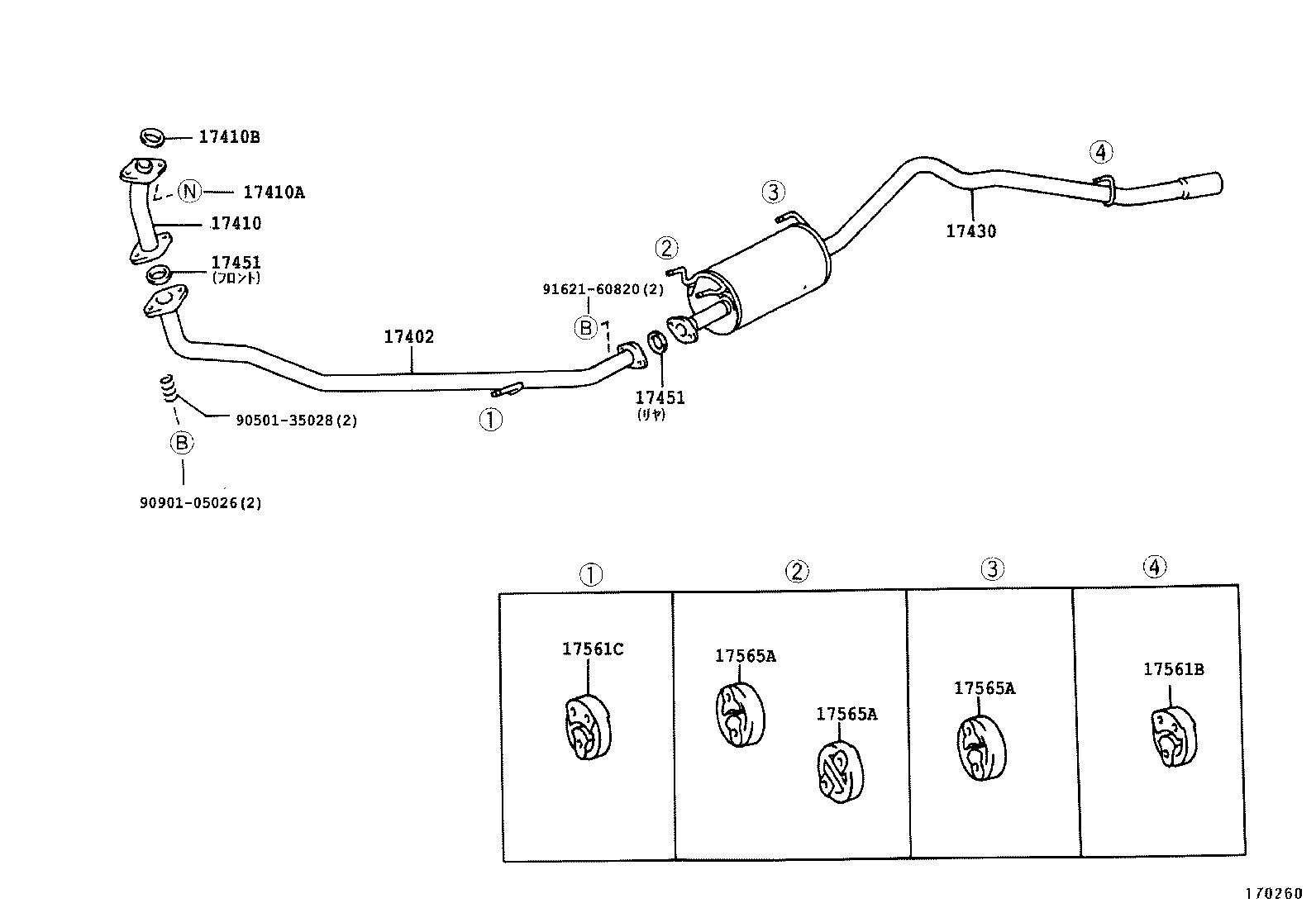

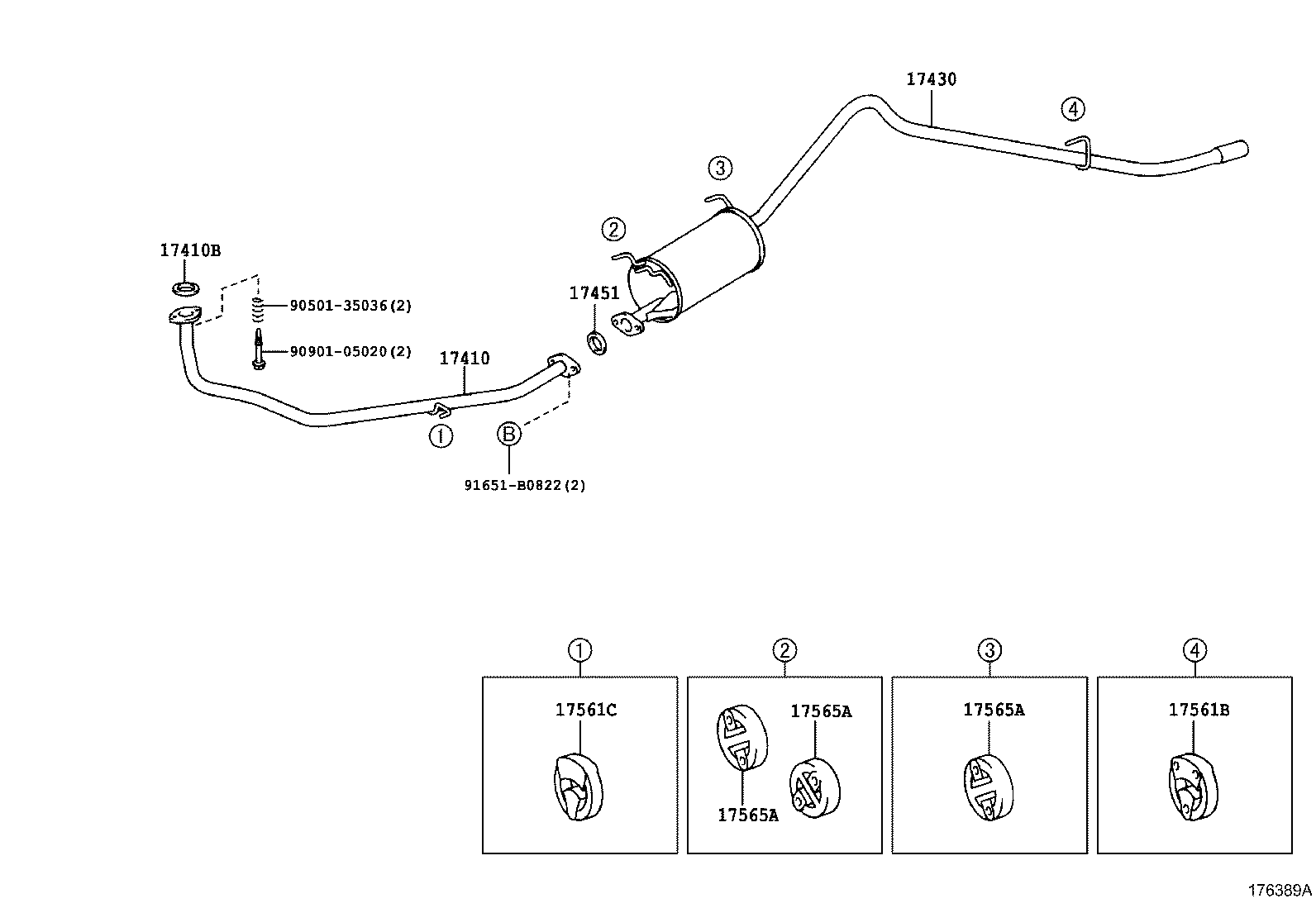

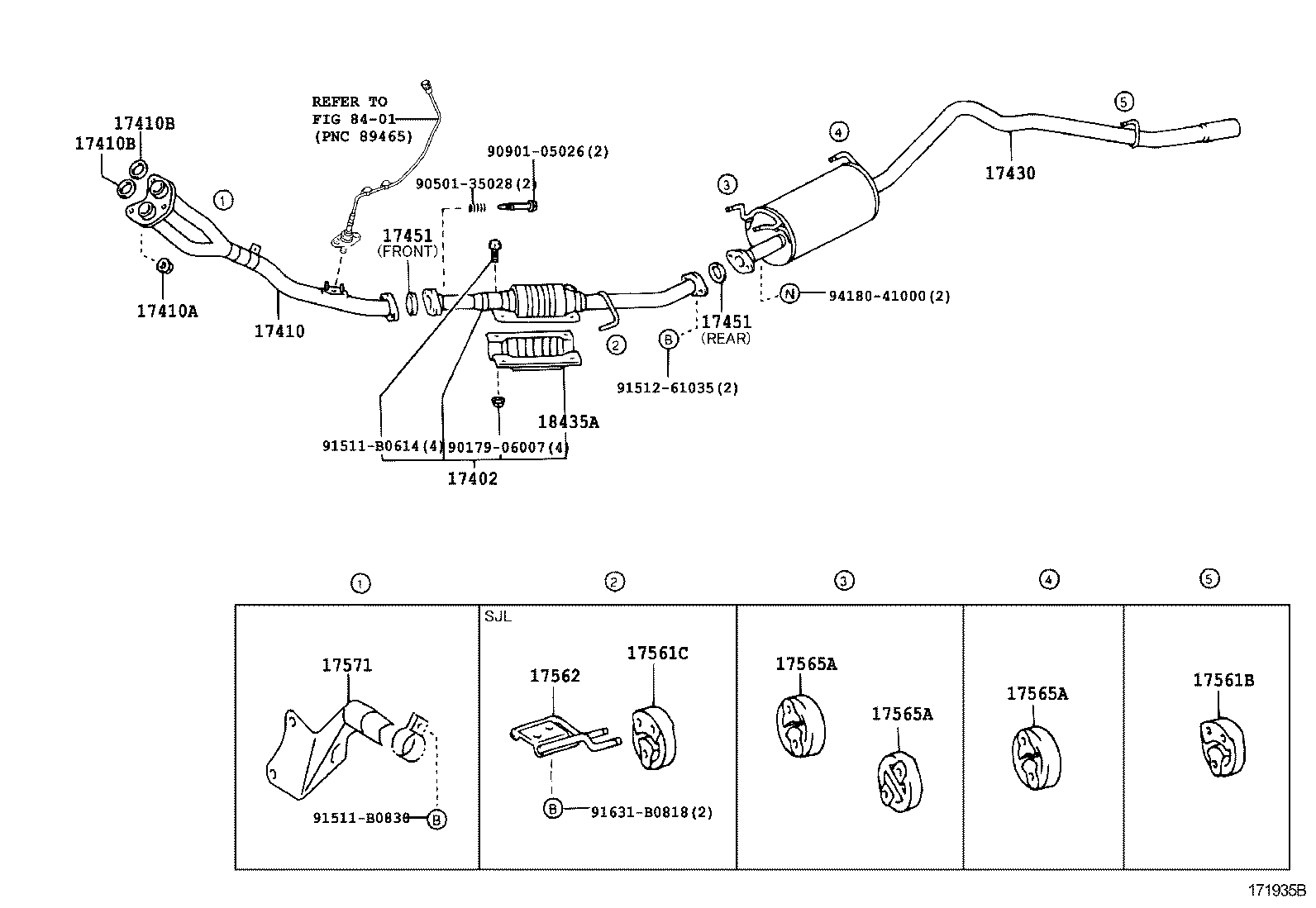

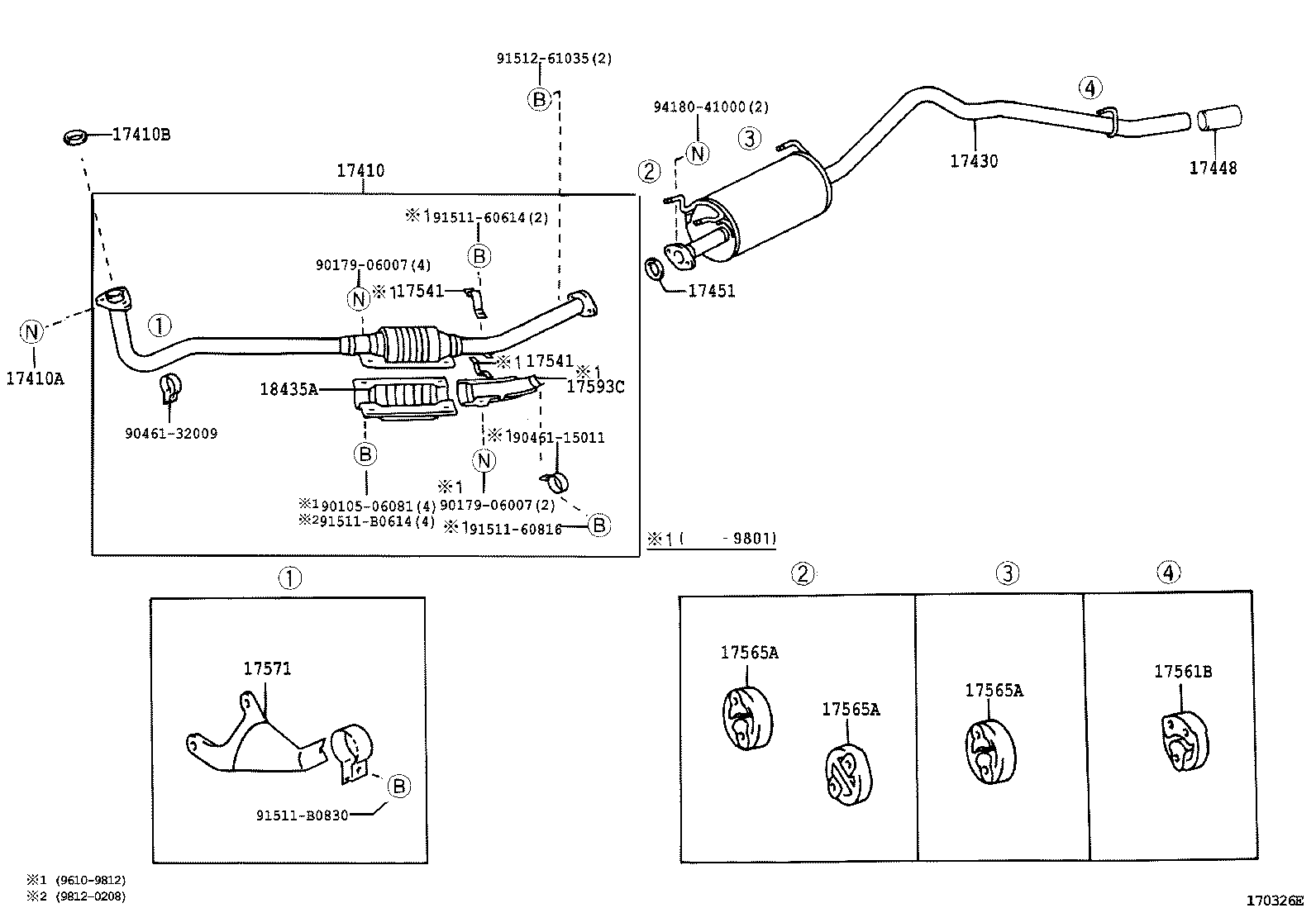

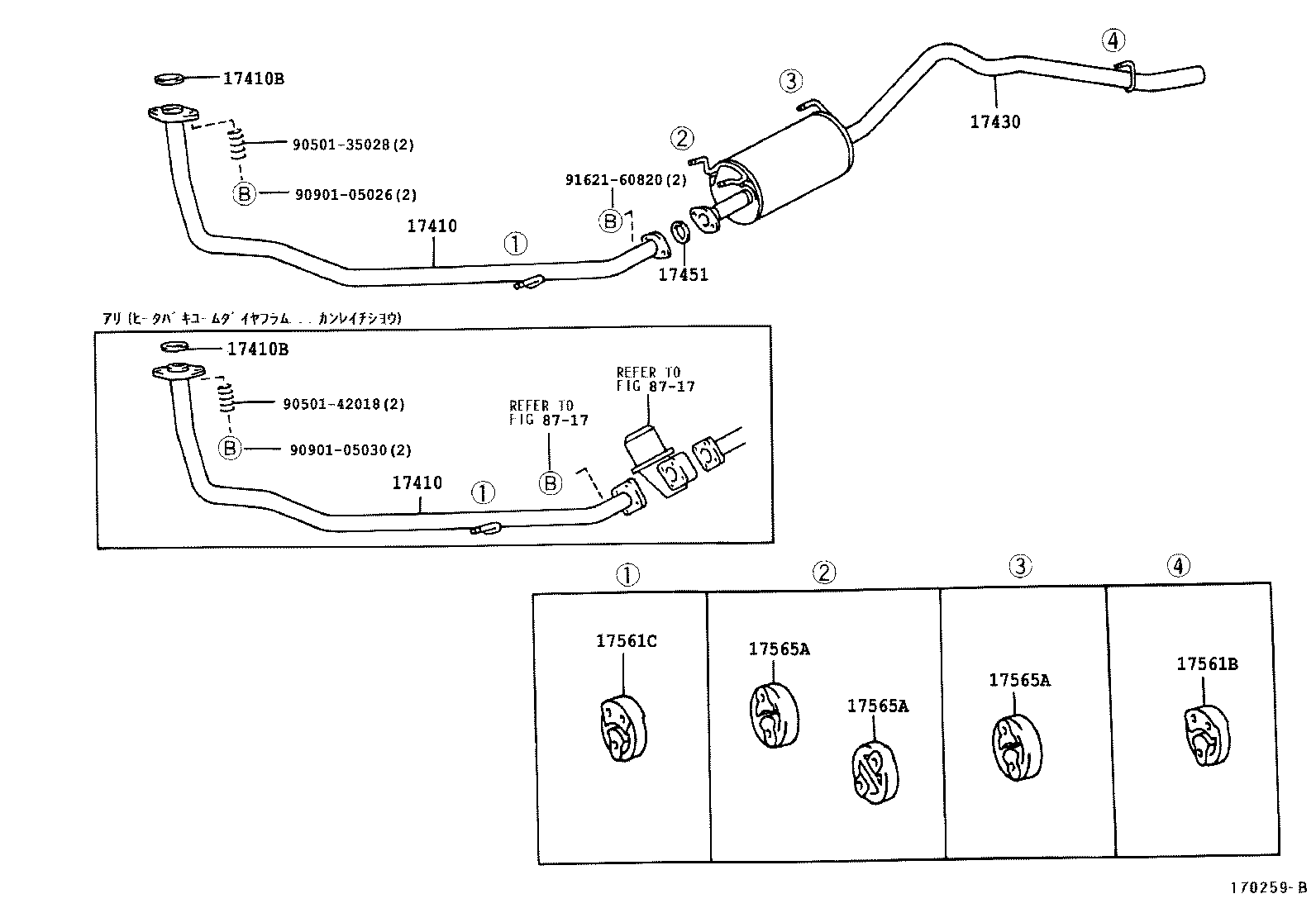

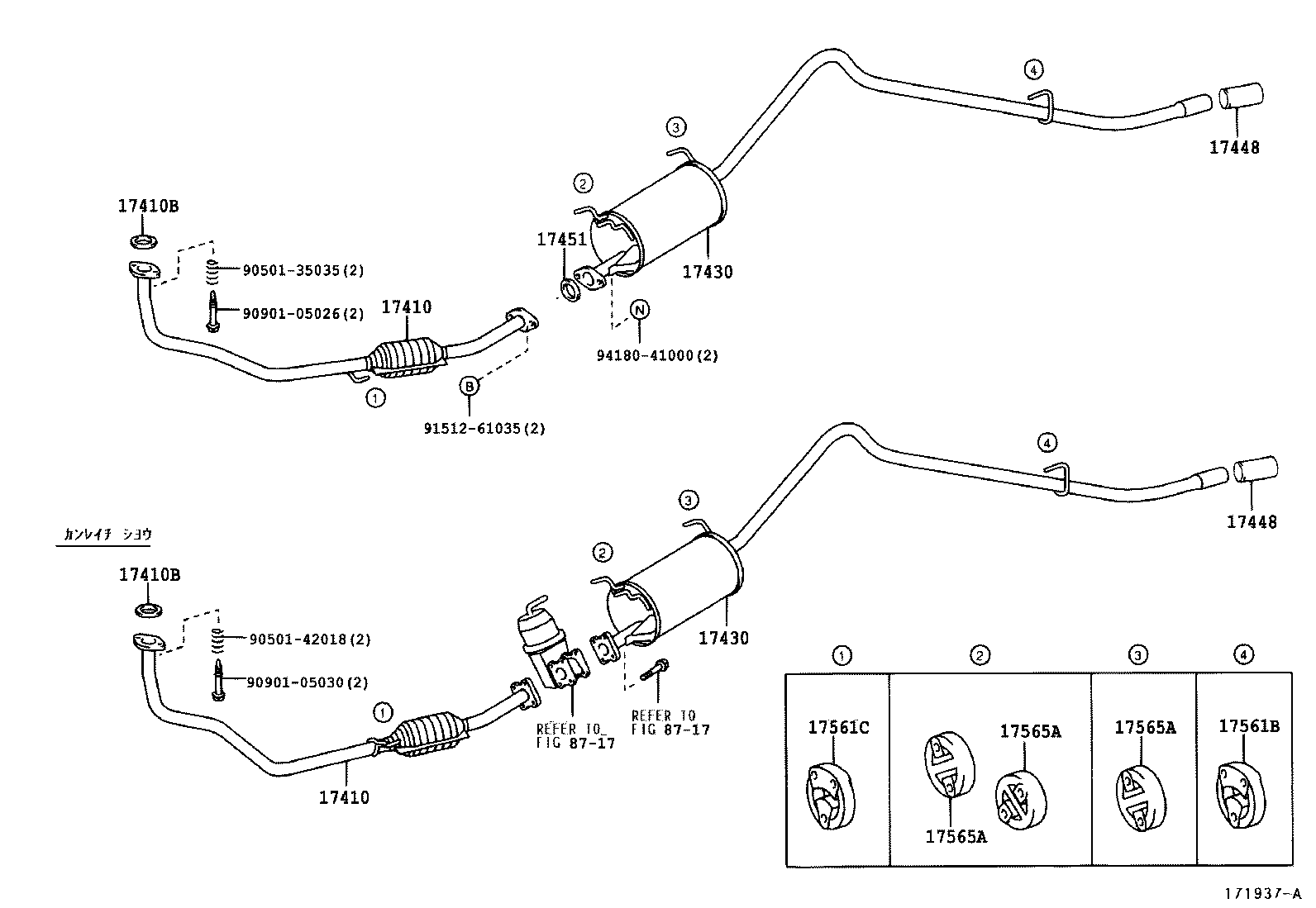

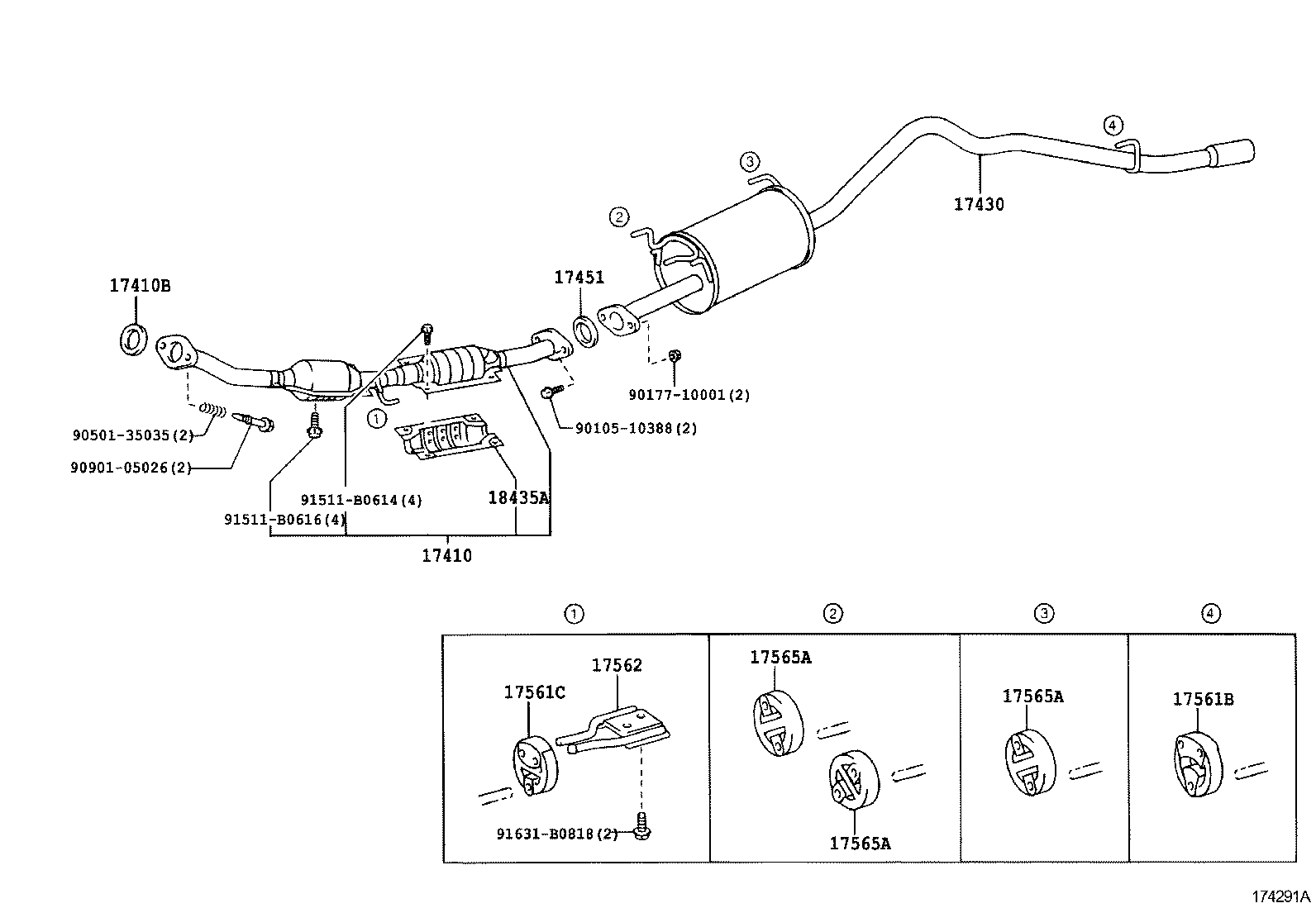

Figure 170311 170311 1996-11 → 1998-12 Figure 171935B 171935B 1998-12 → 2002-08 Figure 173345C 173345C 2002-08 → — Figure 174291A 174291A 2004-12 → — Figure 170260 170260 1996-11 → 1998-12 Figure 170259B 170259B 1996-10 → 1998-12 Figure 176389A 176389A 1998-12 → — Figure 171937A 171937A 1998-12 → — Figure 170313E 170313E 1996-10 → — Figure 170326E 170326E 1996-10 → —

Part groups

PNCDescription
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17541 Stay, Exhust Pipe Protector, NO.1
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17593C Protector, Exhaust Pipe, Lower NO.1
17599 Holder, Exhaust Pipe Support Stopper
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
