Toyota Lite/Townace Noah,V
1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan
Discontinued model
Data version 2008-04

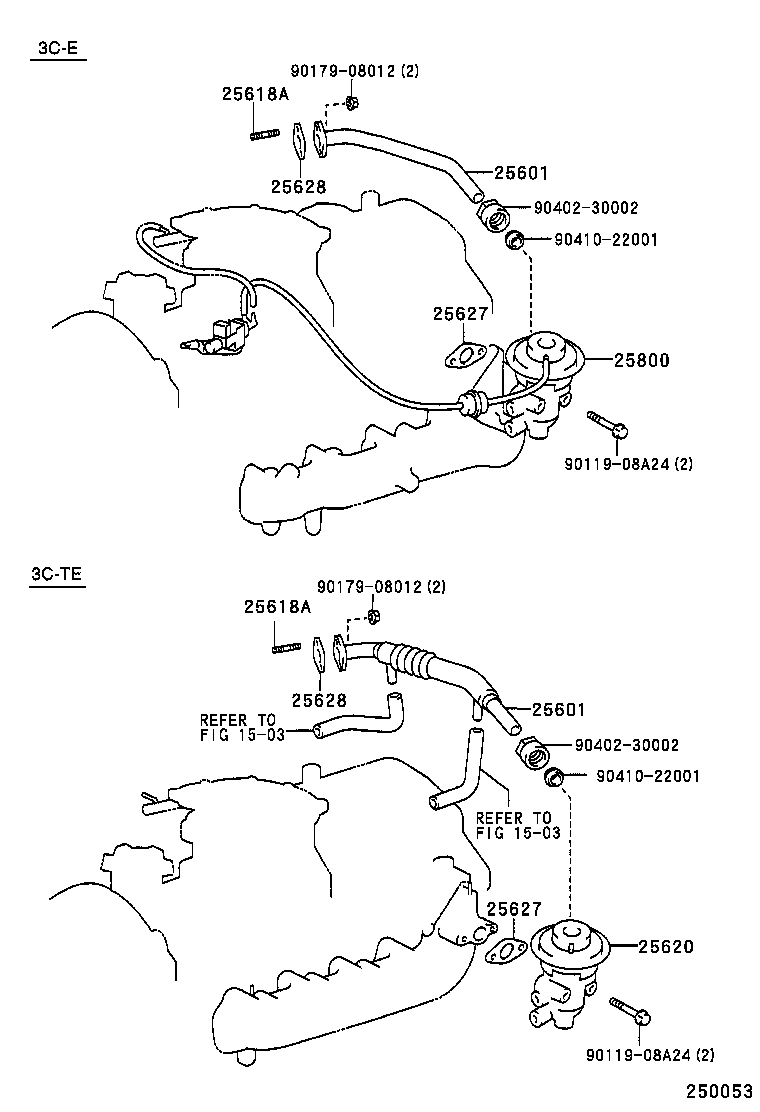

Exhaust Gas Recirculation System
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25618A | Bolt, Stud(FOR EGR INLET) |
| 25620 | Valve Assy, Egr |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25691 | Bracket, Egr Vacuum Modulator |
| 25800 | Valve Assy, Electric Egr Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
