Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

200 part groups · 13 illustrations

Illustrations

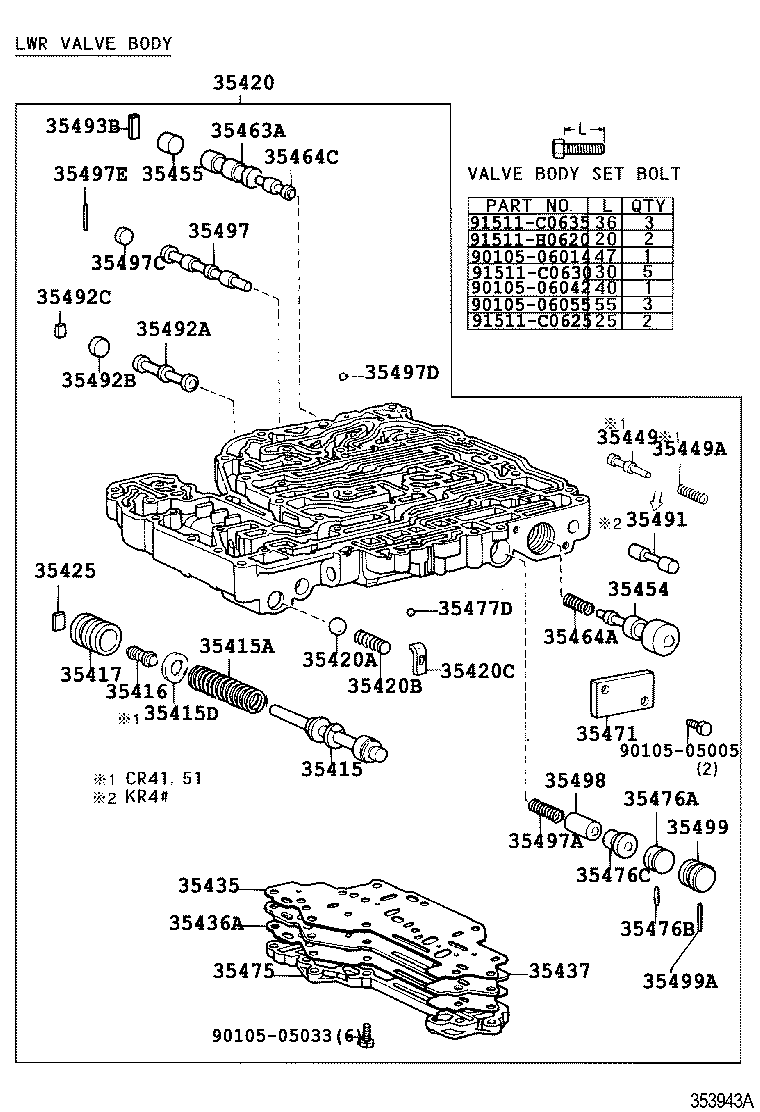

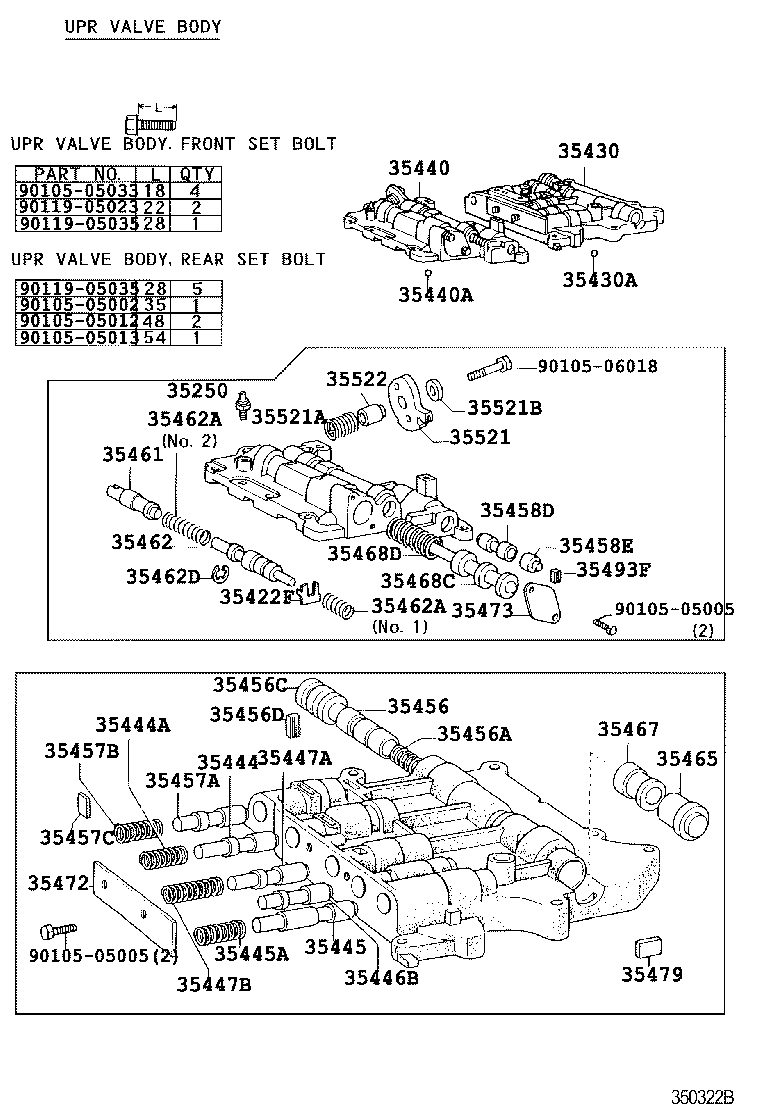

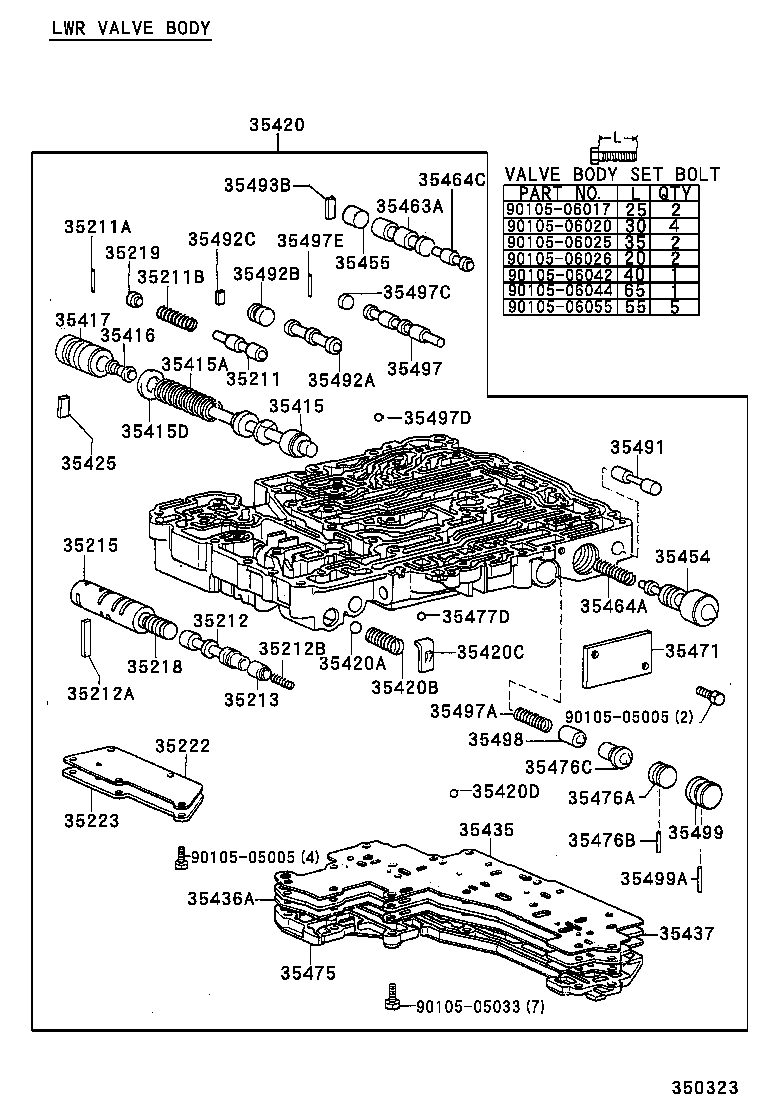

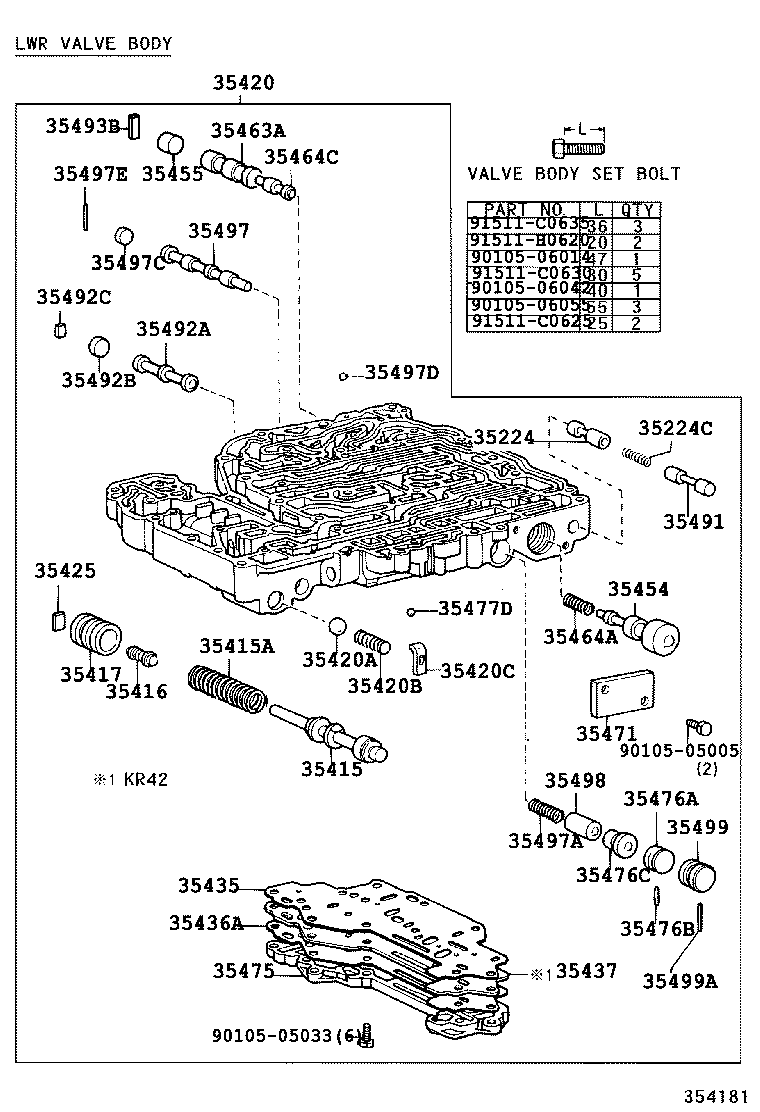

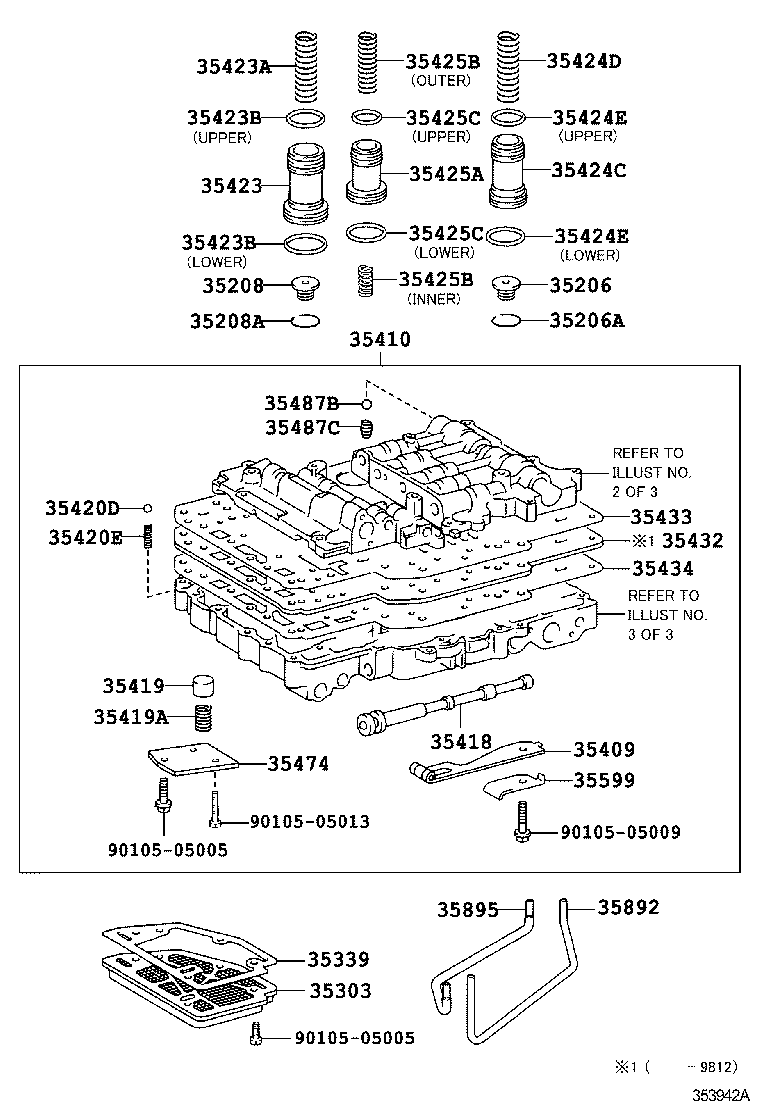

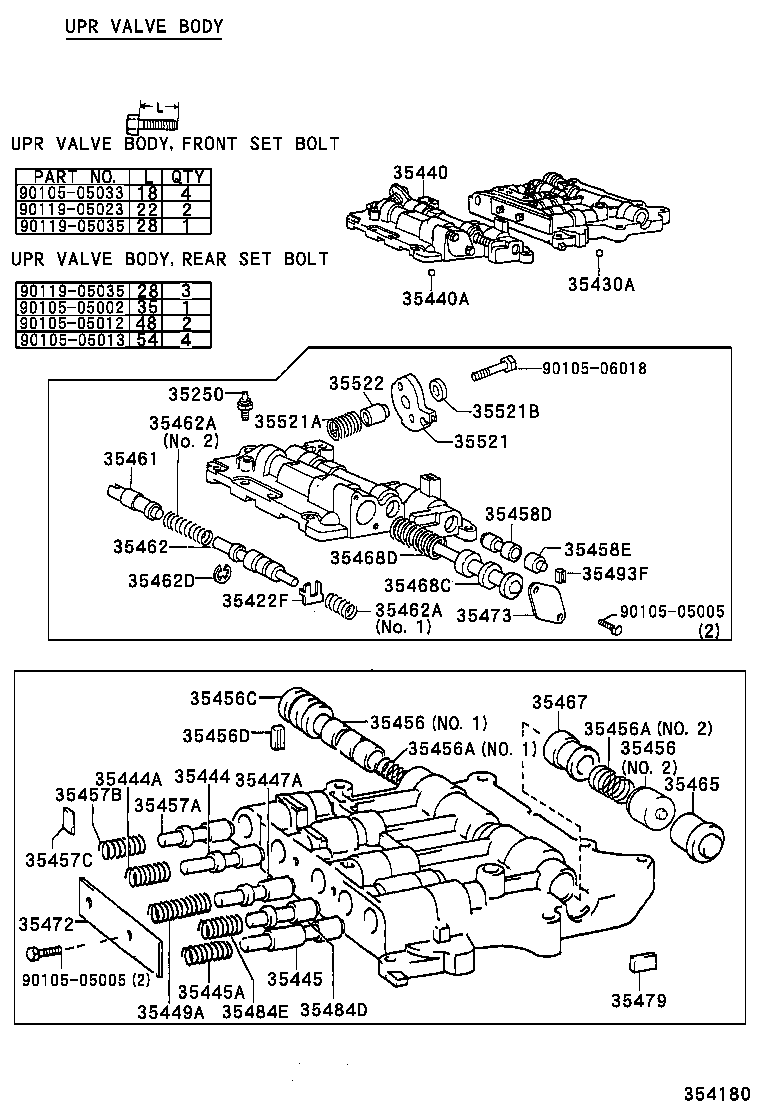

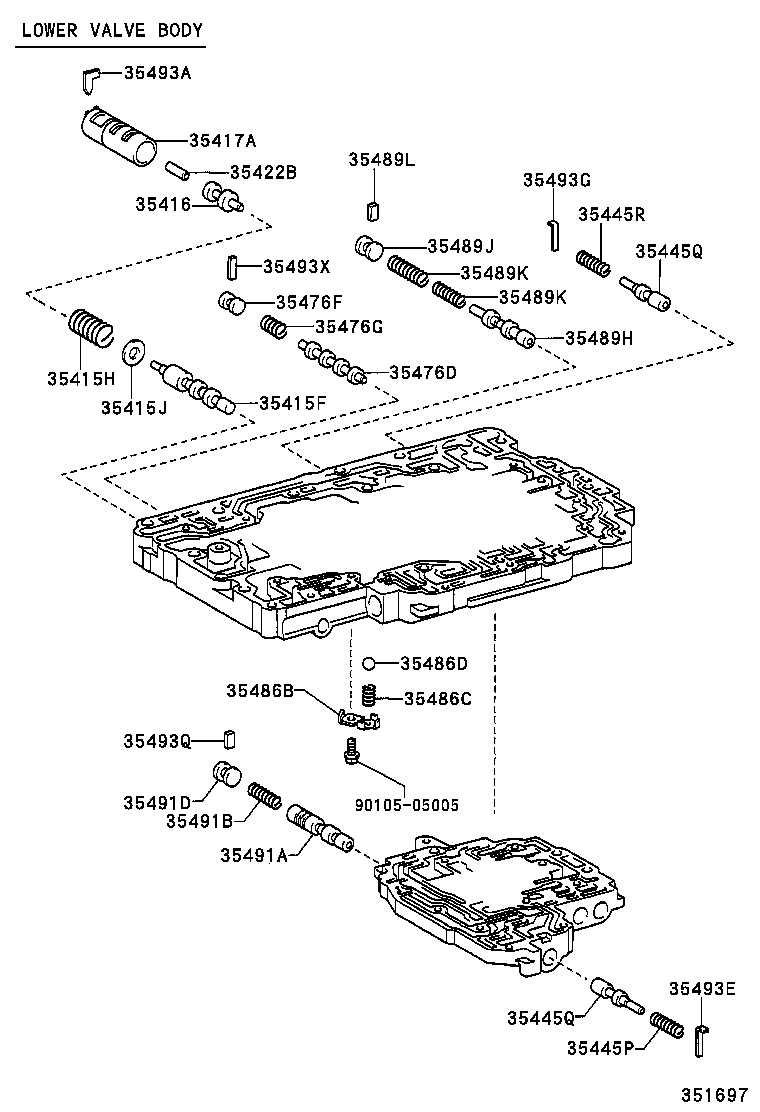

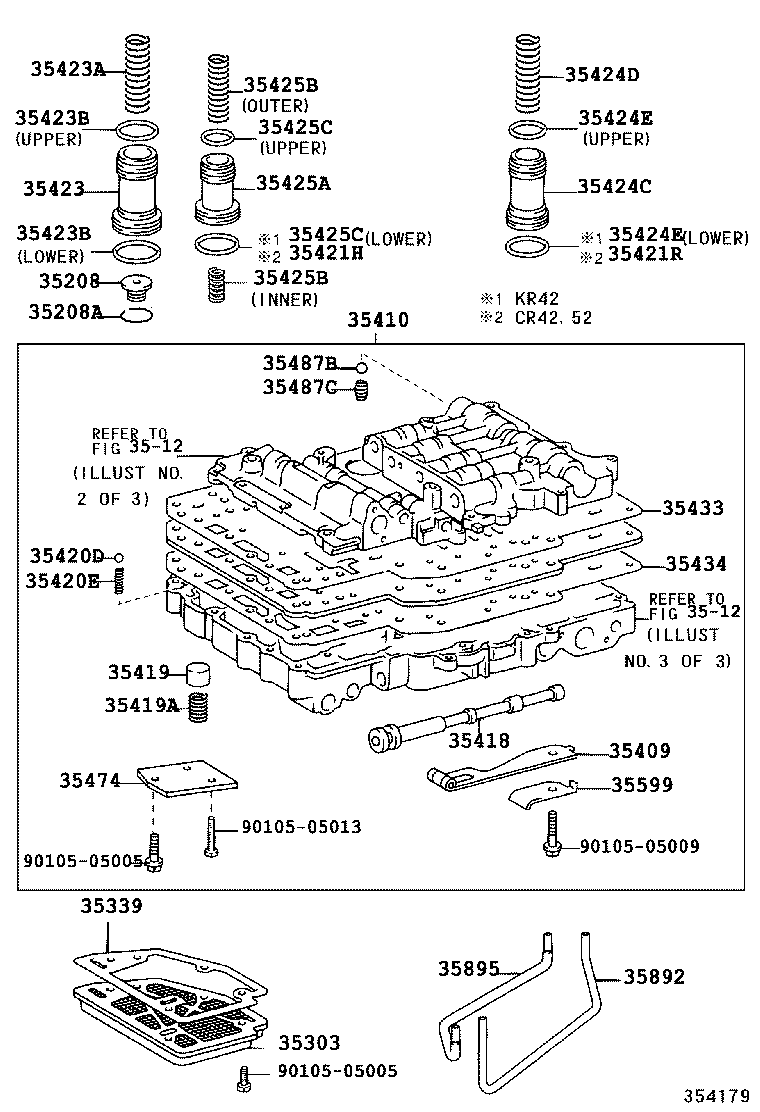

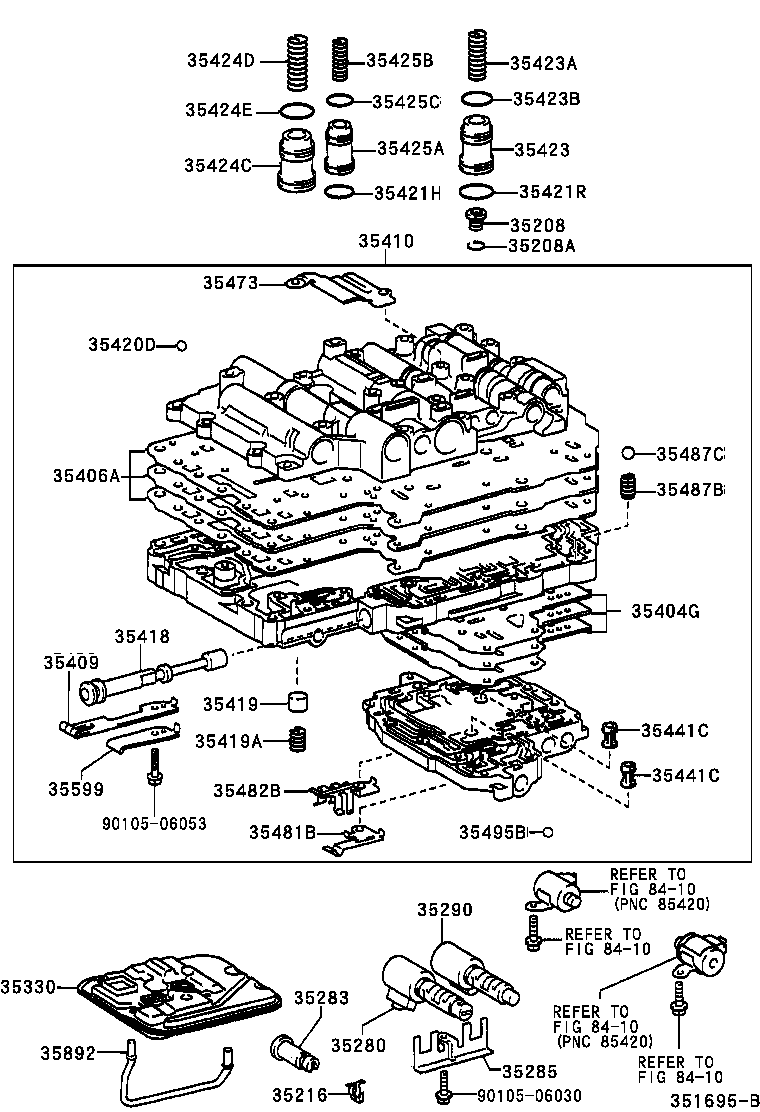

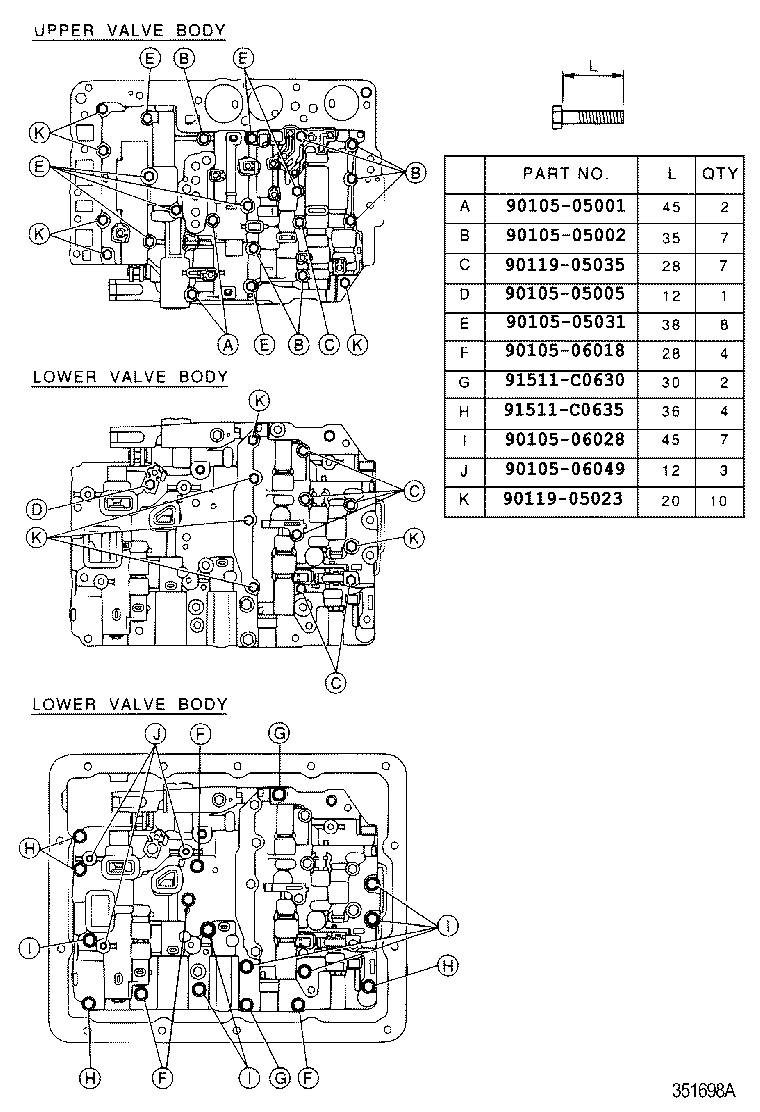

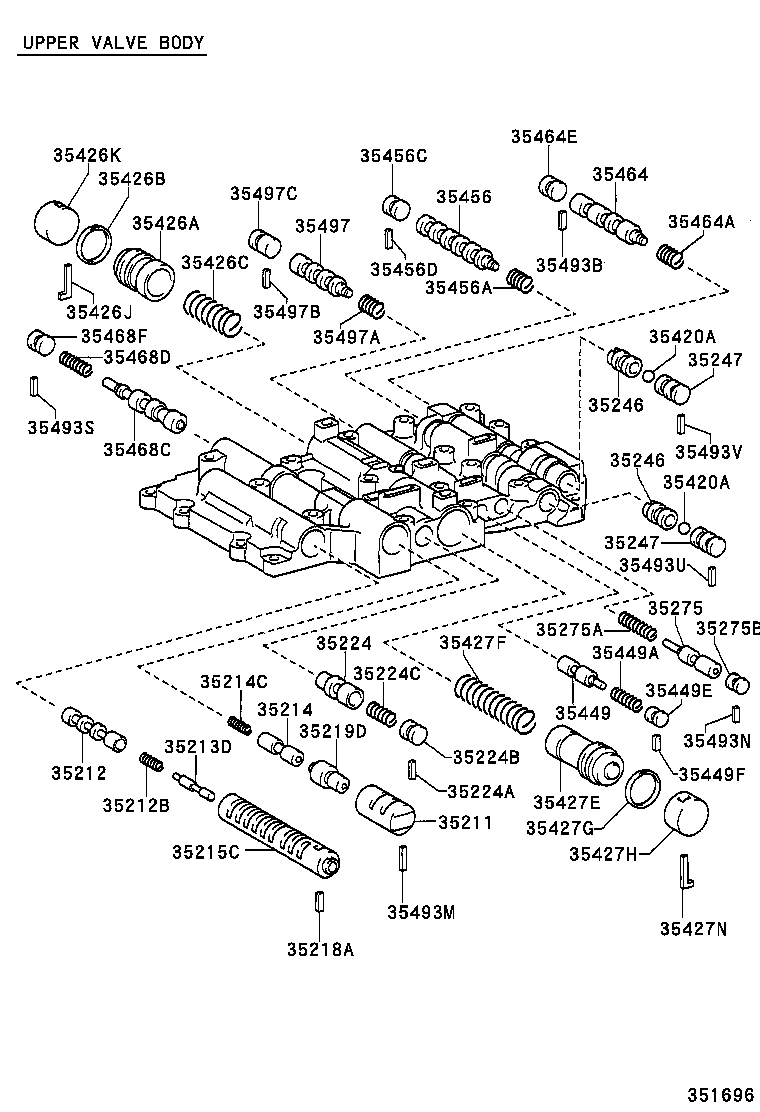

Figure 350320A 350320A 1996-10 → 1998-12 Figure 353942A 353942A 1996-11 → 2002-08 Figure 354179 354179 2002-08 → — Figure 350322B 350322B 1996-10 → 1998-12 Figure 350322B 350322B 1998-12 → 2002-08 Figure 354180 354180 2002-08 → — Figure 350323 350323 1996-10 → 1998-12 Figure 353943A 353943A 1996-10 → 2002-08 Figure 354181 354181 2002-08 → — Figure 351695B 351695B 1998-12 → — Figure 351696 351696 1998-12 → — Figure 351697 351697 1998-12 → — Figure 351698A 351698A 1998-12 → —

Part groups

PNCDescription
35206 Spring Sub-assy, C-1 Accumulator
35206A Ring, Hole Snap (FOR C-1 ACCUMULATOR SPRING)
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35211 Valve, Lock UP Signal
35211A Pin, Straight (FOR LOCK UP SIGNAL VALVE)
35211B Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35212 Valve, Lock UP Relay
35212A Seat, Plug (FOR LOCK UP RELAY VALVE)
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213 Valve, Lock UP Relay Control
35213D Plunger, Lock UP Relay Valve
35214 Valve, Lock UP Control
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215 Sleeve, Lock UP Relay Valve
35215C Sleeve, Lock UP Relay Valve, NO.1
35216 Stopper, Valve Sleeve
35218 Plug, Lock UP Relay Valve
35218A Key, Straight (FOR LOCK UP RELAY VALVE PLUG)
35219 Plug, Lock UP Signal Valve
35219D Plunger, Lock UP Control Valve
35222 Plate, Lock UP Relay Valve Body
35223 Gasket, Lock UP Relay Valve Body
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35246 Valve, Check, NO.1
35247 Valve, Check, NO.2
35250 Body Assy, Check Ball
35275 Valve, Solenoid Modulator
35275A Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275B Plug (FOR SOLENOID MODULATOR VALVE)
35280 Solenoid Assy, Lock UP Control
35283 Sleeve, Lock UP Control Solenoid
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35303 Strainer Sub-assy, Oil
35330 Strainer Assy, Valve Body Oil
35331 Cover, Oil Strainer
35339 Gasket, Oil Strainer
35404G Plate Sub-assy, Valve Body, NO.2
35406A Plate Sub-assy, Valve Body
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35415 Valve, Pressure Regulator
35415A Spring, Compression (FOR PRESSURE REGULATOR VALVE)
35415D Shim (FOR PRESSURE REGULATOR VALVE)
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417 Sleeve, Pressure Regulator Valve
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35420 Body Assy, Lower Valve
35420A Ball (FOR PRESSURE RELIEF)
35420B Spring (FOR PRESSURE RELIEF)
35420C Seat (FOR PRESSURE RELIEF)
35420D Ball (FOR LOWER VALVE BODY)
35420E Spring (FOR LOWER VALVE BODY)
35421H Ring (FOR ACCUMULATOR PISTON NO.2)
35421R Ring (FOR ACCUMULATOR PISTON NO.3)
35422B Plunger, Primary Regulator Valve, NO.2
35422F Stopper, Valve Vibrating
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425 Seat, Pressure Regulator Valve Sleeve
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35426J Seat, C-0 Accumulator Piston Plug
35426K Plug, C-0 Accumulator Piston
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35427H Plug, B-0 Accumulator Piston
35427N Seat, B-0 Accumulator Piston Plug
35430 Body Assy, Rear Upper Valve
35430A Ball (FOR REAR UPPER VALVE BODY)
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35435 Gasket, Valve Body Plate, NO.3
35436A Gasket, Valve Body Plate, NO.4
35437 Plate, 3-4 Shift Valve Separator
35440 Body Assy, Front Upper Valve
35440A Ball (FOR FRONT UPPER VALVE BODY)
35441C Strainer, Solenoid Oil
35444 Valve, Intermediate Modulator
35444A Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE)
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35446B Plug, Governor Modulator Valve
35447A Valve, Reverse Clutch Sequence
35447B Spring, Compression (FOR REVERSE CLUTCH SEQUENCE VALVE)
35449 Valve, Sequence
35449A Spring, Compression (FOR SEQUENCE VALVE)
35449E Plug, Sequence Valve
35449F Seat, Reverse Sequence Valve Plug
35454 Valve, Low Coast Shift
35455 Plug, 1-2 Shift Valve Low
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456D Seat (FOR 2-3 SHIFT VALVE)
35457A Valve, Detent Regulator
35457B Spring, Compression (FOR DETENT REGULATOR VALVE)
35457C Seat (FOR DETENT REGULATOR VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35461 Plug, Down Shift
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462D Ring, E (FOR THROTTLE VALVE)
35463A Valve, 1-2 Shift, Lower
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464C Valve, 1-2 Shift, Upper
35464E Plug (FOR 1-2 SHIFT VALVE)
35465 Plug, Intermediate Shift Valve
35467 Valve, Intermediate Shift
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35471 Cover, Valve Body, NO.1
35472 Cover, Valve Body, NO.2
35473 Cover, Transmission Valve Body
35474 Cover, Valve Body, NO.4
35475 Cover, Valve Body, NO.5
35476A Plug, Straight (FOR 3RD COAST SHIFT)
35476B Pin, Locating (FOR 3RD COAST SHIFT)
35476C Valve, 3RD Coast
35476D Valve, Cut Off
35476F Plug (FOR CUT OFF VALVE)
35476G Spring, Compression (FOR CUT OFF VALVE)
35477D Ball, Check (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35479 Seat, Intermediate Shift Valve
35481B Clamp, Valve Body Wire Harness
35482B Clamp, Temperature Sensor
35484D Valve, B-3 Control
35484E Spring, Compression (FOR B-3 CONTROL VALVE)
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D Ball (FOR PRESSURE RELIFE VALVE)
35487B Ball, Check, NO.4
35487C Spring, Compression (FOR CHECK BALL)
35489H Valve, C-1 Orifice Control
35489J Plug (FOR C-1 ORIFICE CONTROL VALVE)
35489K Spring, Compression (FOR C-1 ORIFICE CONTROL VALVE)
35489L Key, Straight (FOR C-1 ORIFICE CONTROL VALVE)
35491 Plug, Reverse Brake
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492A Valve, Manual Down Timing
35492B Plug (FOR MANUAL DOWN TIMING VALVE)
35492C Seat, Valve (FOR MANUAL DOWN TIMING VALVE)
35493A Seat, Primary Regulator Valve Plug
35493B Seat, 1-2 Shift Valve Plug
35493E Seat, 2ND Coast Modulator Valve Plug
35493F Seat, Shift Valve Plug
35493G Seat, Low Coast Modulator Valve Plug
35493M Seat, Lock UP Control Valve Plug
35493N Seat, Solenoid Modulator Valve Plug
35493Q Seat, Accumulator Control Valve Plug, NO.1
35493S Seat, Secondary Regulator Valve Plug
35493U Seat, Check Valve, NO.1
35493V Seat, Check Valve, NO.2
35493X Seat, Cut Off Valae
35495B Ball, Check, NO.1
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497B Seat, Shift Valve Plug (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497D Ball, Check (FOR 3-4 SHIFT VALVE)
35497E Roller, Needle (FOR 3-4 SHIFT VALVE)
35498 Valve, 3-4 Coast Shift
35499 Plug, 3-4 Shift Valve
35499A Pin, Straight (FOR 3-4 SHIFT VALVE)
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35599 Cover, Manual Detent Spring
35892 Tube, Overdrive Brake
35895 Tube, Front Clutch Apply
35896 Tube, Overdrive Switch Apply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
