Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

7 part groups · 6 illustrations

Illustrations

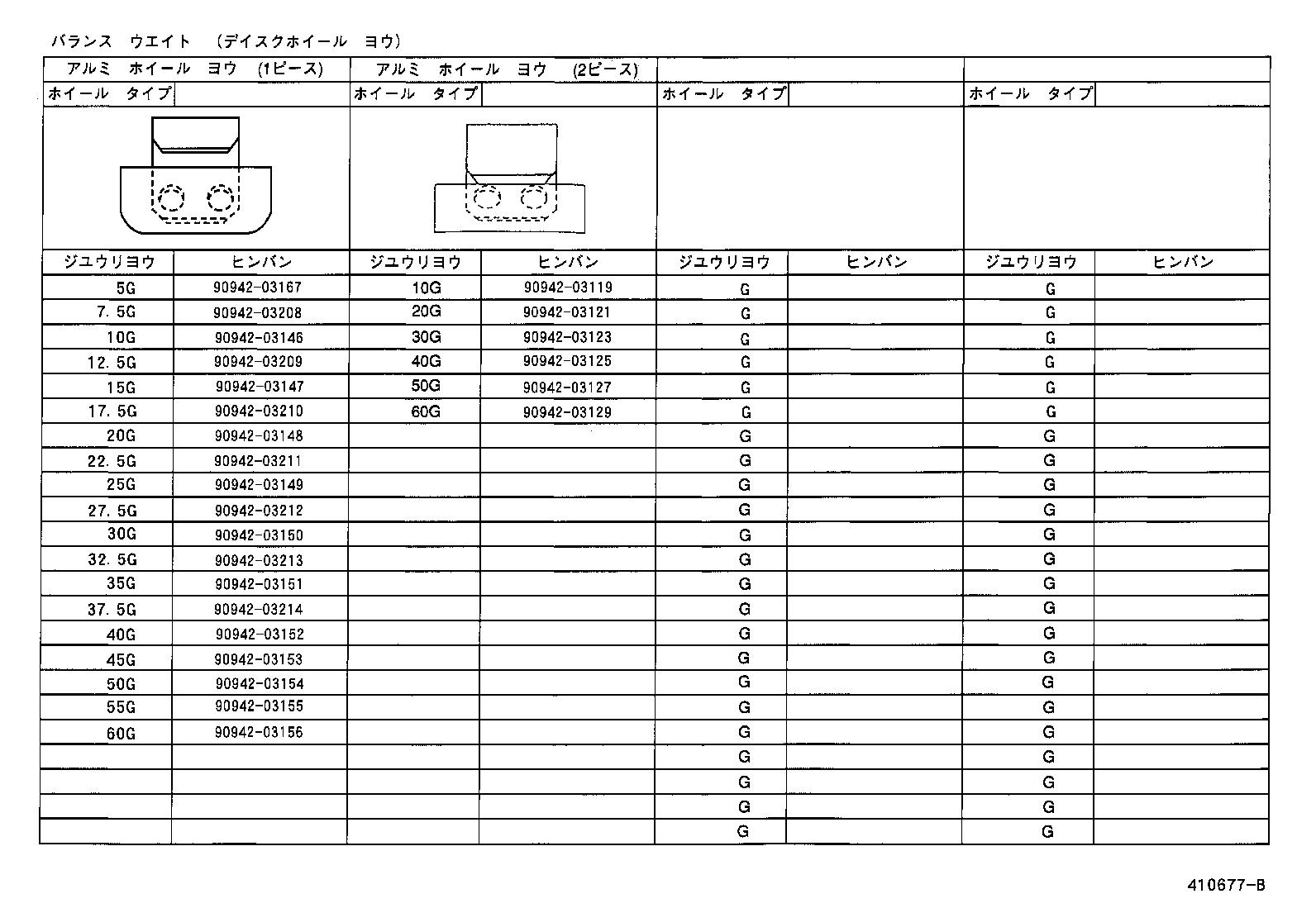

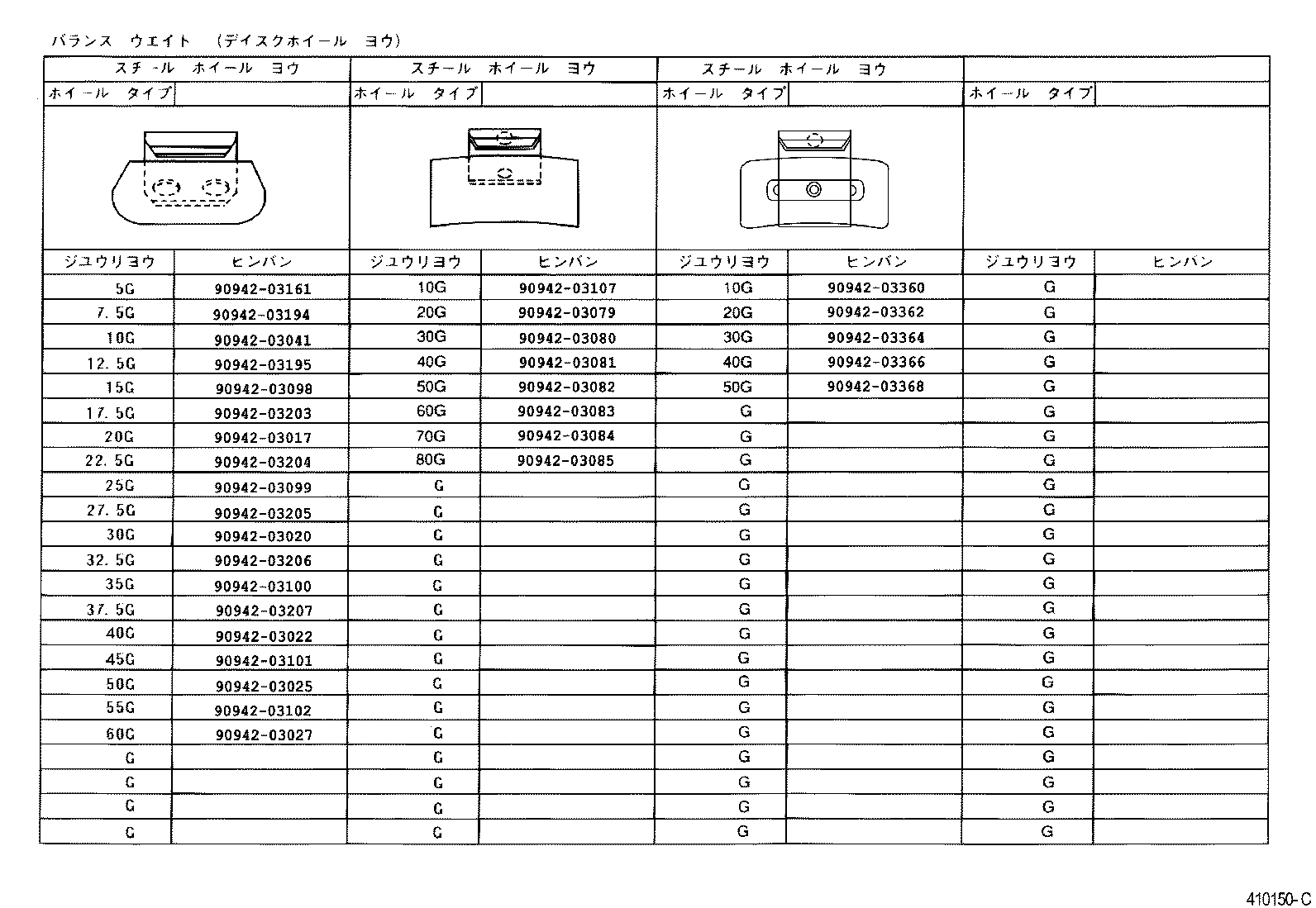

Figure 410148D 410148D 1996-10 → — Figure 410883C 410883C 1996-10 → — Figure 410164A 410164A 1996-10 → — Figure 410150C 410150C 1996-10 → — Figure 410677B 410677B 1996-10 → — Figure 413909 413909 1996-10 → —

Part groups

PNCDescription

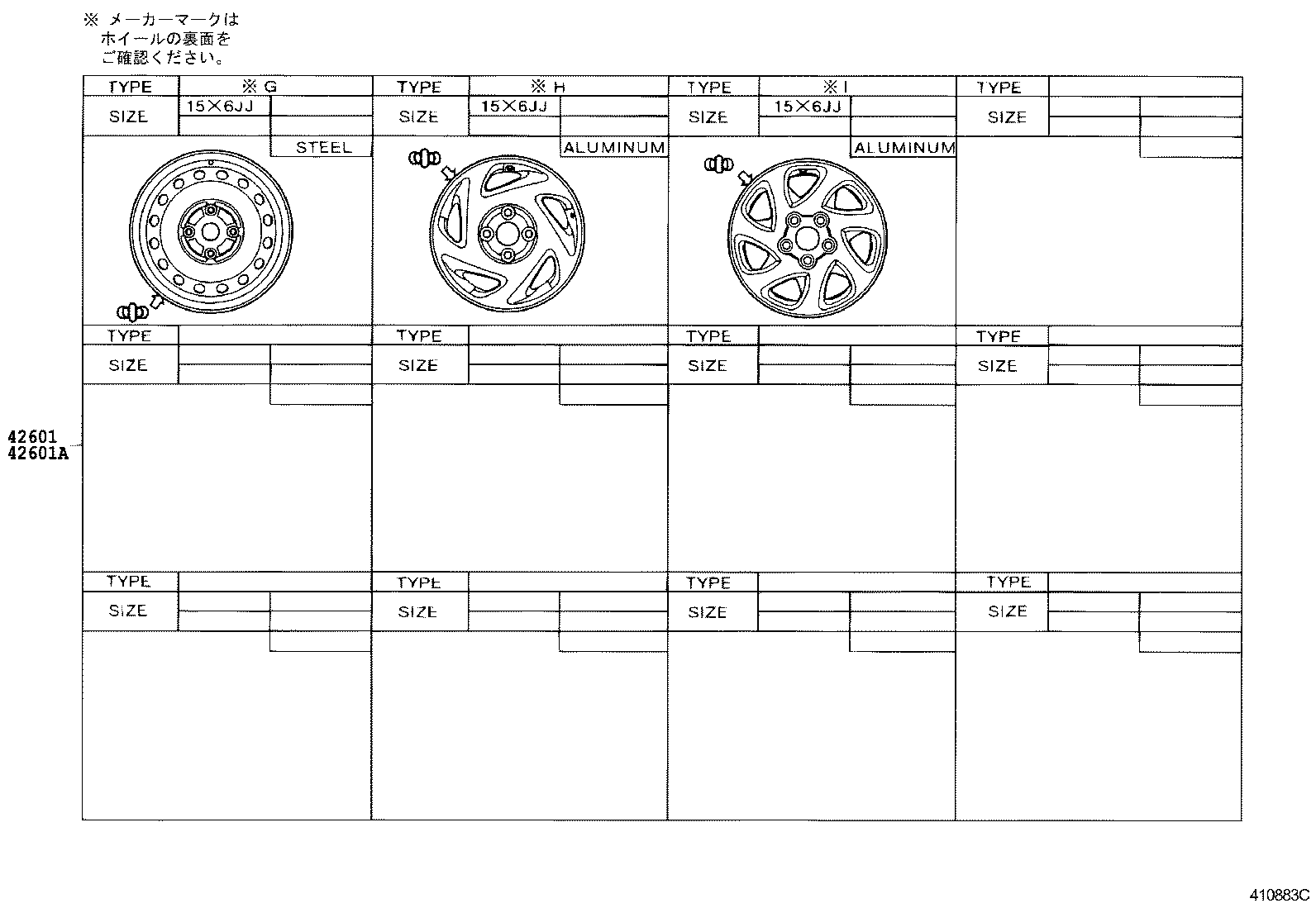

42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)

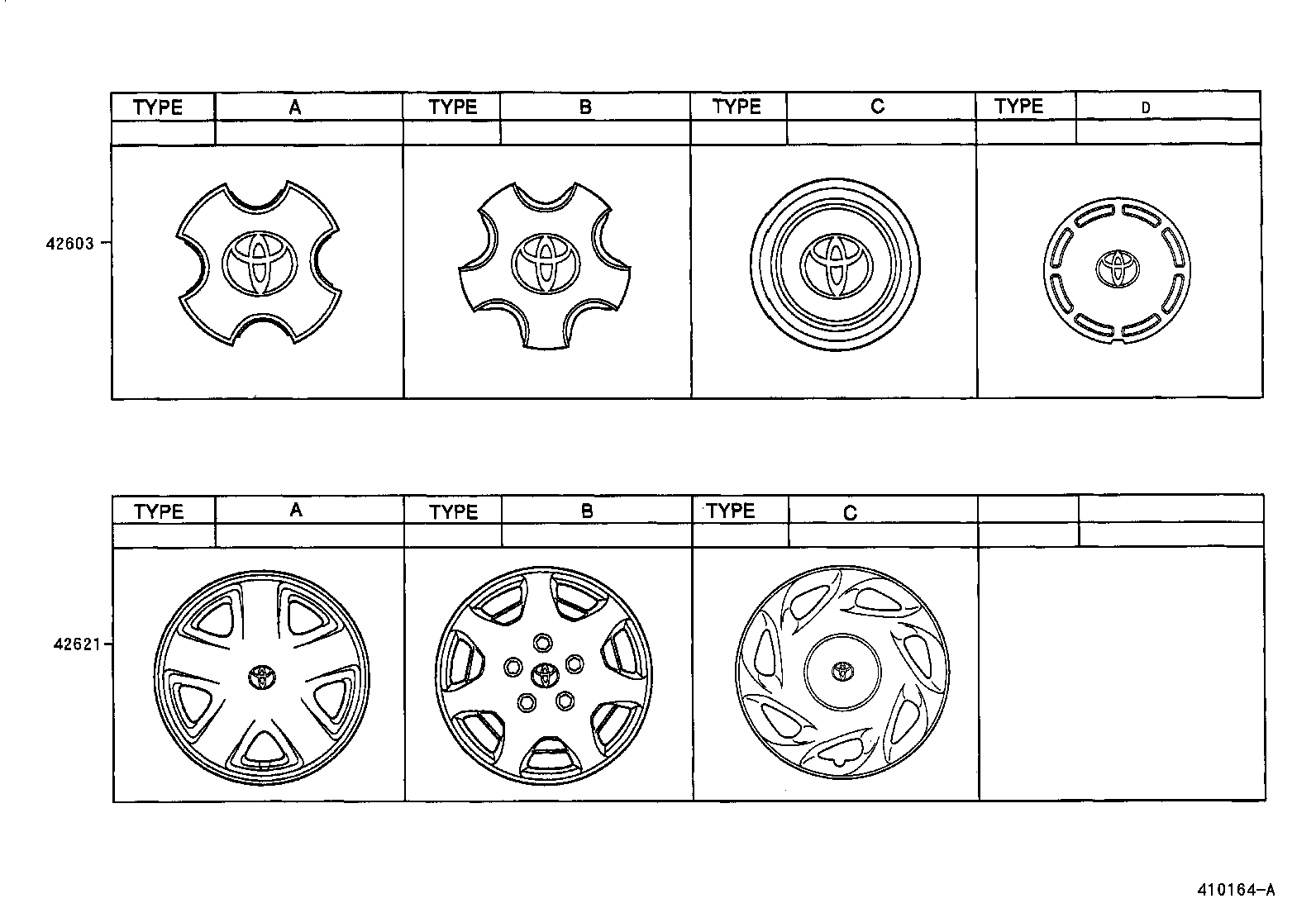

42603 Ornament Sub-assy, Wheel Hub
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42621 Cap, Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
