Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 4 illustrations

Illustrations

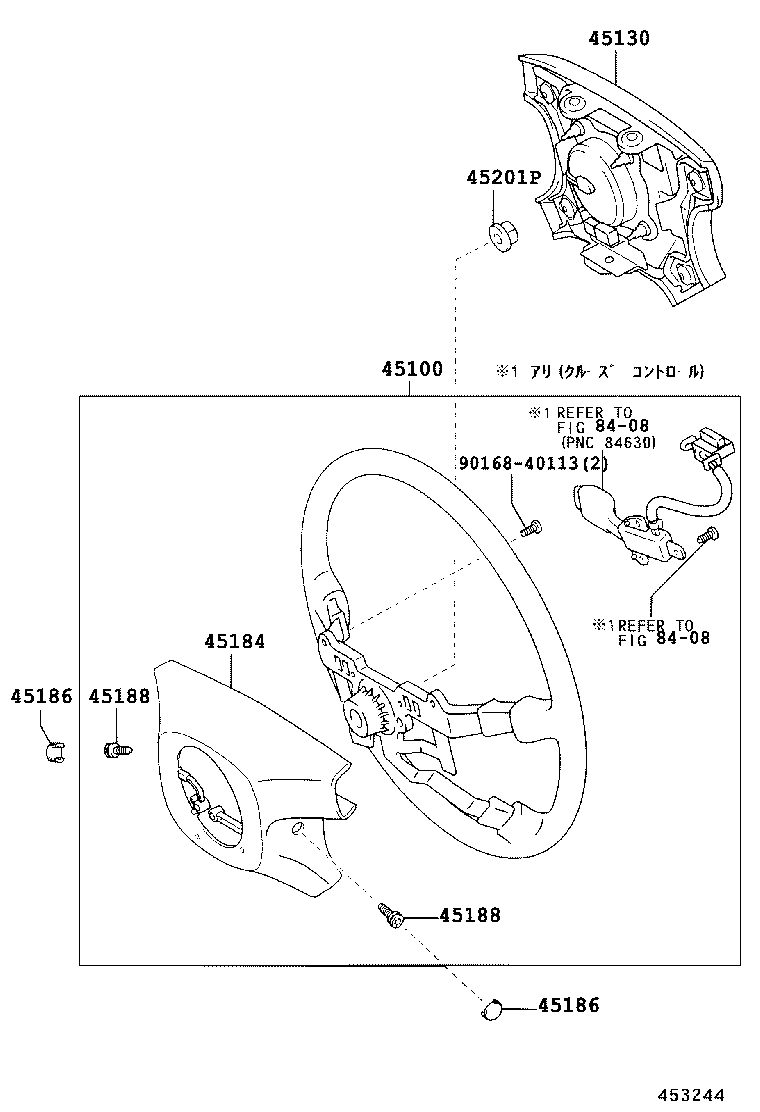

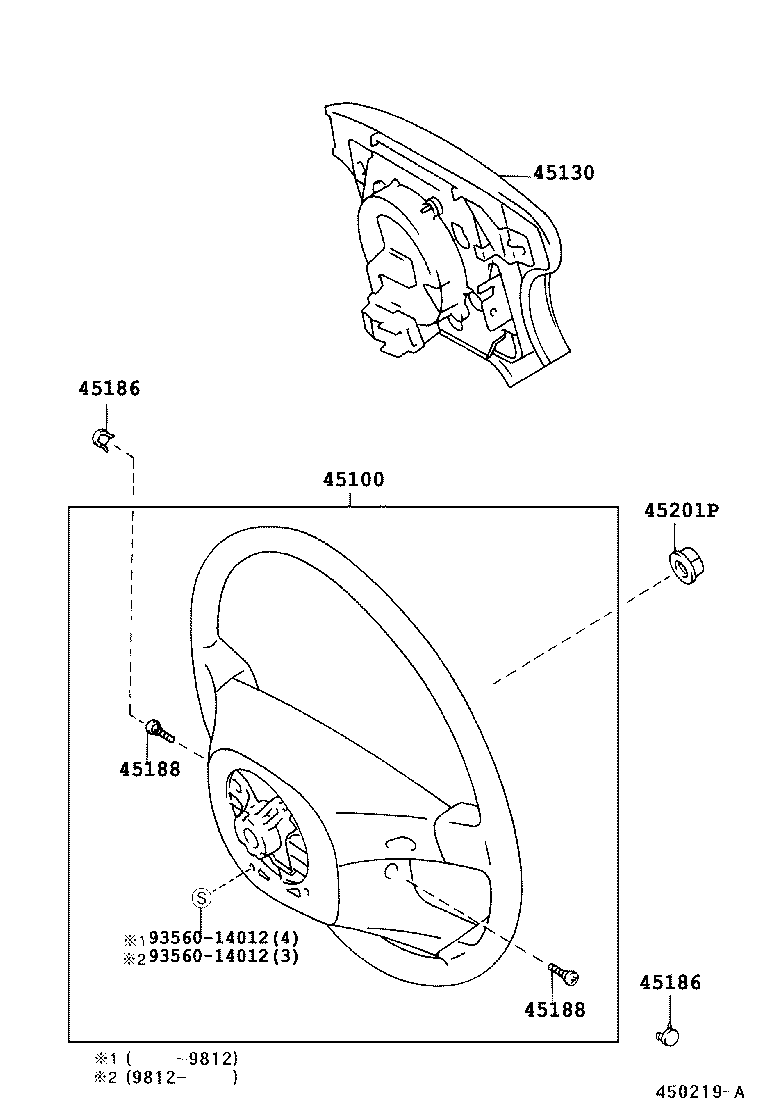

Figure 450218 450218 1996-11 → 1998-12 Figure 451667 451667 1998-12 → 2002-08 Figure 450219A 450219A 1996-10 → 2002-08 Figure 453244 453244 2002-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45130 Button Assy, Horn
45155 Spacer, Horn Button Contact Plate
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
