Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 2 illustrations

Illustrations

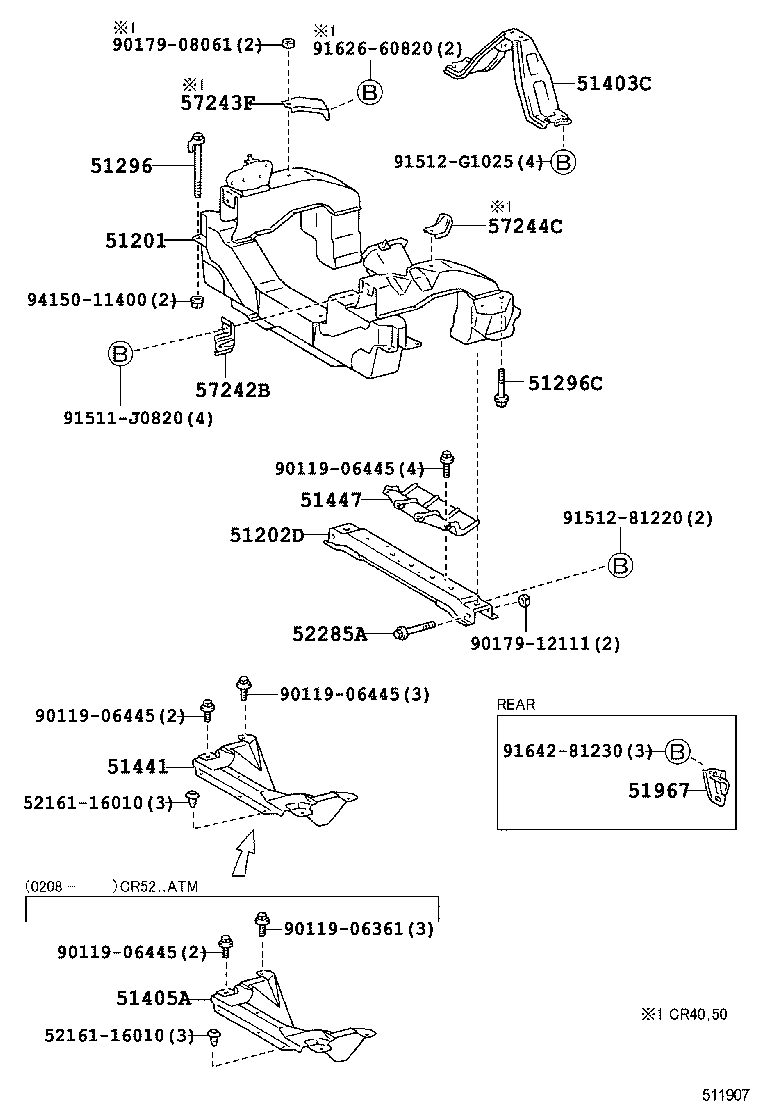

Figure 510821C 510821C 1996-10 → — Figure 511907 511907 1996-10 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51202D Crossmenber Sub-assy, Front Suspension, Lower
51296 Bolt, Front Suspension Member Mounting
51296C Bolt, Front Suspension Member Mounting
51403C Bracket Sub-assy, Engine Rear Mounting
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51441 Cover, Engine Under, NO.1
51447 Guide, Engine Under Cover Air
51967 Hook, Transport, Rear
52285A Bolt, Differential Support Member Mounting, NO.1
57242B Stay, Engine Front Support
57243F Stay, Engine Front Support, RH
57244C Stay, Engine Front Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
