Toyota Lite/Townace Noah,V
1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan
Discontinued model
Data version 2008-04

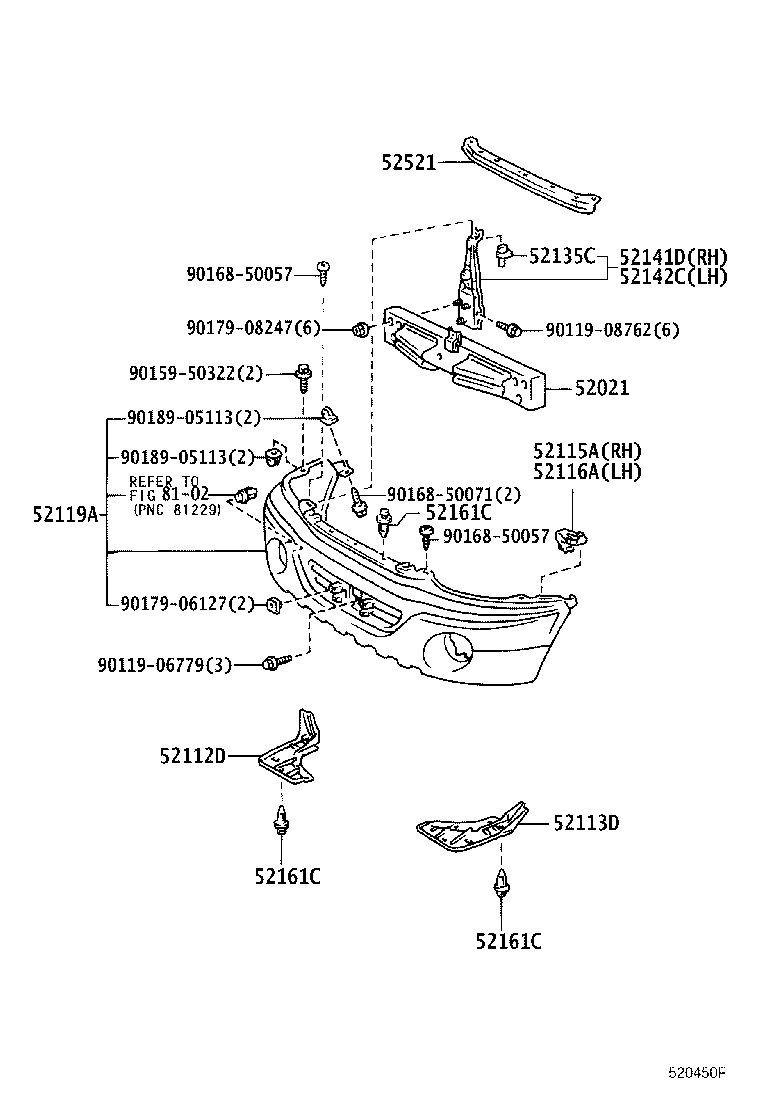

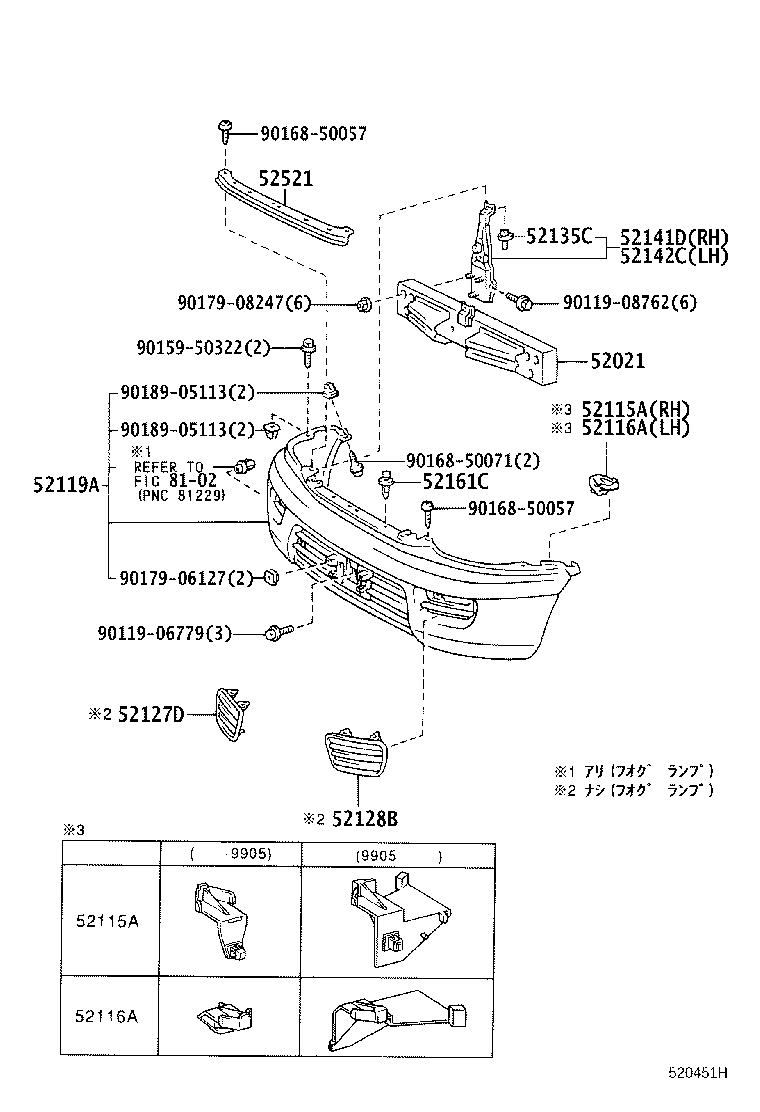

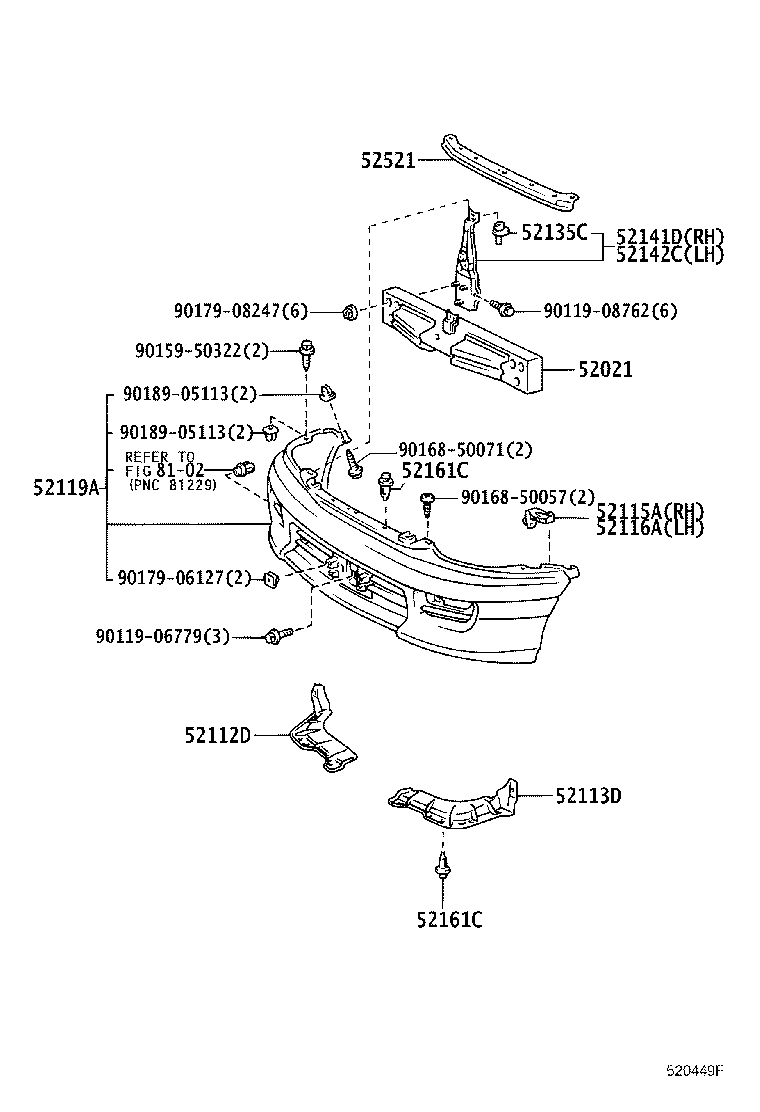

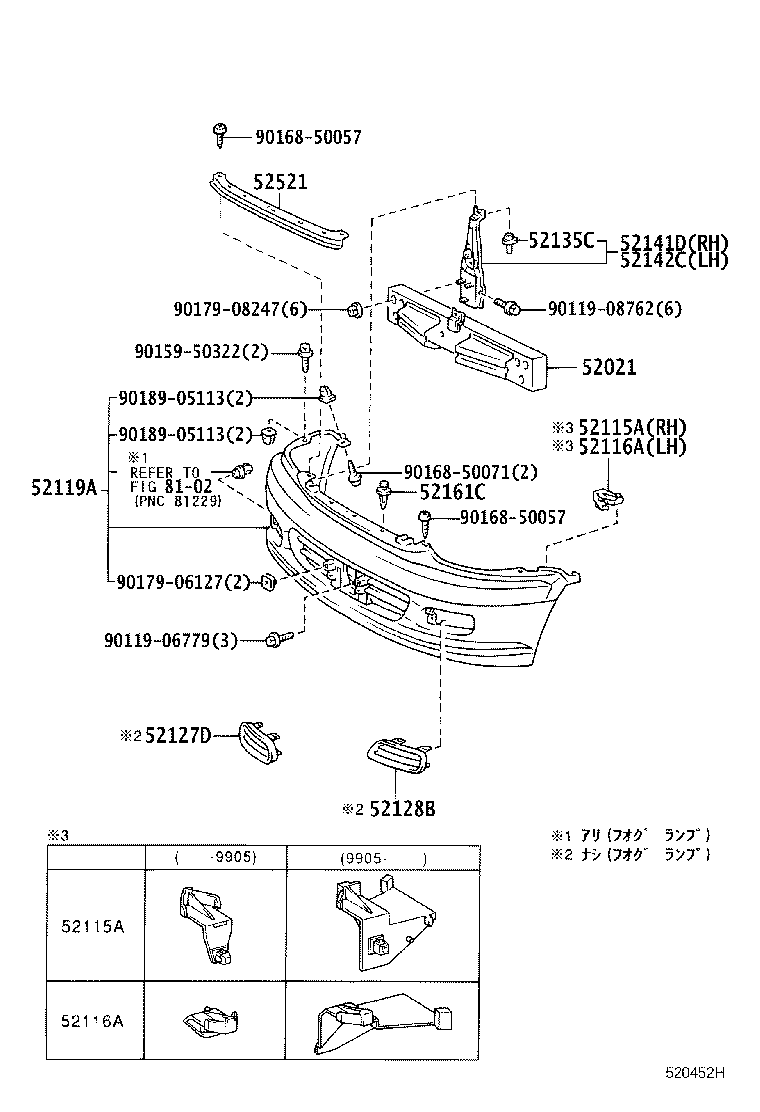

Front Bumper & Bumper Stay
34 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52132A | Reinforcement, Front Bumper, NO.2 |
| 52133B | Bracket, Front Bumper Extension Mounting, RH |
| 52134B | Bracket, Front Bumper Extension Mounting, LH |
| 52135C | Bracket, Front Bumper Arm Mounting |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52145C | Bracket, Front Bumper Side Mounting, RH |
| 52146B | Bracket, Front Bumper Side Mounting, LH |
| 52161C | Piece, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52412 | Guard, Front Bumper, NO.2 |
| 52431A | Bracket, Front Bumper Guard, RH |
| 52432A | Bracket, Front Bumper Guard, LH |
| 52436 | Protector, Front Bumper Guard |
| 52445A | Bracket, Front Bumper Guard Base, NO.1 |
| 52446A | Bracket, Front Bumper Guard Base, NO.2 |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52541 | Protector, Front Bumper |
| 52542A | Protector, Front Bumper, NO.2 |
| 52543 | Seal, Front Bumper Side, RH |
| 52544 | Seal, Front Bumper Side, LH |
| 52545 | Seal, Front Bumper Side, NO.2 RH |
| 52711A | Garnish, Front Bumper |
| 52712A | Garnish, Front Bumper, LH |
| 52717 | Retainer, Front Bumper Moulding |
| 66493B | Stay, License Plate Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
