Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 4 illustrations

Illustrations

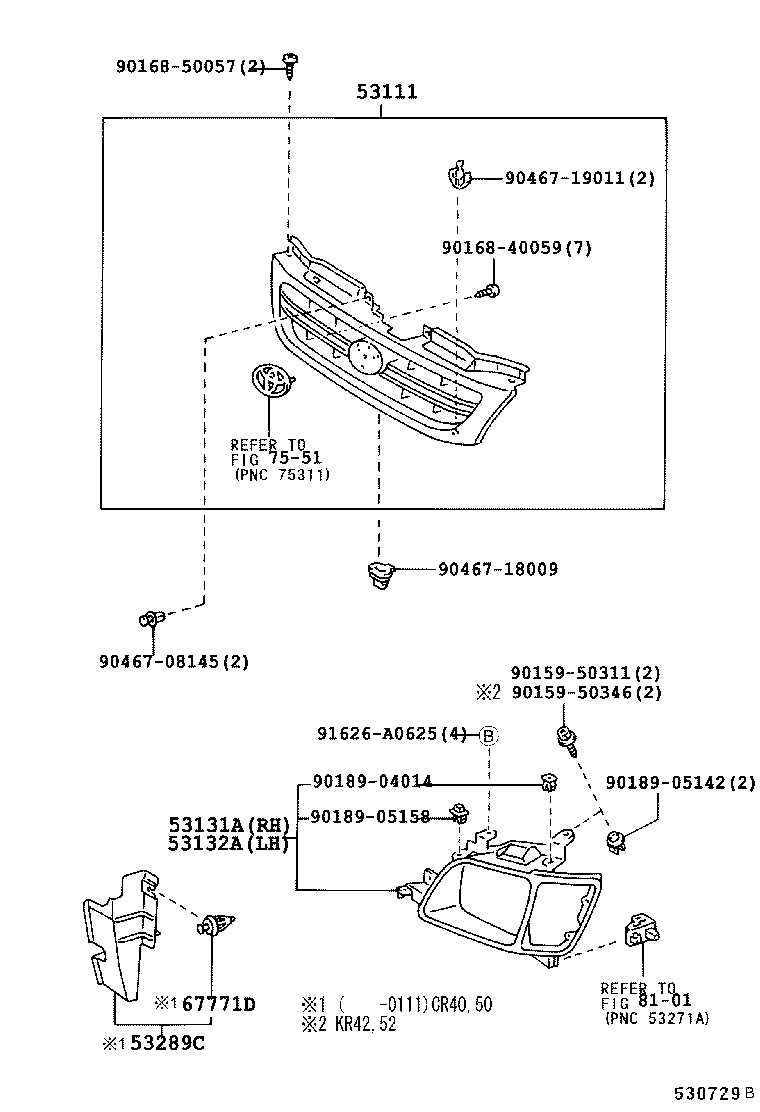

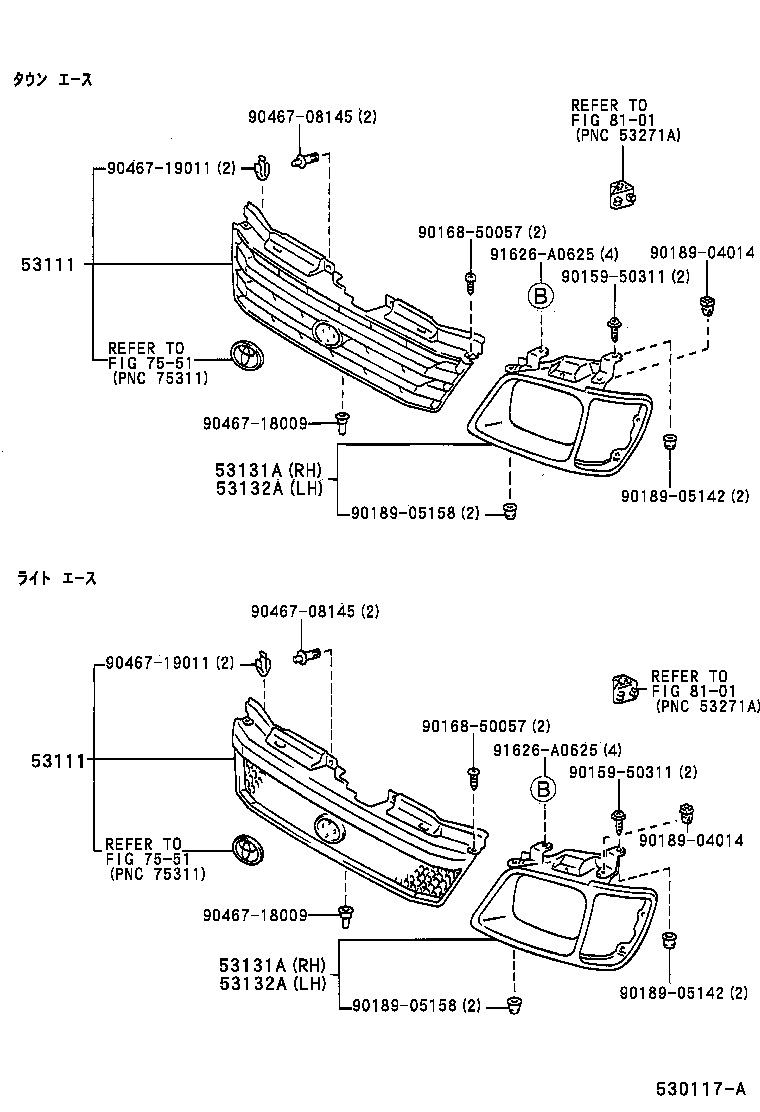

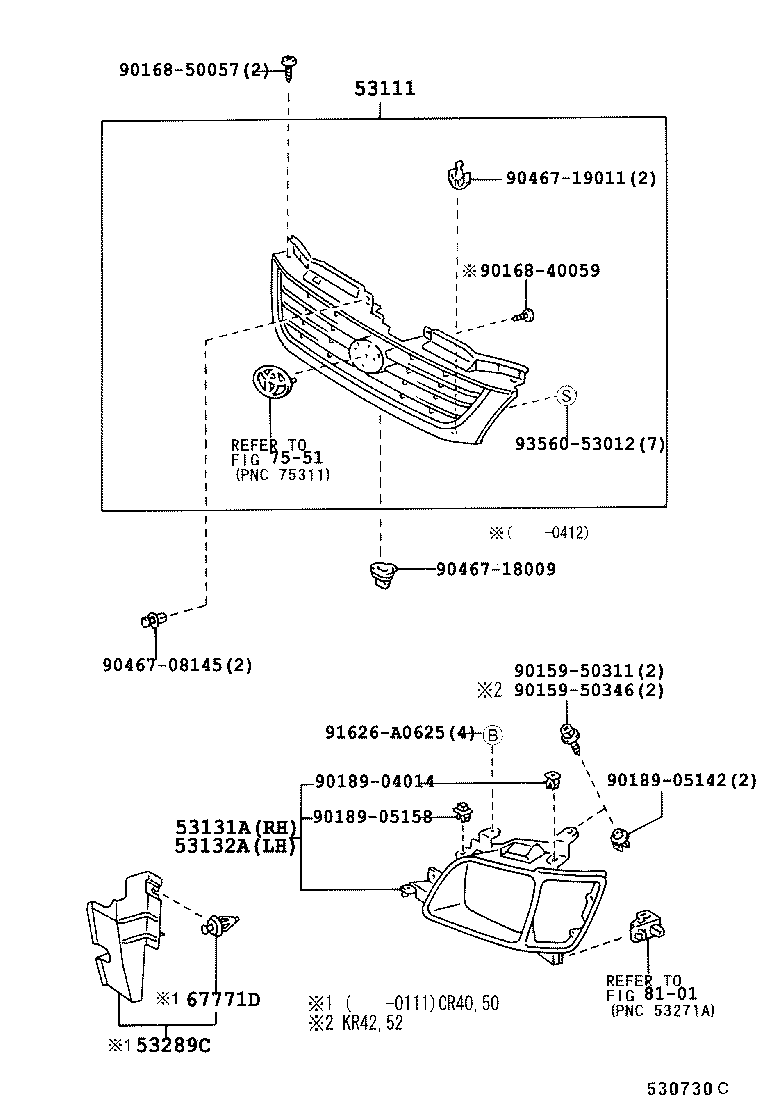

Figure 530116A 530116A 1996-10 → 1998-12 Figure 530117A 530117A 1996-11 → 1998-12 Figure 530729B 530729B 1998-12 → — Figure 530730C 530730C 1998-12 → —

Part groups

PNCDescription
53111 Grille, Radiator
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53289C Guard, Radiator Side Air
67771D Retainer, Radiator Side Air Guard
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
