Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

18 part groups · 3 illustrations

Illustrations

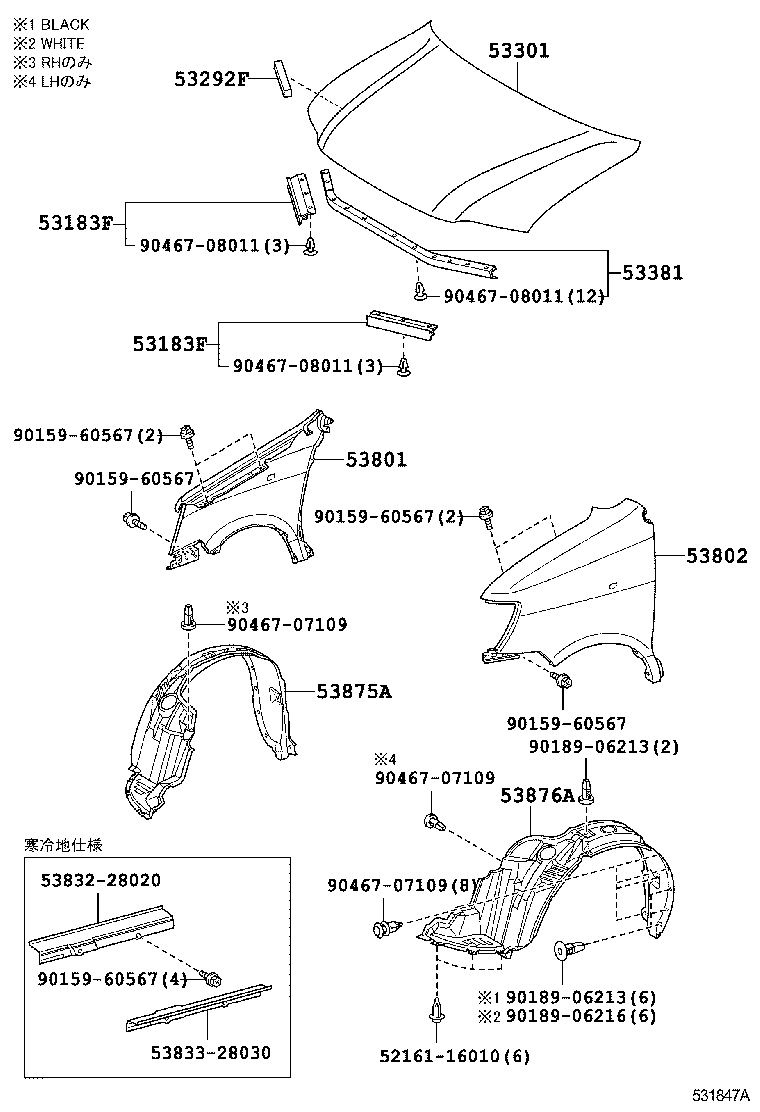

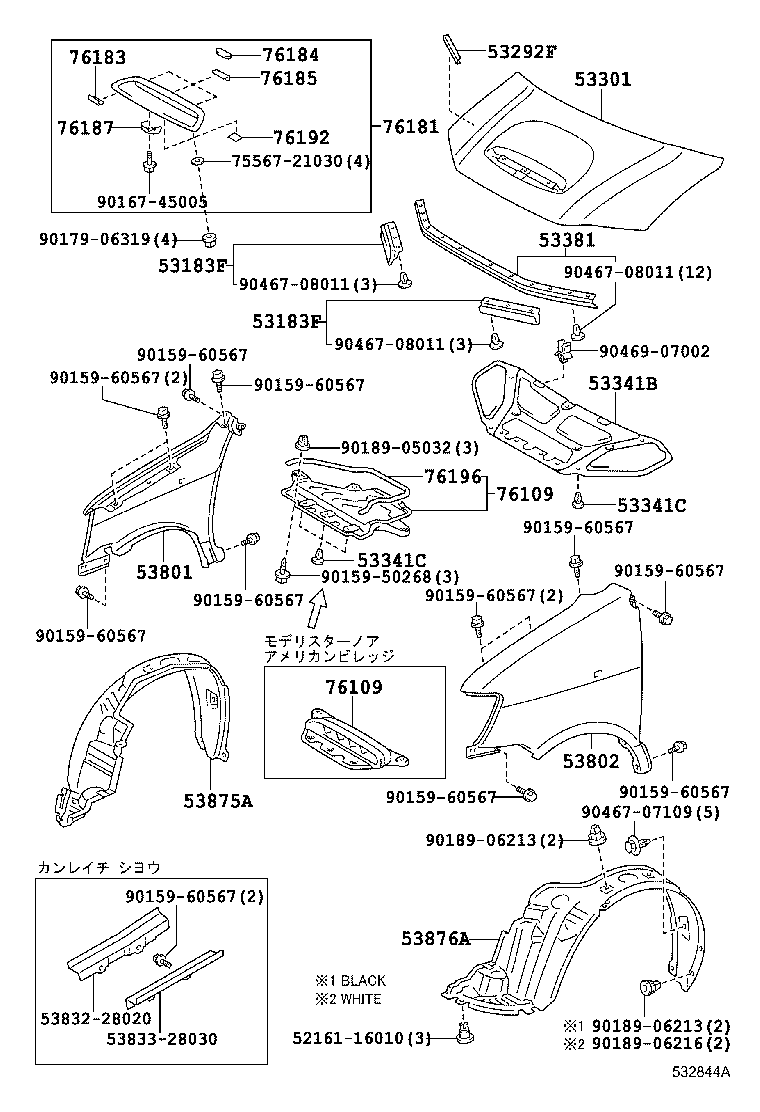

Figure 530105I 530105I 1996-10 → 1998-12 Figure 532844A 532844A 1998-12 → 2001-11 Figure 531847A 531847A 1998-12 → —

Part groups

PNCDescription
53183F Seal, Headlamp Cover TO Hood
53292F Seal, Radiator Support, Upper
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
76109 Guide Sub-assy, Hood Air Intake
76181 Bulge, Hood
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
76185 Protector, Hood Bulge, NO.3
76187 Retainer, Hood Air Intake Guide, NO.1
76192 Plate, Hood Bulge
76196 Seal, Hood Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
