Toyota Lite/Townace Noah,V
1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan
Discontinued model
Data version 2008-04

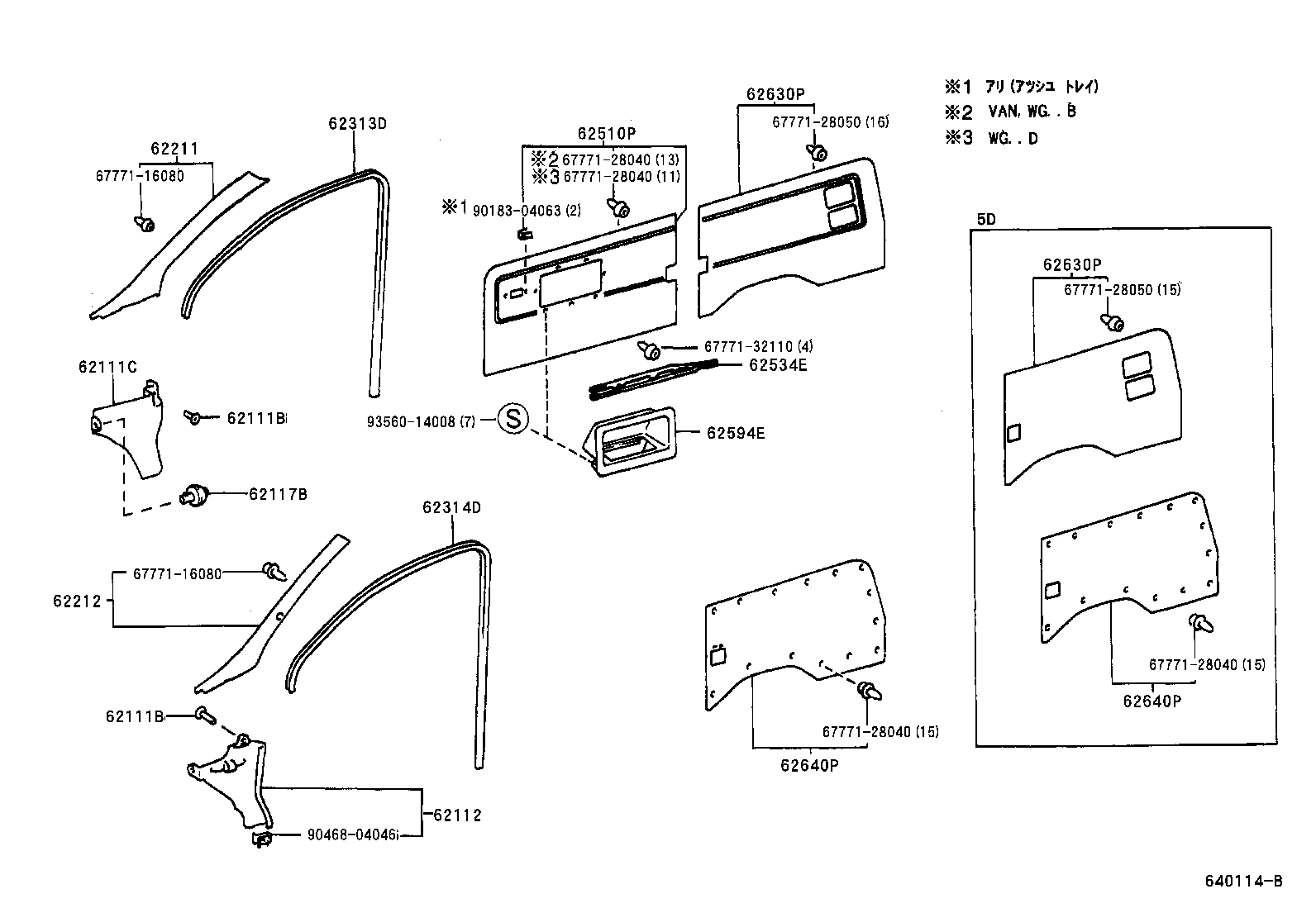

Inside Trim Board
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55477E | Bezel, Cigarette Lighter Hole |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62472G | Clip (FOR ROOF SIDE GARNISH) |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62534E | Bracket, Side Trim, NO.2 |
| 62538E | Cover, Quarter Trim, Hole |
| 62581C | Garnish, Rear Window Side, RH |
| 62582C | Garnish, Rear Window Side, LH |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 62594B | Clip(FOR QUARTER TRIM POCKET) |
| 62594E | Pocket, Quarter Trim, RH |
| 62595A | Pocket, Quarter Trim, NO.2 |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 67731 | Spacer, Side Trim, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
