Toyota Lite/Townace Noah,V
1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan
Discontinued model
Data version 2008-04
Roof Headlining & Silencer Pad
12 part groups · 2 illustrations
Part groups

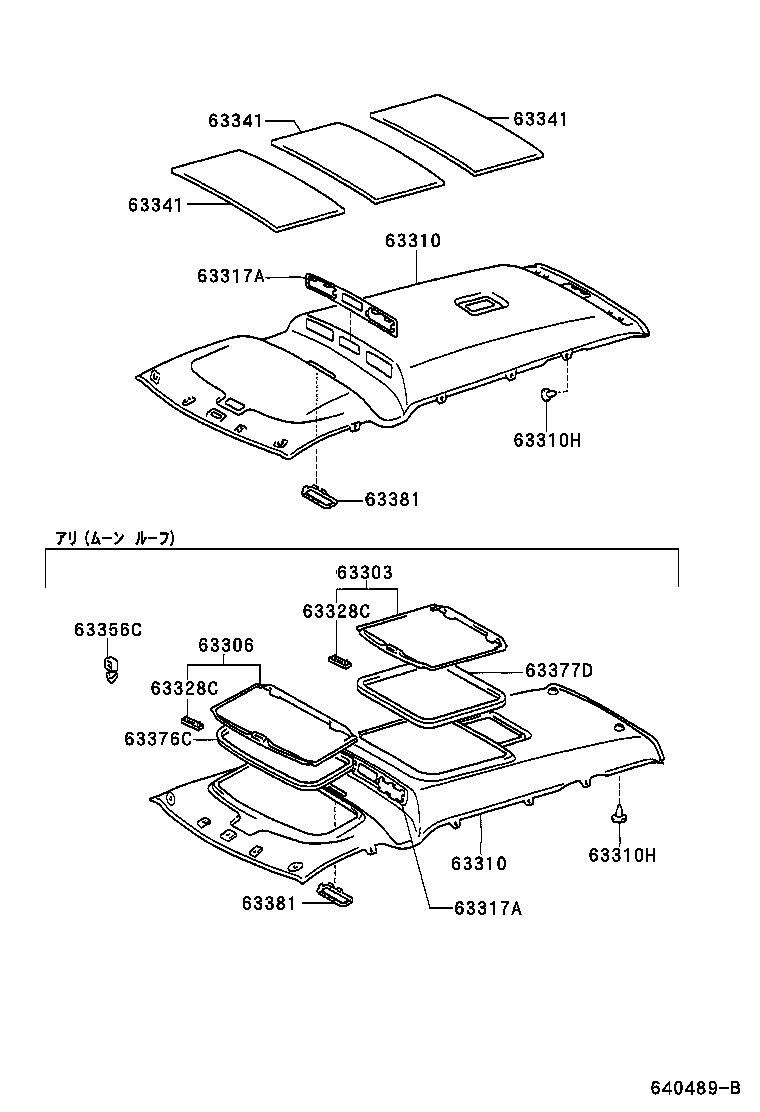

| PNC | Description |
|---|---|
| 63303 | Trim Sub-assy, Sunshade, NO.2 |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63317A | Retainer, Roof Headlining |
| 63328C | Knob, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63356C | Holder, Sunshade Trim |
| 63376C | Trim, Roof Window Opening, NO.1 |
| 63377D | Trim, Roof Window Opening, NO.2 |
| 63381 | Retainer, Headlining, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
