Toyota Lite/Townace Noah,V
1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan
Discontinued model
Data version 2008-04

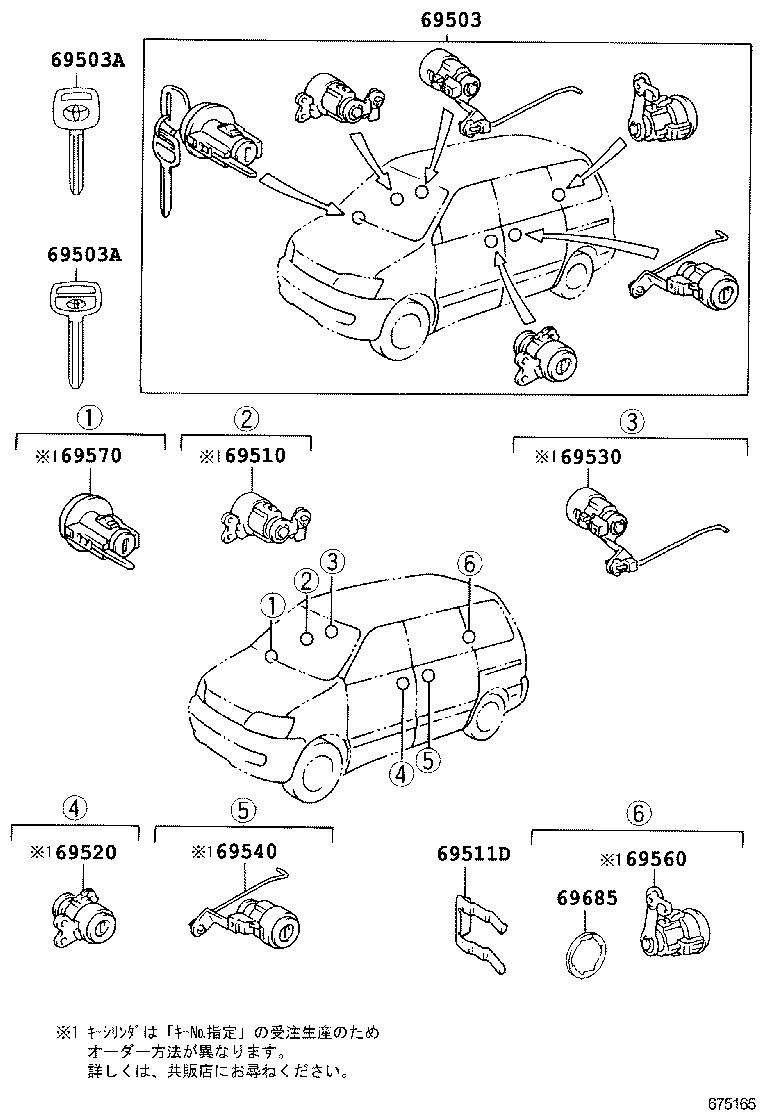

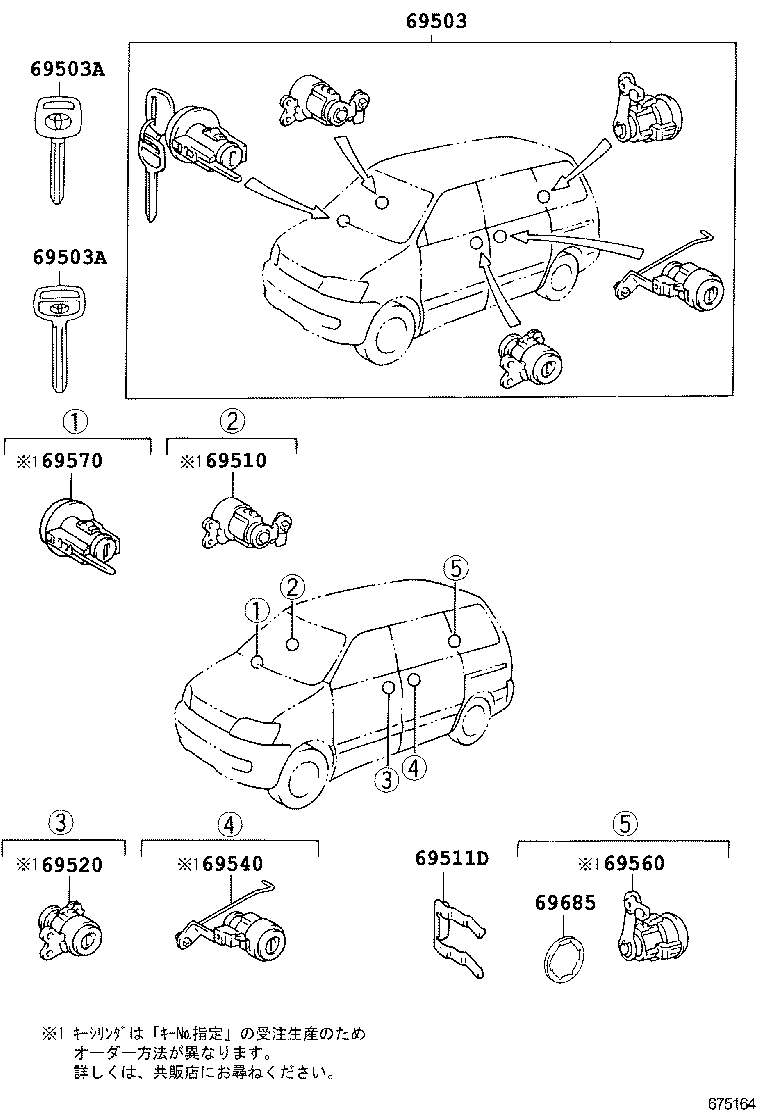

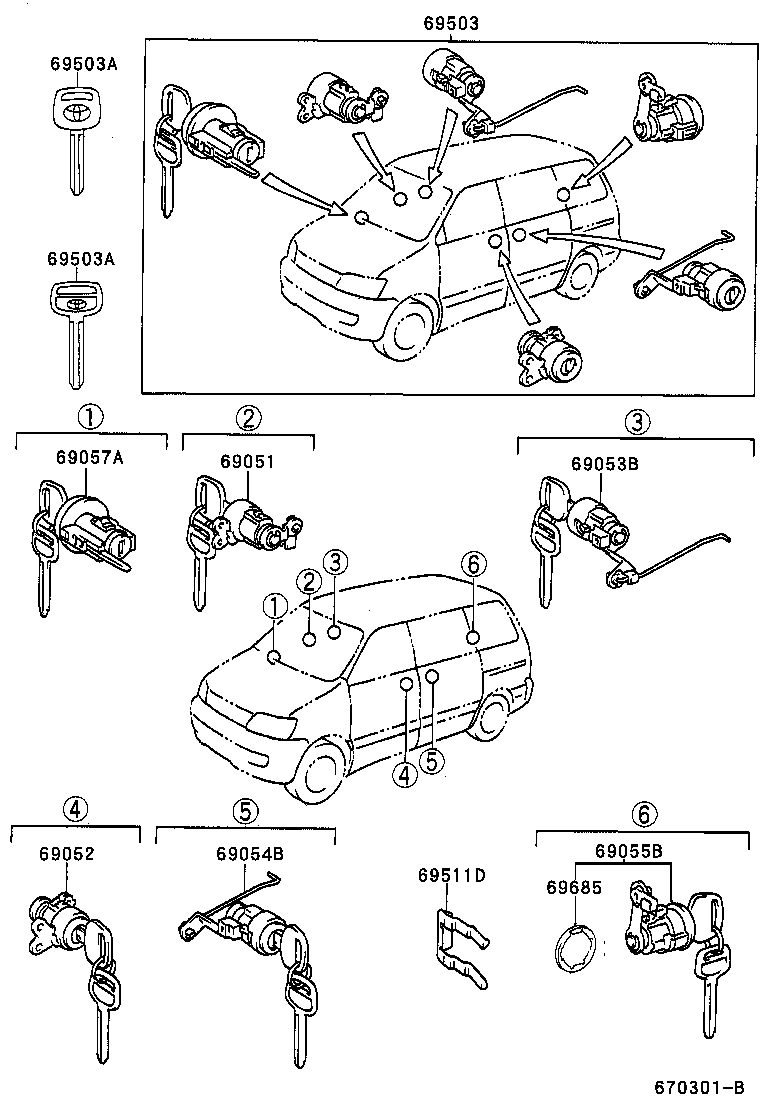

Lock Cylinder Set
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69053B | Cylinder & Key Set, Slide Door Lock, RH |
| 69054B | Cylinder & Key Set, Slide Door Lock, LH |
| 69055B | Cylinder & Key Set, Back Door Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69511D | Retainer, Back Door Lock Cylinder |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69530 | Cylinder Assy, Slide Door Lock, RH |
| 69540 | Cylinder Assy, Slide Door Lock, LH |
| 69560 | Cylinder Assy, Back Door Lock |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69685 | Pad, Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
