Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

25 part groups · 10 illustrations

Illustrations

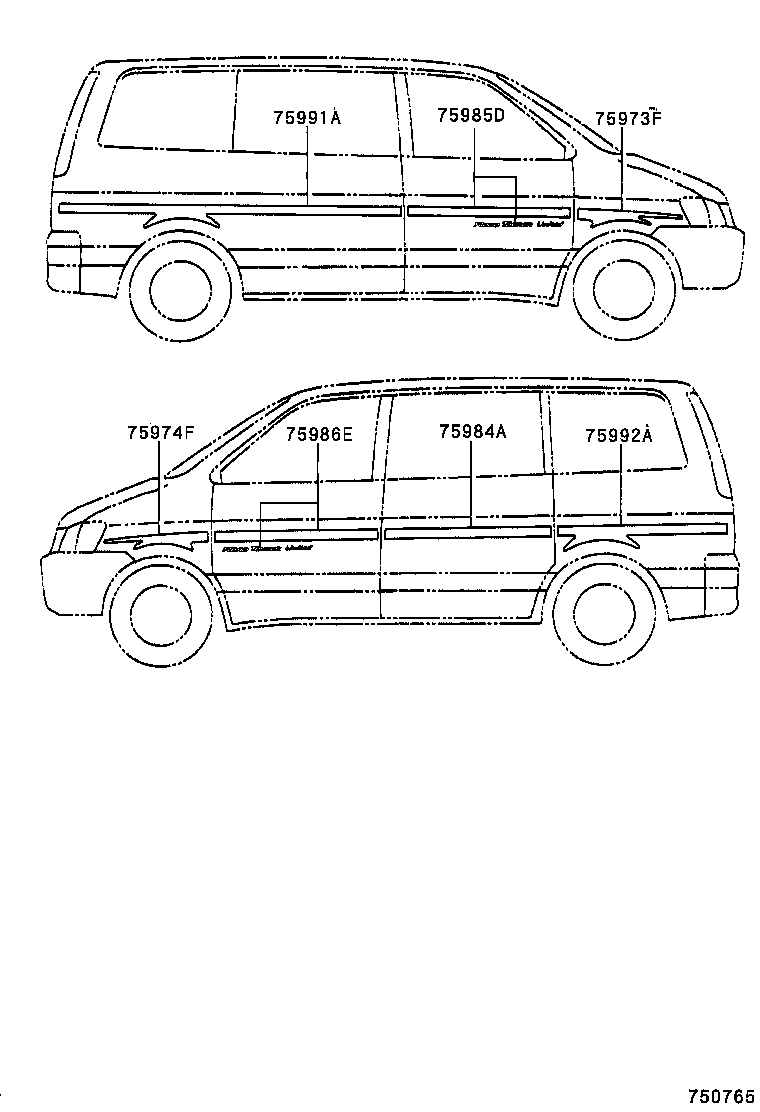

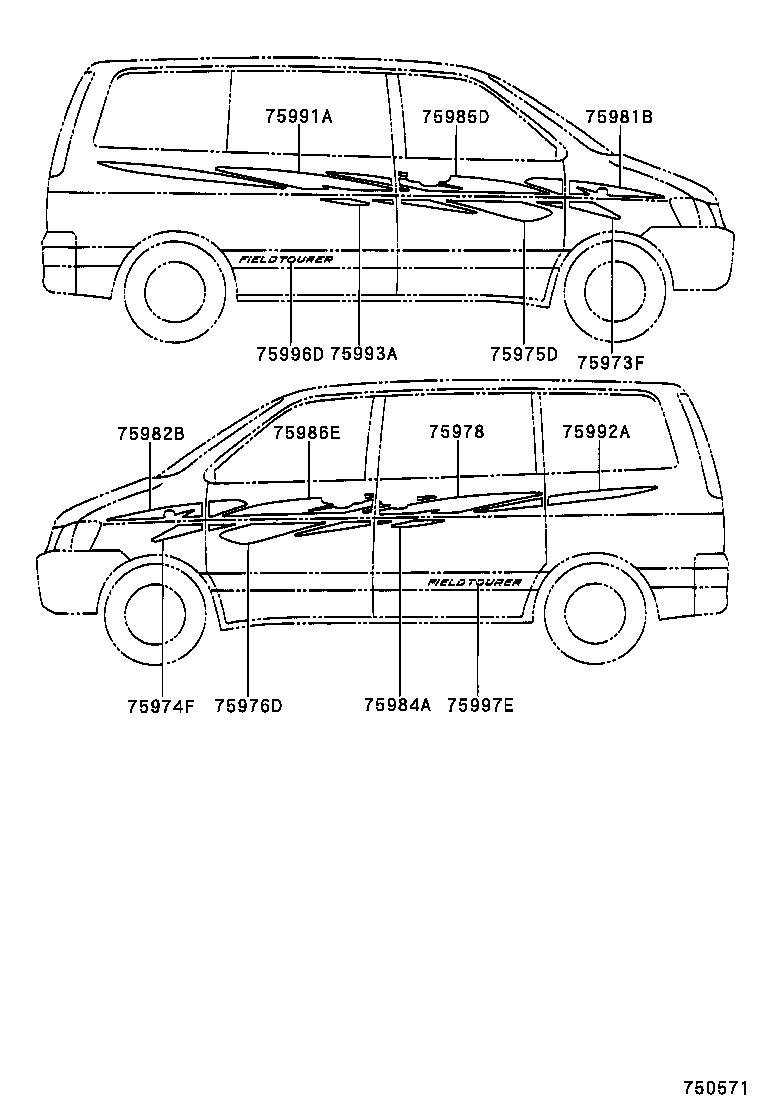

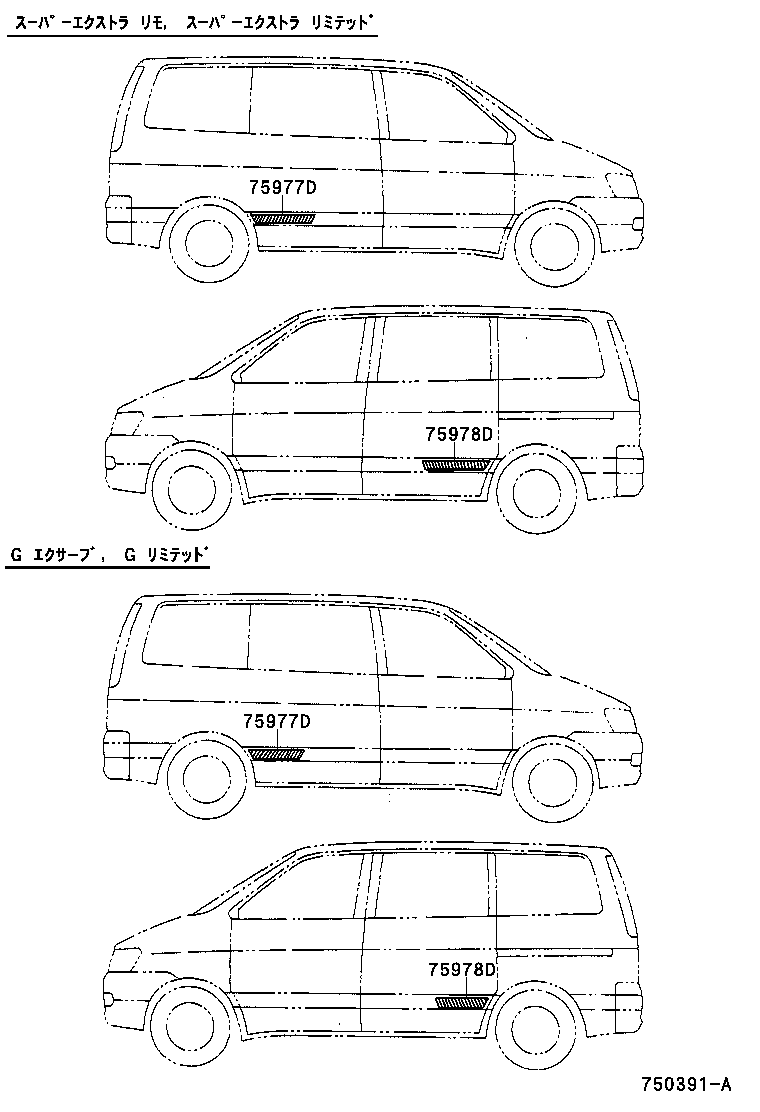

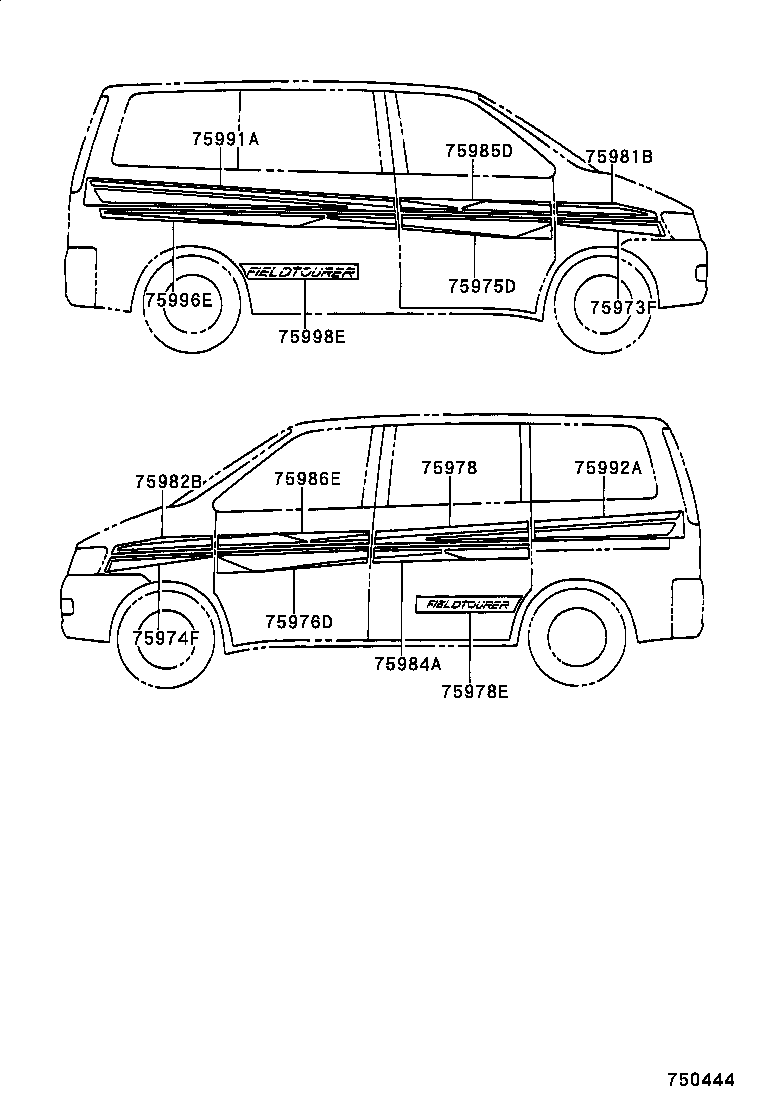

Figure 750097 750097 1996-10 → 1998-01 Figure 750391A 750391A 1997-09 → — Figure 750444 750444 1998-01 → 1998-12 Figure 750445 750445 1998-01 → 1998-12 Figure 750445 750445 1998-01 → — Figure 750534A 750534A 1998-06 → 1998-12 Figure 750571 750571 1998-12 → — Figure 750572 750572 1998-12 → — Figure 750765A 750765A 2000-04 → 2000-12 Figure 750904B 750904B 2000-12 → 2001-10

Part groups

PNCDescription
75973F Stripe, Front Side Panel, RH
75974F Stripe, Front Side Panel, LH
75975D Stripe, Front Door Outside, Front RH
75976D Stripe, Front Door Outside, Front LH
75977D Stripe, Rear Door, RH
75978 Stripe, Side, LH NO.4
75978D Stripe, Rear Door, LH
75978E Stripe, Rear Door Outside, Lower LH
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75983A Stripe, Slide Door
75984A Stripe, Slide Door
75984C Stripe, Slide Door, LH Upper
75985D Stripe, Front Door Outside, RH
75986E Stripe, Front Door Outside, LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75993A Stripe, Quarter, Rear RH
75994E Stripe, Quarter, RR Upr LH
75995B Stripe, Quarter Rear End
75996D Stripe, Rear Body, RH
75996E Stripe, Quarter, Front Lower RH
75996F Stripe, Quarter, Upr RH
75997E Stripe, Rear Body, LH
75998E Stripe, Quarter Rear Lower, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
