Toyota Lite/Townace Noah,V
1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan
Discontinued model
Data version 2008-04

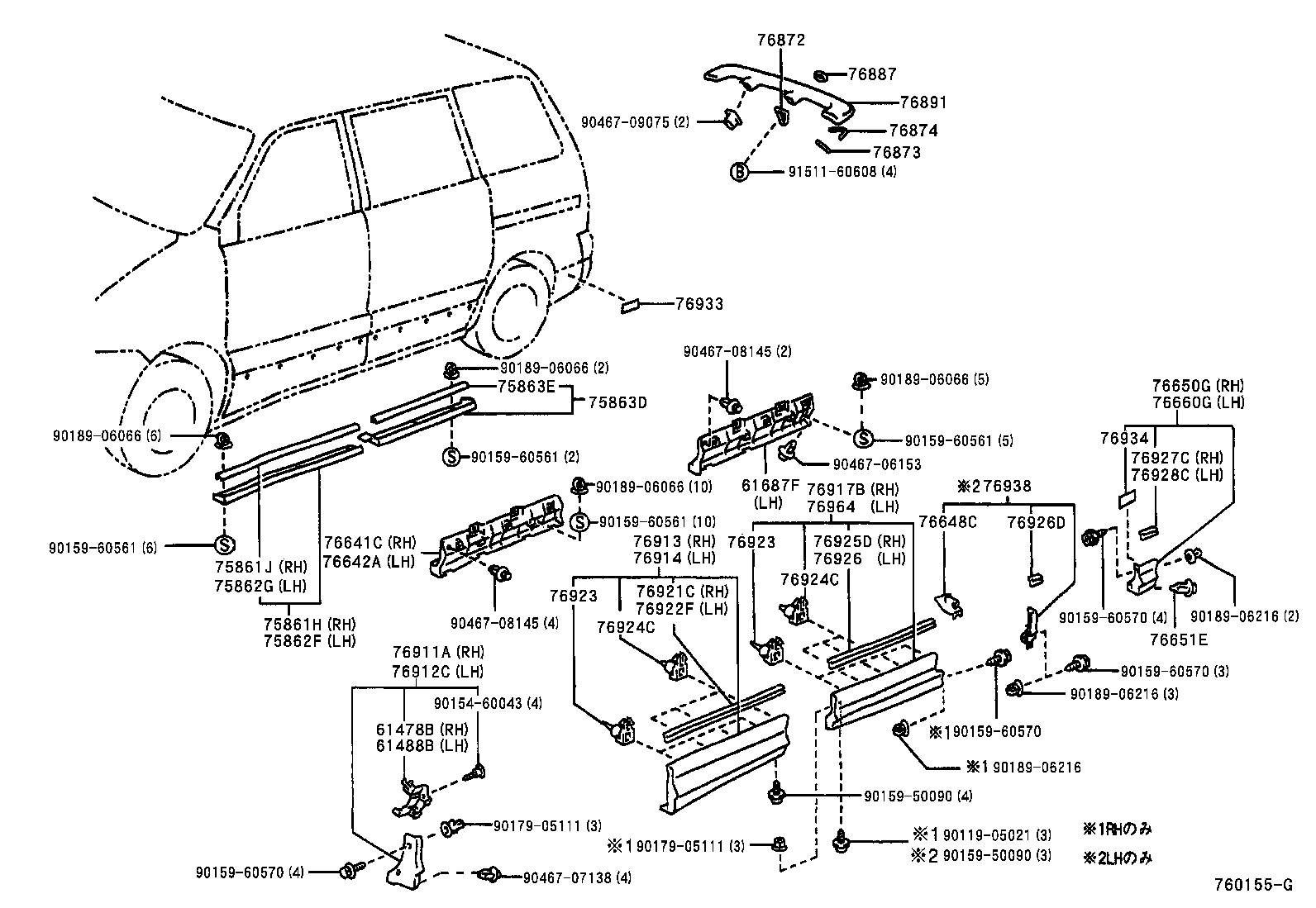

Spoiler & Side Mudguard
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61478B | Bracket, Mudguard, Front RH |
| 61488B | Bracket, Mudguard, Front LH |
| 61687F | Bracket, Mudguard, Rear |
| 75861H | Protector, Rocker Panel Moulding, NO.1 |
| 75861J | Seal, Rocker Panel Moulding, NO.1 |
| 75862F | Protector, Rocker Panel Moulding, NO.2 |
| 75862G | Seal, Rocker Panel Moulding, NO.2 |
| 75863D | Protector, Rocker Panel Moulding, NO.3 |
| 75863E | Seal, Rocker Panel Moulding, NO.3 |
| 76641C | Bracket, Front Mudguard, RH |
| 76642A | Bracket, Front Mudguard, LH |
| 76648C | Support, Rear Body Mudguard, LH |
| 76650G | Mudguard Assy, Rear RH |
| 76651E | Clip (FOR REAR MUDGUARD) |
| 76660G | Mudguard Assy, Rear LH |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76887 | Seal, Rear Spoiler |
| 76891 | Spoiler, Rear NO.1 |
| 76911A | Mudguard, Fender Panel, RH |
| 76912C | Mudguard, Fender Panel, LH |
| 76913 | Mudguard, Front Door, RH |
| 76914 | Mudguard, Front Door, LH |
| 76917B | Mudguard, Quarter Panel, RH |
| 76921C | Protector, Side Mudguard, RH |
| 76922F | Protector, Side Mudguard, LH |
| 76923 | Retainer, Side Mudguard |
| 76924C | Retainer, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76926 | Protector, Side Mudguard, LH |
| 76926D | Protector, Side Mudguard, LH |
| 76927C | Protector, Rear Mudguard, RH |
| 76928C | Protector, Rear Mudguard, RH |
| 76933 | Retainer, Side Mudguard, NO.5 |
| 76934 | Retainer, Side Mudguard, NO.6 |
| 76938 | Mudguard, Quarter Panel, Rear LH |
| 76964 | Mudguard, Slide Door, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
