Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

18 part groups · 6 illustrations

Illustrations

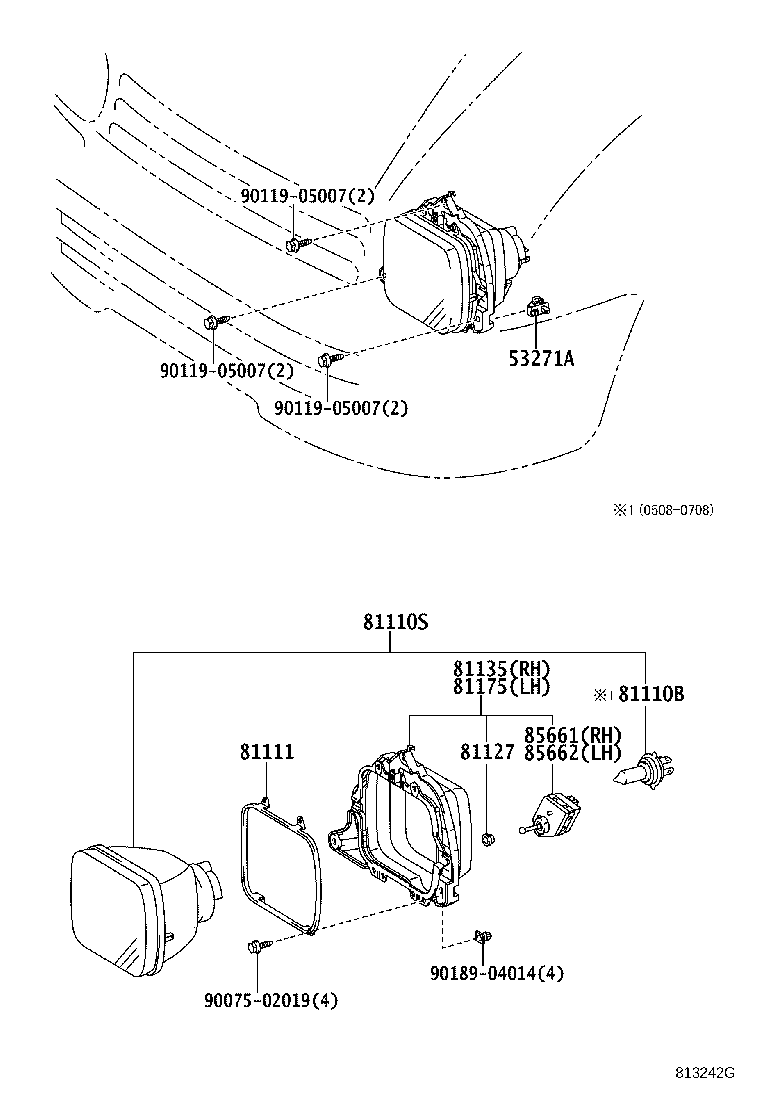

Figure 810148A 810148A 1996-10 → 1998-12 Figure 810236C 810236C 1996-11 → 2005-08 Figure 811058A 811058A 1998-12 → 2005-08 Figure 813242G 813242G 2005-08 → — Figure 815314 815314 1998-06 → 2001-11 Figure 811013 811013 1998-06 → 1998-12

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111 Ring, Sealed Beam Retaining
81121 Spring, Headlamp Tension
81127 Bearing, Headlamp, NO.1
81131 Screw, Headlamp Adjusting
81135 Unit Assy, Headlamp, RH
81136C Rim, Headlamp, RH
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
81156 Rim, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
