Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

15 part groups · 7 illustrations

Illustrations

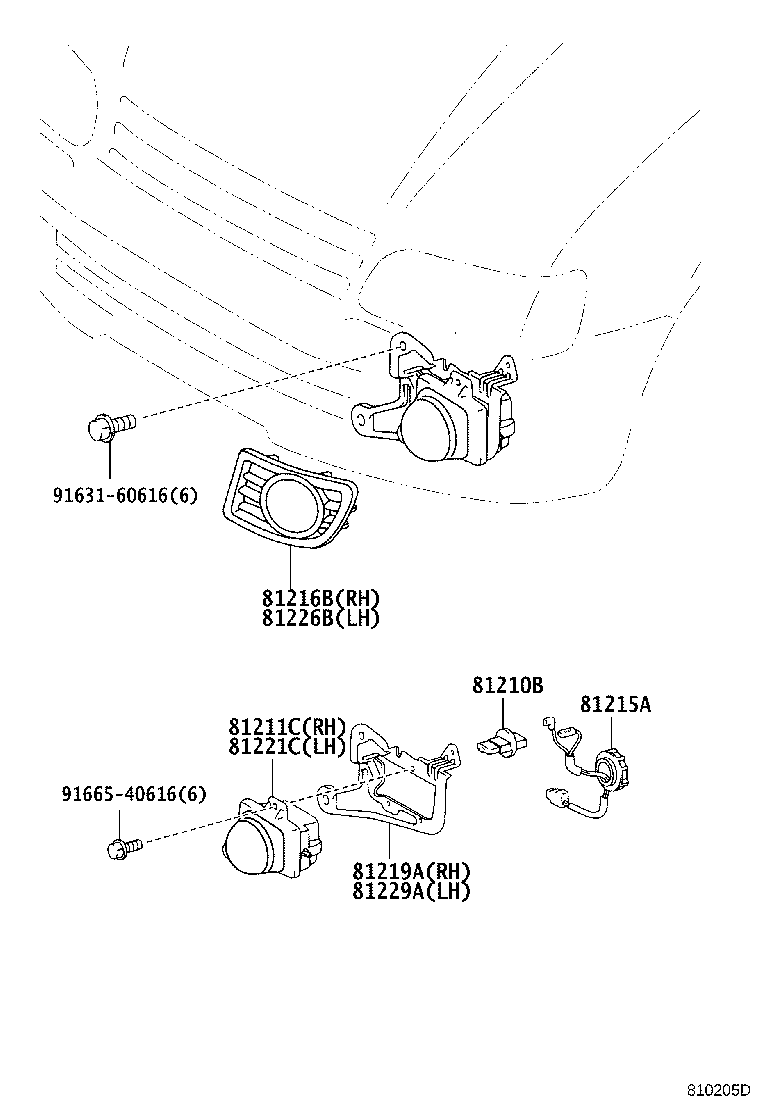

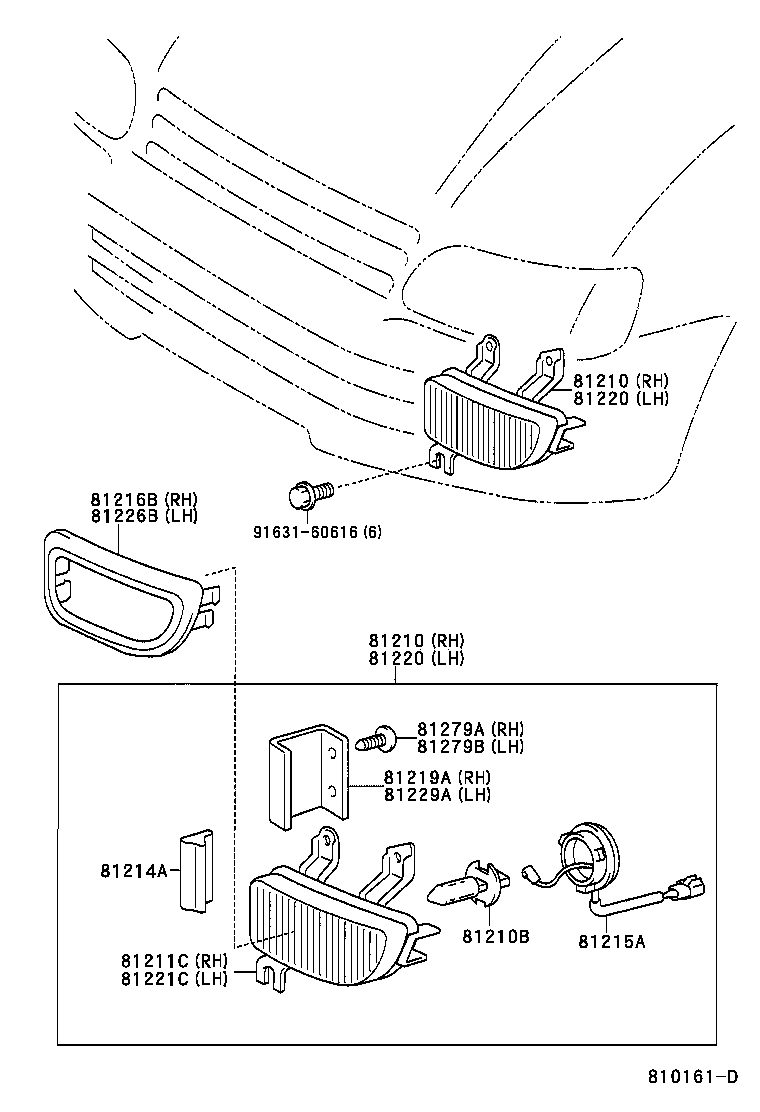

Figure 810160B 810160B 1996-10 → 1998-12 Figure 811052A 811052A 1998-12 → — Figure 810161D 810161D 1996-10 → 1998-12 Figure 811053A 811053A 1998-12 → — Figure 810205D 810205D 1996-10 → 1998-12 Figure 810205D 810205D 1998-06 → 1998-12 Figure 811054A 811054A 1998-12 → —

Part groups

PNCDescription
81127C Bearing Fog Lamp
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81214A Packing, Fog Lamp Body
81215A Socket & Wire, Fog Lamp
81216B Rim, Fog Lamp, RH NO.1
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81226B Rim, Fog Lamp, LH
81229 Bracket, Fog Lamp
81229A Bracket, Fog Lamp, LH
81279A Bracket, Fog Lamp, RH NO.2
81279B Bracket, Fog Lamp, LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
