Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

4 part groups · 6 illustrations

Illustrations

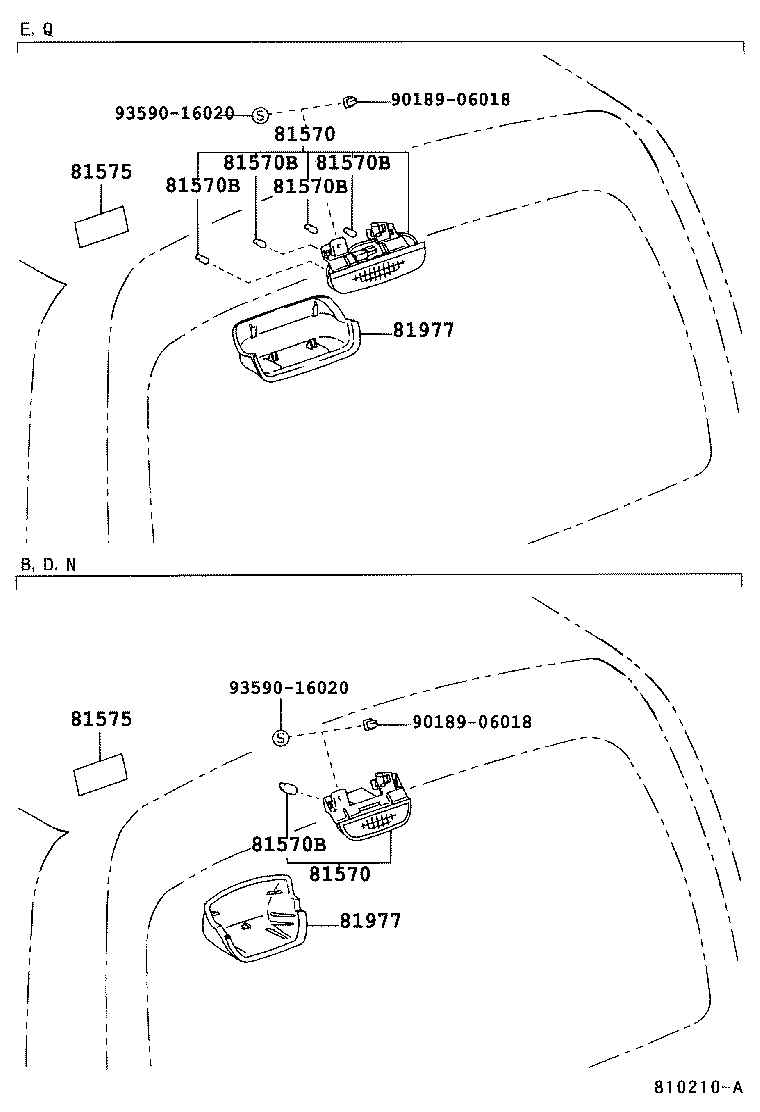

Figure 810193A 810193A 1996-10 → 1998-12 Figure 810193A 810193A 1998-12 → 2005-08 Figure 810193A 810193A 1998-12 → — Figure 810210A 810210A 1996-10 → 1998-12 Figure 810210A 810210A 1998-12 → — Figure 810210A 810210A 2005-08 → —

Part groups

PNCDescription
81570 Lamp Assy, Center Stop
81570B Bulb (FOR CENTER STOP LAMP)
81575 Cover, Center Stop Lamp, NO.2
81977 Cover, Center Stop Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
