Factory parts data · Europe

Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 5 illustrations

Illustrations

Figure 860152D

860152D 1996-10 → 1998-12

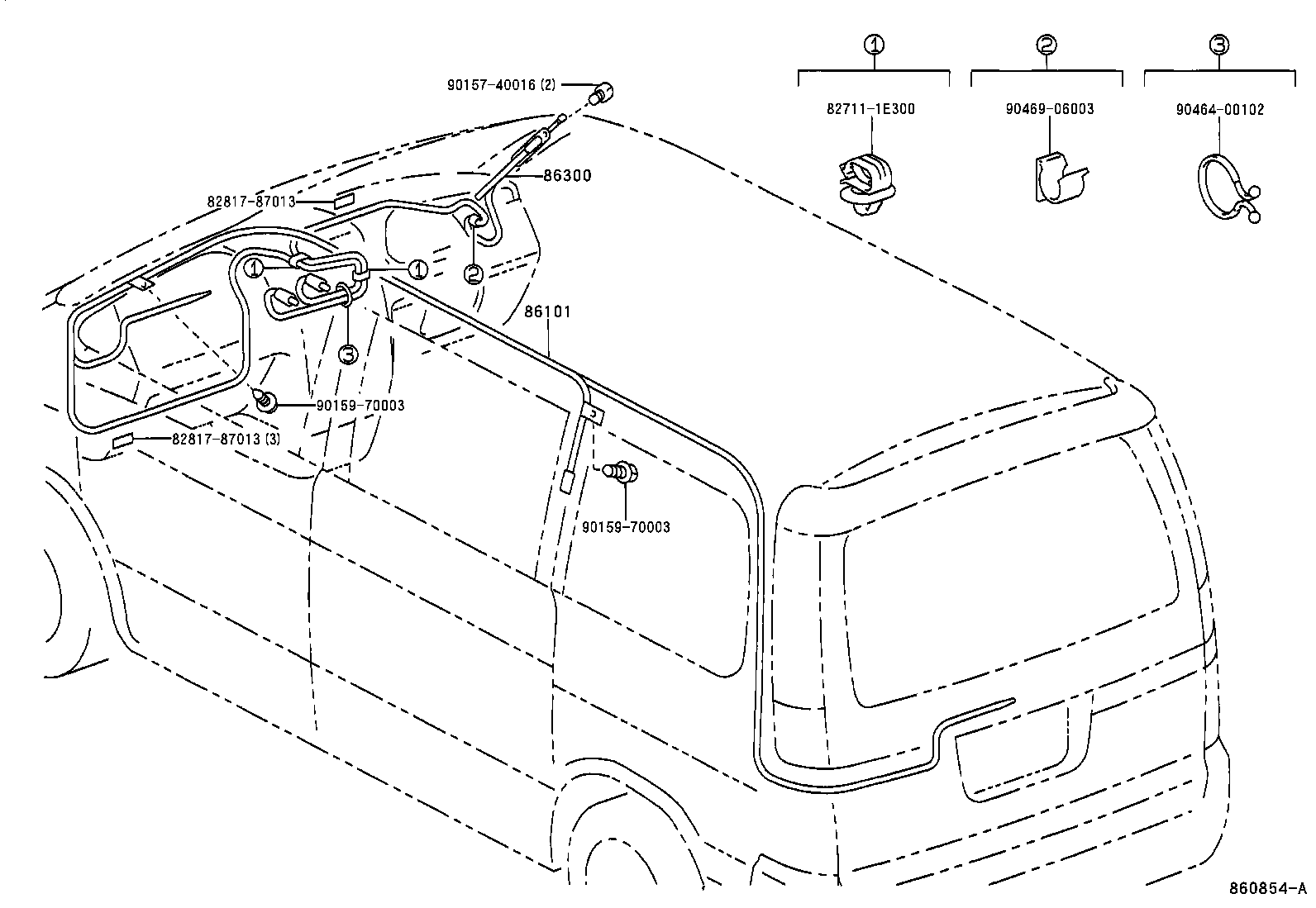

Figure 860854A

860854A 1998-12 → 2004-01

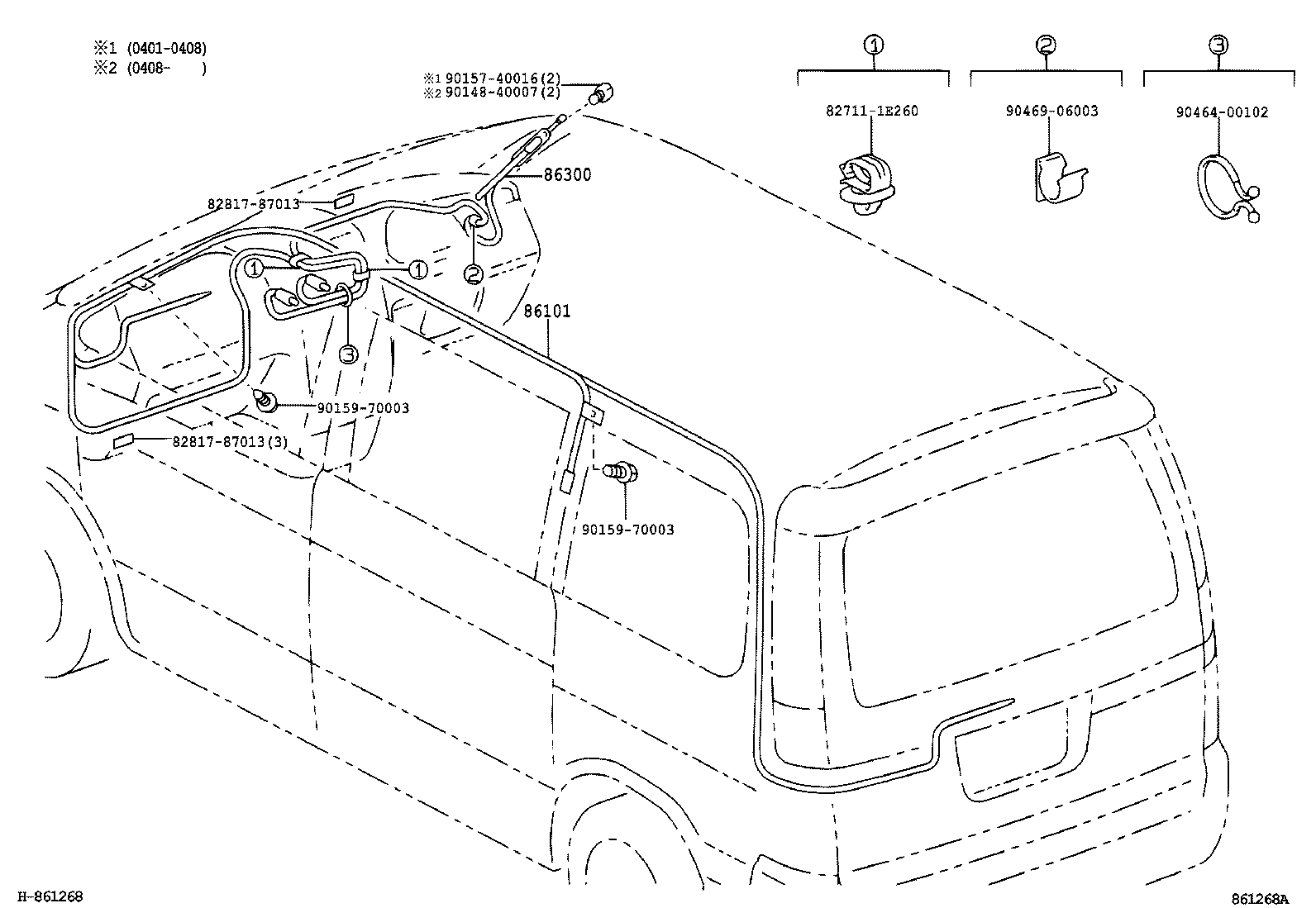

Figure 861268A

861268A 2004-01 → —

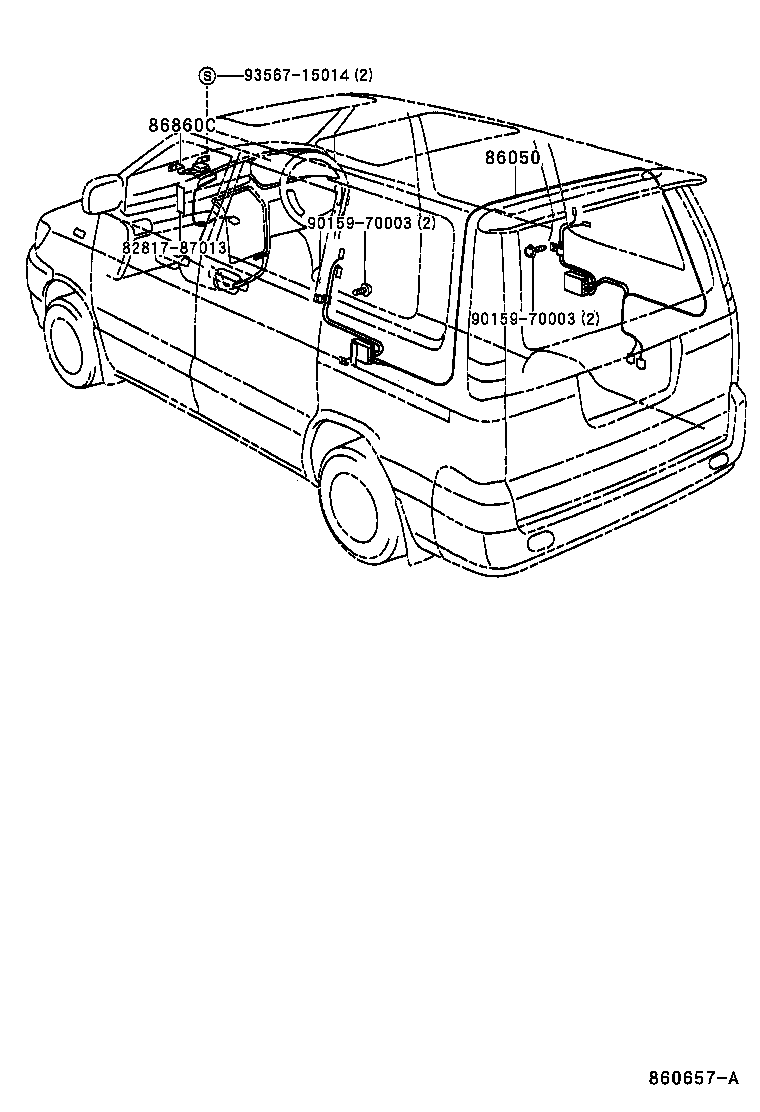

Figure 860657A

860657A 1998-01 → 2000-08

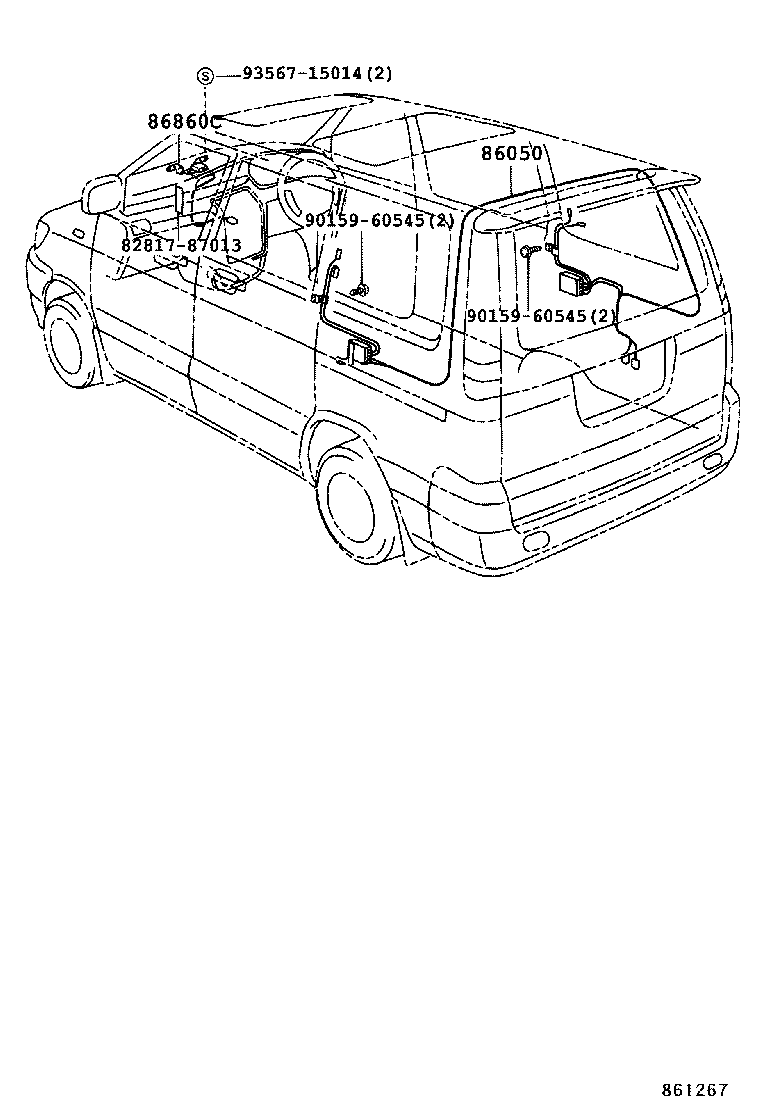

861267 2000-08 → —

Part groups

PNC	Description
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86860C	Antenna Assy, Navigation

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
