Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

21 part groups · 8 illustrations

Illustrations

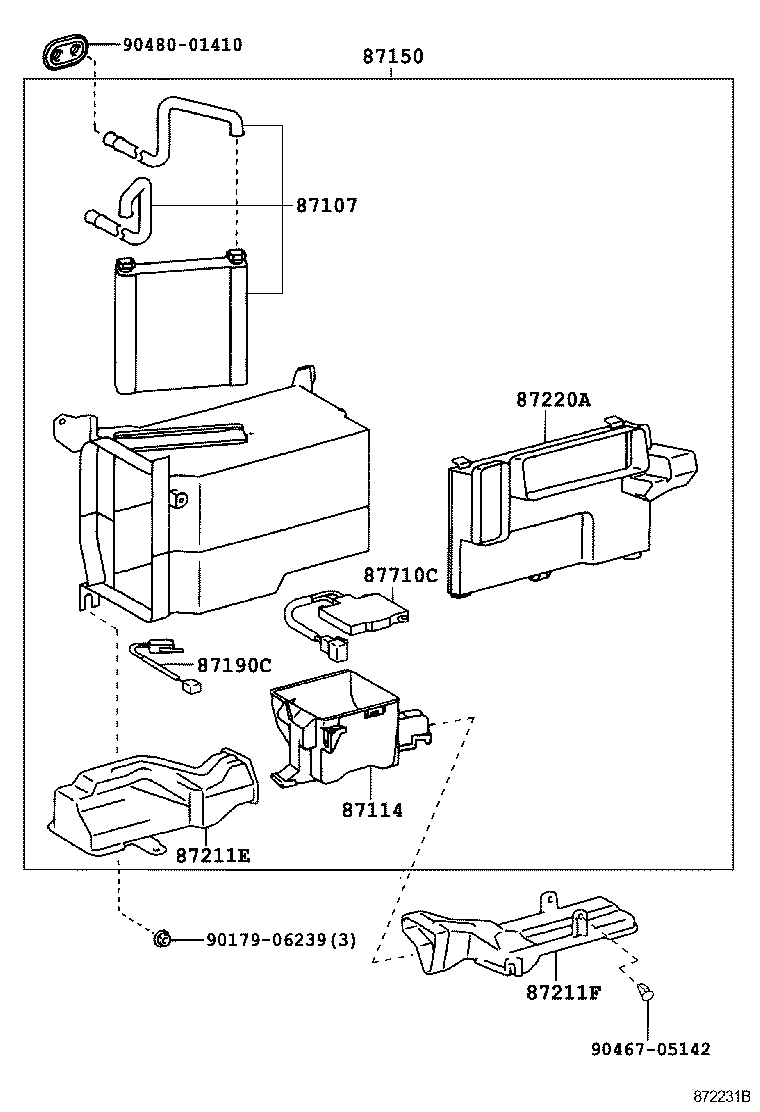

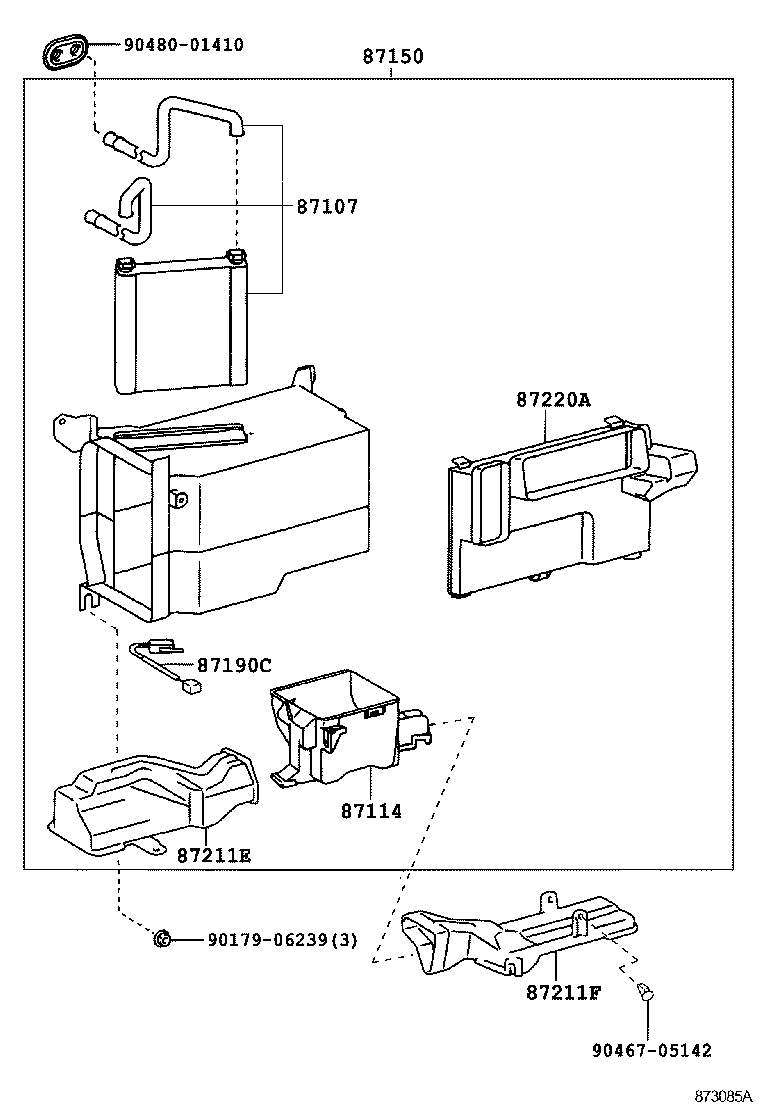

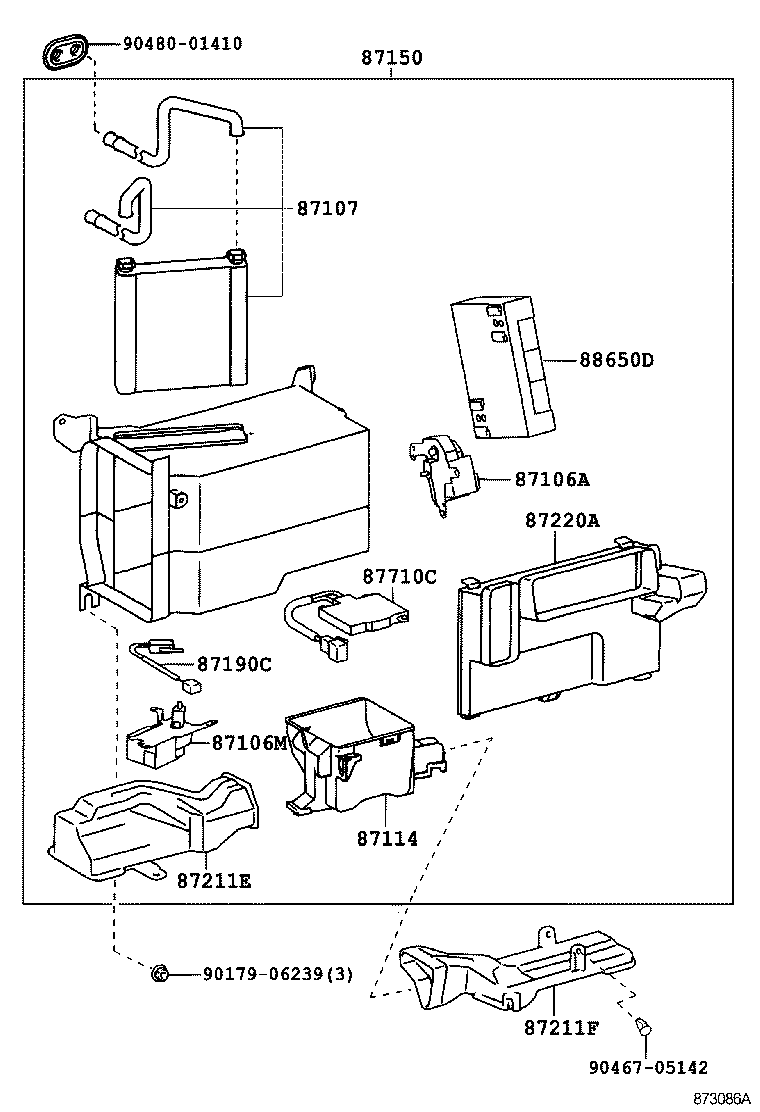

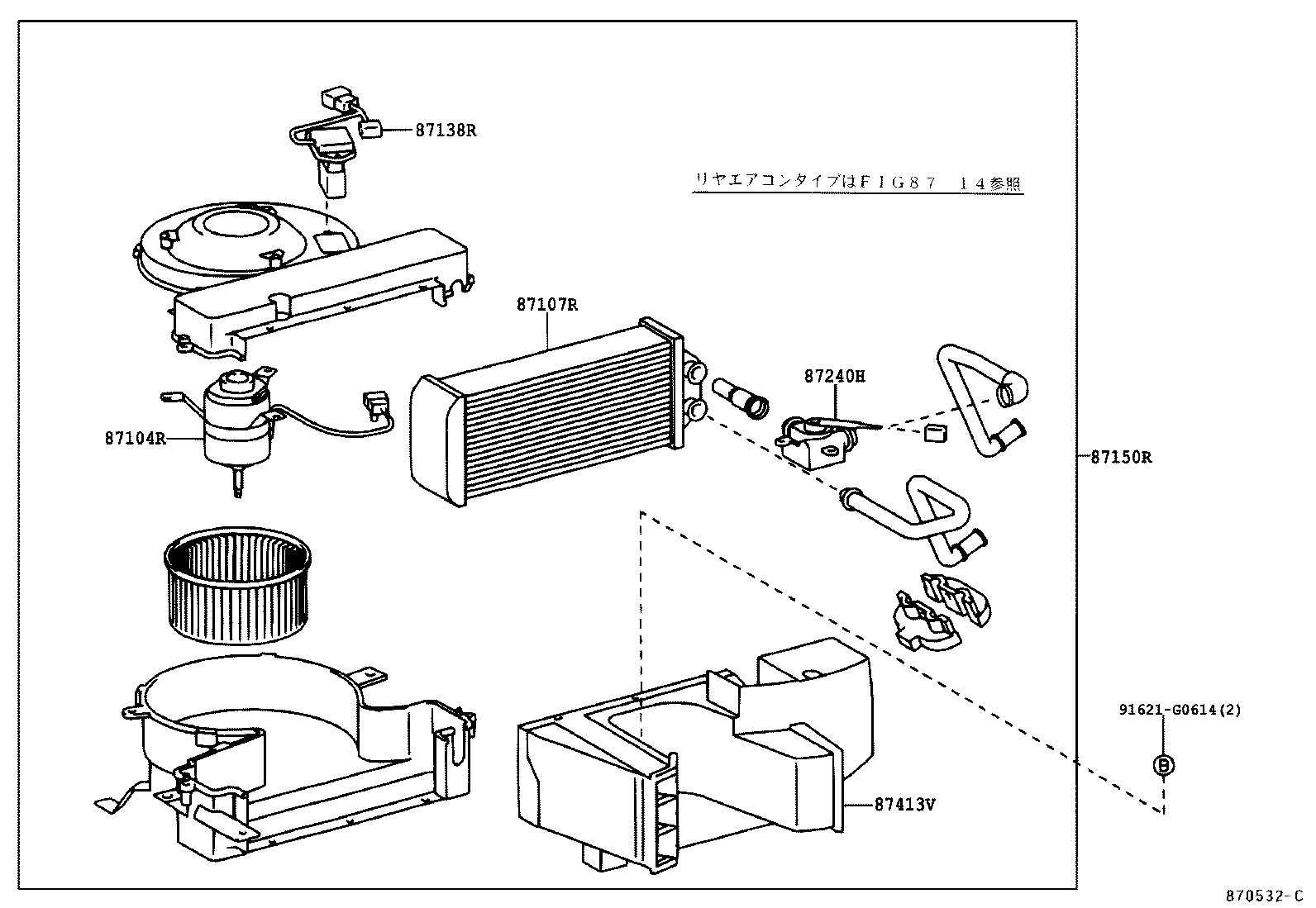

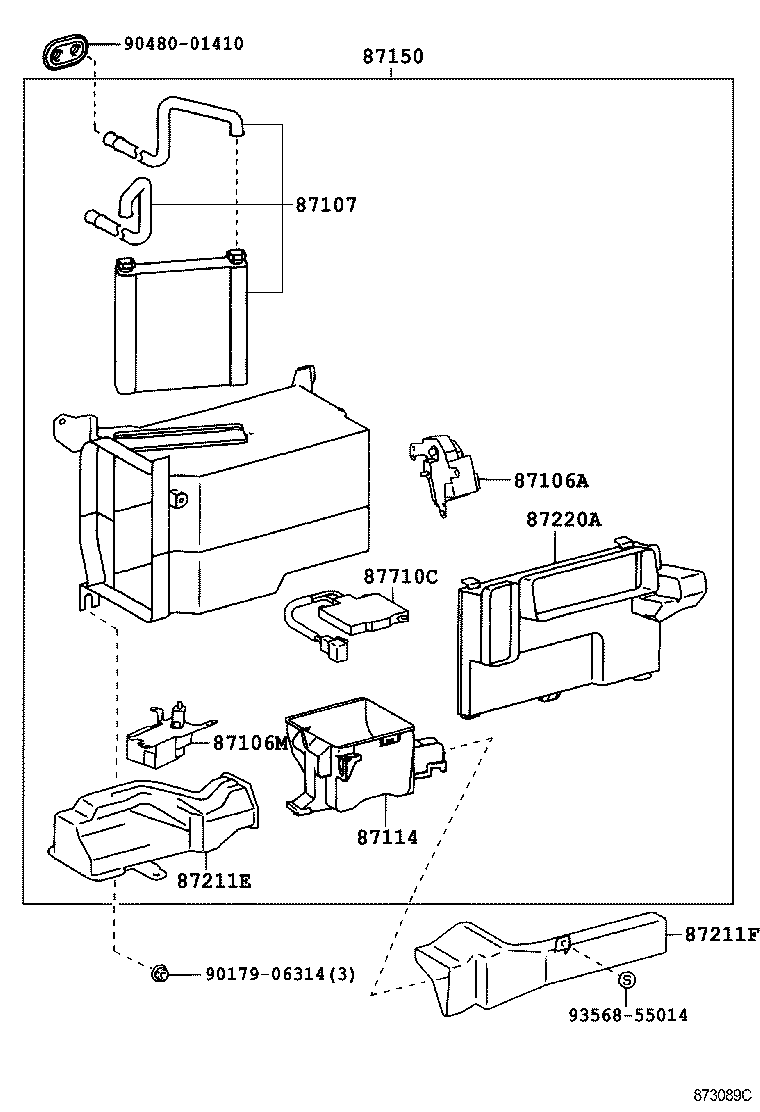

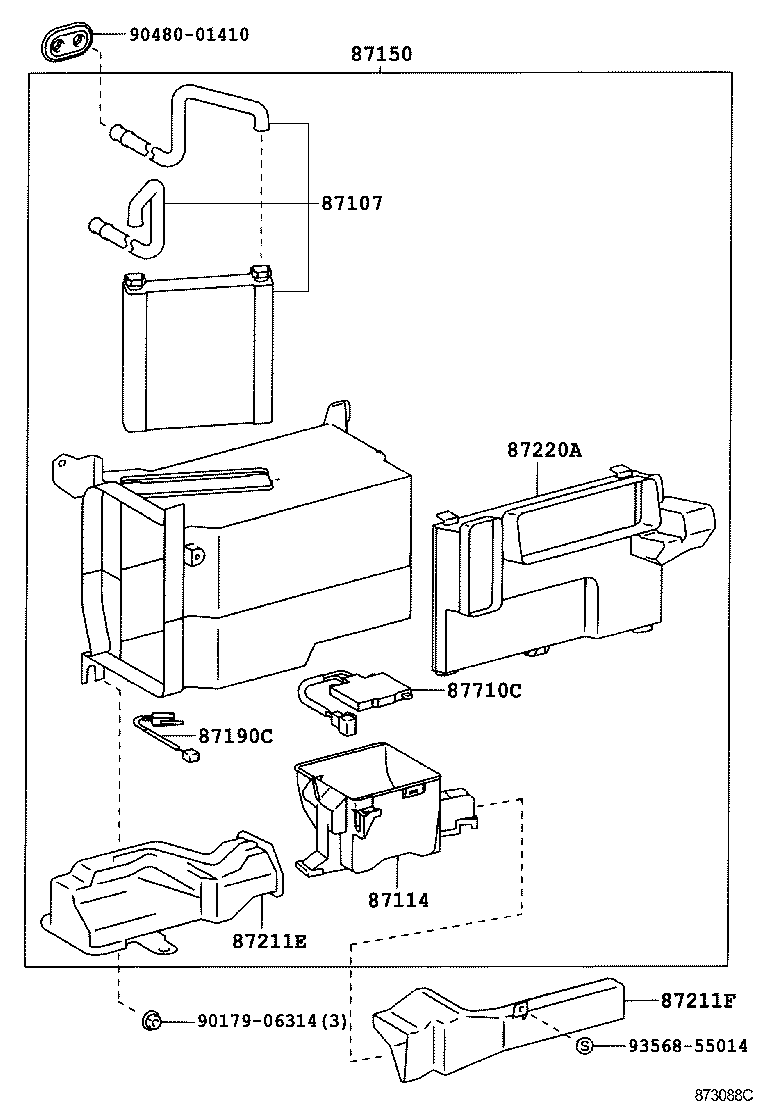

Figure 870531A 870531A 1996-10 → — Figure 870571A 870571A 1996-10 → — Figure 872231B 872231B 1996-10 → 1998-12 Figure 873086A 873086A 1996-10 → 1998-12 Figure 873085A 873085A 1996-10 → 1998-12 Figure 873088C 873088C 1998-12 → — Figure 873089C 873089C 1998-12 → — Figure 870532C 870532C 1996-11 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87104R Motor Sub-assy, Rear Heater Blower
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87106M Servo Sub-assy, Damper, NO.2
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87114 Cover, Heater
87130 Blower Assy, Heater, Front
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87150R Radiator Assy, Rear Heater
87187A Wire, Blower Motor Lead
87190C Switch Assy, Temperature Control
87211E Duct, Air
87211F Duct, Air
87220A Duct Assy, Heater Radiator Air
87240H Valve Assy, Water Unit
87413V Duct, Heater Air, A
87710C Heater Assy, Quick
88650D Amplifier Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
