Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

30 part groups · 6 illustrations

Illustrations

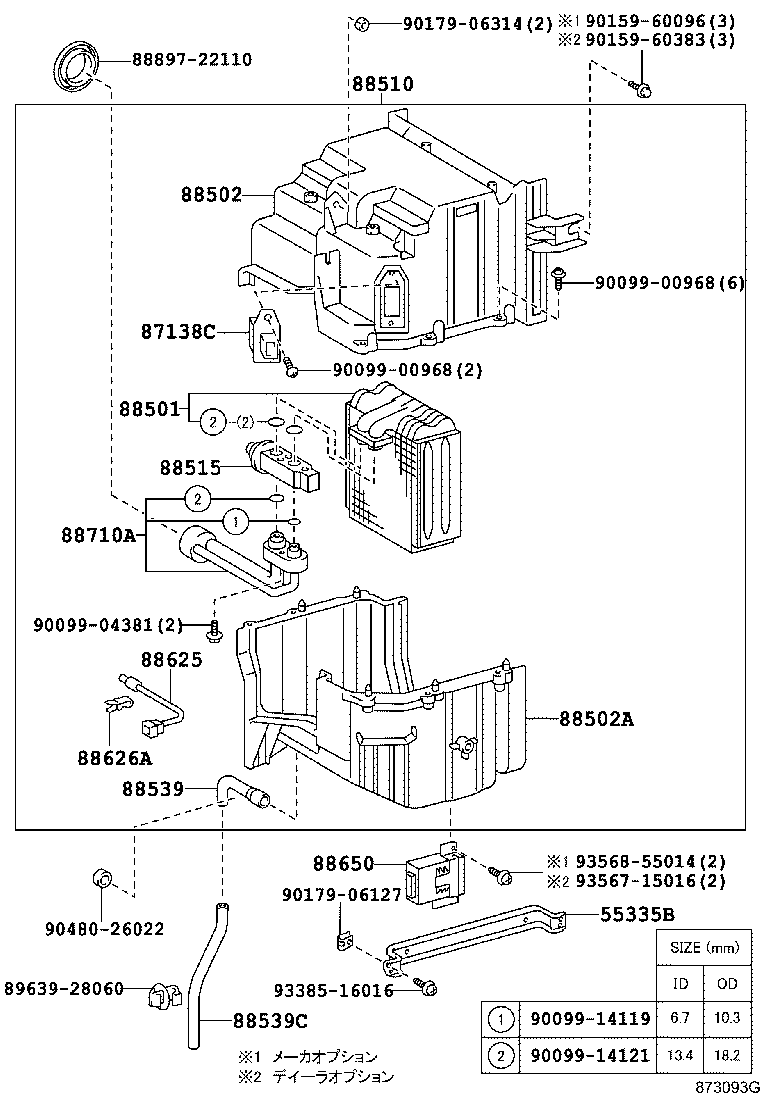

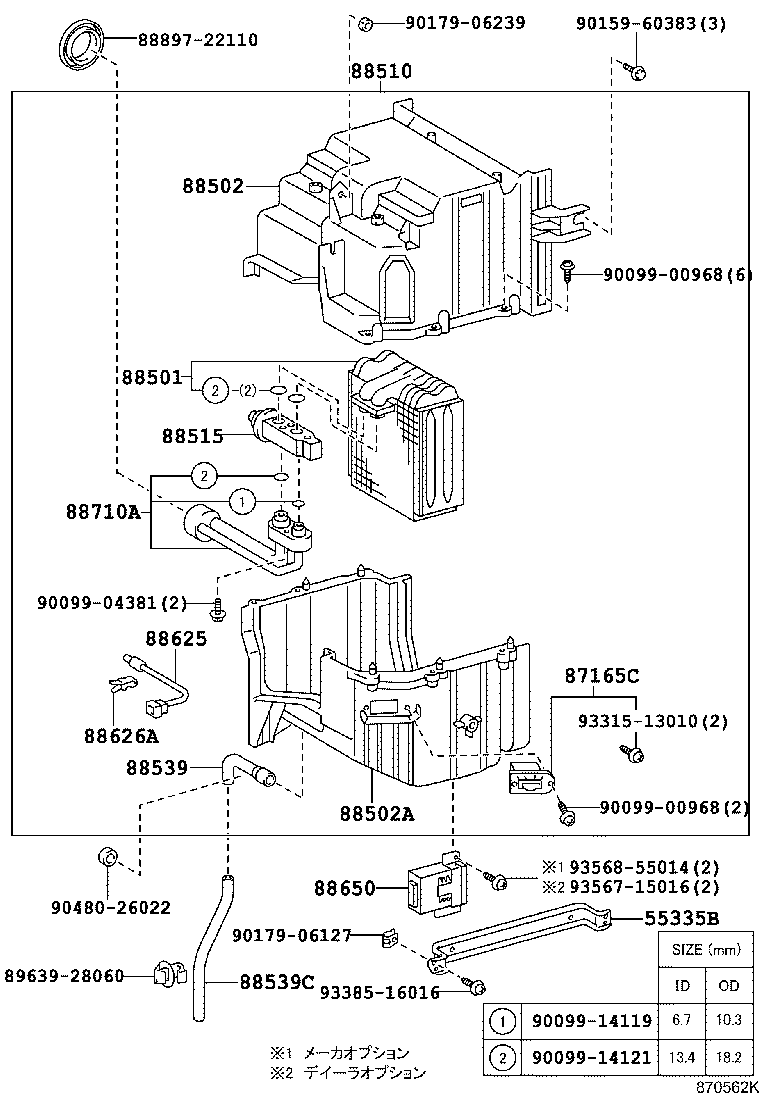

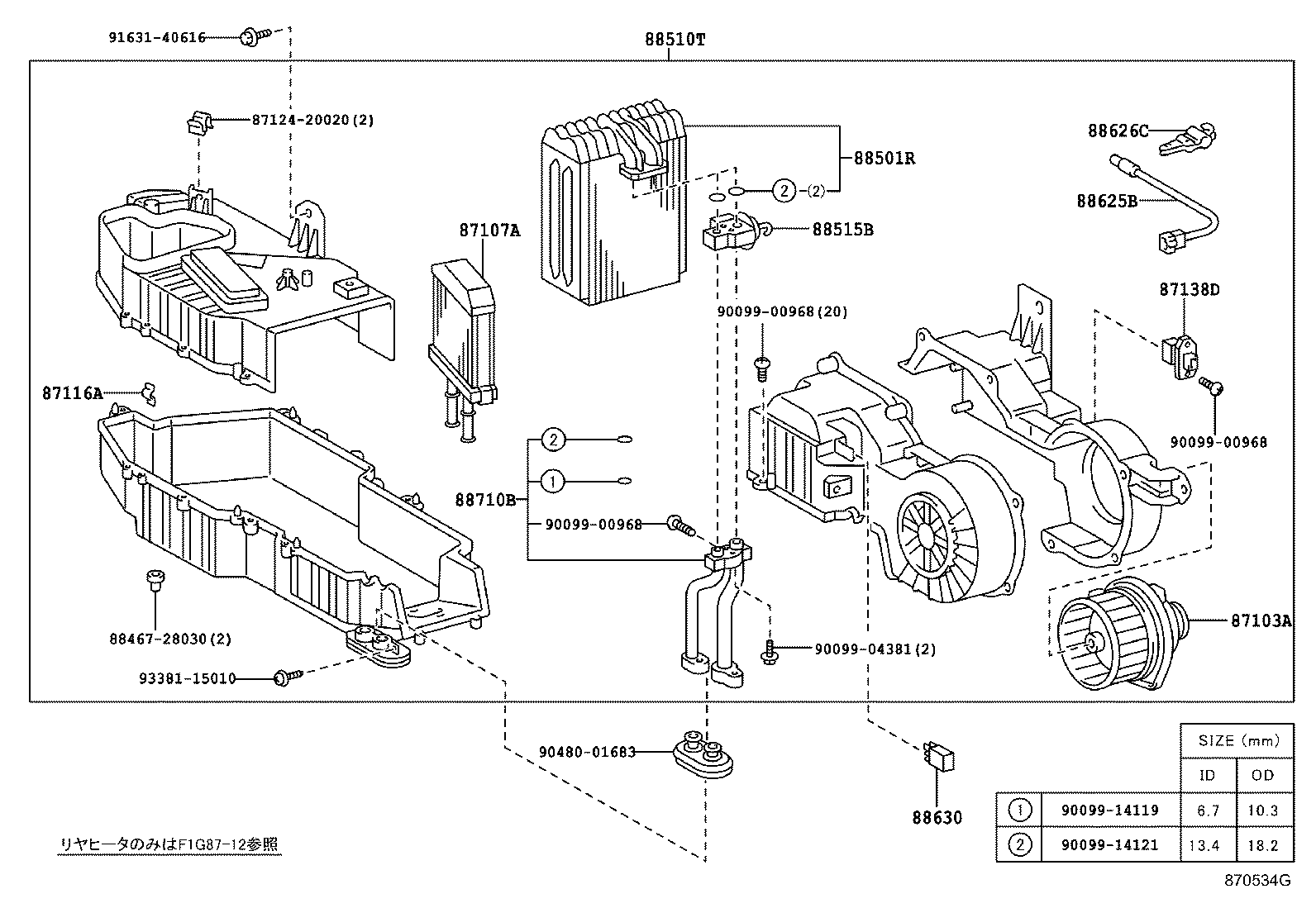

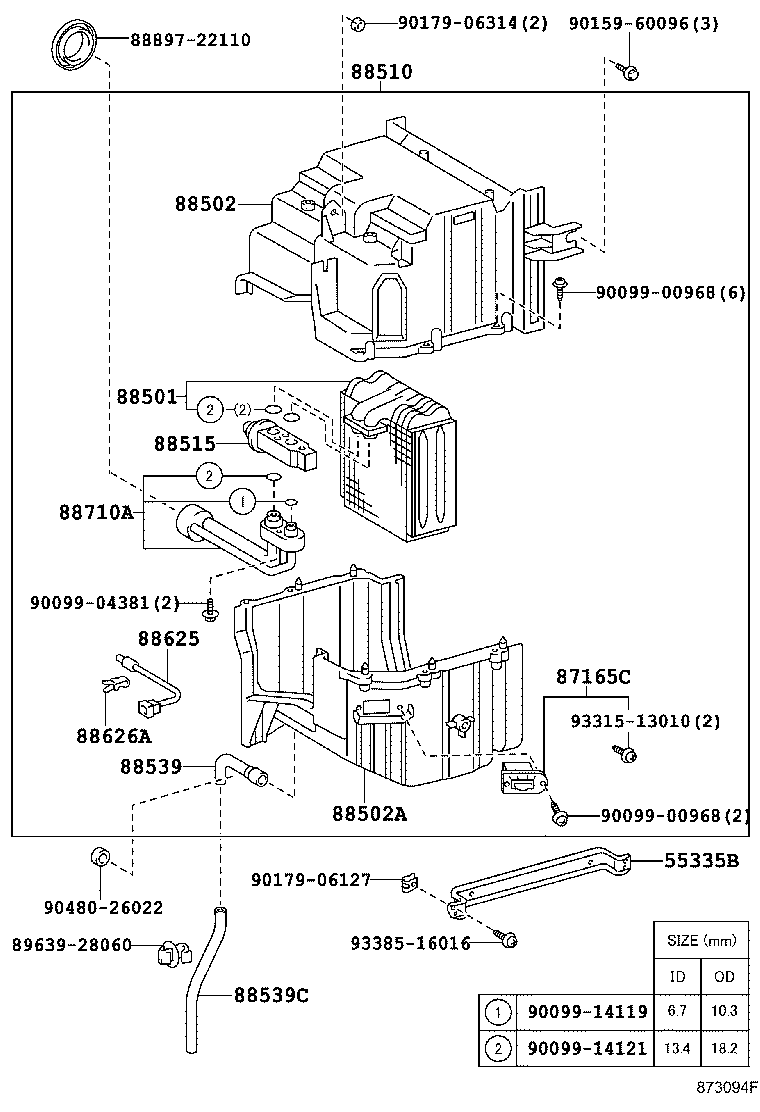

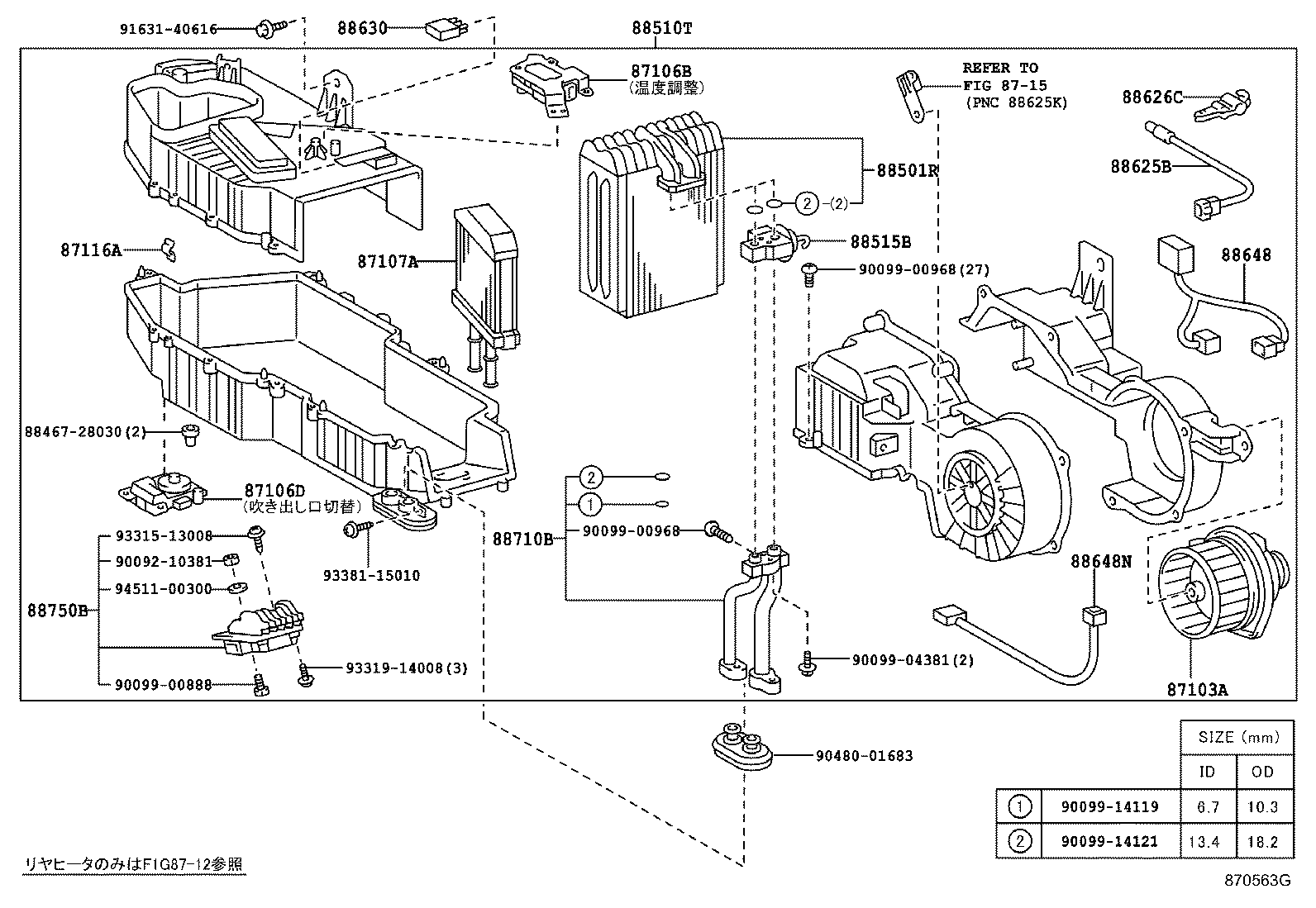

Figure 870533L 870533L 1996-10 → 1998-12 Figure 870562K 870562K 1996-10 → 1998-12 Figure 873093G 873093G 1998-12 → — Figure 873094F 873094F 1998-12 → — Figure 870534G 870534G 1996-10 → — Figure 870563G 870563G 1996-10 → —

Part groups

PNCDescription
55335B Reinforcement, Instrument Panel, Lwr LH
87103A Motor Sub-assy, Cooling Unit, W/Fan
87106B Servo Sub-assy, Damper(FOR COOLING UNIT)
87106D Servo Sub-assy, Damper, NO.1
87107A Unit Sub-assy, Heater Radiator
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
87138D Resistor, Blower (REAR)
87165C Control, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88625 Thermistor, Cooler, NO.1
88625B Thermistor, Cooler NO.3
88626A Holder, Thermistor
88626C Holder, Thermistor, Rear
88630 Relay Assy, Cooler
88648 Wiring, Cooler, NO.1
88648N Wiring, Cooler, NO.2
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88750B Transistor Assy, Blower Resistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
