Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

42 part groups · 11 illustrations

Illustrations

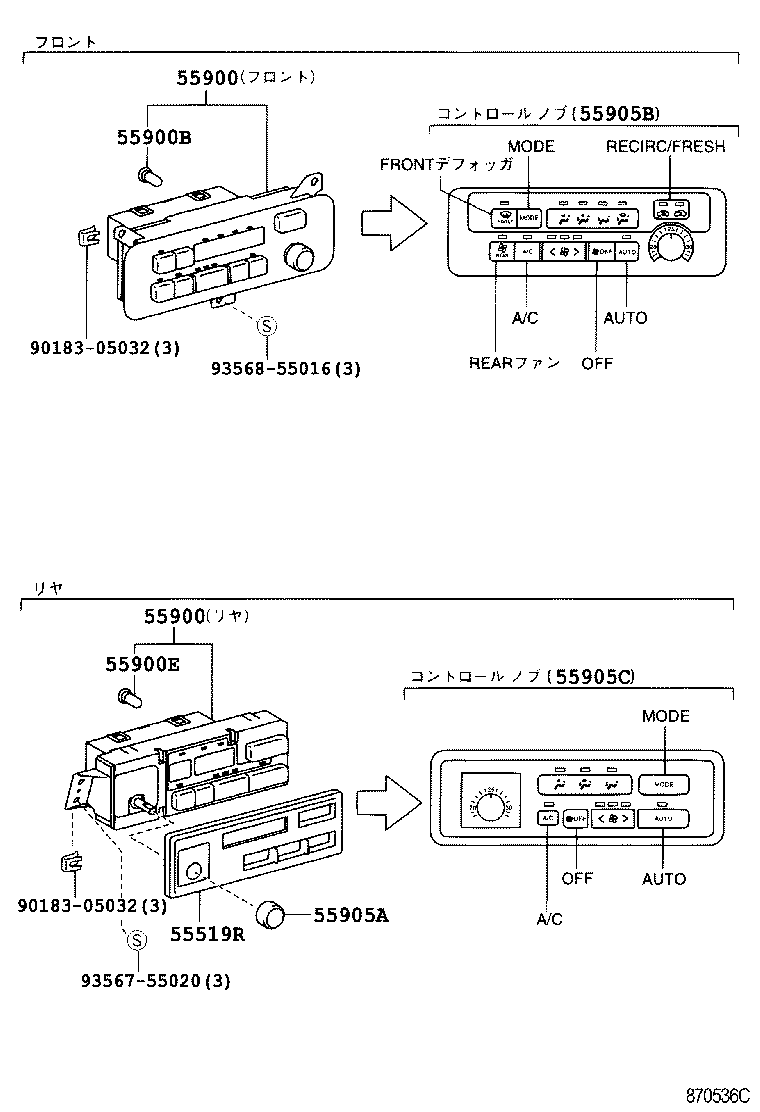

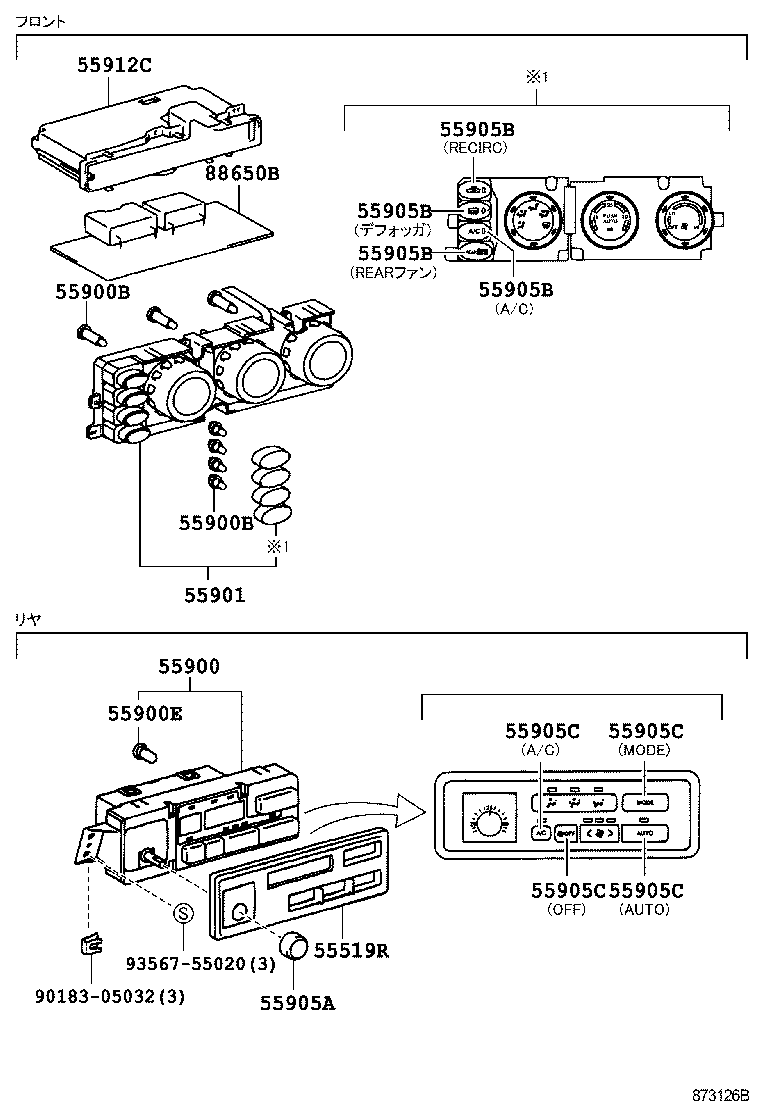

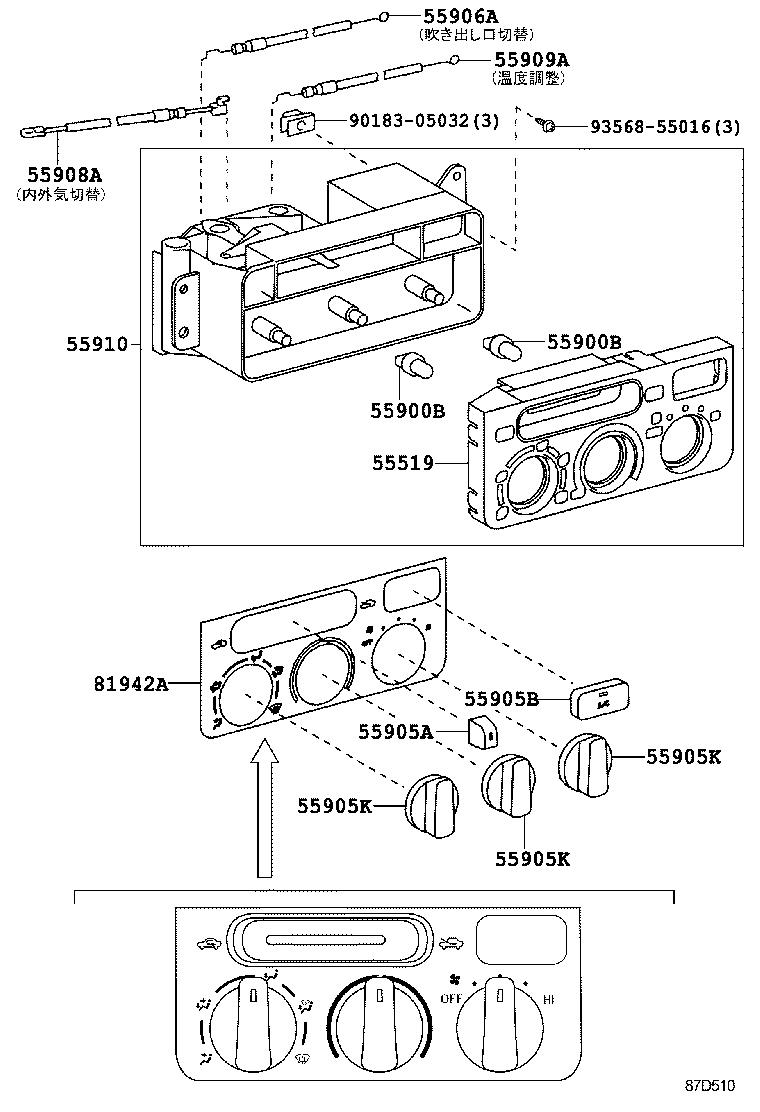

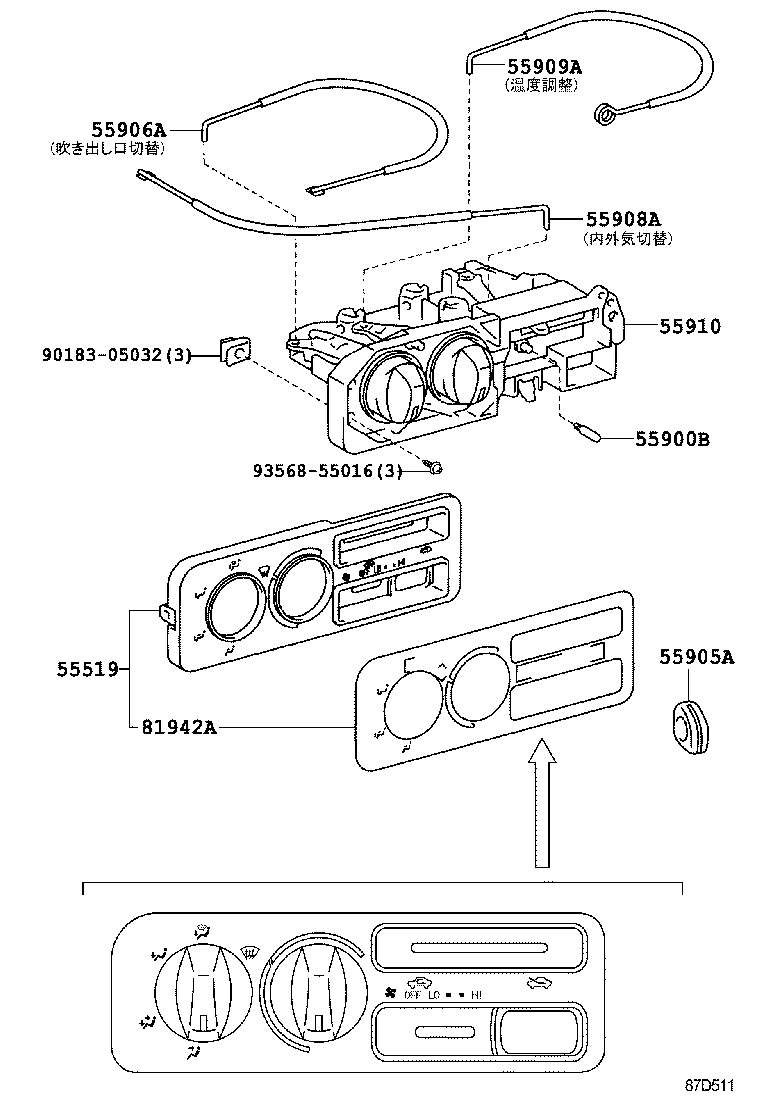

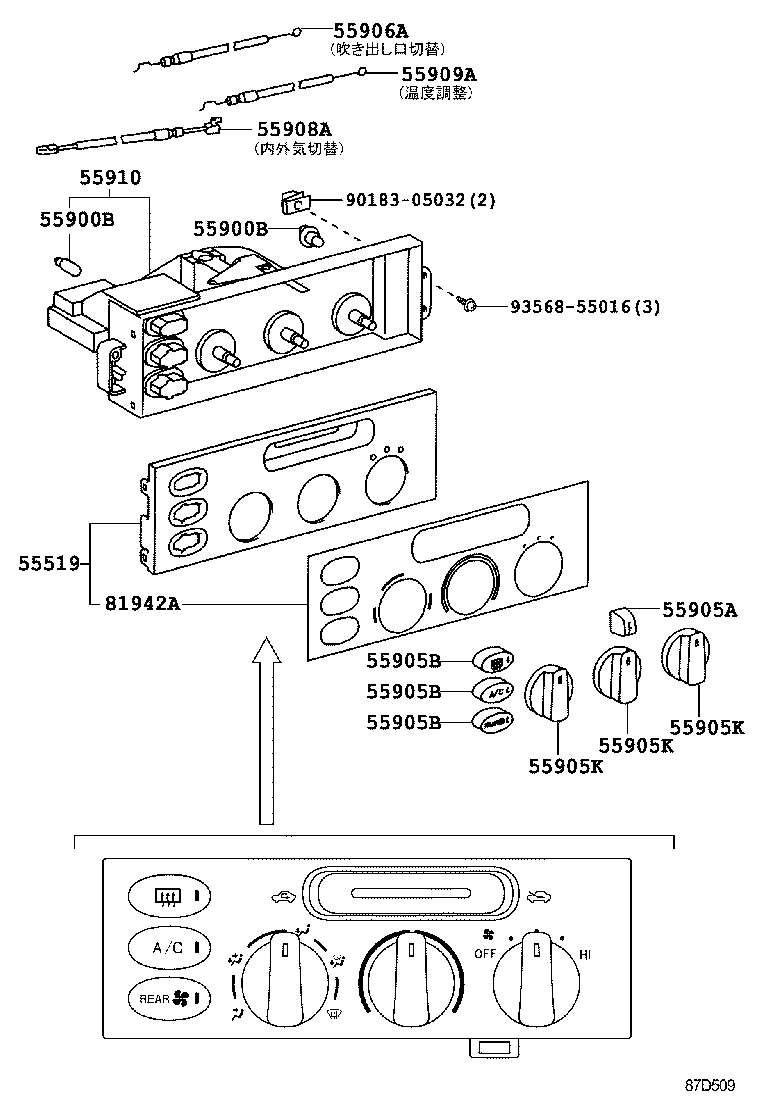

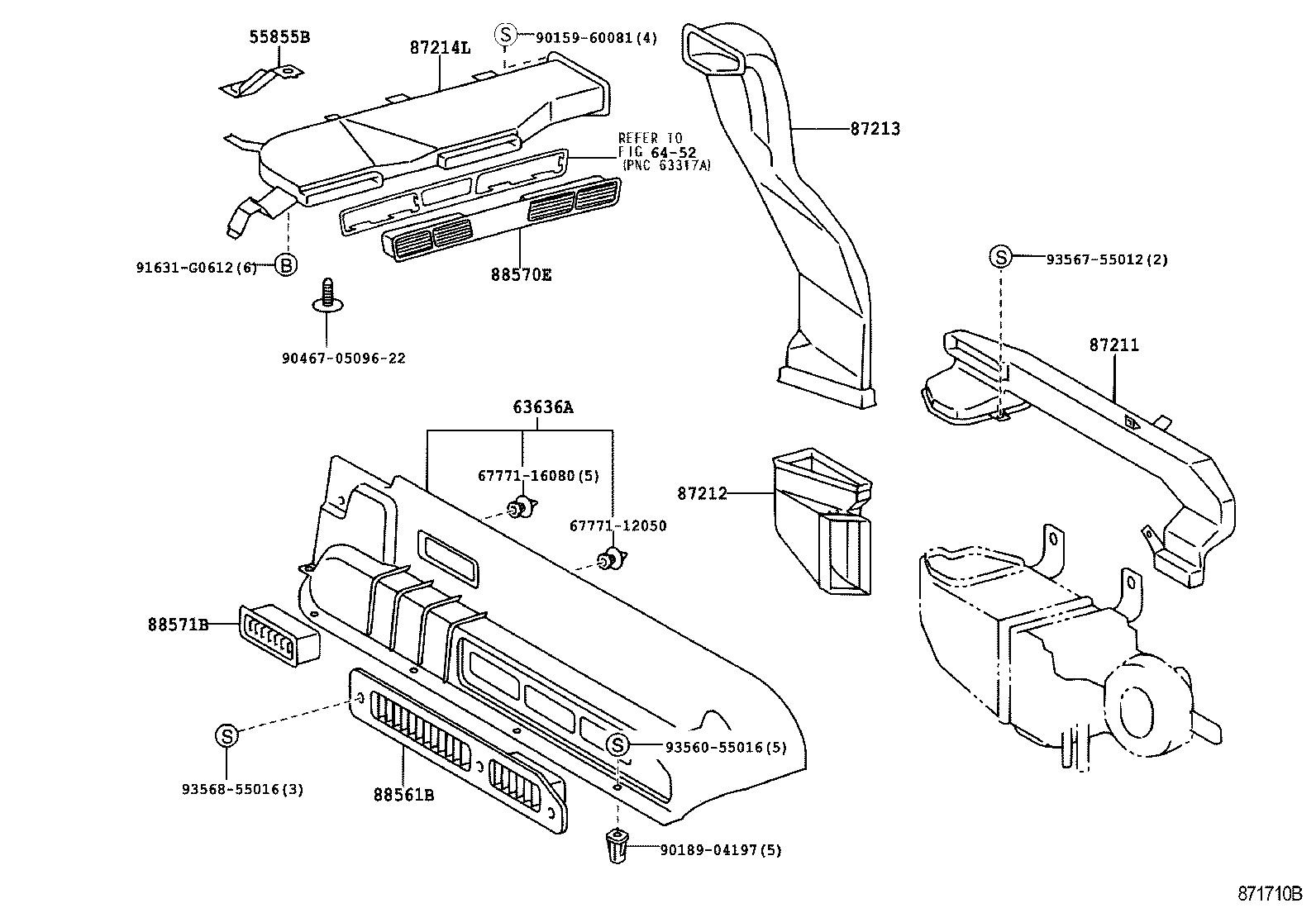

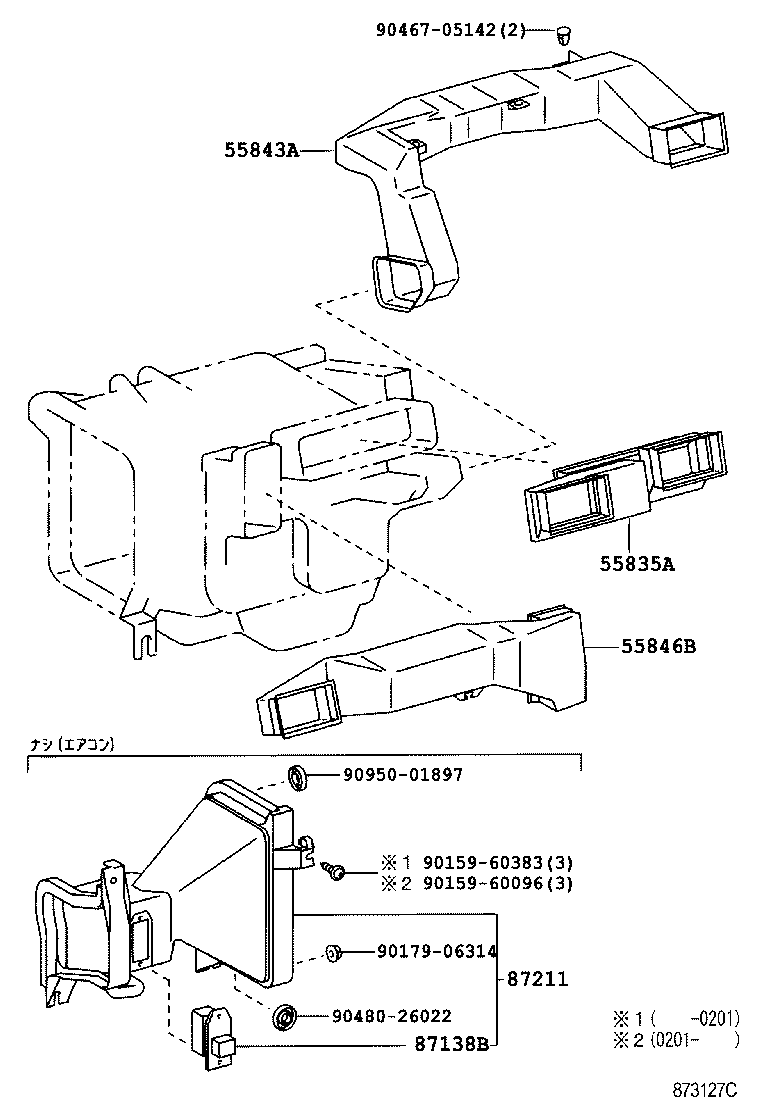

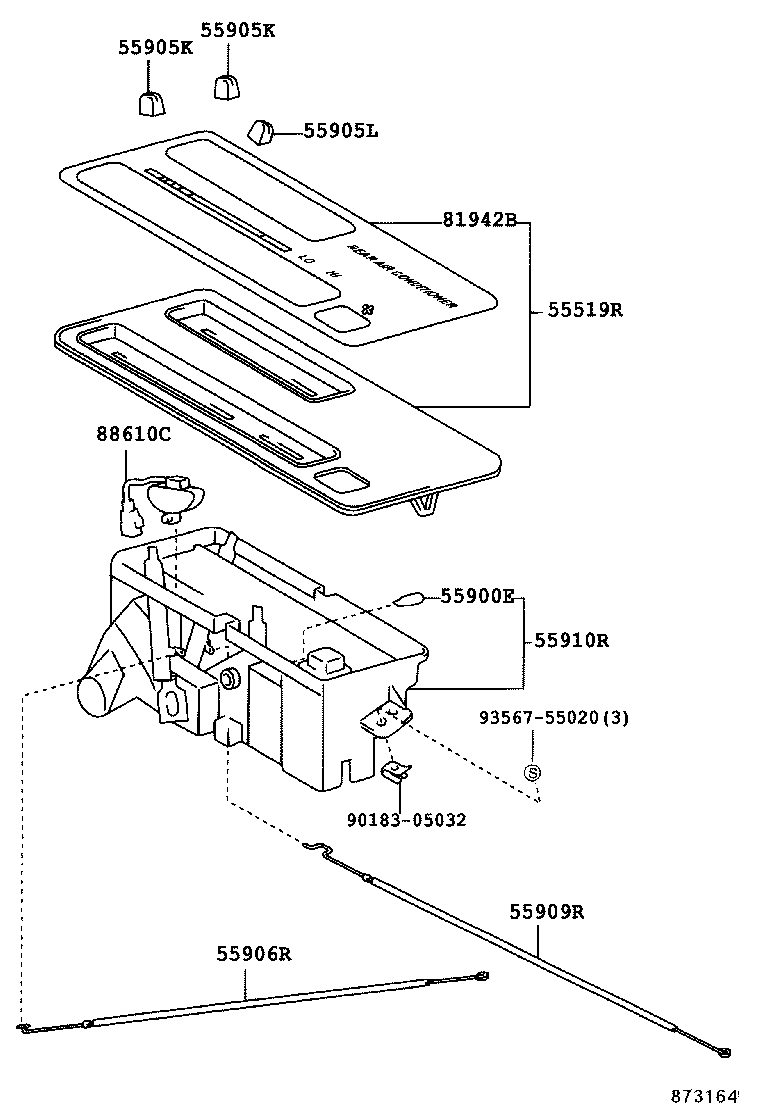

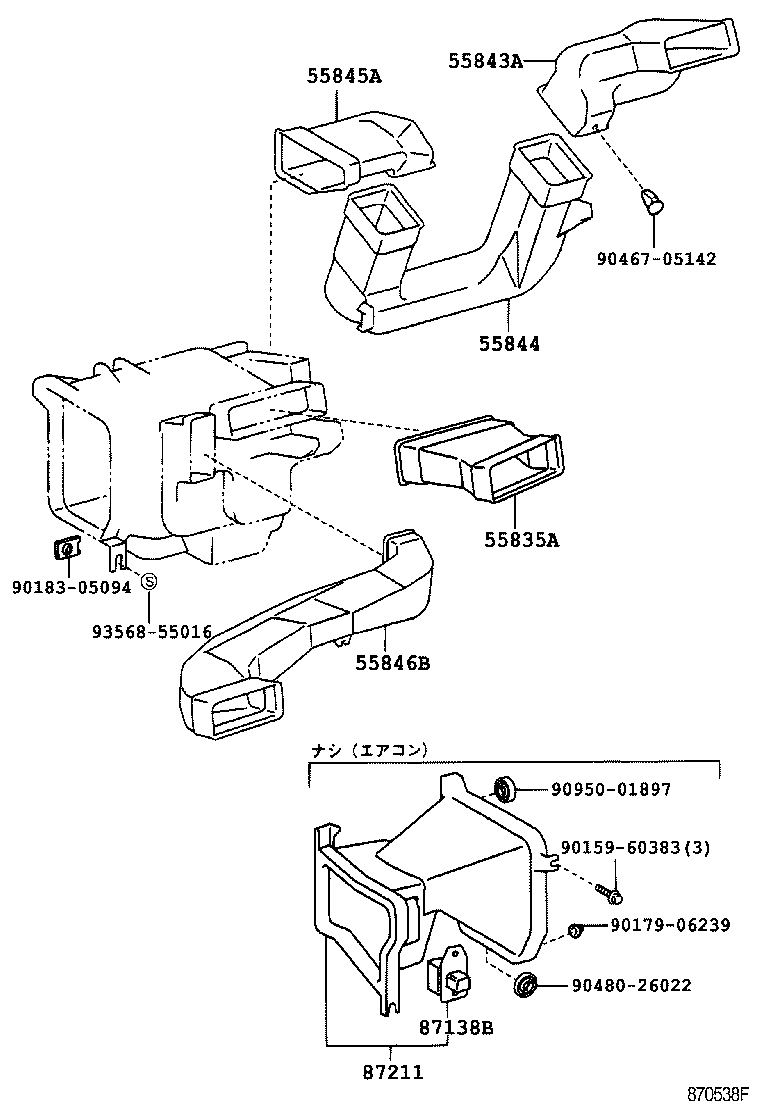

Figure 87D512 87D512 1996-11 → — Figure 87D511 87D511 1996-10 → 1998-01 Figure 87D510 87D510 1998-01 → 1998-12 Figure 870536C 870536C 1996-10 → 1998-12 Figure 87D509 87D509 1998-12 → — Figure 873126B 873126B 1998-12 → — Figure 873164 873164 1996-10 → — Figure 870538F 870538F 1996-10 → 1998-12 Figure 873127C 873127C 1998-12 → — Figure 871710B 871710B 1996-10 → — Figure 870540 870540 1996-10 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55519R Plate, Heater Control Name
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55855B Bracket, Air Duct Register Mounting
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55900E Bulb, Air Conditioner Control, NO.2
55901 Base Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905K Knob, Heater Control, NO.4
55905L Knob, Heater Control, NO.5
55906A Cable Sub-assy, Defroster Damper Control
55906R Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55909R Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910R Control Assy, Heater
55912C Housing, Heater Control
63636A Cover, Rear Cooler Unit
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214L Bracket, Air Duct
88561B Grille, Cooler Air Inlet
88570E Grille Assy, Air Outlet
88571B Grille, Air Outlet
88610C Switch Assy, Cooler Control
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
88648A Wiring, Cooler
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
