Toyota Lite/Townace Noah,V

1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

17 part groups · 14 illustrations

Illustrations

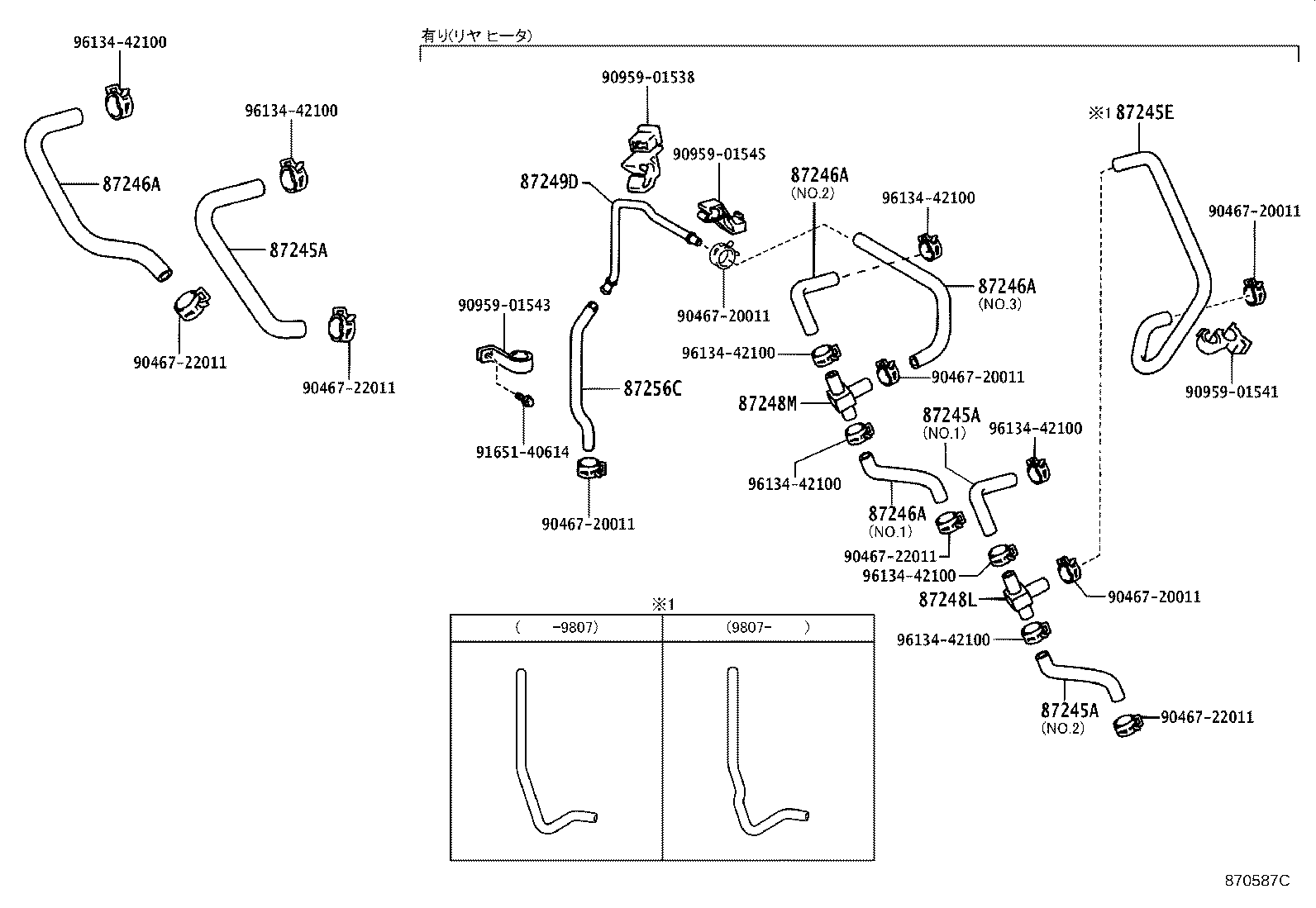

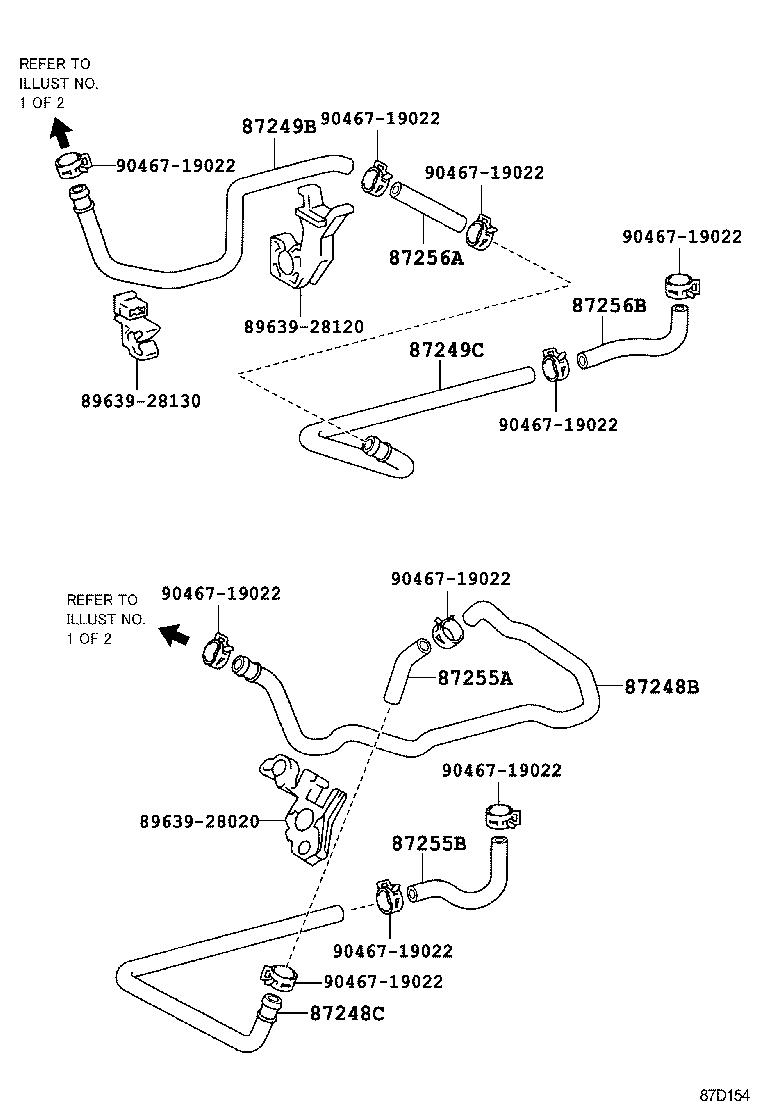

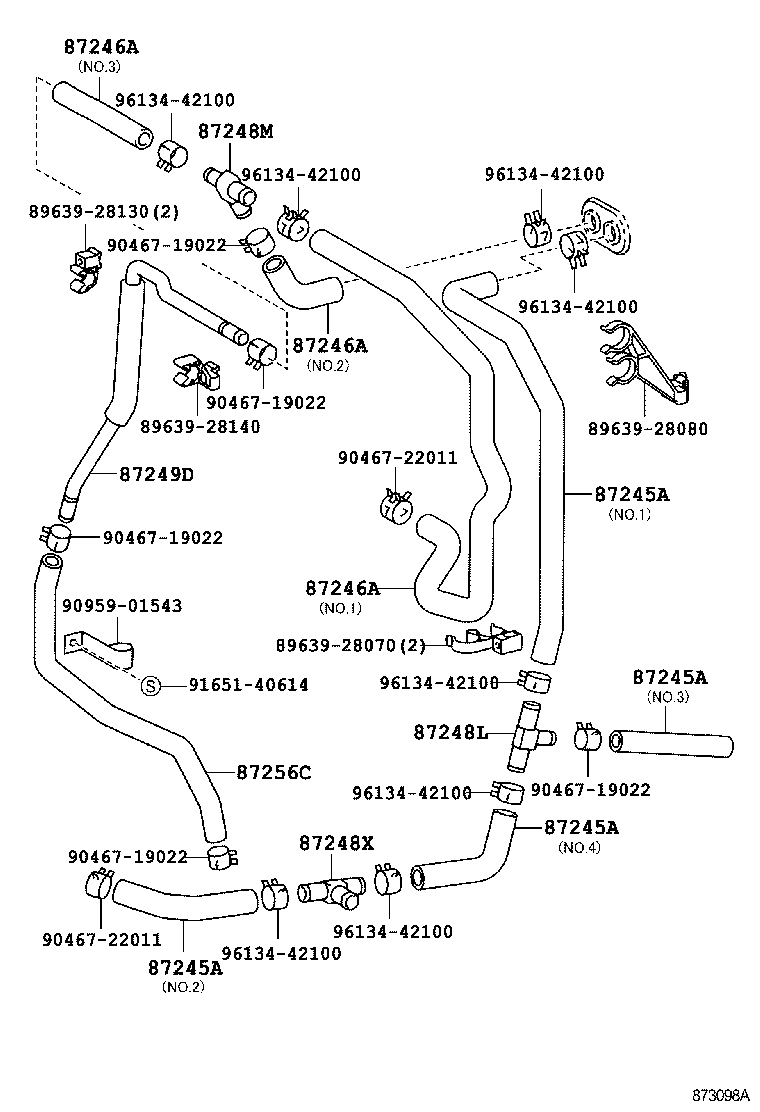

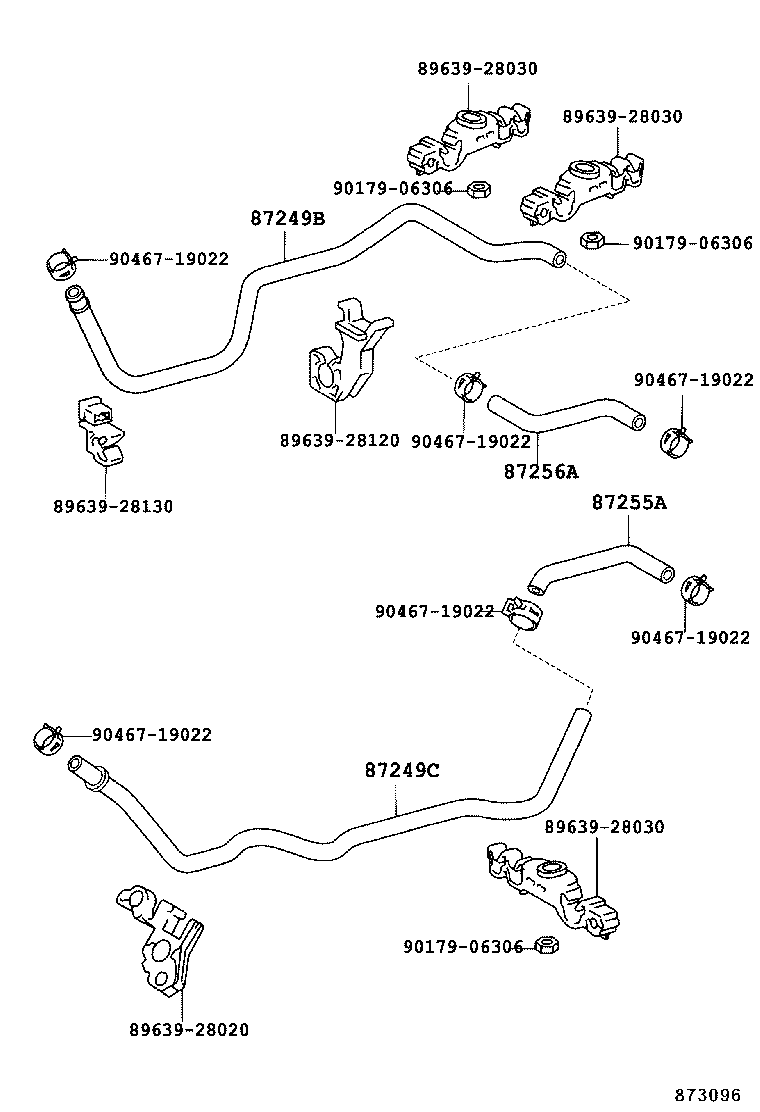

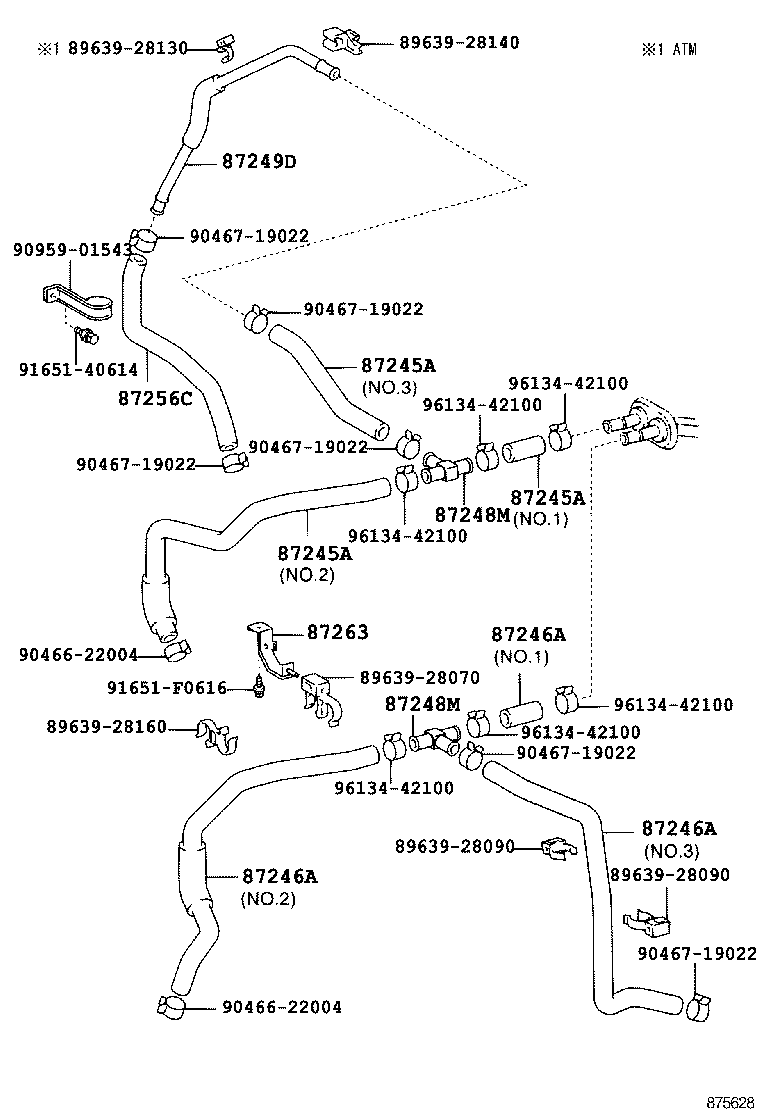

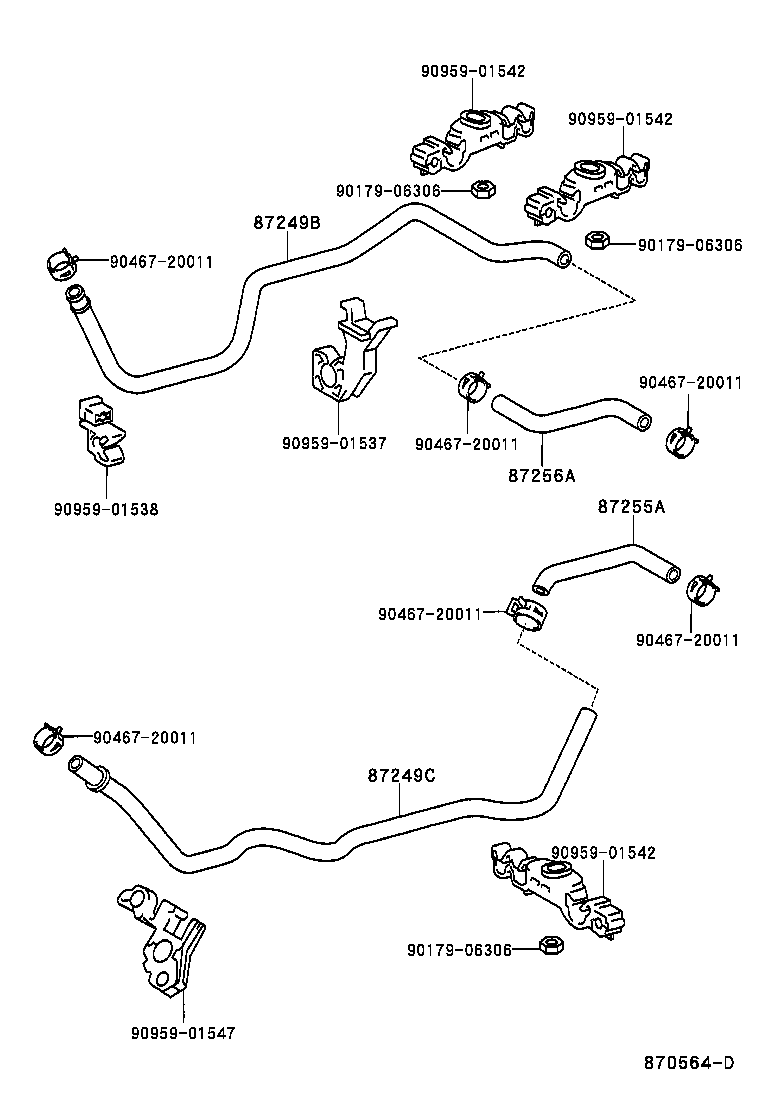

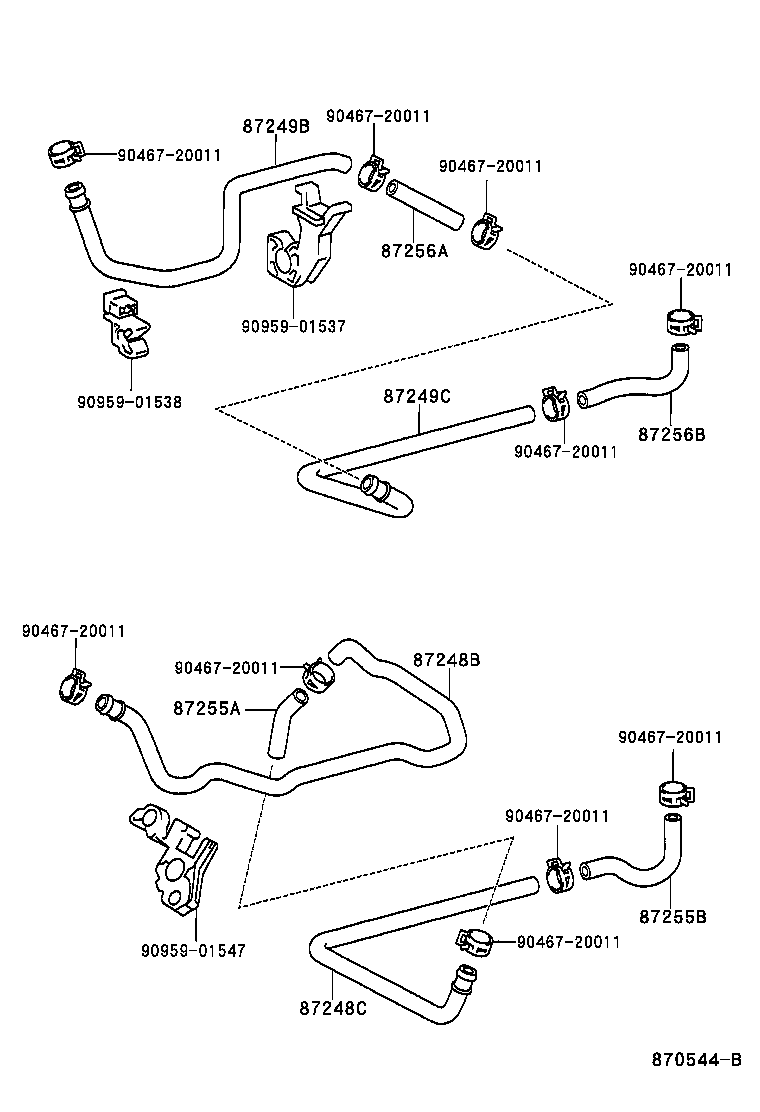

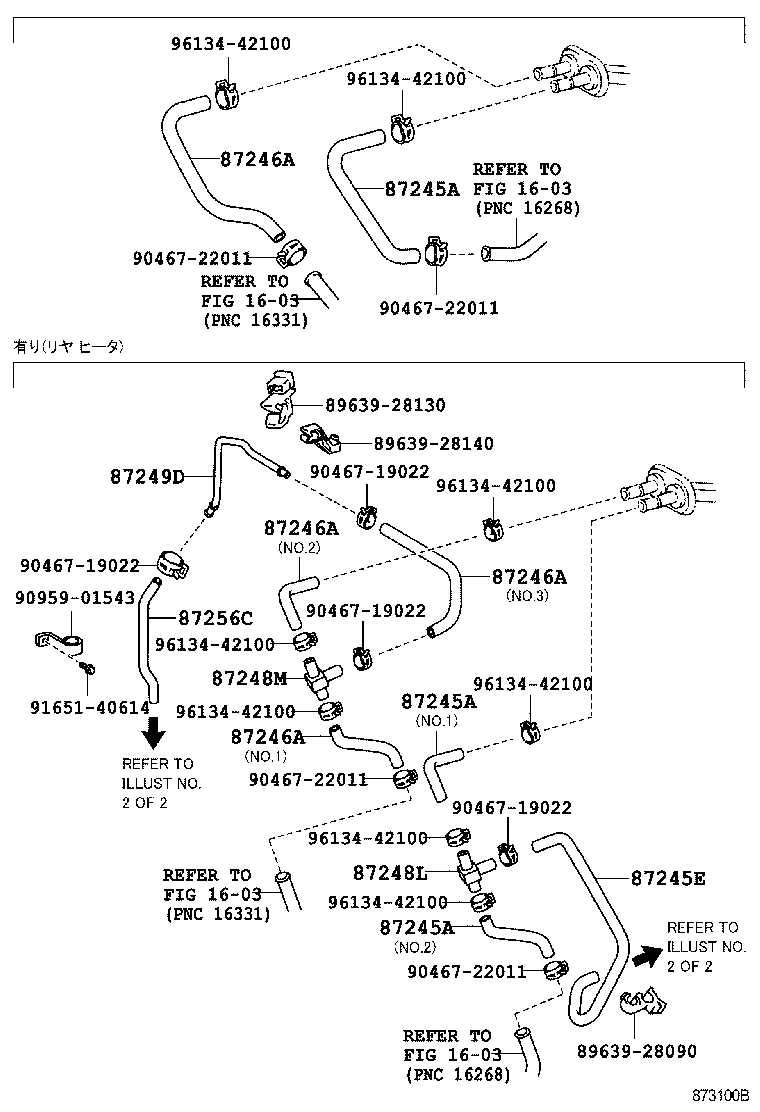

Figure 870586B 870586B 1996-10 → 1998-12 Figure 870587C 870587C 1996-10 → 1998-12 Figure 870542B 870542B 1996-11 → 1998-12 Figure 873099A 873099A 1998-12 → — Figure 873098A 873098A 1998-12 → — Figure 873100B 873100B 1998-12 → — Figure 873101B 873101B 1998-12 → — Figure 875628B 875628B 2002-08 → — Figure 875628B 875628B 2004-12 → — Figure 870544B 870544B 1996-10 → 1998-12 Figure 870564D 870564D 1996-11 → 1998-12 Figure 873096 873096 1998-12 → — Figure 873096 873096 2002-08 → — Figure 87D154 87D154 1998-12 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248L Pipe, Heater Water, L
87248M Pipe, Heater Water, M
87248X Pipe, Heater Water
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87263 Bracket, Heater Water Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
