Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

12 part groups · 2 illustrations

Illustrations

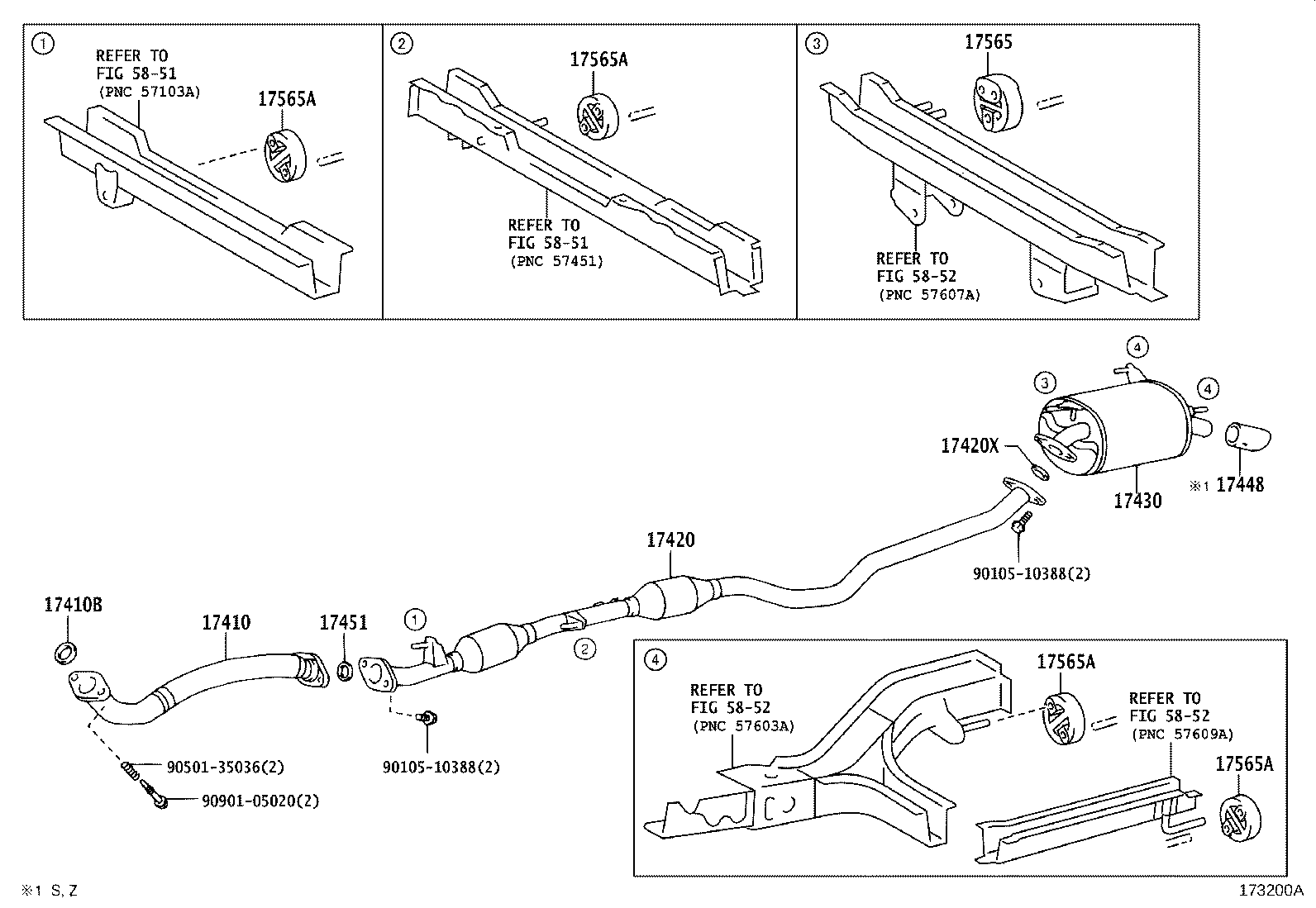

Figure 173199C 173199C 2001-11 → — Figure 173200A 173200A 2001-11 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17541 Stay, Exhust Pipe Protector, NO.1
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
