Toyota Noah/Voxy
2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan
Discontinued model
Data version 2008-04

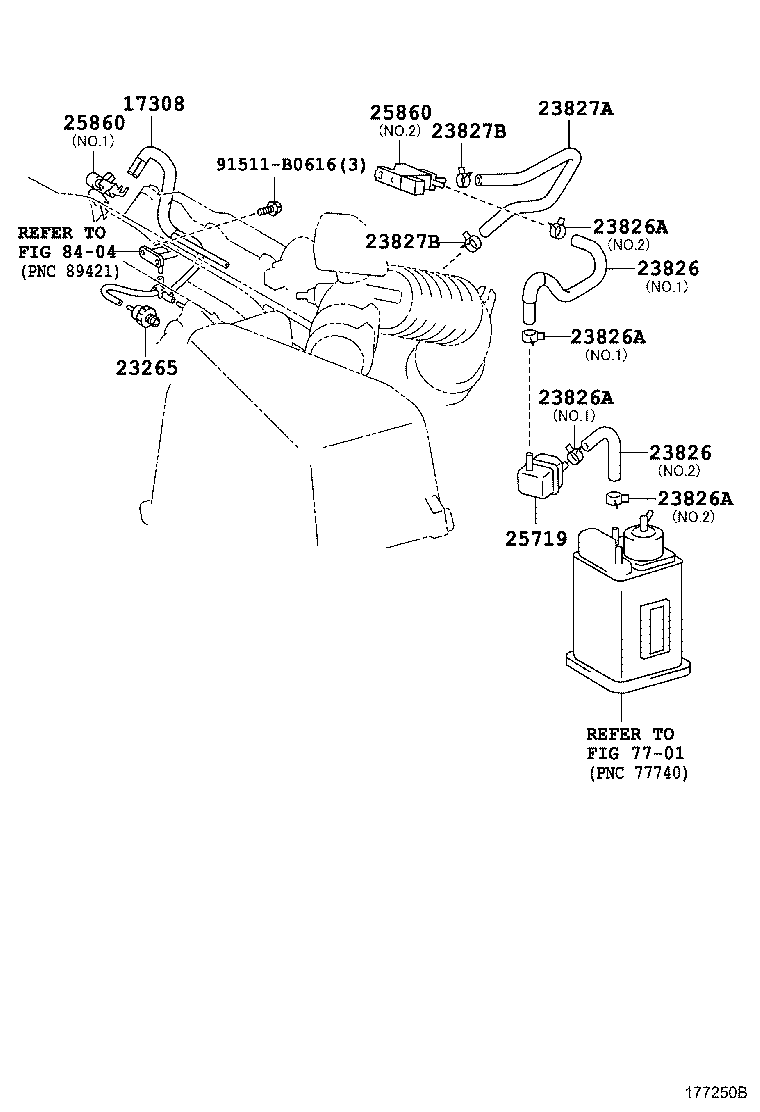

Vacuum Piping
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 23265 | Filter, Gas, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 25719 | Tank, Vacuum Surge |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
