Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

8 part groups · 4 illustrations

Illustrations

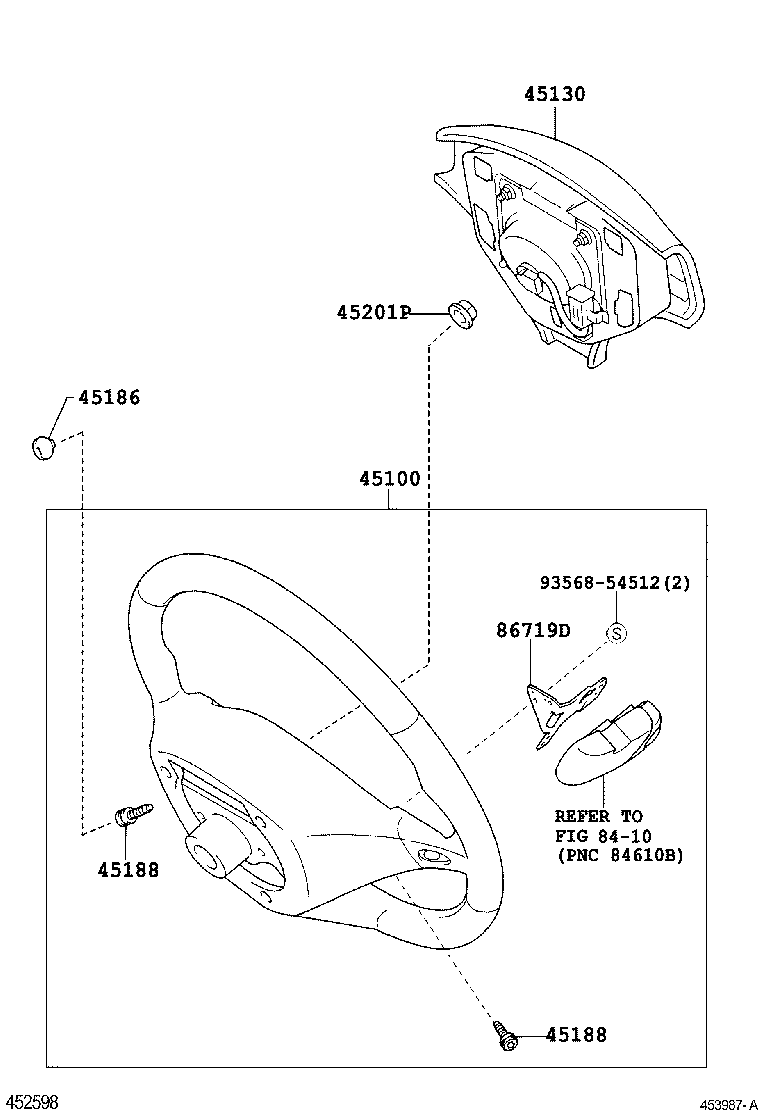

Figure 452961 452961 2001-11 → 2004-08 Figure 452962D 452962D 2001-11 → 2004-08 Figure 457489A 457489A 2004-08 → — Figure 453987A 453987A 2004-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
86719D Bracket,Transmission Shift Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
