Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

7 part groups · 2 illustrations

Illustrations

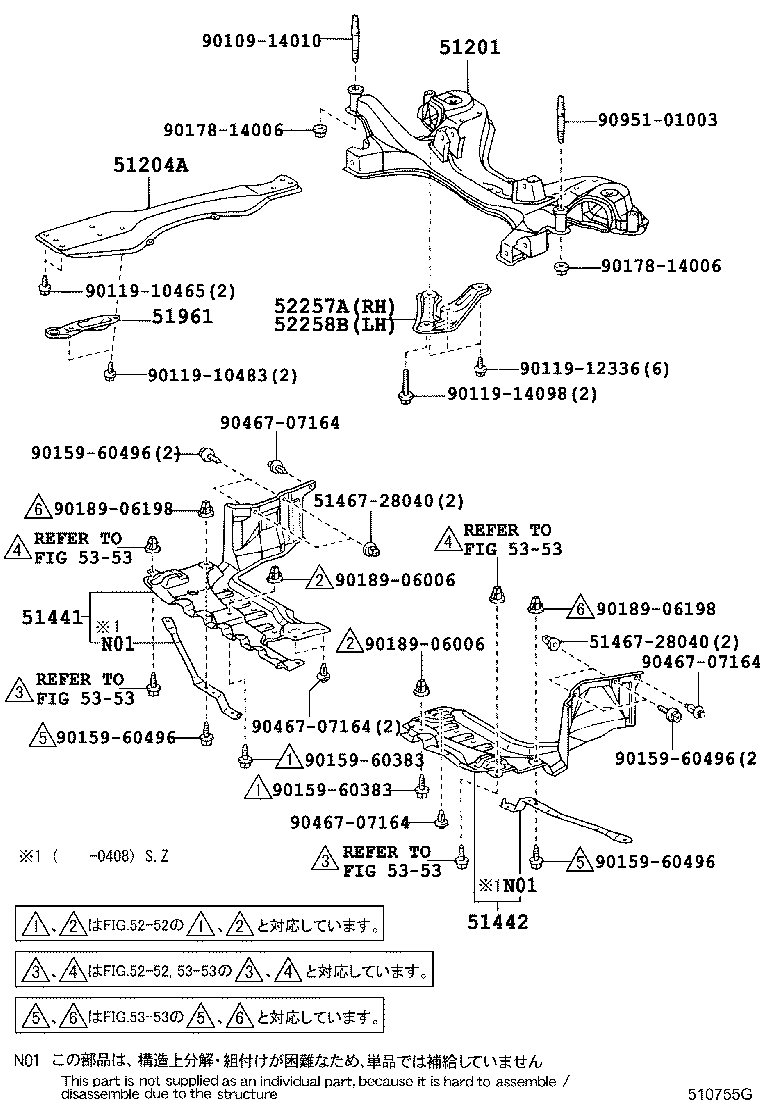

Figure 510754H 510754H 2001-11 → — Figure 510755G 510755G 2001-11 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51961 Hook, NO.1
52257A Brace, Front Suspension Member, Rear RH
52258B Brace, Front Suspension Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
