Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 8 illustrations

Illustrations

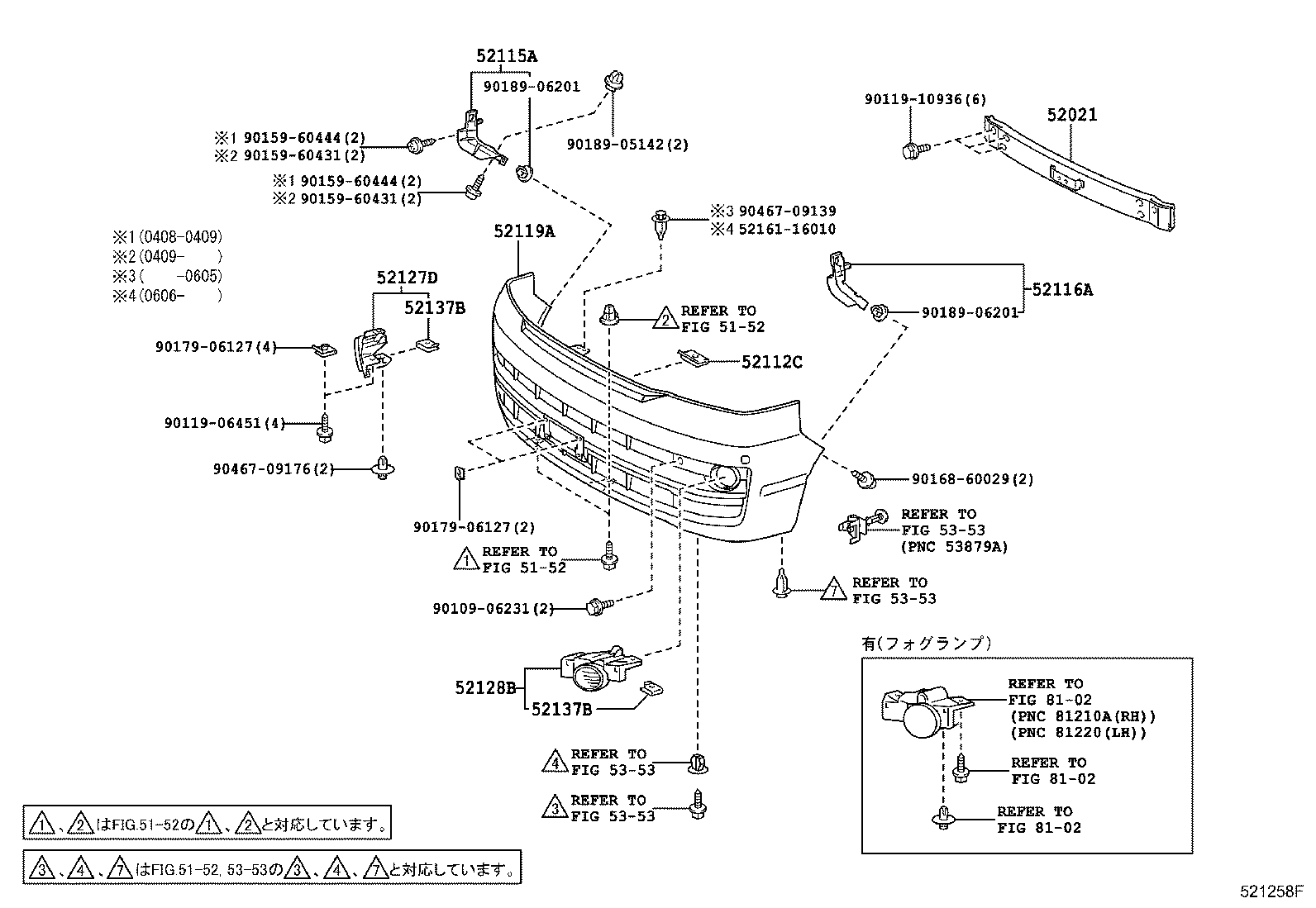

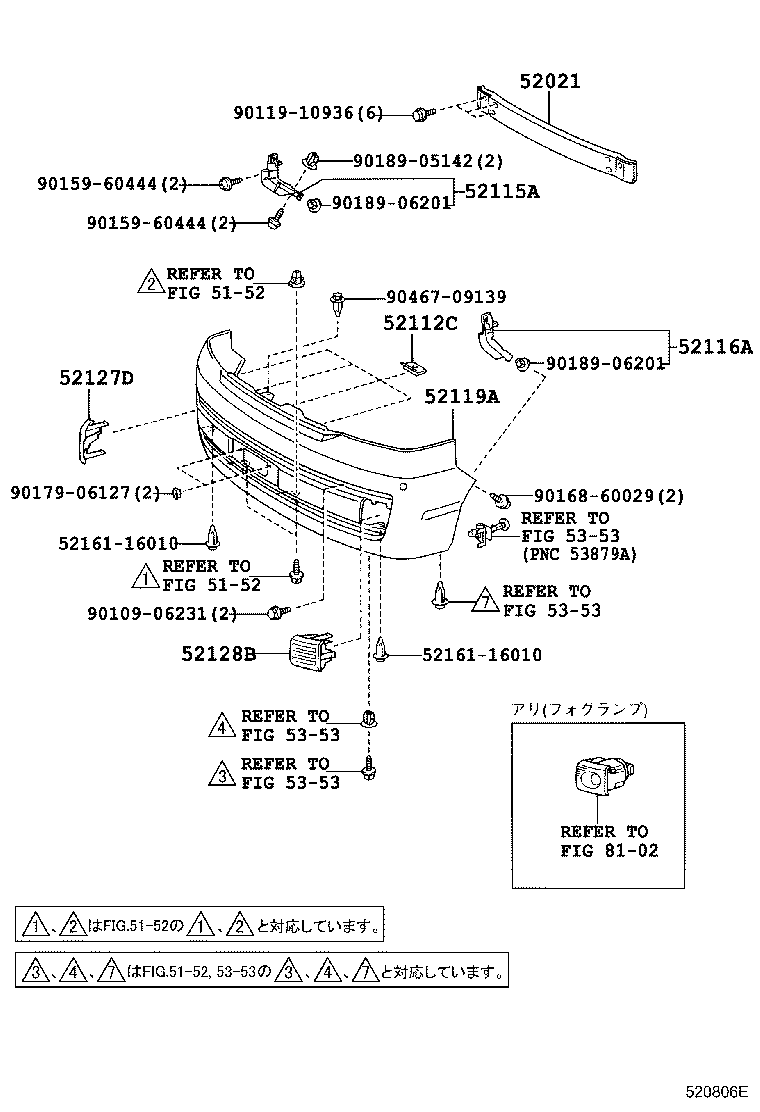

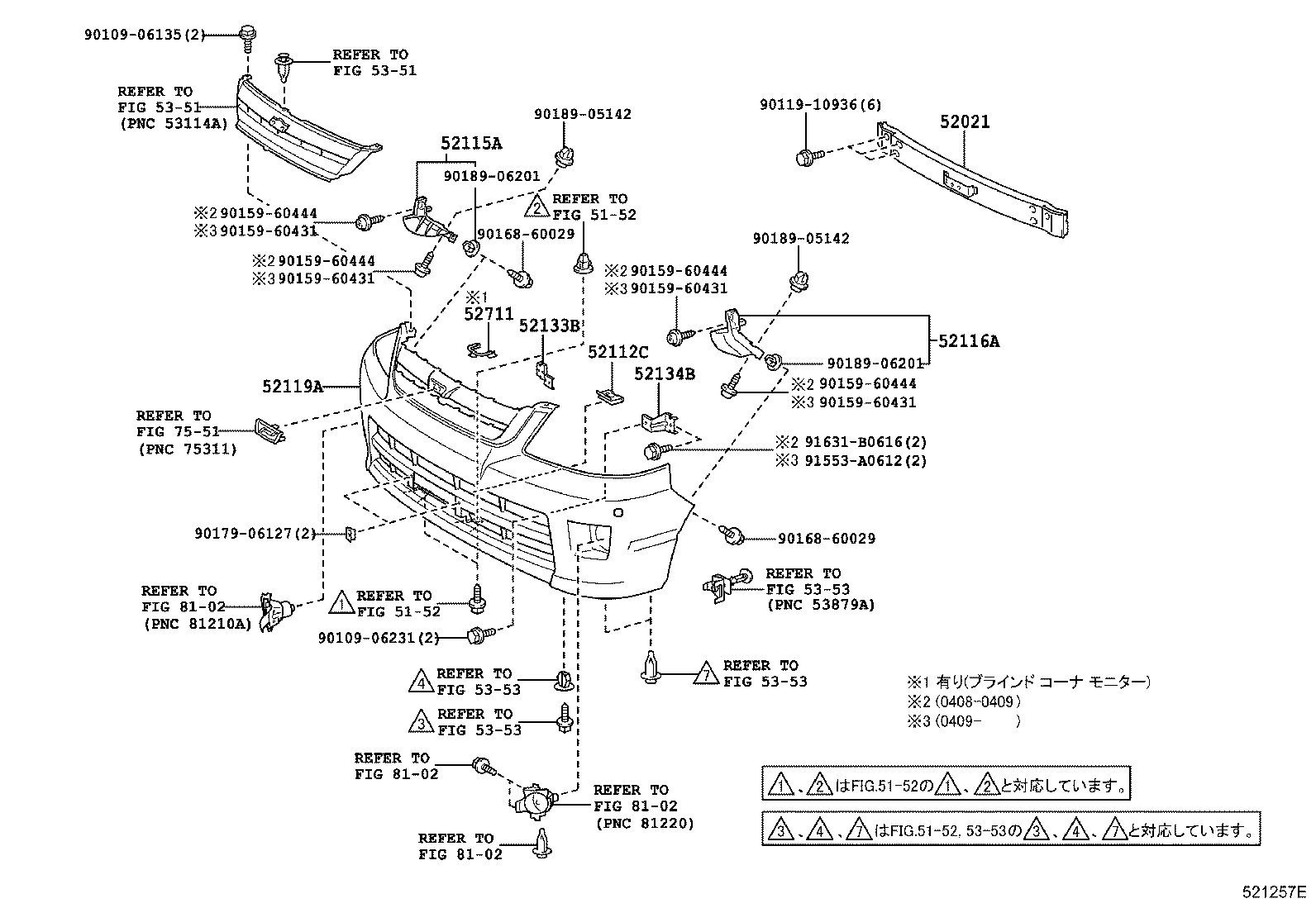

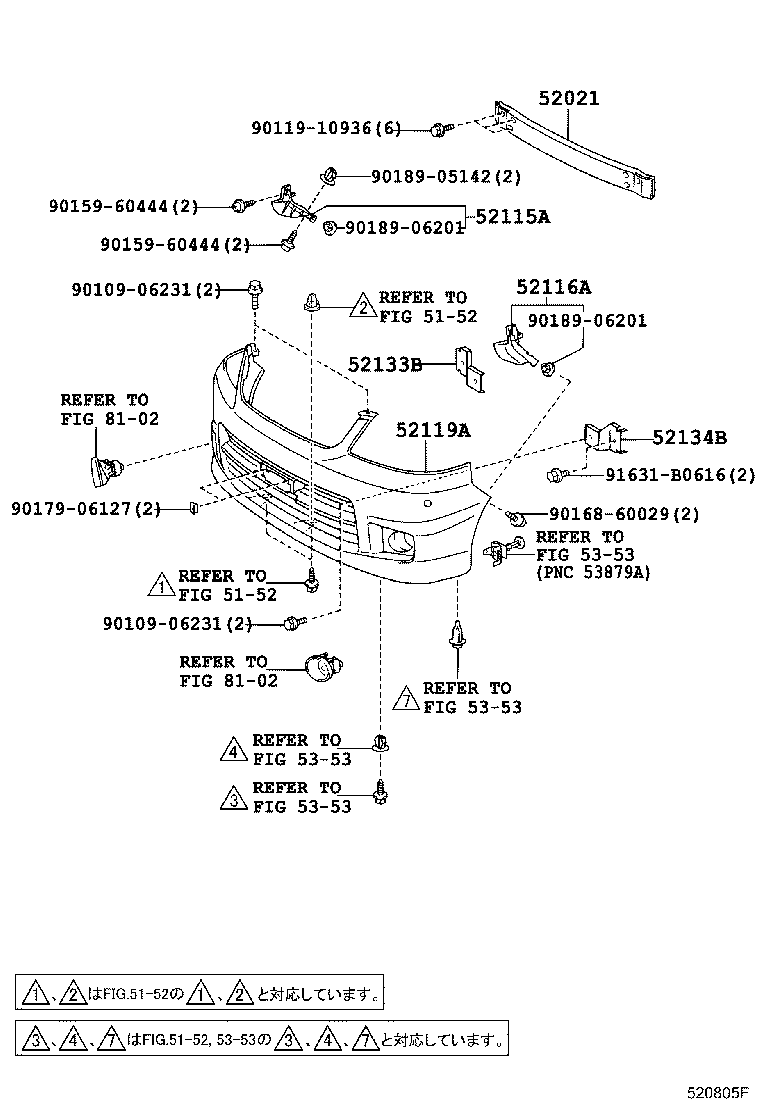

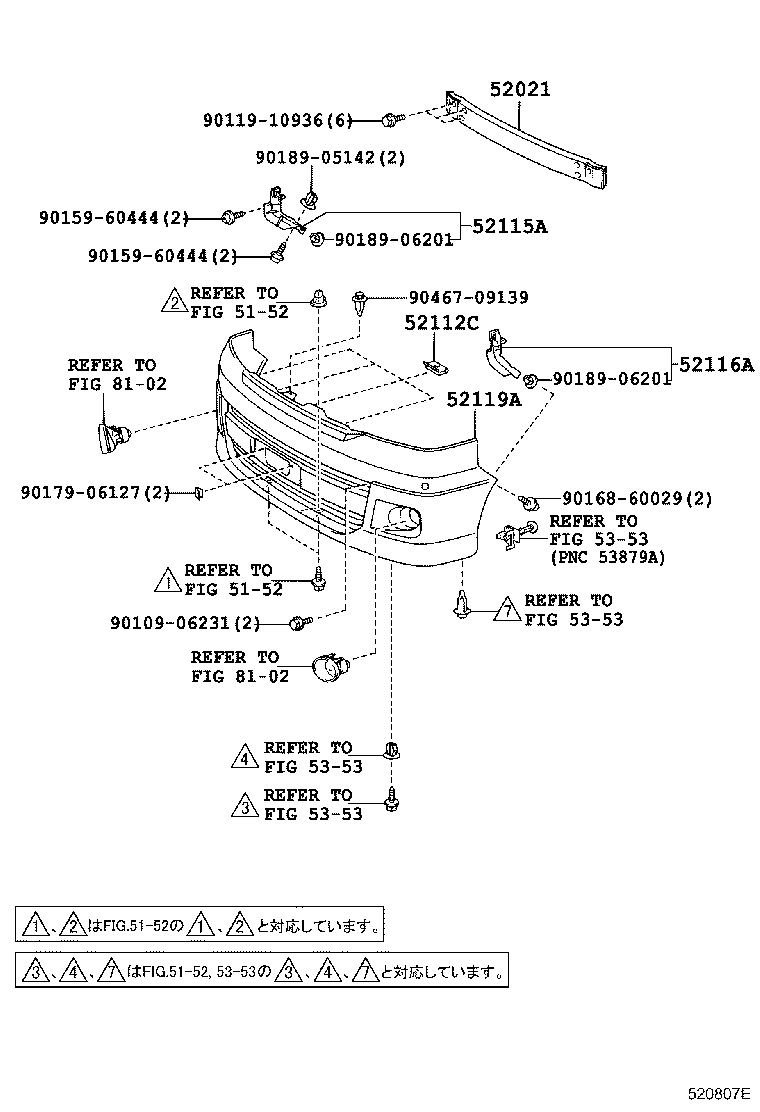

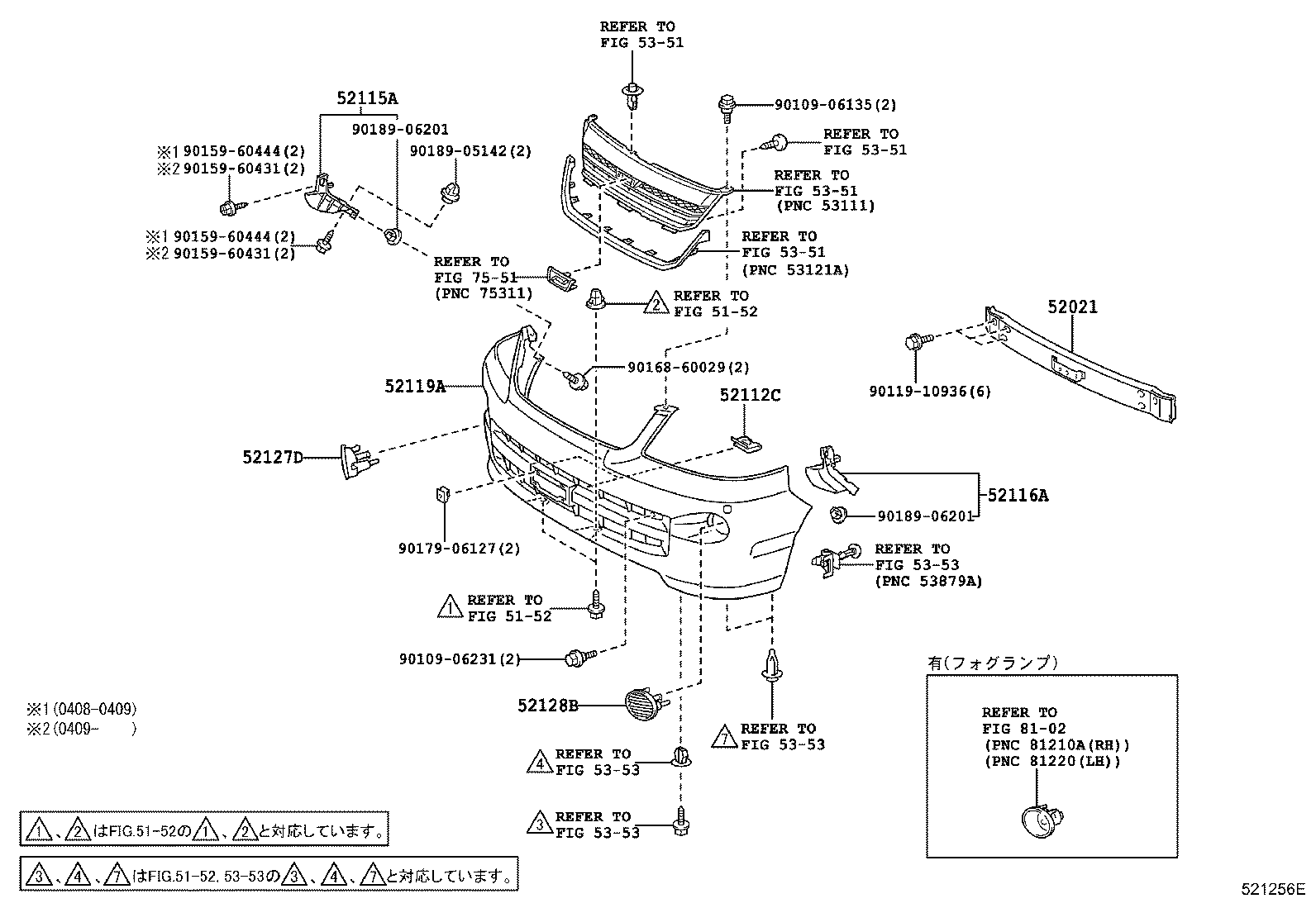

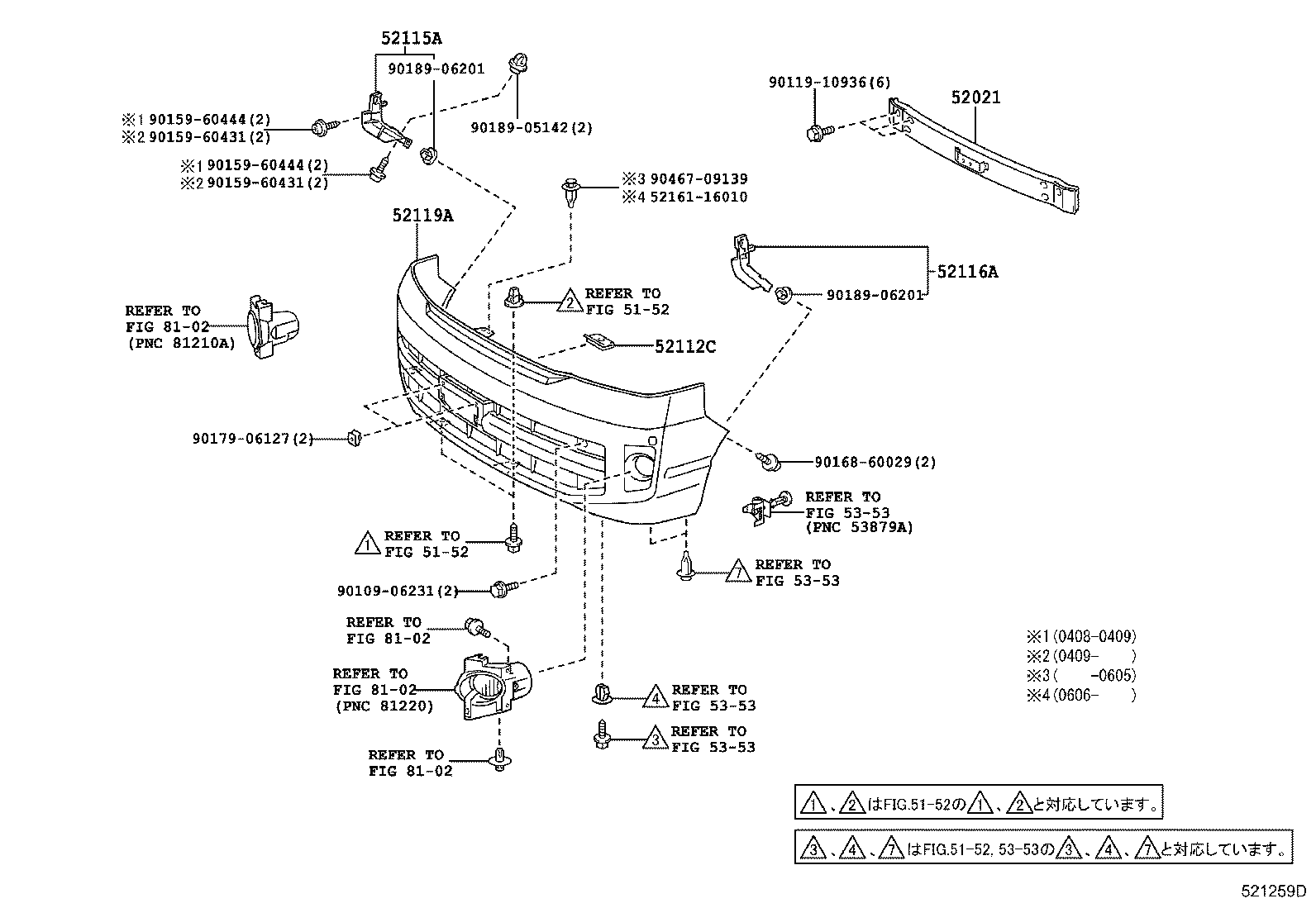

Figure 520804E 520804E 2001-11 → 2004-08 Figure 520805F 520805F 2001-11 → 2004-08 Figure 520806E 520806E 2001-11 → 2004-08 Figure 520807E 520807E 2001-11 → 2004-08 Figure 521256E 521256E 2004-08 → — Figure 521257E 521257E 2004-08 → — Figure 521258F 521258F 2004-08 → — Figure 521259D 521259D 2004-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52112C Extension, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52137B Plate, Front Bumper Bracket, NO.1
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
