Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 3 illustrations

Illustrations

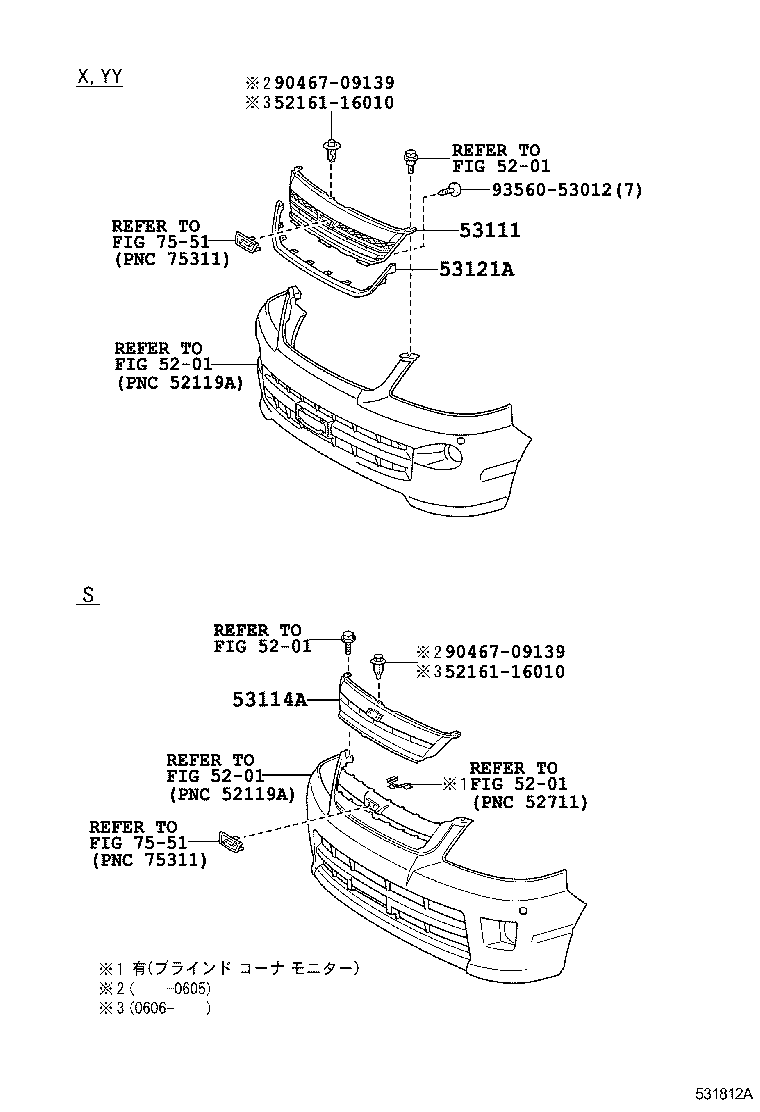

Figure 531217 531217 2001-11 → 2004-08 Figure 531812A 531812A 2004-08 → — Figure 531814A 531814A 2004-08 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53114A Grille, Radiator, Inner
53121A Moulding, Radiator Grille
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
