Toyota Noah/Voxy
2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan
Discontinued model
Data version 2008-04
Hood & Front Fender

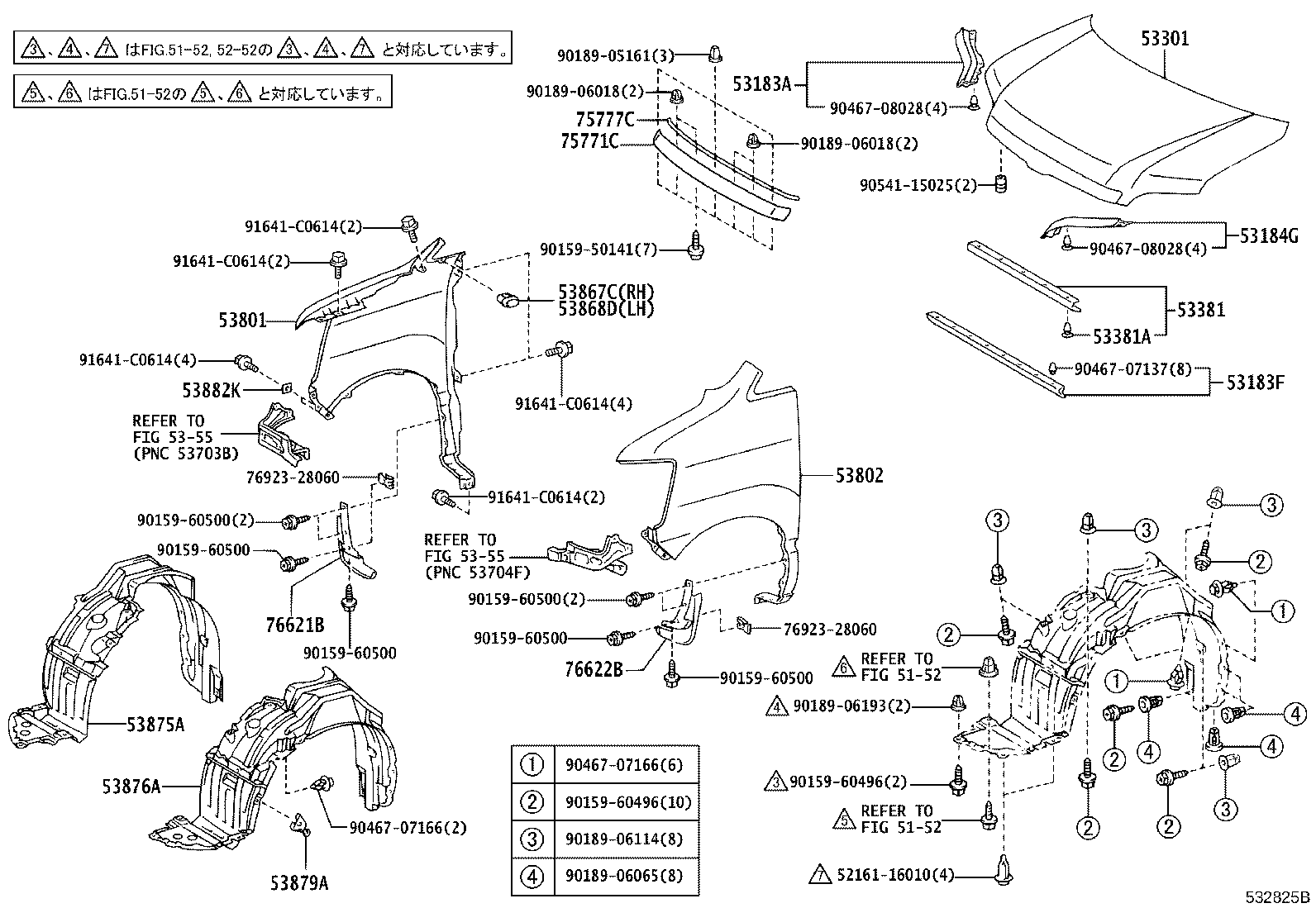

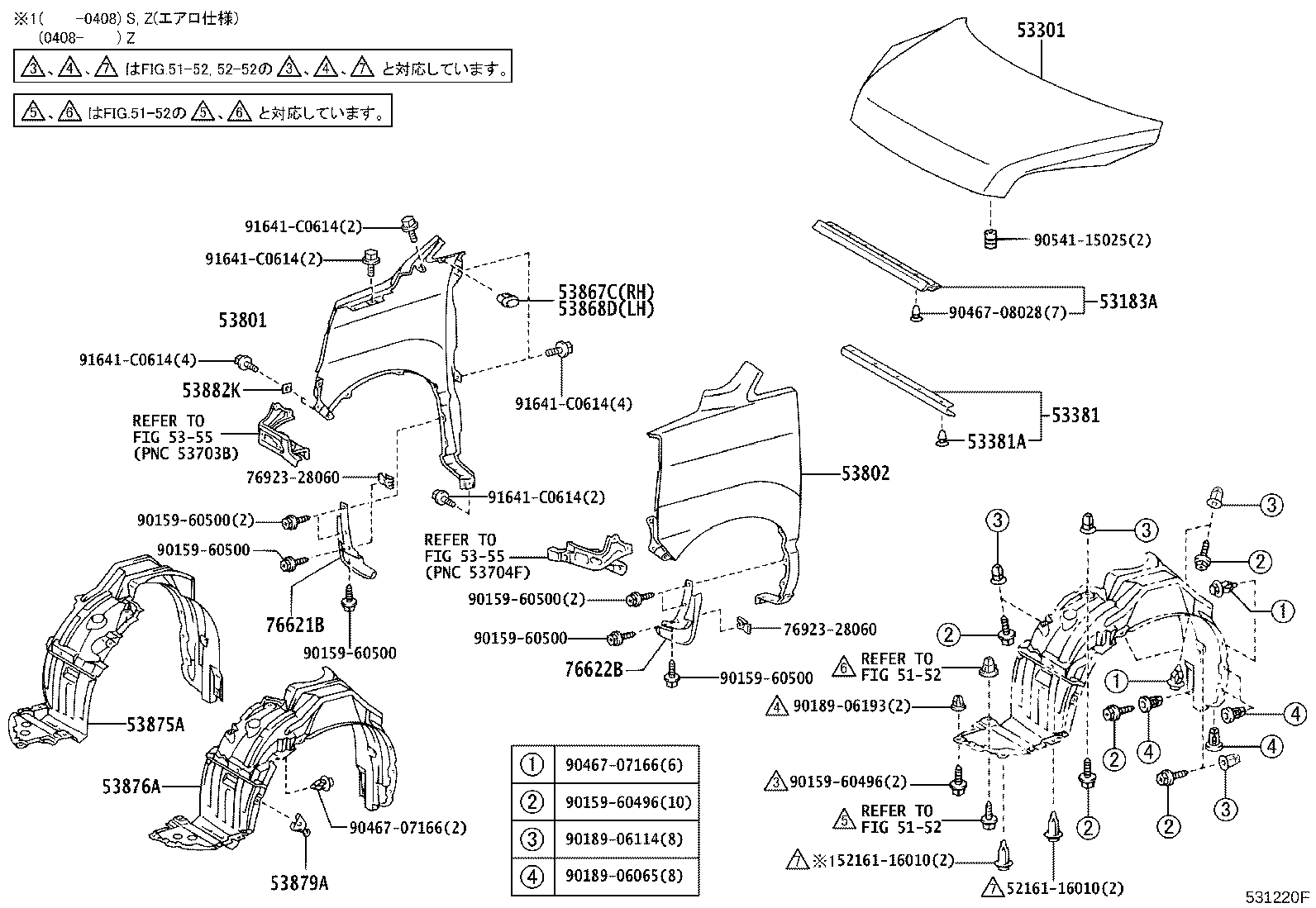

18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183A | Seal, Headlamp Cover, RH |
| 53183F | Seal, Headlamp Cover TO Hood |
| 53184G | Seal, Headlamp Cover, LH |
| 53301 | Hood Sub-assy |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53867C | Retainer, Front Side Panel, RH |
| 53868D | Retainer, Front Side Panel, LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882K | Seal, Front Fender |
| 75771C | Moulding, Hood, Front |
| 75777C | Pad, Hood Front Moulding |
| 76621B | Mudguard, Front Body, RH |
| 76622B | Mudguard, Front Body, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
