Toyota Noah/Voxy
2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan
Discontinued model
Data version 2008-04
Instrument Panel & Glove Compartment

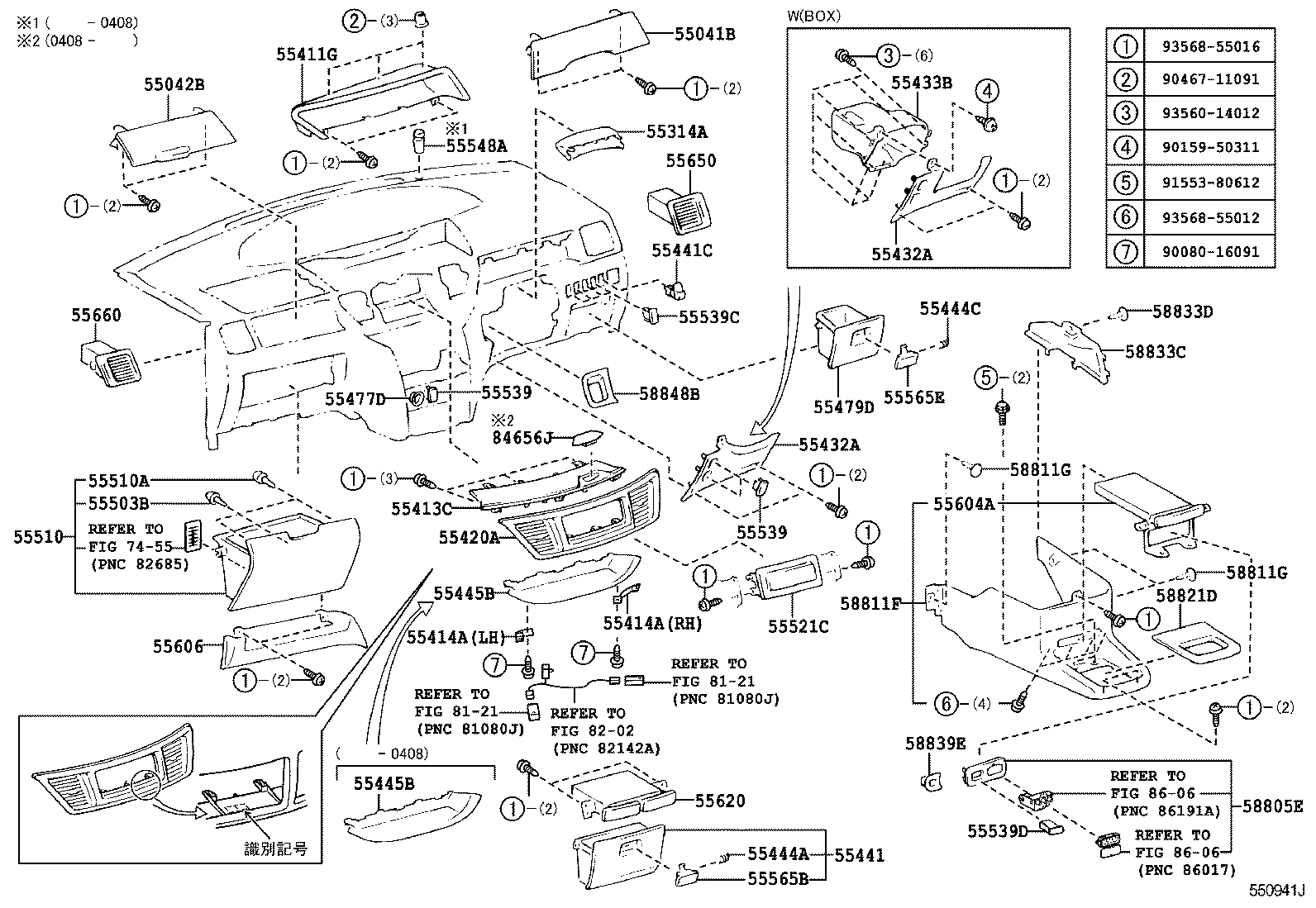

52 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55042B | Door Sub-assy, Instrument Panel Box, NO.2 |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312 | Panel, Instrument, Lower |
| 55314A | Panel, Instrument, Lower Center |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55329B | Stay, Instrument Panel, NO.4 |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55383 | Bracket, Finish Panel Mounting, NO.3 |
| 55384C | Bracket, Finish Panel Mounting, NO.4 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55413C | Panel, Instrument Cluster Finish, Center NO.2 |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55444C | Spring, Instrument Panel Box |
| 55445B | Plate, Instrument Panel Finish |
| 55477D | Cover, Cigarette Lighter Hole |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55565B | Knob, Glove Compartment Door Lock |
| 55565E | Knob, Glove Compartment Door Lock |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 58805E | Panel Sub-assy, Console, Lower |
| 58811F | Box, Consol |
| 58811G | Clip(CONSOL BOX) |
| 58821D | Panel, Console, Upper Front |
| 58833C | Cover, Console, Upper |
| 58833D | Clip(FOR CONSOLE COVER) |
| 58839E | Cover, Console Box Hole |
| 58848B | Cover, Shift Lever Hole |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 84656J | Cover, Bezel Switch Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
