Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

133 part groups · 3 illustrations

Illustrations

612995A 2001-11 → —

611530N 2001-11 → —

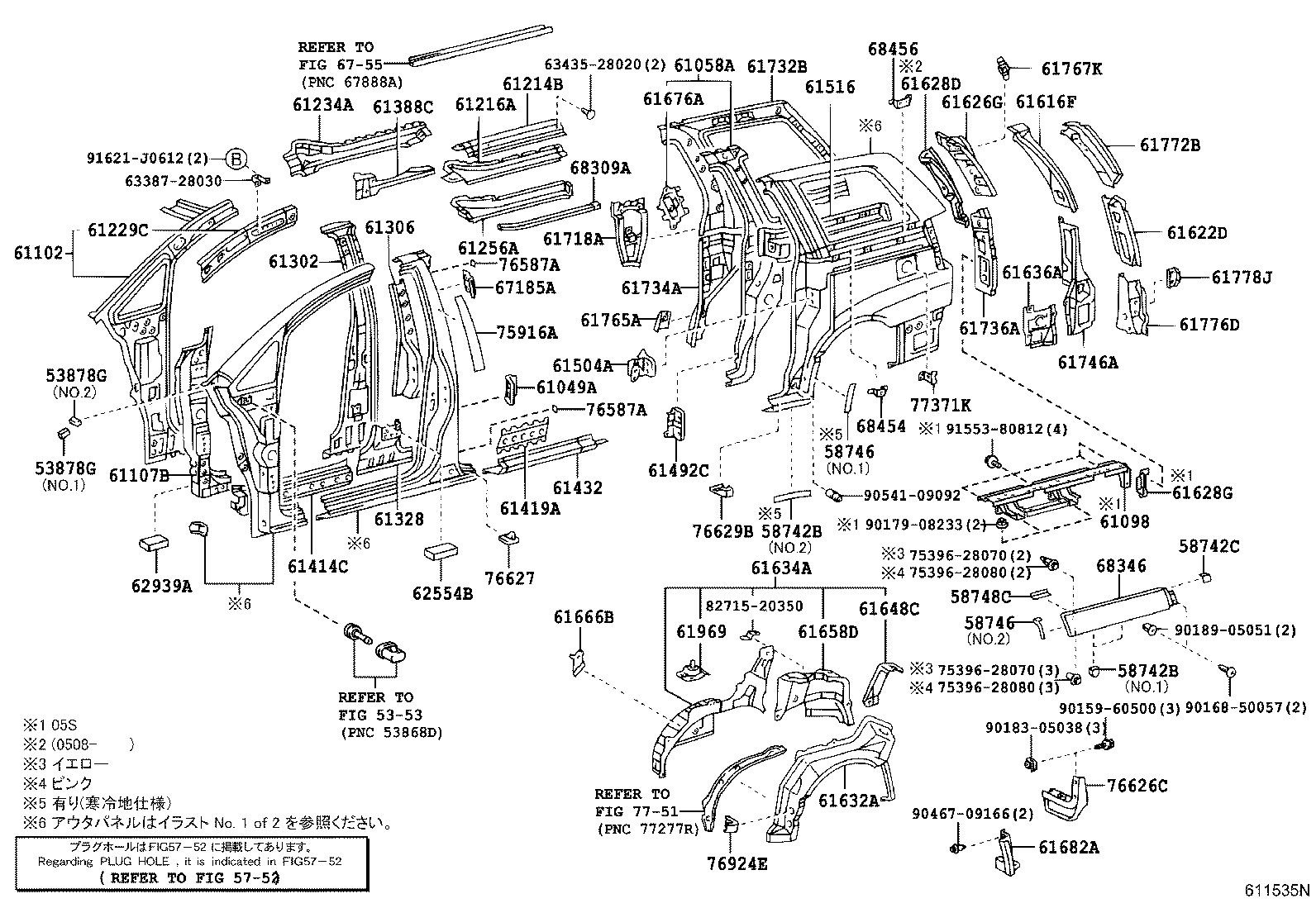

611535N 2001-11 → —

Part groups

PNC	Description
53878G	Spacer, Front Fender
58741B	Protector, Quarter Panel, RH
58741C	Protector, Quarter Panel, RH
58742B	Protector, Quarter Panel, LH
58742C	Protector, Quarter Panel, LH
58745	Protector, Quarter Panel, Front RH
58746	Protector, Quarter Panel, Front LH
58747A	Protector, Quarter Panel, Rear RH
58748C	Protector, Quarter Panel, Rear LH
61027A	Pillar Sub-assy, Front Body, Outer RH
61028A	Pillar Sub-assy, Front Body, Outer LH
61039	Pillar Sub-assy, NO.10 Inner, RH
61049A	Retainer Sub-assy, Slide Door Lock Striker, LH
61057A	Extension Sub-assy, Quarter Lock Pillar
61058A	Extension Sub-assy, Quarter Lock Pillar, LH
61097	Rail Sub-assy, NO.5 Lower Outer, RH
61098	Rail Sub-assy, NO.5 Lower Outer, LH
61101	Panel Sub-assy, Cowl Side, RH
61102	Panel Sub-assy, Cowl Side, LH
61106A	Reinforce Sub-assy, Front Body Pillar, Upper RH
61107B	Reinforce Sub-assy, Front Body Pillar, Upper LH
61125C	Reinforcement, Cowl Side Panel, RH
61167E	Bracket, NO.6 Pillar Outer
61168C	Bracket, NO.6 Pillar Outer
61213B	Rail, Roof Side, Outer NO.2 RH
61214B	Rail, Roof Side, Outer NO.2 LH
61215A	Rail, Roof Side, Outer NO.3 RH
61216A	Rail, Roof Side, Outer Rear LH
61228C	Rail, Roof Side Outer Upper NO.3, RH
61229C	Rail, Roof Side Outer Upper NO.3. LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61255	Plate, Roof Side Rail, Outer RH
61256A	Plate, Roof Side Rail, Outer LH
61301	Pillar Sub-assy, Center Body, RH
61302	Pillar Sub-assy, Center Body, LH
61305	Reinforce Sub-assy, Center Body Pillar, Lower RH
61306	Reinforce Sub-assy, Center Body Pillar, Lower LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61327	Reinforcement, Center Body Pillar, Outer RH
61328	Reinforcement, Center Body Pillar, Outer LH
61378C	Retainer, Slide Door Down Stop Male, Upper RH
61388C	Retainer, Slide Door Down Stop Male, Upper LH
61413C	Reinforcement, Rocker Panel, NO.2 RH
61414C	Reinforcement, Rocker Panel, NO.2 LH
61418A	Reinforcement, Rocker Panel, RH
61419A	Reinforcement, Rocker Panel, LH
61431	Panel, Rocker, Outer Rear RH
61432	Panel, Rocker, Outer Rear LH
61491C	Plate, NO.3 Lower Rail, Inner RH
61492C	Plate, NO.3 Lower Rail, Inner LH
61503A	Reinforce Sub-assy, Slide Door Lock Striker, RH
61504A	Reinforce Sub-assy, Slide Door Lock Striker, LH
61515B	Extension, Quarter Lock Pillar, RH
61516	Extension, Quarter Lock Pillar, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61615G	Reinforcement, Rear Body Rear Side Panel, RH
61616F	Reinforcement, Rear Body Rear Side Panel, LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61623A	Extension, Quarter Panel, Outer RH
61624A	Extension, Quarter Panel, Outer LH
61625G	Extension, Quarter Panel, Rear RH
61626G	Extension, Quarter Panel, Rear LH
61627F	Gusset, NO.4 Side Panel, Lower RH
61628D	Extension, Quarter Panel, Rear Lower LH
61628G	Gusset, NO.4 Side Panel, Lower LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61635A	Brace, Quarter Wheel House, RH
61636A	Brace, Quarter Wheel House, LH
61643D	Patch, Quarter Wheel House, NO.1 RH
61647C	Reinforcement, Wheel House, RH
61648C	Reinforcement, Wheel House, LH
61657C	Bracket, Rear Shock Absorber, RH
61658D	Bracket, Rear Shock Absorber, LH
61659F	Bracket, Rear Shock Absorber, NO.2 RH
61665B	Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
61666B	Reinforce, Seat Belt Anchorage TO Quarter Wheel House, LH
61675A	Reinforce, Seat Belt Anchor, NO.2 Upper RH
61676A	Reinforce, Seat Belt Anchor, NO.2 Upper LH
61681C	Extension, Rear Wheel Opening, RH
61682A	Extension, Rear Wheel Opening, LH
61717A	Reinforcement, Quarter Panel Extension, RH
61718A	Reinforcement, Quarter Panel Extension, LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61747B	Reinforcement, Roof Side, Inner Rear, RH
61764B	Reinforcement, Seat Belt Anchor, NO.2 RH
61765A	Reinforcement, Seat Belt Anchor, NO.2 LH
61767G	Retainer, Seat Belt Anchor, NO.2
61767K	Retainer, Seat Belt Anchor, NO.2 LH
61771B	Frame, Back Door Opening Upper Corner, RH
61772B	Frame, Back Door Opening Upper Corner, LH
61775C	Frame, Back Door Opening Side, RH
61776D	Frame, Back Door Opening Side, LH
61777D	Retainer, Back Door Side Stopper, RH
61778J	Retainer, Back Door Side Stopper, LH
61959	Bracket, Rear Seat Leg, NO.2 RH
61969	Bracket, Rear Seat Leg, NO.2 LH
62554B	Pad, Pillar, NO.4
62939A	Silencer, Quarter Vent
67185	Retainer, Slide Door Down Stop, RH
67185A	Retainer, Slide Door Down Stop, LH
68308B	Rail Sub-assy, Slide Door, Upper RH
68309A	Rail Sub-assy, Slide Door, Upper LH
68345B	Cover, Slide Door Center Rail, RH
68346	Cover, Slide Door Center Rail, LH
68453	Bracket, Slide Door Rail Cover, NO.2 RH
68454	Bracket, Slide Door Rail Cover, NO.2 LH
68455	Bracket, Slide Door Rail Cover, NO.3 RH
68456	Bracket, Slide Door Rail Cover, NO.3 LH
75915A	Tape, Black Out Center Pillar, RH
75916A	Tape, Black Out Center Pillar, LH
76587A	Protector, Center Pillar Outer
76625C	Mudguad, Quarter Panel, Rear RH
76626C	Mudguad, Quarter Panel, Rear LH
76627	Mudguard, Quarter Panel, Inner
76628B	Mudguard, Quarter Panel, Upper Rear RH
76629B	Mudguard, Quarter Panel, Upper Rear LH
76923D	Retainer, Side Mudguard, RH
76924E	Retainer, Side Mudguard, LH
77371K	Bracket, Fuel Filler Opening Lid Lock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
