Toyota Noah/Voxy
2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan
Discontinued model
Data version 2008-04

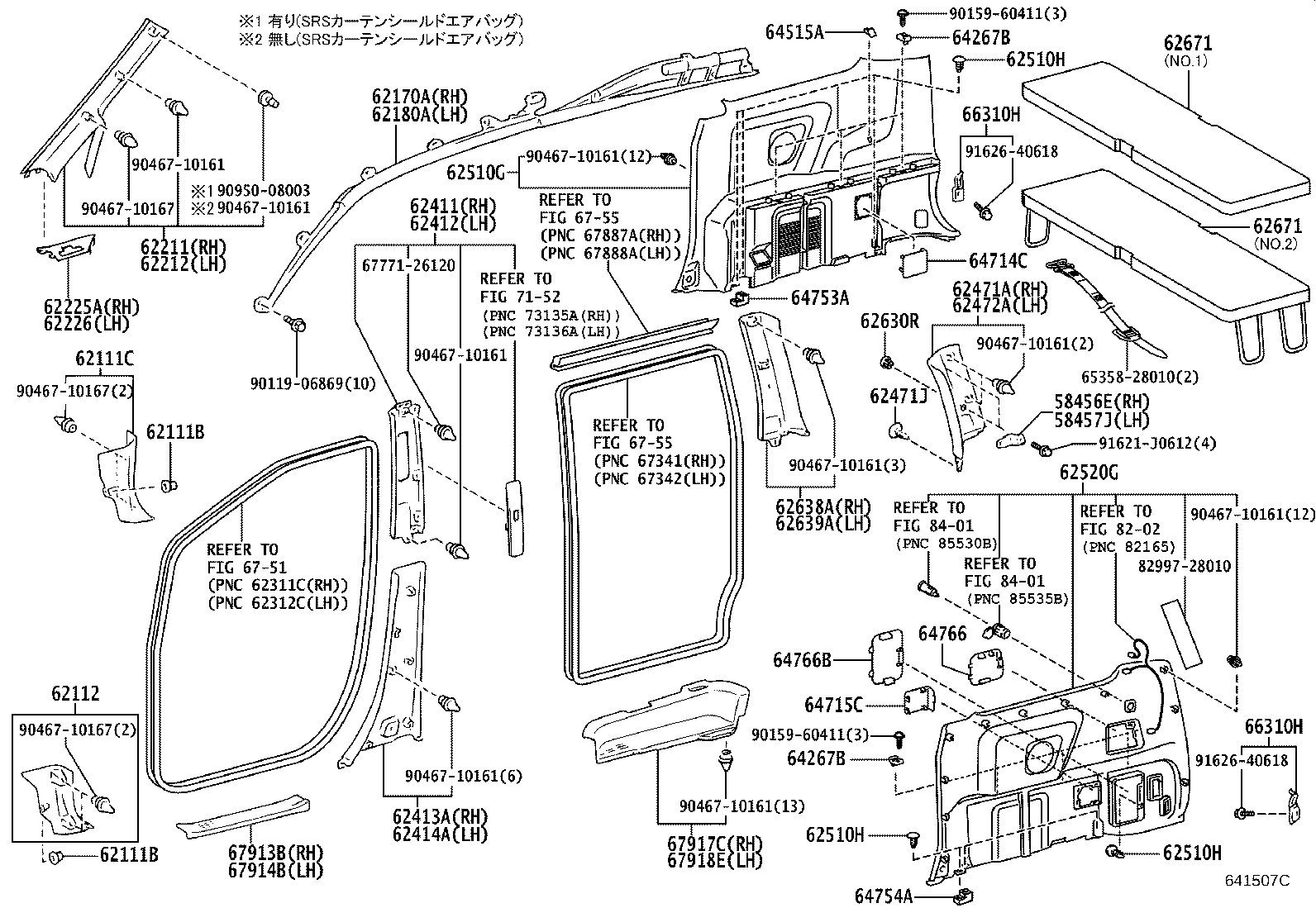

Inside Trim Board
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58456E | Bracket, Rear Garnish, NO.1 RH |
| 58457J | Bracket, Rear Garnish, NO.1 LH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62510G | Trim Assy, Side NO.1, RH |
| 62510H | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62520G | Trim Assy, Side NO.1, LH |
| 62630R | Cap (FOR QUARTER TRIM) |
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
| 62671 | Board Sub-assy, Quarter Trim, Lower |
| 64267B | Hook, Package Holder Net |
| 64515A | Holder, Luggage Compartment Door Hook |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64753A | Garnish, Deck Side, Rear, RH |
| 64754A | Garnish, Deck Side, Rear, LH |
| 64766 | Cover Sub-assy, Quarter Trim Jack |
| 64766B | Cover, Quarter Trim Jack |
| 66310H | Hook Assy, Rope |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
