Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 4 illustrations

Illustrations

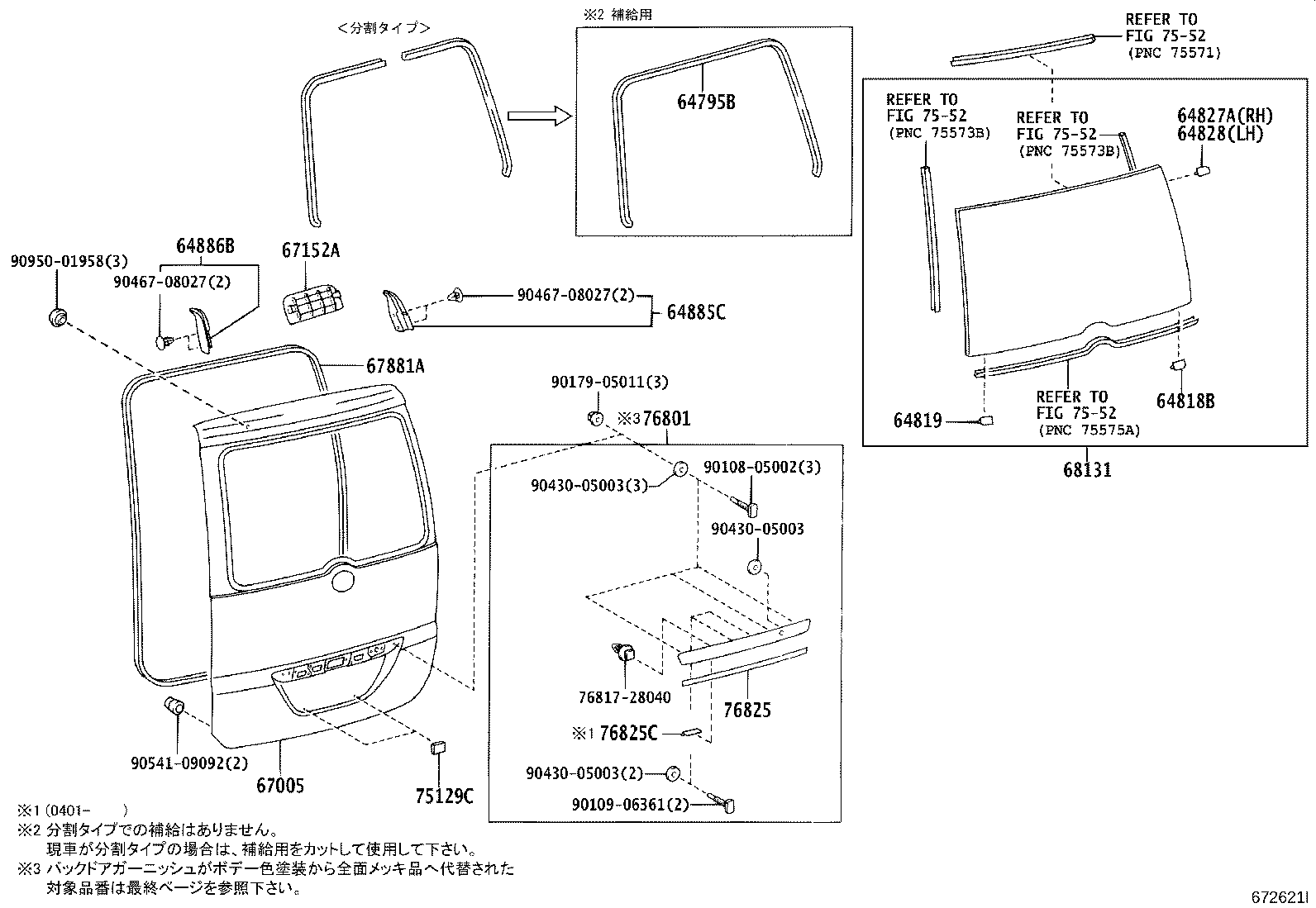

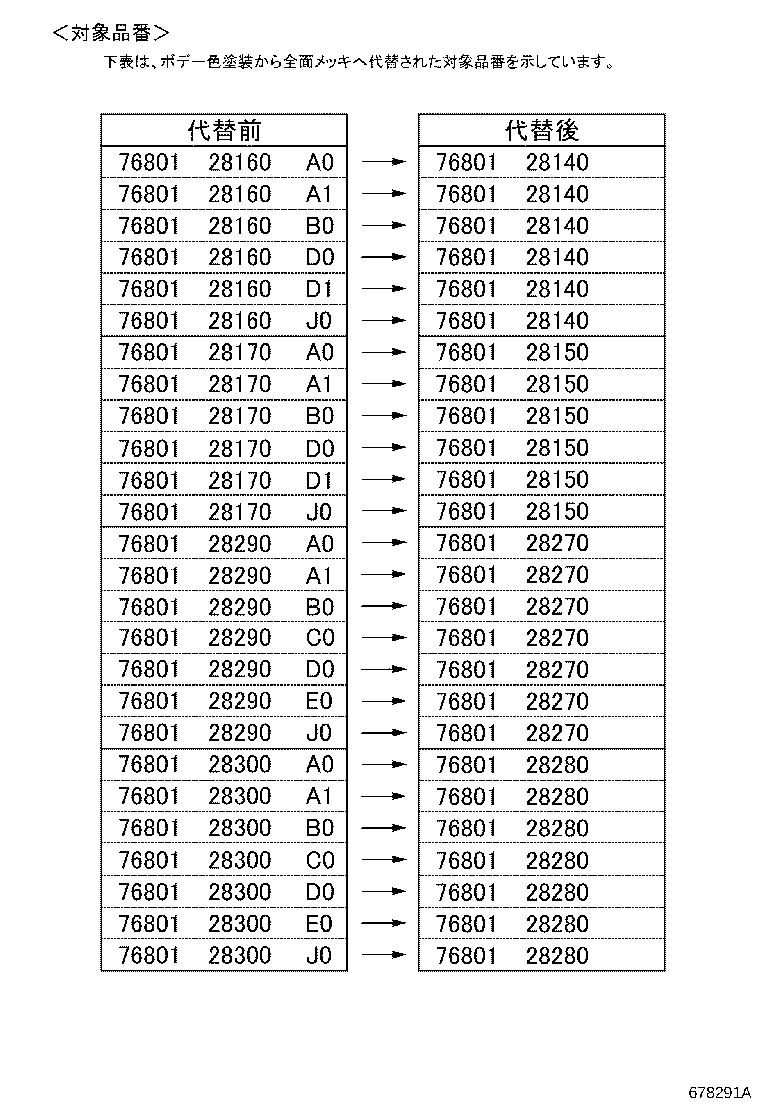

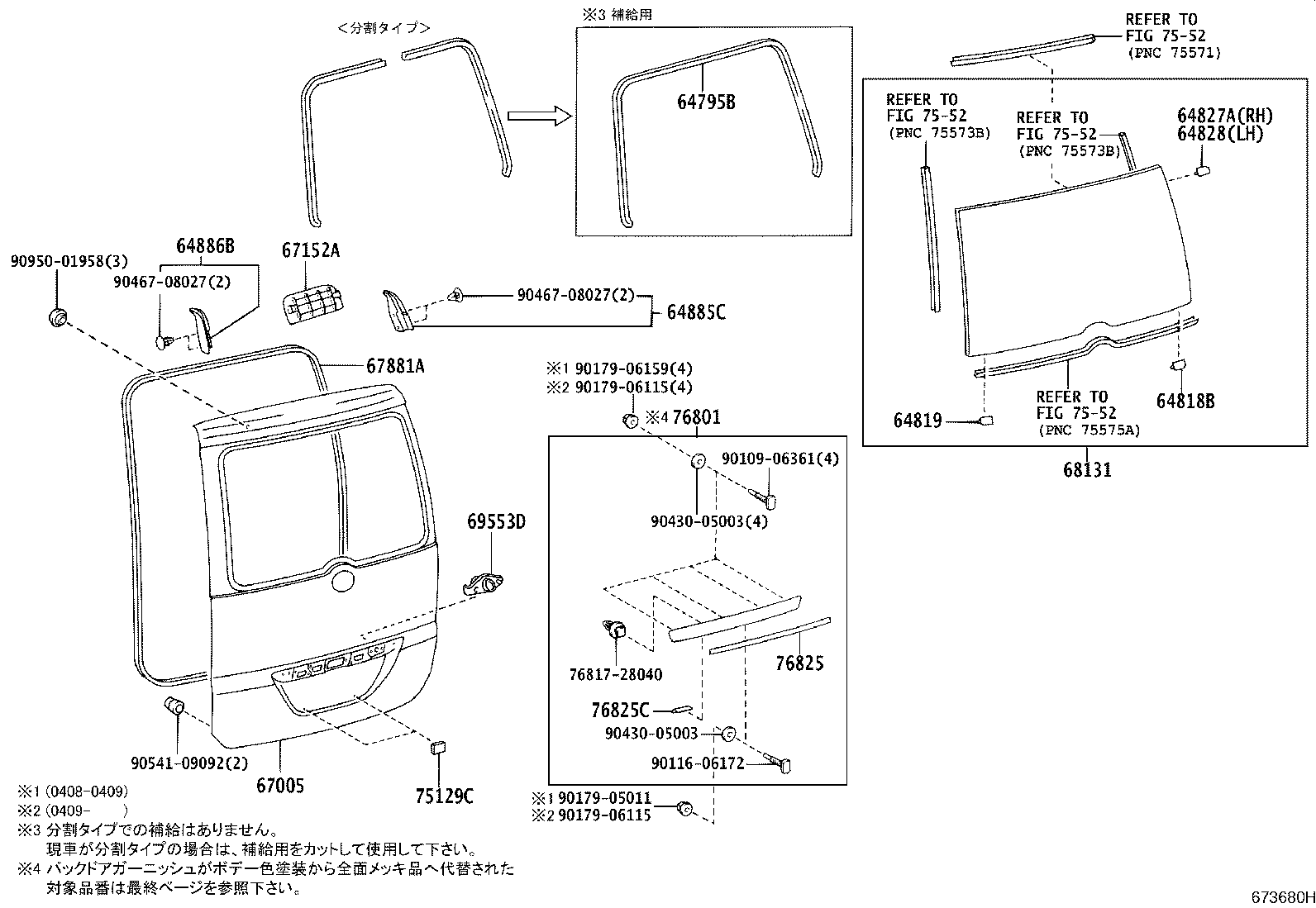

Figure 672617 672617 2001-11 → — Figure 672621I 672621I 2001-11 → 2004-08 Figure 673680H 673680H 2004-08 → — Figure 678291A 678291A 2001-11 → —

Part groups

PNCDescription
64795B Trim, Back Window Opening
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
64885C Channel, Back Door Glass, RH
64886B Channel, Back Door Glass, LH
67005 Panel Sub-assy, Back Door
67152A Cover, Back Door Service Hole
67750 Board Assy, Back Door Trim
67881A Weatherstrip, Back Door
68131 Glass, Back Door
69553D Protector, Back Door Key Cylinder,
74811G Handle, Door Pull
75129C Cushion, Rear Licence Plate
76801 Garnish Sub-assy, Back Door, Outside
76825 Protector, Back Door Outside Garnish
76825C Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
