Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

17 part groups · 3 illustrations

Illustrations

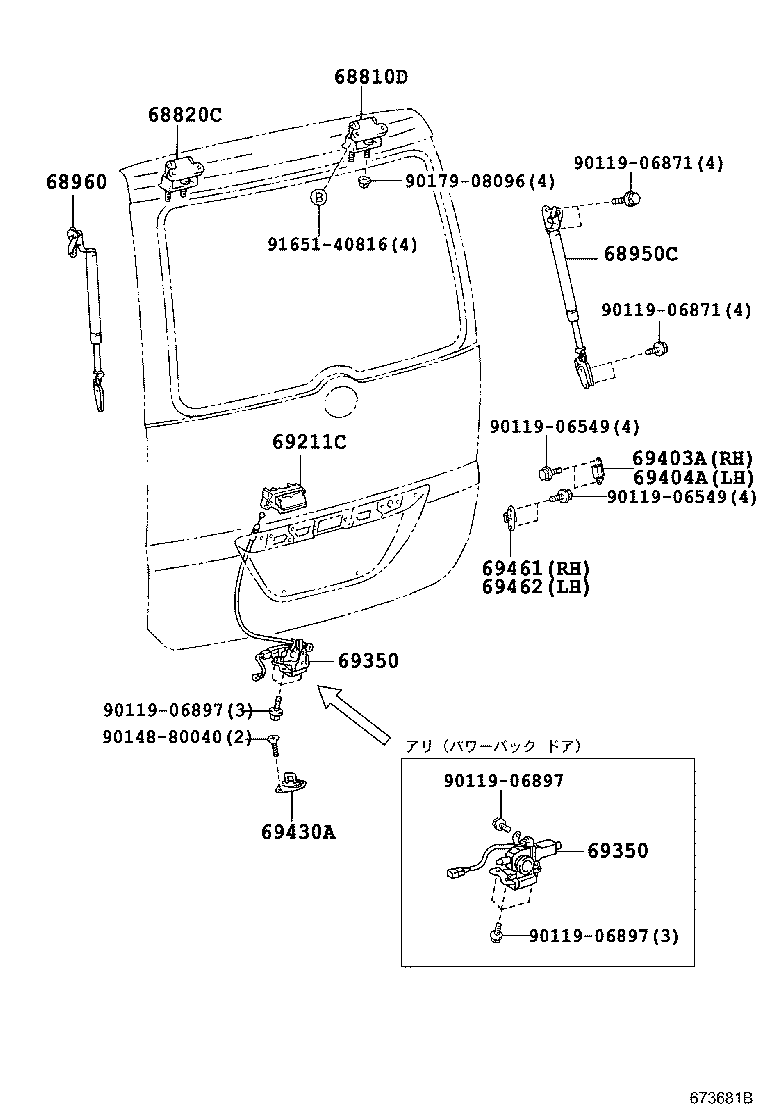

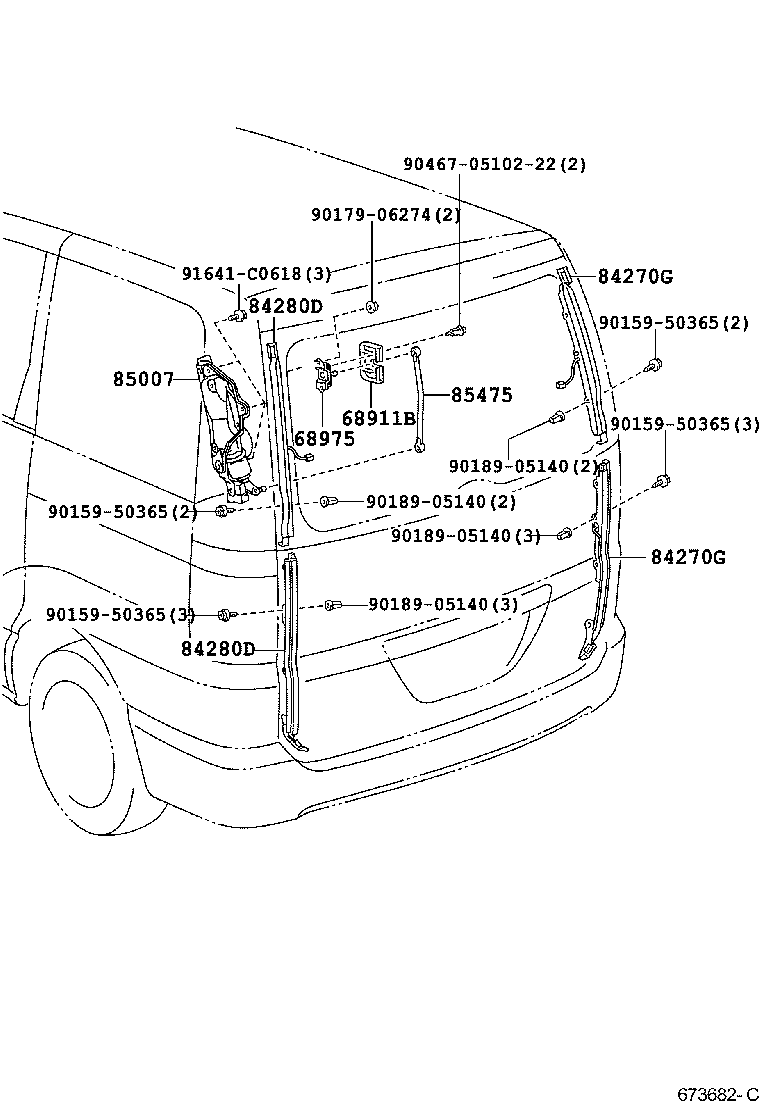

Figure 678508A 678508A 2001-11 → 2004-08 Figure 673681B 673681B 2004-08 → — Figure 673682C 673682C 2004-08 → —

Part groups

PNCDescription
68810D Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68911B Cover, Back Door Stay
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
68975 Plate, Back Door Stay
69211C Handle, Back Door Outside
69350 Lock Assy, Back Door
69403A Stopper Sub-assy, Back Door Side Female, RH
69404A Stopper Sub-assy, Back Door Side Female, LH
69430A Striker Assy, Back Door Lower Lock
69461 Stopper, Back Door Side Male, RH
69462 Stopper, Back Door Side Male, LH
84270G Sensor Assy, Power Back Door, RH
84280D Sensor Assy, Power Back Door, LH
85007 Motor Unit, Back Door
85475 Rod, Power Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
