Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

242 part groups · 21 illustrations

Illustrations

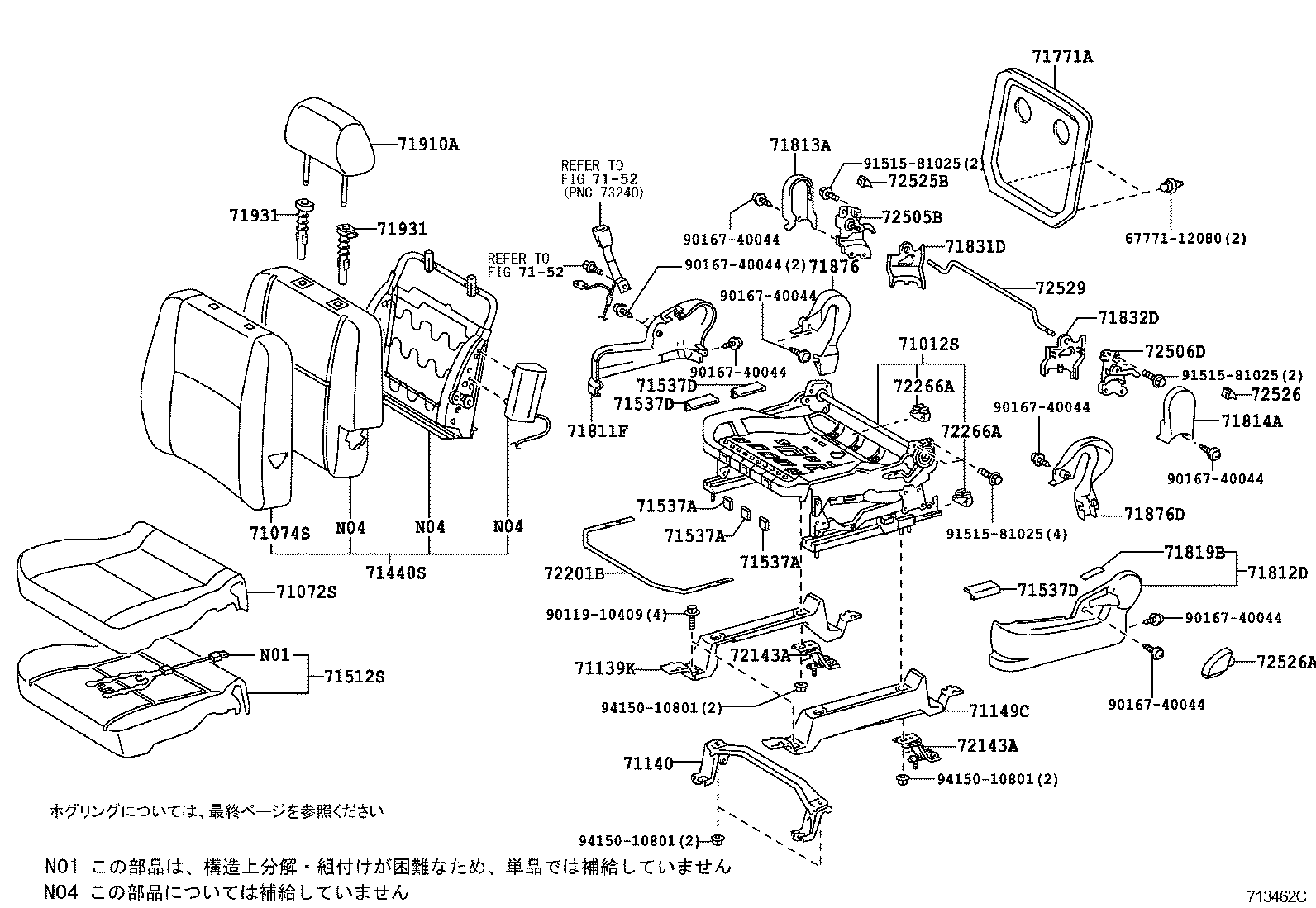

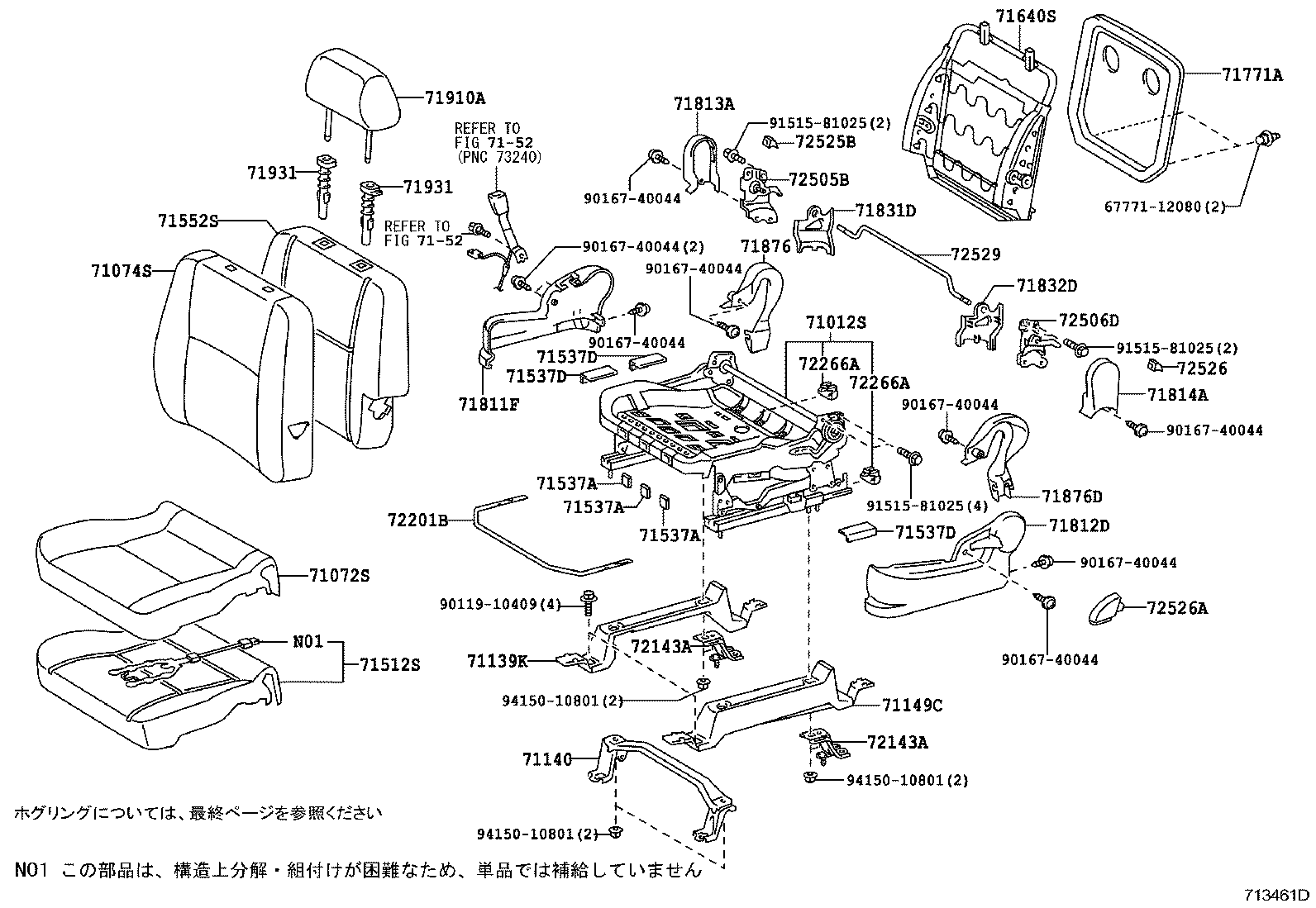

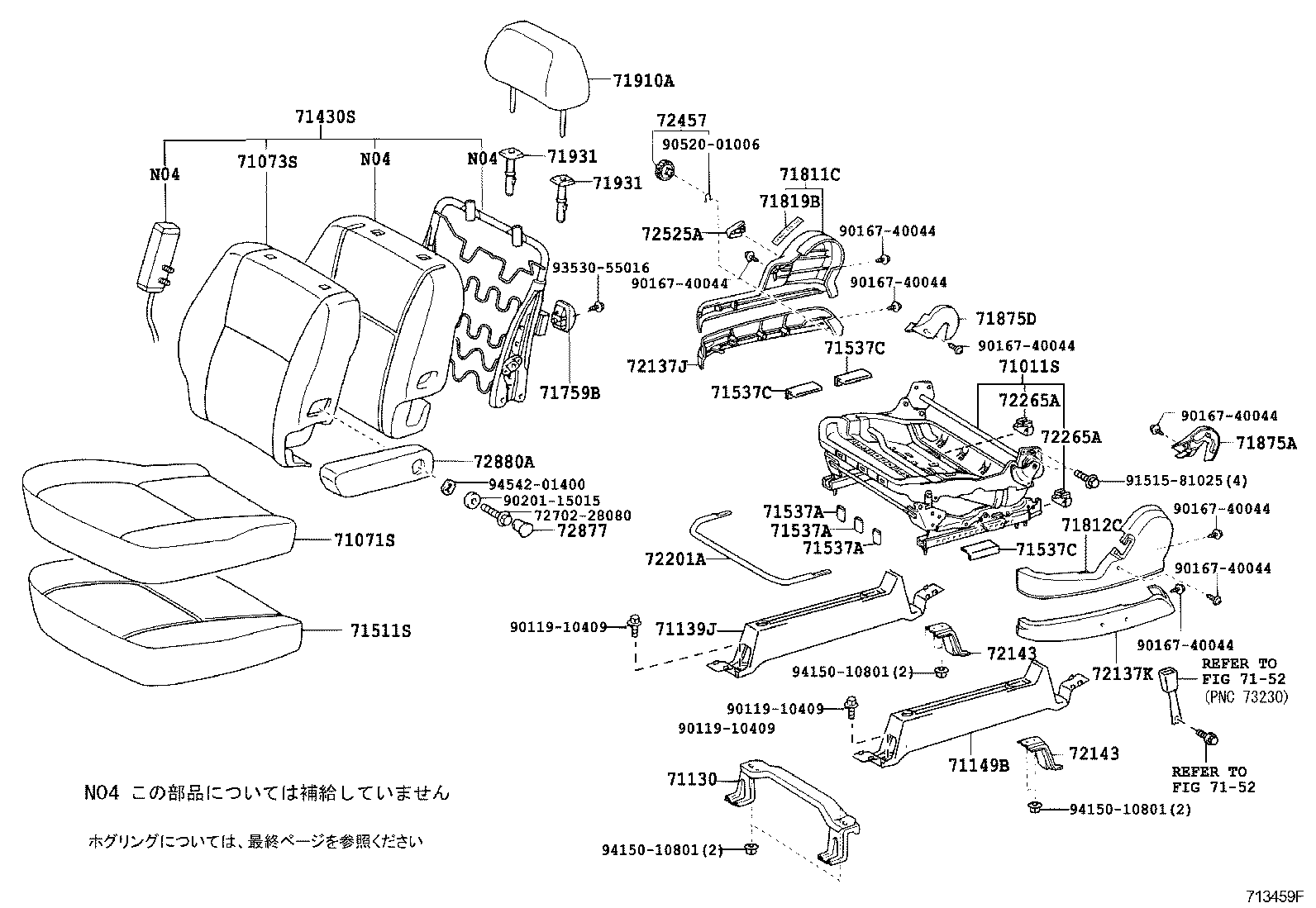

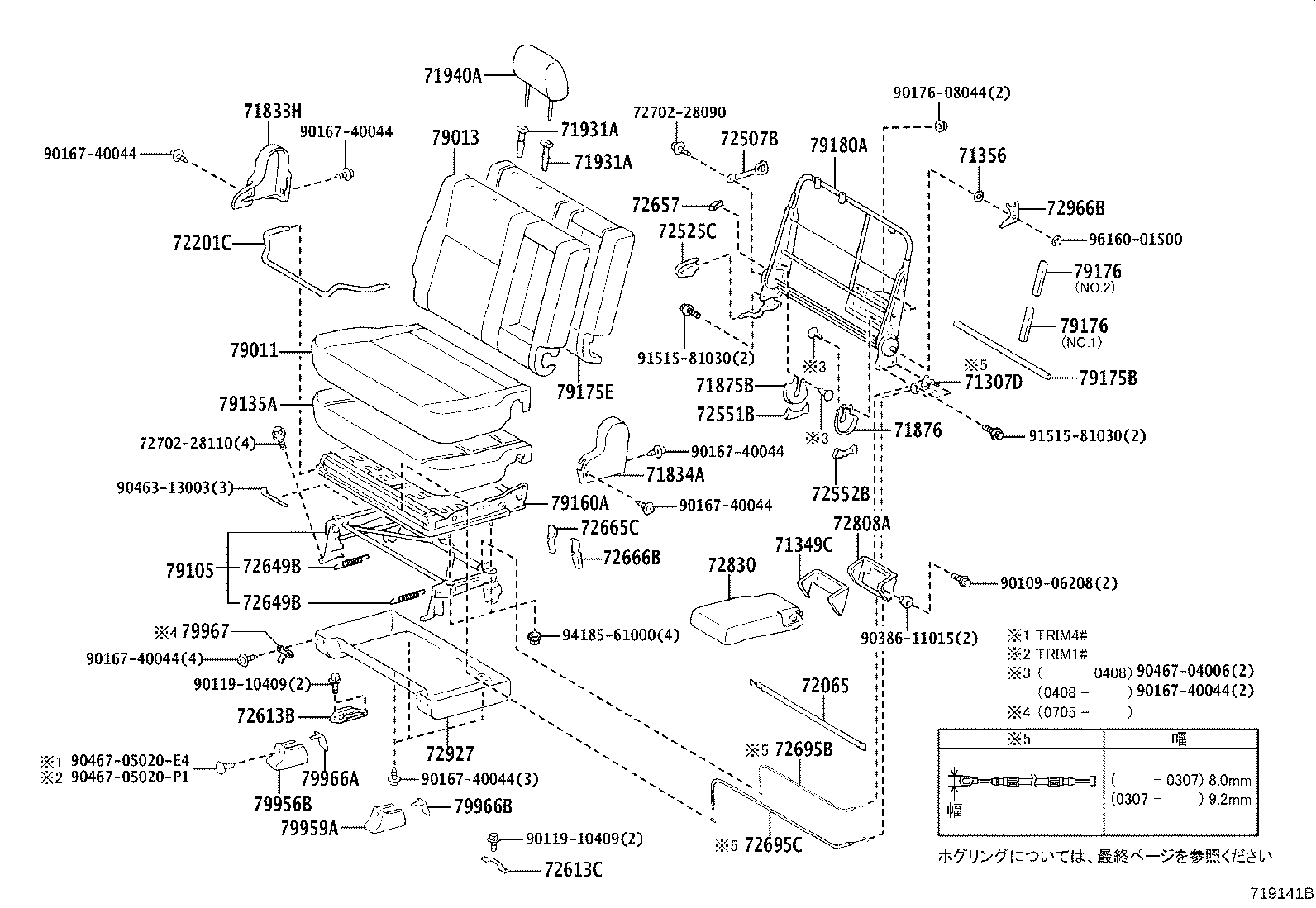

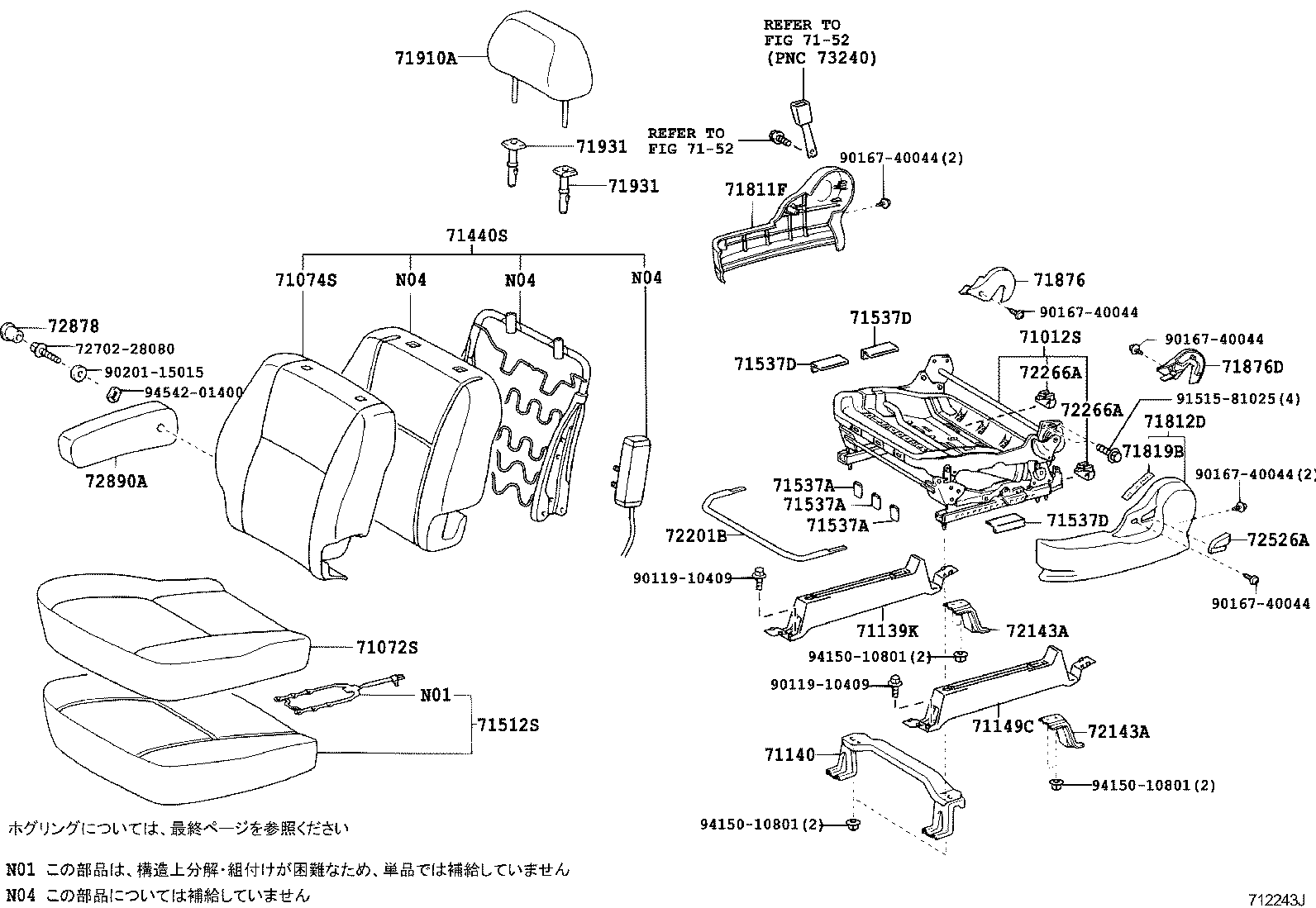

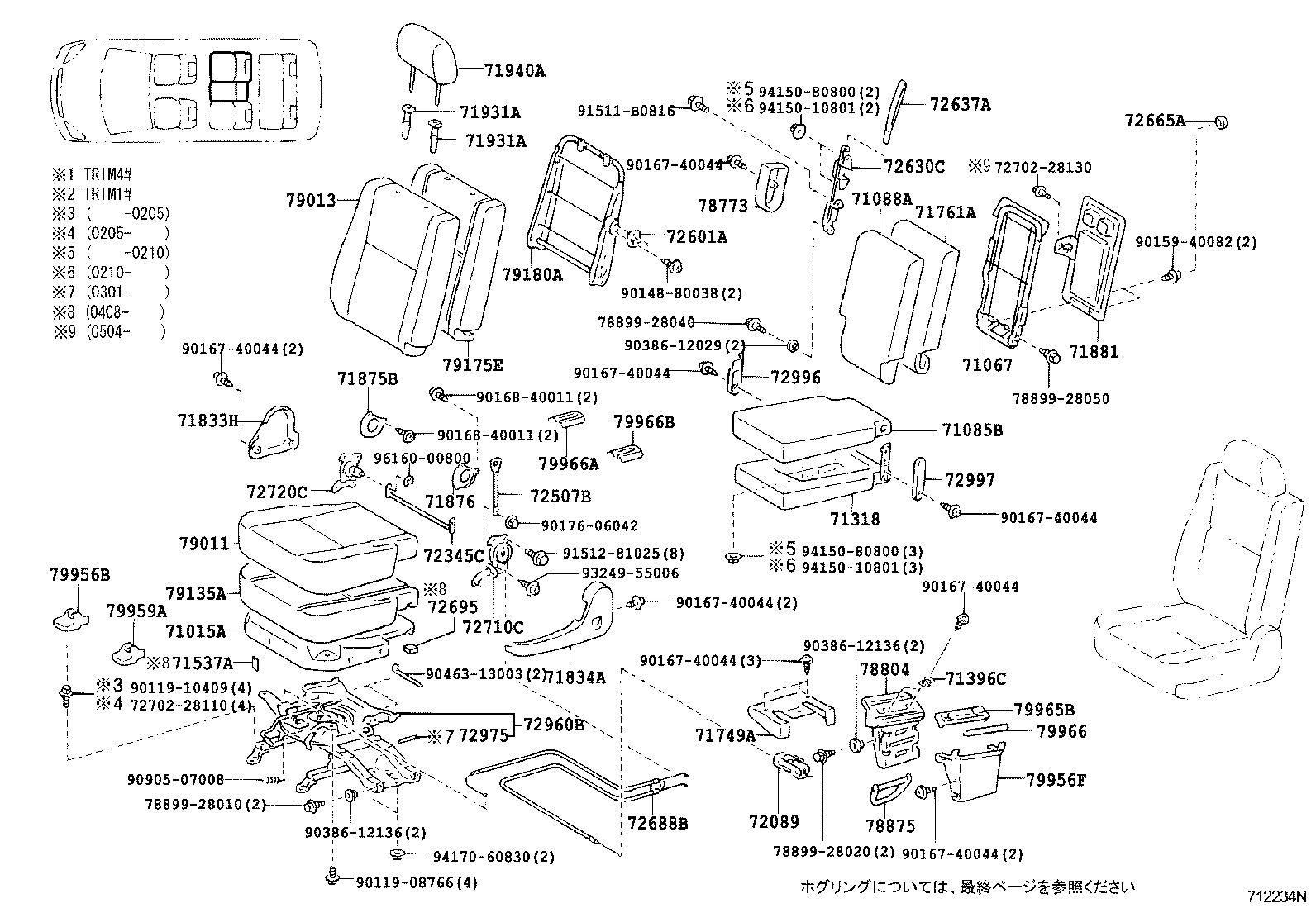

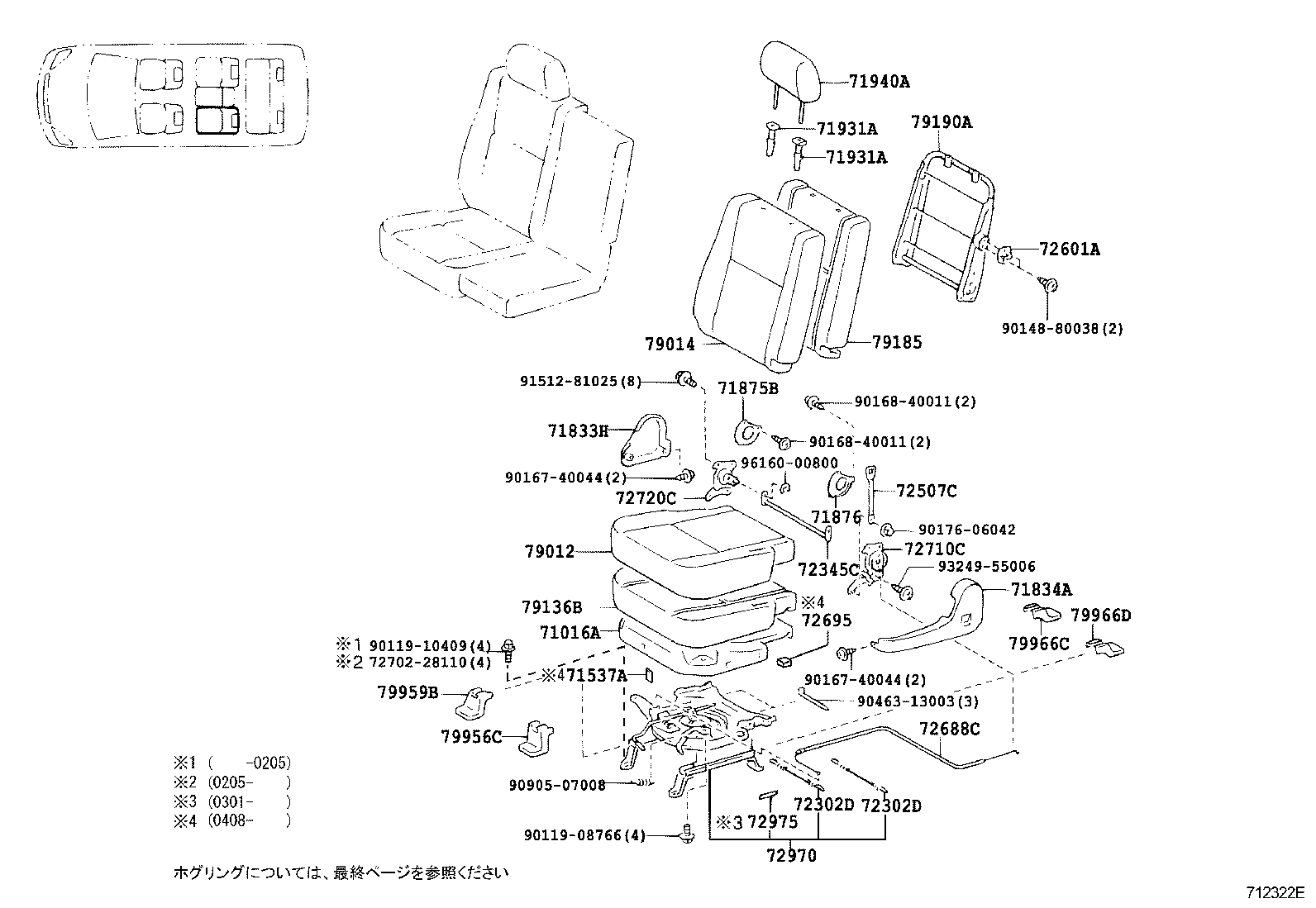

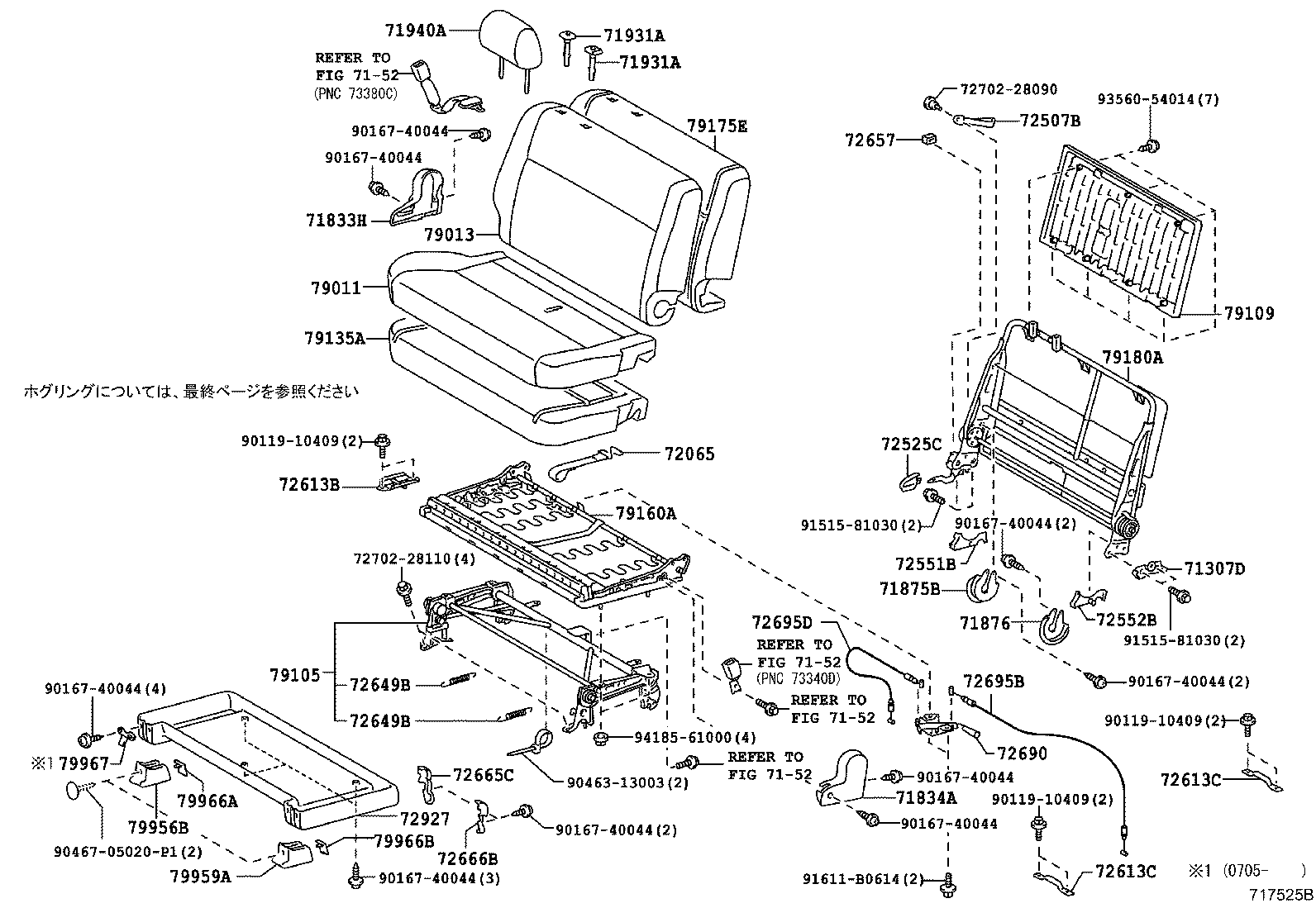

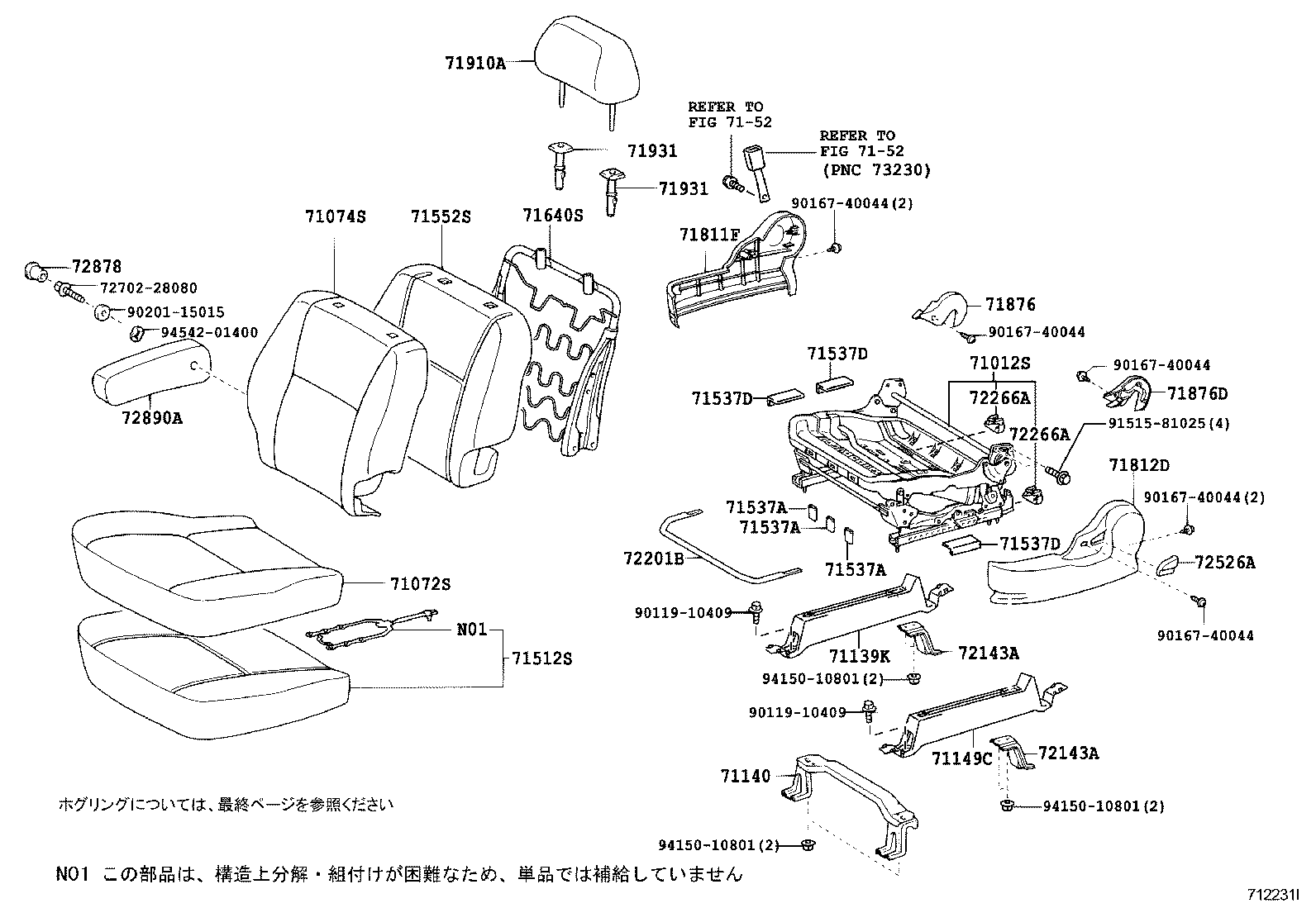

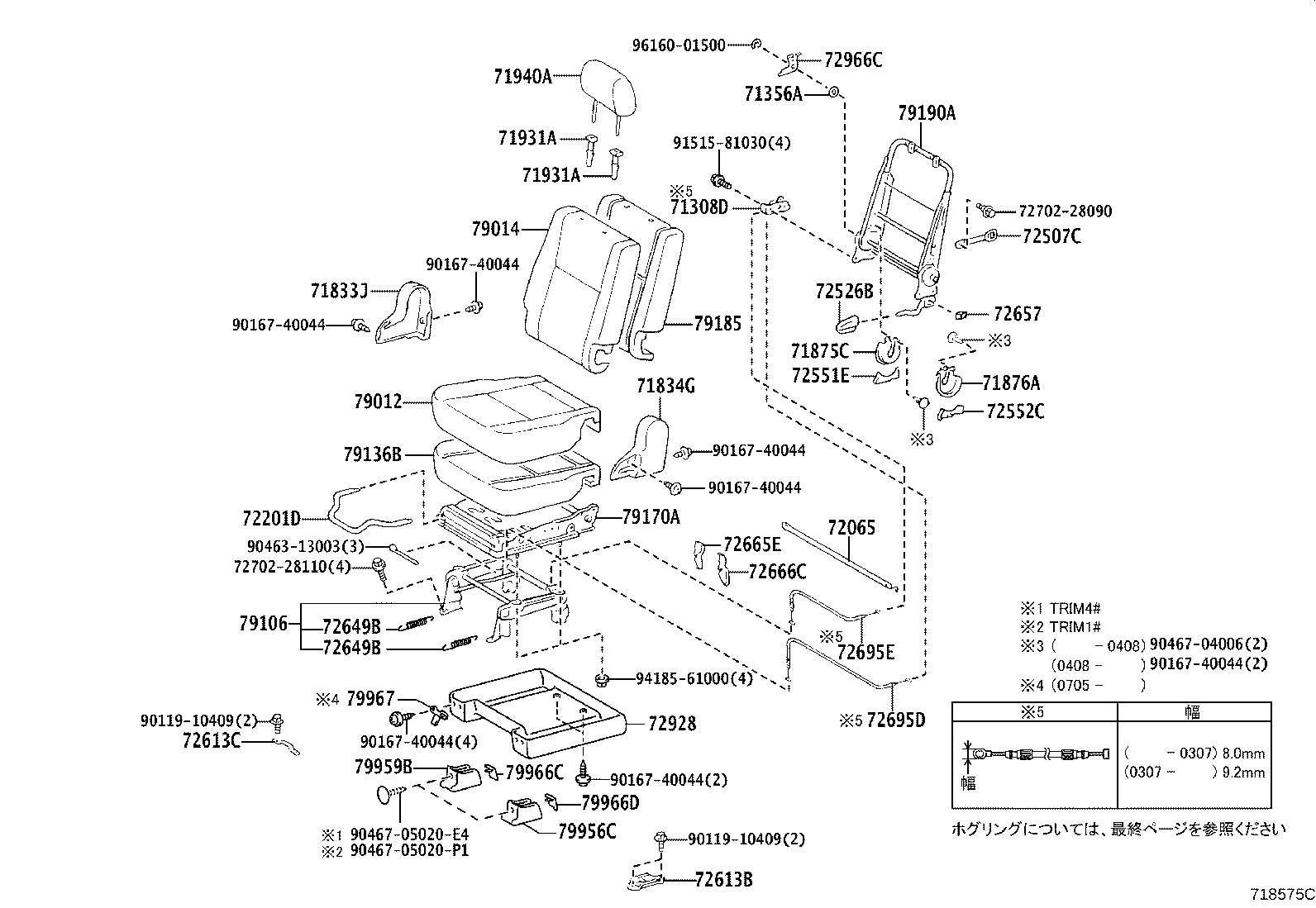

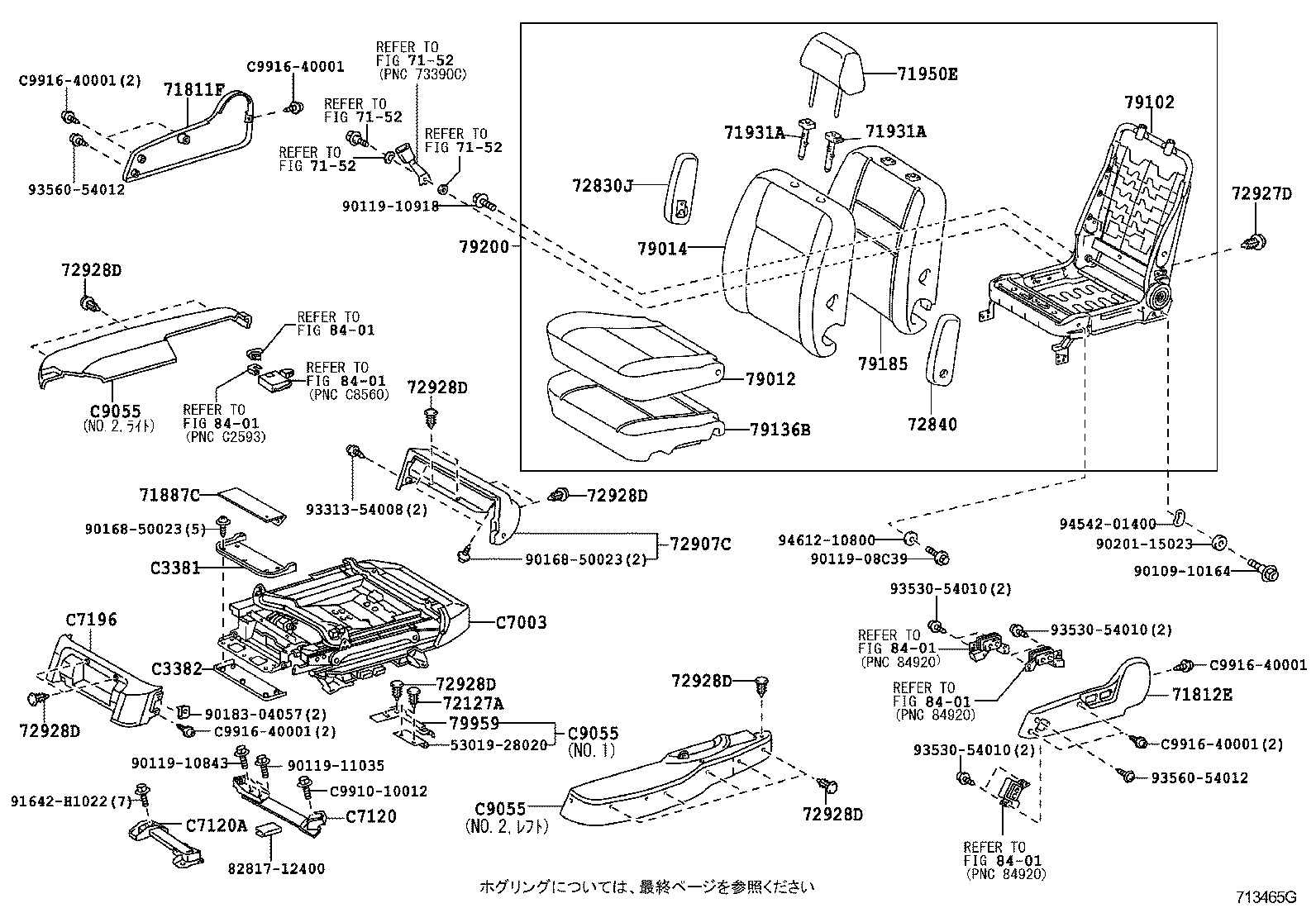

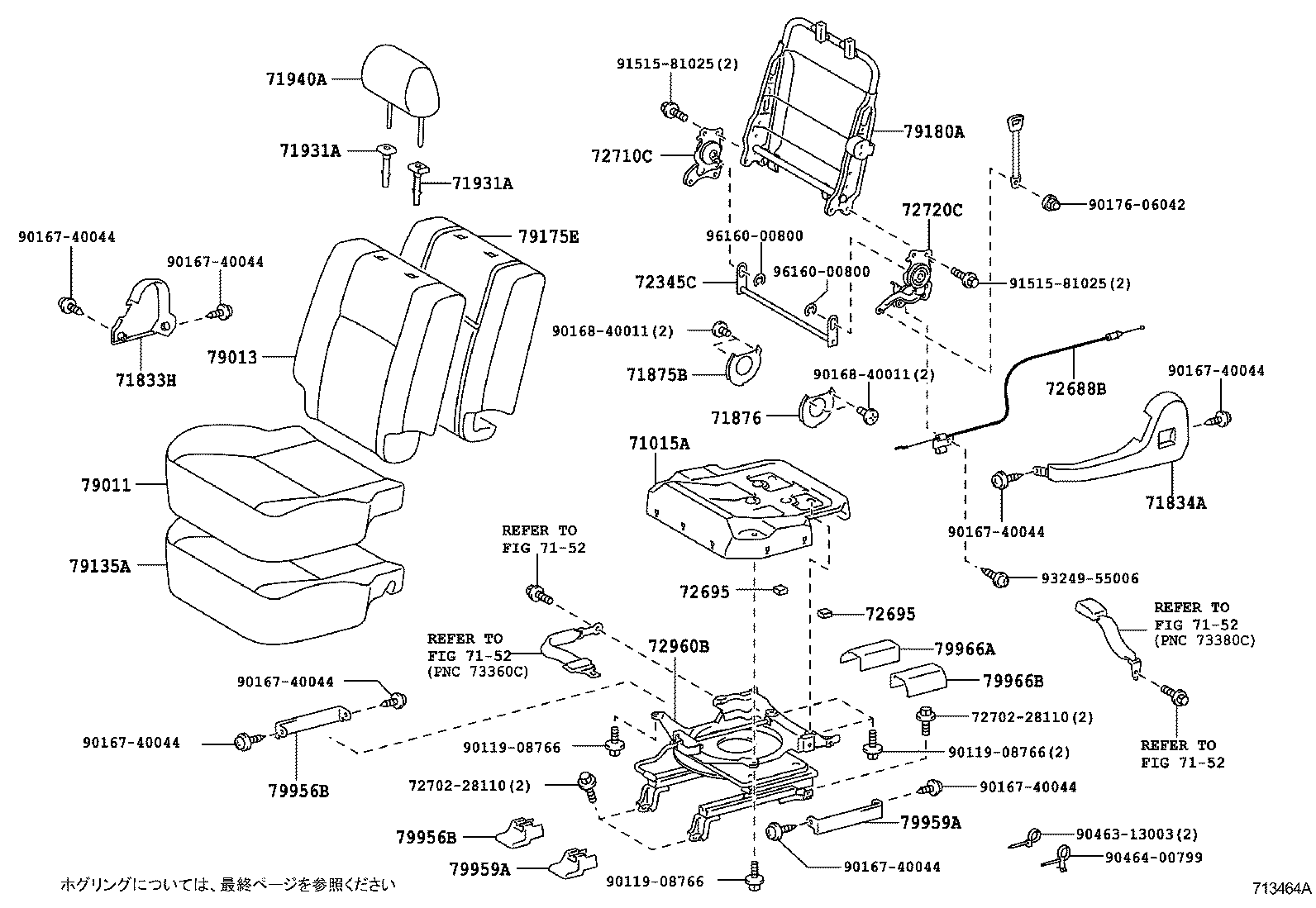

Figure 713460F 713460F 2001-11 → — Figure 713459F 713459F 2001-11 → — Figure 712231I 712231I 2001-11 → 2004-08 Figure 712231I 712231I 2004-08 → — Figure 712243J 712243J 2001-11 → 2004-08 Figure 712243J 712243J 2004-08 → — Figure 713461D 713461D 2004-08 → — Figure 713462C 713462C 2004-08 → — Figure 719141B 719141B 2001-11 → — Figure 718575C 718575C 2001-11 → — Figure 712234N 712234N 2001-11 → — Figure 712322E 712322E 2001-11 → — Figure 713464A 713464A 2004-08 → — Figure 713465G 713465G 2004-08 → — Figure 717525B 717525B 2004-08 → — Figure 713467G 713467G 2004-08 → — Figure 712235P 712235P 2001-11 → — Figure 713466J 713466J 2001-11 → — Figure 713463 713463 2004-08 → — Figure 673685A 673685A 2004-08 → — Figure 718165A 718165A 2001-11 → —

Part groups

PNCDescription
64090 Belt Assy, Wheel Chair
64090A Belt Assy, Wheel Chair, NO.2
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71067 Frame Sub-assy, Rear Side Seatback, RH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71085B Cover Sub-assy, Rear Side Seat Cushion, RH
71088A Cover Sub-assy, Rear Side Seatback, RH
71130 Leg Assy, Front Seat, RH
71139J Cover, Front Seat Leg, RH(FOR RH SEAT)
71139K Cover, Front Seat Leg, LH(FOR LH SEAT)
71140 Leg Assy, Front Seat, LH
71149B Cover, Front Seat Leg, LH (FOR RH SEAT)
71149C Cover, Front Seat Leg, LH (FOR LH SEAT)
71307D Bracket Sub-assy, Rear Seat Cushion Support, RH
71308D Bracket Sub-assy, Rear Seat Cushion Support, LH
71318 Pad, Center Seat Cushion
71324A Cushion, Rear Seat
71349C Cover, Rear Seatback Hinge
71356 Plate, Rear Seatback Hinge, Inner RH
71356A Plate, Rear Seatback Hinge, Inner LH
71385B Bracket, Rear Seat Cushion Holder, RH
71386A Bracket, Rear Seat Cushion Holder, LH
71396C Cushion, NO.2 Seat Support, Rear
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71739 Cushion, Seat Support
71749A Cover, Side Seat Lower Cushion, RH
71759B Hook, Front Seatback
71761A Pad, Rear Side Seatback, RH
71771A Board, Front Seatback
71811C Cover, Reclining Adjuster, RH
71811F Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71812E Cover, Reclining Adjuster, LH
71813A Shield, Front Seatback, RH
71814A Shield, Front Seatback, LH
71819B Label, Side Airbag Name
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833H Cover, Rear Seat Reclining, NO.1 RH
71833J Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834G Cover, Rear Seat Reclining, NO.1 LH
71843E Cover, Rear Seat Reclining, RH (FOR RH SEAT)
71843F Cover, Rear Seat Reclining, LH (FOR RH SEAT)
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71844E Cover, Rear Seat Reclining, RH (FOR LH SEAT)
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875C Cover, Reclining Adjuster Inside, RH
71875D Cover, Reclining Adjuster Outside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876D Cover, Reclining Adjuster Outside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71881 Board, Rear Seatback, RH
71887C Carpet, Rear Seat Cushion
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71940E Headrest Assy, NO.2 Seat
71950E Headrest Assy, Rear NO.1 Seat, LH
72065 Belt Sub-assy, Rear Seat Hook, RH
72065A Hook Sub-assy,Rear Seat Cushion Lock,RH
72066A Hook Sub-assy,Rear Seat Cushion Lock,LH
72089 Bracket Sub-assy, Rear Seat Armrest, RH
72127A Cover, Seat Track Bracket, Inner Front RH
72137 Cover, Seat Track, Outer RH
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72138 Cover, Seat Track, Outer LH
72143 Bracket, Front Seat Track, Lower Rear RH(FOR RH SEAT)
72143A Bracket, Front Seat Track, Lower Rear(FOR LH SEAT)
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72201C Handle Sub-assy, Seat Track, RH
72201D Handle Sub-assy, Seat Track, LH
72210B Cable Assy, Seat Track Control, RH
72210C Cable Assy, Seat Track Control, LH
72213B Knob, Seat Track Adjusting Handle, RH
72213C Knob, Seat Track Adjusting Handle, LH
72265 Cover, Seat Track Upper Rail, RH
72265A Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72266A Cover, Seat Track Upper Rail, LH
72302D Wire Sub-assy, Rear Seat Track Equalizing, LH
72345C Pipe,Reclining Connecting, RH
72457 Knob, Vertical Seat Adjuster
72505B Lock Sub-assy, Front Seatback, RH
72506D Lock Sub-assy, Front Seatback, LH
72507B Handle Sub-assy, Reclining Release, RH
72507C Handle Sub-assy, Reclining Release, LH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72525E Handle, Reclining Adjuster Release, NO.3 RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72526D Handle, Reclining Adjuster Release, NO.3 LH
72529 Rod, Front Seat Backlock Handle
72551B Cover, Reclining Hinge, RH
72551E Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72552C Cover, Reclining Hinge, LH
72601A Striker Sub-assy, Rear Seatback Look, RH
72613A Striker, Front Seat Lock
72613B Striker, Rear Seat Lock
72613C Striker, Rear Seat Lock
72630C Lock Assy, Rear Seatback, RH
72637A Handle, Rear Seat Lock
72649B Spring, Rear Seat Cushion Support
72657 Silencer, Rear Seatback Lock Control Rod
72658 Knob, Rear Seat Handle
72665A Cap(FOR REAR SEATBACK LOCK COVER)
72665C Cover, Rear Seat Lock, RH
72665E Cover, Rear Seat Lock, NO.2 RH
72665F Cover, Rear Seat Lock, RH(FOR RH SEAT)
72665G Cover, Rear Seat Lock, RH(FOR LH SEAT)
72666B Cover, Rear Seat Lock, LH
72666C Cover, Rear Seat Lock, NO.2 LH
72666D Cover, Rear Seat Lock, LH(FOR RH SEAT)
72666E Cover, Rear Seat Lock, LH(FOR LH SEAT)
72688B Cable, Rear Seat Track & Turn Control RH
72688C Cable, Rear Seat Track & Turn Control LH
72690 Lever Assy, Seat Cushion Lock Release
72695 Silencer, Rear Seatback Lock Control Rod
72695B Cable, Rear Seat Lock Control, RH
72695C Cable, Rear Seat Lock Control, LH
72695D Cable, Rear NO.2 Seat Lock Control, RH
72695E Cable, Rear NO.2 Seat Lock Control, LH
72710C Adjuster Assy, NO.1 Seat Reclining, RH
72720C Adjuster Assy, NO.1 Seat Reclining, LH
72808A Bracket Sub-assy, Seat Center Armrest
72830 Armrest Assy, Rear Seat, Center
72830J Armrest Assy, Rear NO.1 Seat, RH
72840 Armrest Assy, Rear NO.1 Seat, LH
72877 Cover, Seat Armrest, RH
72878 Cover, Seat Armrest, LH
72880A Armrest Assy, Front Seat, Inner RH
72890A Armrest Assy, Front Seat, Inner LH
72907C Cover Sub-assy, Rear Seat Turn
72927 Cover, Rear Seat Cushion Under, RH
72927C Cover, Rear Seat Cushion Under RH
72927D Clip (FOR REAR SEAT CUSHION UNDER COVER)
72928 Cover, Rear Seat Cushion Under, LH
72928C Cover, Rear Seat Cushion Under, LH
72928D Clip (FOR REAR SEAT CUSHION UNDER COVER)
72960B Table Assy, Rear Seat Turn, RH
72966B Plate, Rear Seat Turn Lock, NO.1 RH
72966C Plate, Rear Seat Turn Lock, NO.1 LH
72970 Table Assy, Rear Seat Turn, LH
72975 Protector, Rear Seat Turn Plate
72996 Cover, Rear Seatback, RH
72997 Cover, Rear Seatback, LH
78773 Cover, Sub Seat Hinge, RH
78804 Leg Sub Assy, Sub Seat Cushion
78875 Striker, Sub Seat Lock
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79105 Leg Sub-assy, NO.1 Seat, RH
79106 Leg Sub Assy, NO.1 Seat, LH
79109 Board Sub-assy, NO.1 Seatback
79109C Board Sub-assy, NO.1 Seatback, LH
79117B Cover, NO.1 Seat Cushion, RH
79117C Cover, NO.1 Seat Cushion, LH
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79160A Spring Assy, NO.1 Seat Cushion, RH
79170A Spring Assy, NO.1 Seat Cusuion, LH
79175B Pad, NO.1 Seatback, A
79175E Pad, NO.1 Seatback, RH
79176 Pad, NO.1 Seatback, NO.2
79180A Spring Assy, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79190A Spring Assy, NO.1 Seatback, LH
79200 Seat Assy, Rear NO.1 LH (FOR SEPARATE TYPE)
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79235D Pad, NO.2 Seat Cushion, RH
79236C Link, NO.2 Seat Leg
79236D Cover, Rear Seat Leg, RH (FOR RH SEAT)
79236E Cover, Rear NO.2 Seat Leg, Front LH (FOR LH SEAT)
79245C Pad, NO.2 Seat Cushion, LH
79246A Cover, NO.2 Seat Leg, NO.2
79246D Cover, Rear Seat Leg, RH (FOR LH SEAT)
79246E Cover, NO.2 Seat Leg, Rear LH (FOR LH SEAT)
79260A Spring Assy, NO.2 Seat Cushion, RH
79270A Spring Assy, NO.2 Seat Cushion, LH
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79391 Spring, Rear Seat Cushion
79956B Cover, Rear Seat Leg Side, RH
79956C Cover, Rear Seat Leg Side, LH
79956F Board, Seat Leg Garnish
79959 Cover, RR Seat Leg
79959A Cover, Rear Seat Leg, RH
79959B Cover, Rear Seat Leg, LH
79965B Cover, Rear Seat Leg Side, NO.2
79966 Cover, Rear Seat Leg Side, NO.3
79966A Cover, Rear Seat Leg, RH(FOR RH SEAT)
79966B Cover, Rear Seat Leg, LH(FOR RH SEAT)
79966C Cover, Rear Seat Leg, RH(FOR LH SEAT)
79966D Cover, Rear Seat Leg(FOR LH SEAT)
79967 Cover, Rear Seat Leg Side, NO.4
C3381 Cover, Slide Step, NO.1
C3382 Cover, Slide Step, NO.2
C7003 Lift Unit, Passenger Seat
C7120 Leg, Welcab Seat, NO.1
C7120A Leg, Welcab Seat, NO.2
C7196 Cover, Turn Table, NO.1
C9055 Cover Sub-assy, Power Lift, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
