Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

13 part groups · 3 illustrations

Illustrations

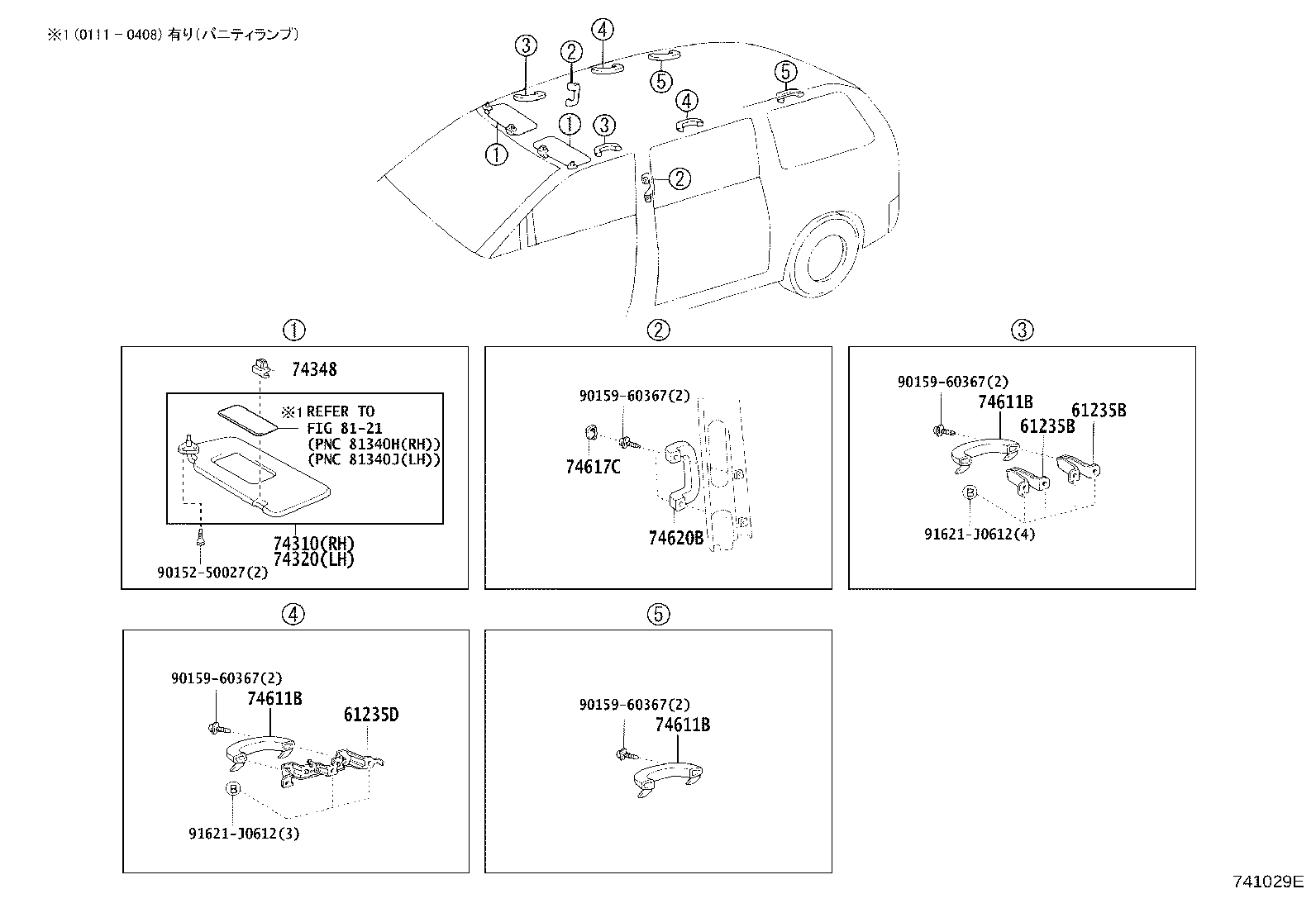

Figure 741028C 741028C 2001-11 → — Figure 741029E 741029E 2001-11 → — Figure 673685A 673685A 2004-08 → —

Part groups

PNCDescription
61235B Bracket, Assist Grip
61235D Bracket, Assist Grip
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74253A Base, Quarter Armrest, RH
74254A Base, Quarter Armrest, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74611B Grip, Assist
74617C Plug, Assist Grip
74620B Grip Assy, Assist, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
