Toyota Noah/Voxy
2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan
Discontinued model
Data version 2008-04

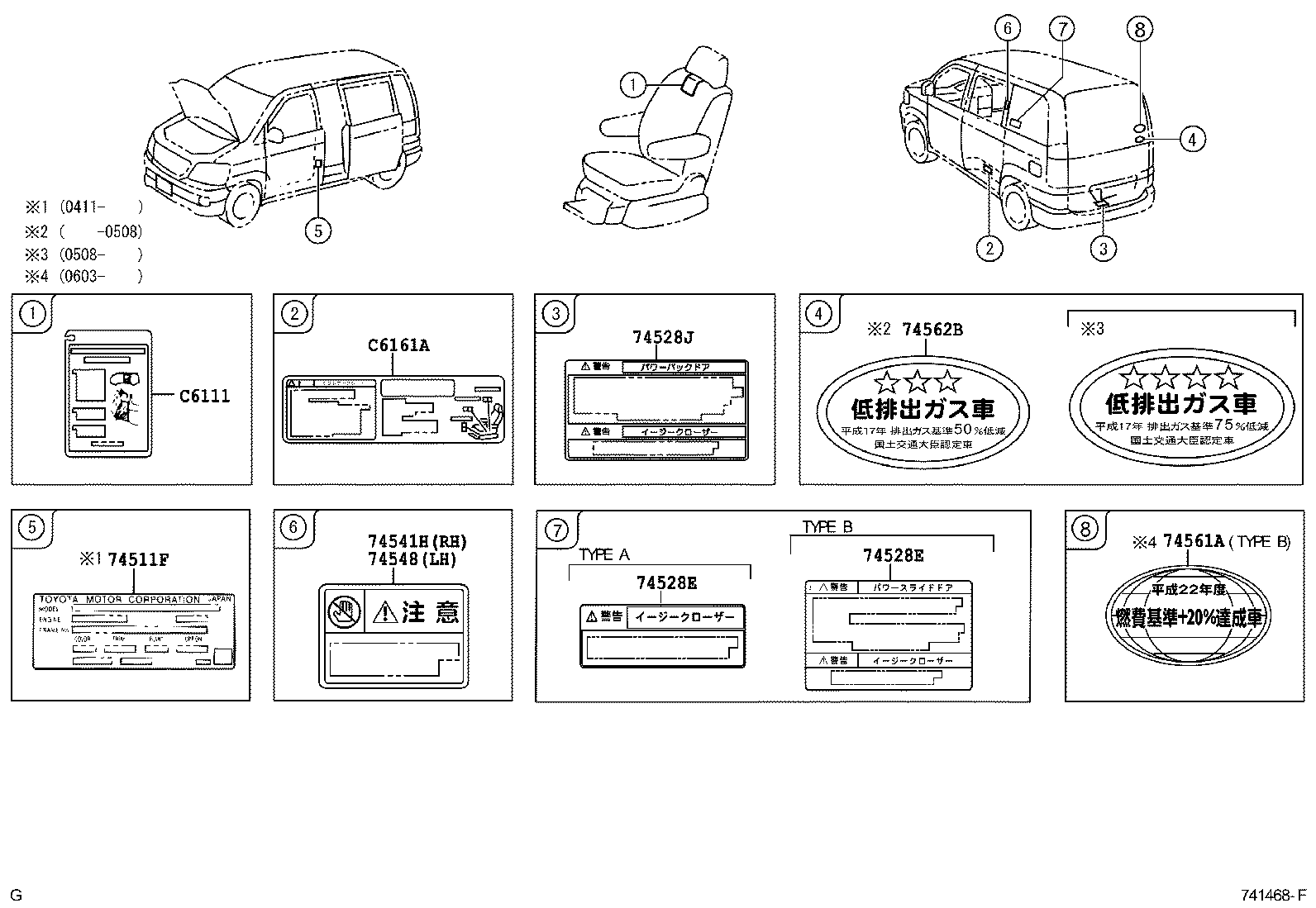

Caution Plate
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11296C | Label, Engine Service Information |
| 41992 | Label, Differential Notice |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 46275B | Label, Parking Brake Release Information, NO.2 |
| 47996C | Label, Brake Bleed Caution |
| 69339A | Plate, Child Protector Lock Caution |
| 69339B | Plate, Child Protector Lock Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74528E | Label, Power Slide Door Notice |
| 74528J | Label, Power Back Door Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74541G | Plate, Safety Caution |
| 74541H | Plate, Body Caution |
| 74548 | Plate, Body Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74751 | Label, Tire Pressure Information |
| 75341B | Plate, Hood Name |
| 82685 | Plate, Caution |
| 85628C | Label, Automatic Door |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
| C6111 | Plate, Safety Caution |
| C6161A | Label, Power Lift Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
