Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

33 part groups · 3 illustrations

Illustrations

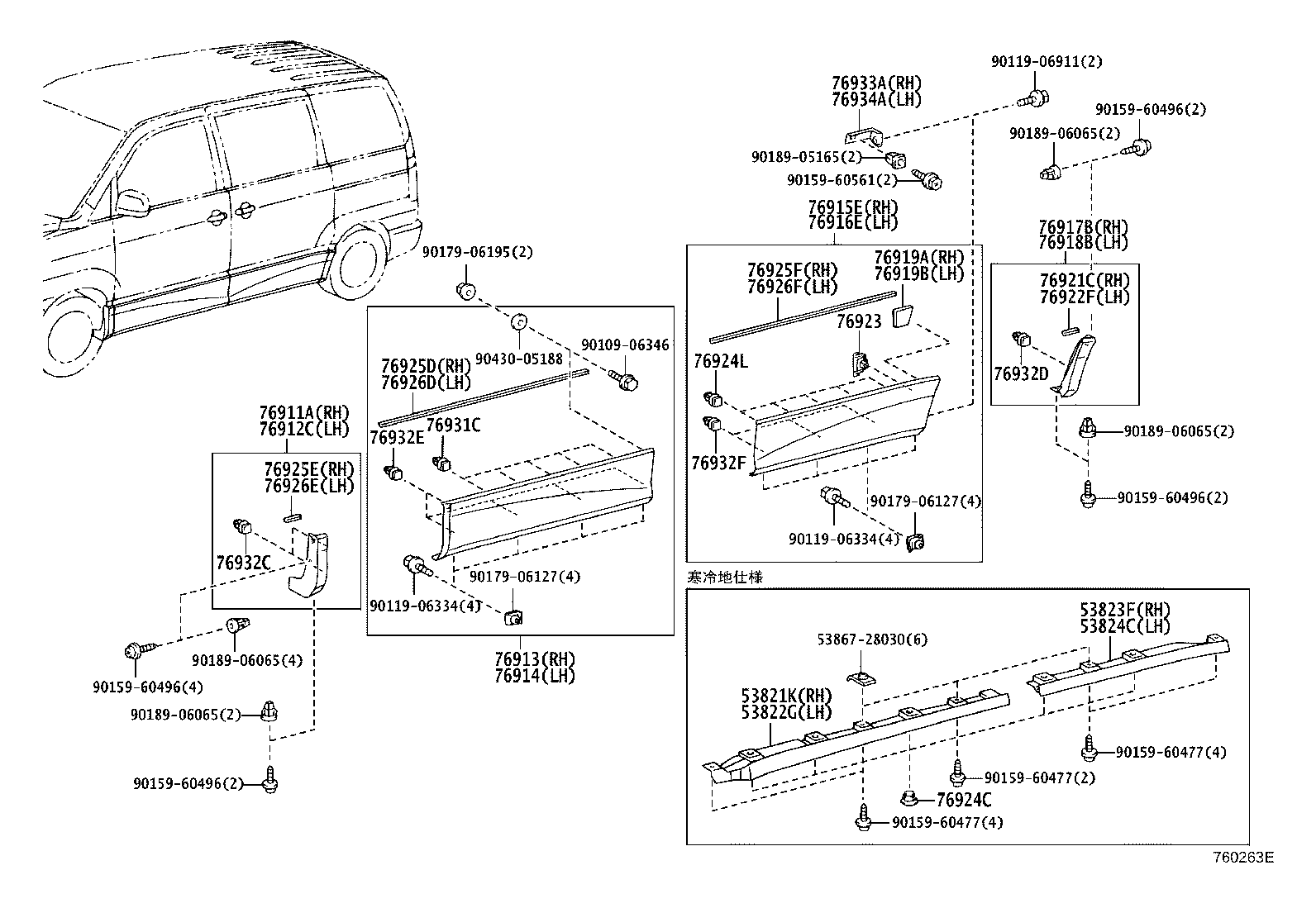

Figure 760262C 760262C 2001-11 → 2004-08 Figure 760262C 760262C 2004-08 → — Figure 760263E 760263E 2001-11 → —

Part groups

PNCDescription
53821K Protector, Front Side Panel, NO.1 RH
53822G Protector, Front Side Panel, NO.1 LH
53823F Protector, Front Side Panel, NO.2 RH
53824C Protector, Front Side Panel, NO.2 LH
76871 Spoiler, Rear
76911A Mudguard, Fender Panel, RH
76912C Mudguard, Fender Panel, LH
76913 Mudguard, Front Door, RH
76914 Mudguard, Front Door, LH
76915E Mudguard, Slide Door, RH
76916E Mudguard, Slide Door, LH
76917B Mudguard, Quarter Panel, RH
76918B Mudguard, Quarter Panel, LH
76919A Pad, Side Mudguard
76919B Pad, Side Mudguard
76921C Protector, Side Mudguard, RH
76922F Protector, Side Mudguard, LH
76923 Retainer, Side Mudguard
76924C Retainer, Side Mudguard, NO.2
76924L Retainer, Slide Door Mudguard
76925D Protector, Side Mudguard, RH
76925E Protector, Side Mudguard, Front RH
76925F Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
76926E Protector, Side Mudguard, Front LH
76926F Protector, Side Mudguard, LH
76931C Retainer, Front Door Madguard
76932C Retainer, Fender Panel Mudguard
76932D Retainer, Quarter Panel Mudguard
76932E Retainer, Front Door Mudguard
76932F Retainer, Slide Door Mudguard
76933A Bracket, Side Mudguard, NO.2 RH
76934A Bracket, Side Mudguard, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
