Toyota Noah/Voxy
2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan
Discontinued model
Data version 2008-04

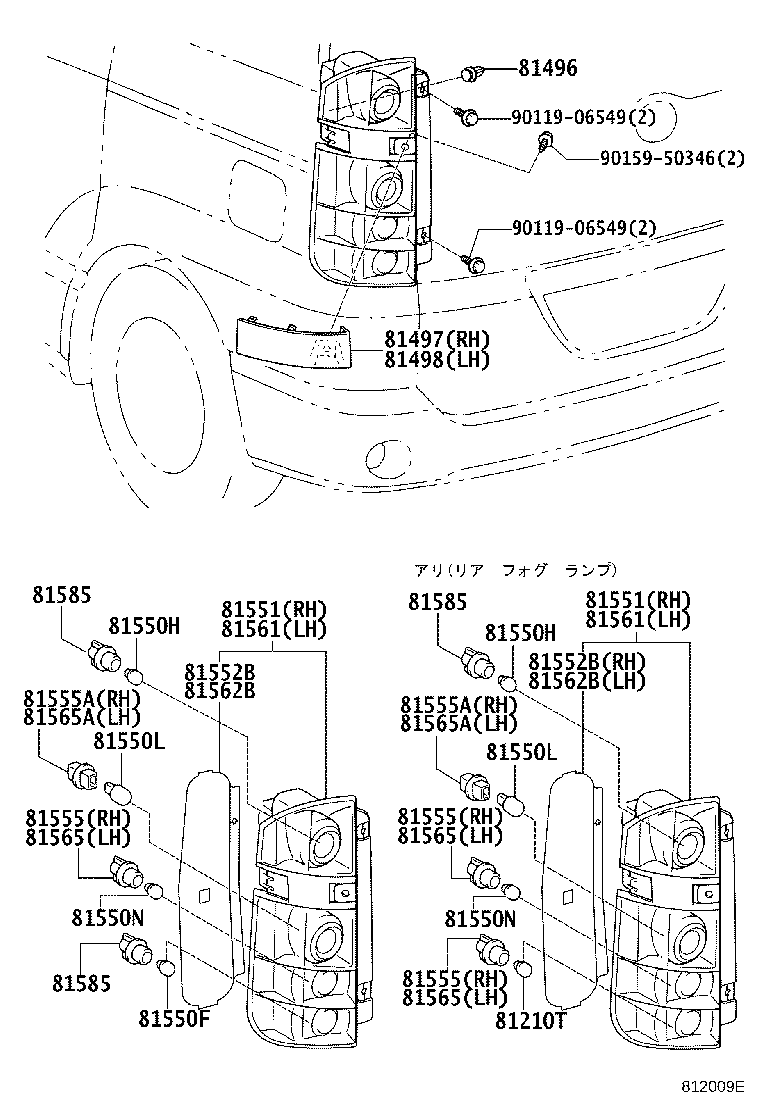

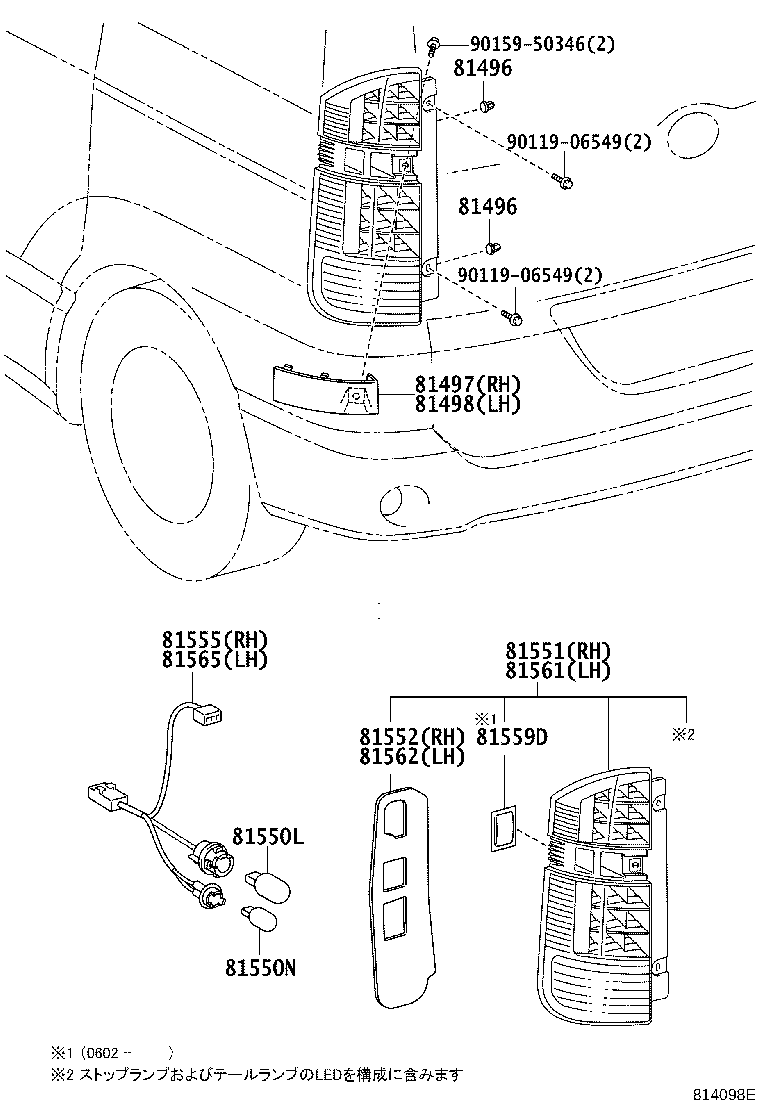

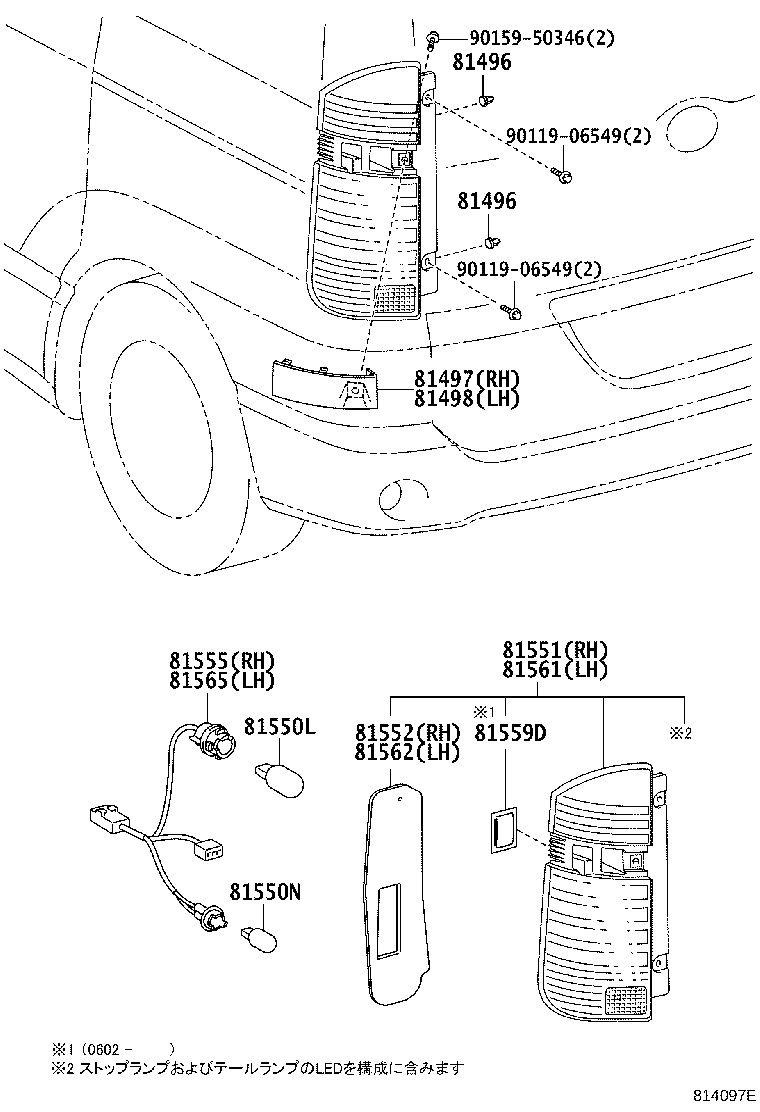

Rear Combination Lamp
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81210T | Bulb, Rear Fog Lamp |
| 81496 | Guide, Rear Combination Lamp |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81550F | Bulb, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81552B | Packing, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555A | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81559D | Desiccant, Rear Combination Lamp |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81562B | Packing, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81565A | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81585 | Socket & Wire, Rear Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
