Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

4 part groups · 4 illustrations

Illustrations

Figure 811990B

811990B 2001-11 → 2004-08

811991 2001-11 → 2004-08

811991 2004-08 → —

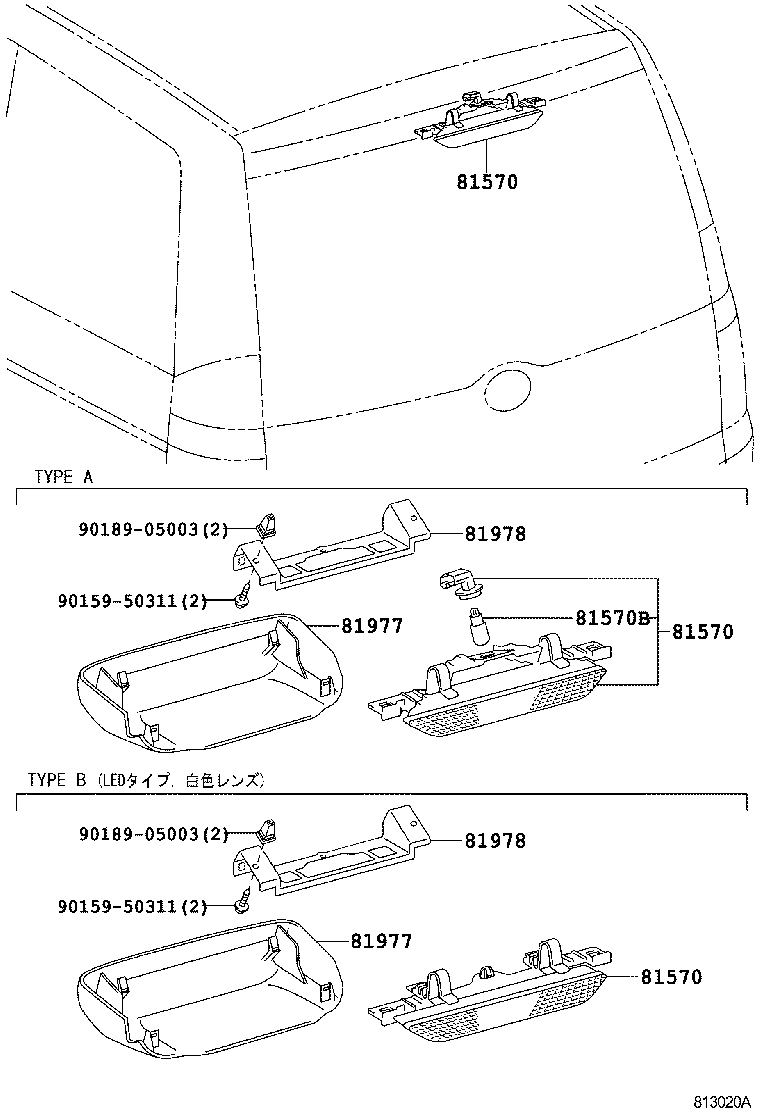

Figure 813020A

813020A 2004-08 → —

Part groups

PNC	Description
81570	Lamp Assy, Center Stop
81570B	Bulb (FOR CENTER STOP LAMP)
81977	Cover, Center Stop Lamp
81978	Bracket, Stop Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
