Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

21 part groups · 2 illustrations

Illustrations

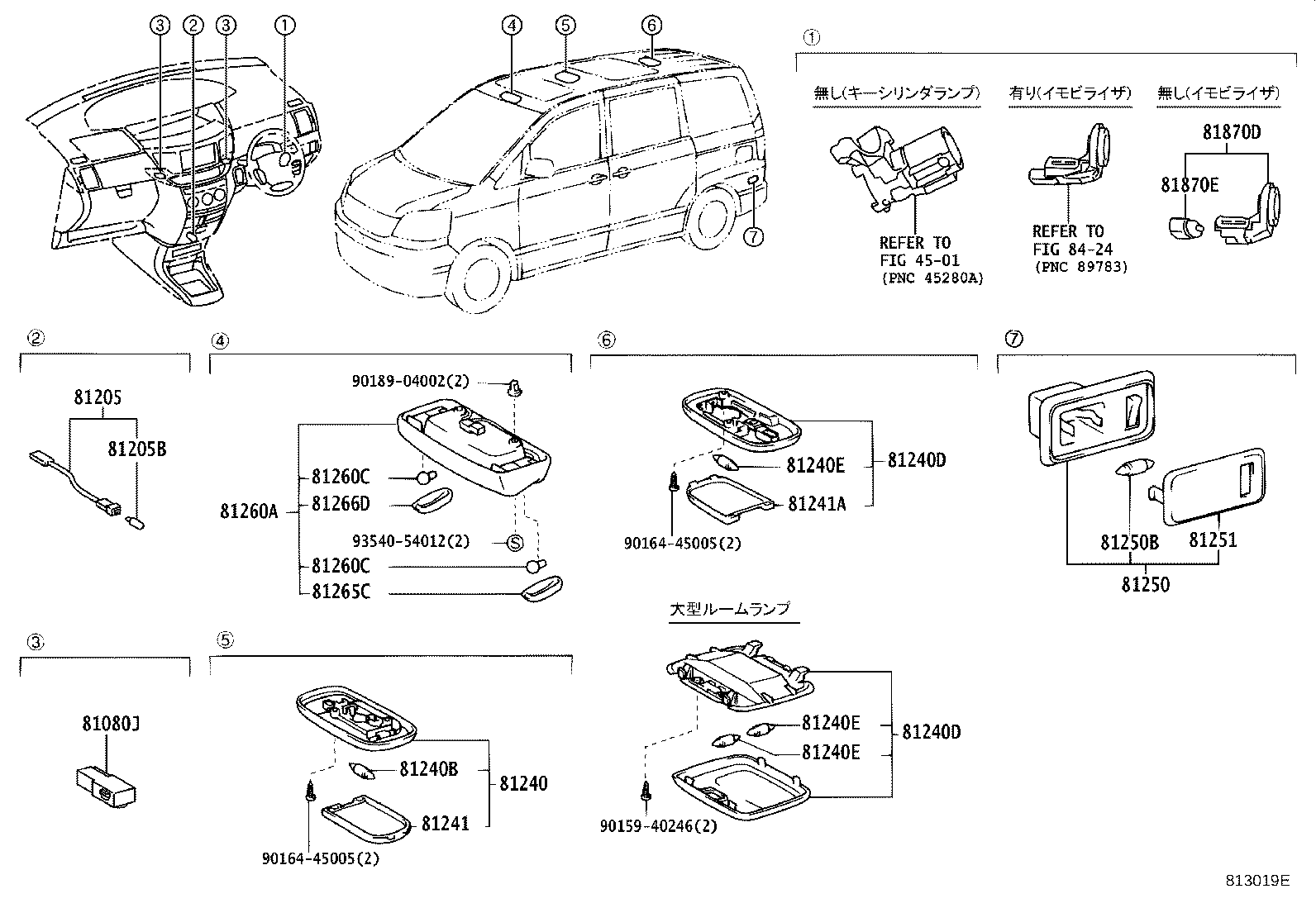

Figure 811989D 811989D 2001-11 → 2004-08 Figure 813019E 813019E 2004-08 → —

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81205 Lamp Sub-assy, Ash Receptacle
81205B Bulb, Ash Receptacle Lamp
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81241 Lens, Room Lamp, NO.1
81241A Lens, Room Lamp, NO.2
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81251 Lens, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81340B Bulb (FOR VANITY LAMP)
81340H Lamp Assy, Vanity, RH
81340J Lamp Assy, Vanity, LH
81870D Lamp Assy, Key Cylinder
81870E Bulb, Key Cylinder Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
