Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

99 part groups · 10 illustrations

Illustrations

844596 2001-11 → 2004-08

846466 2004-08 → —

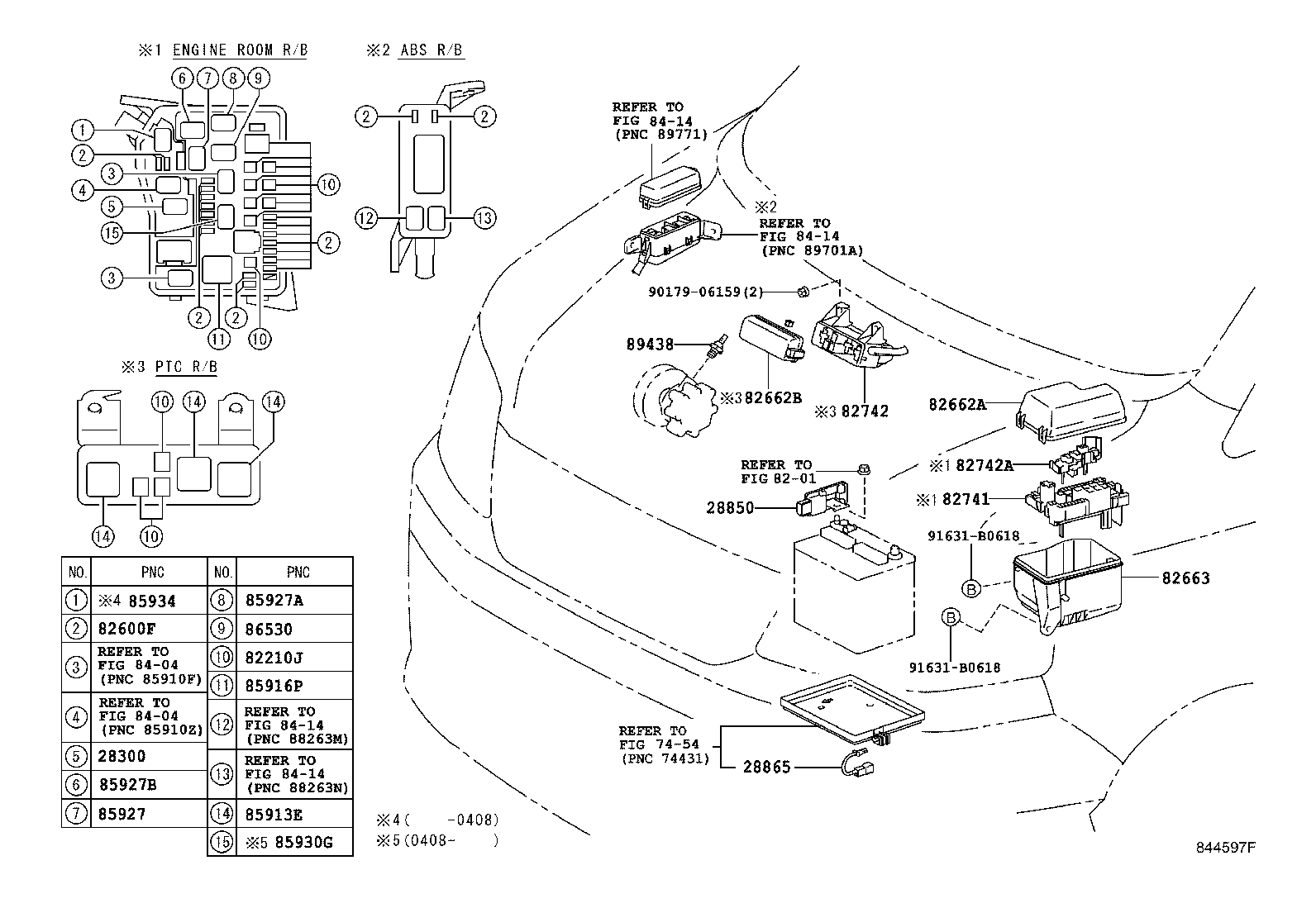

844597F 2001-11 → —

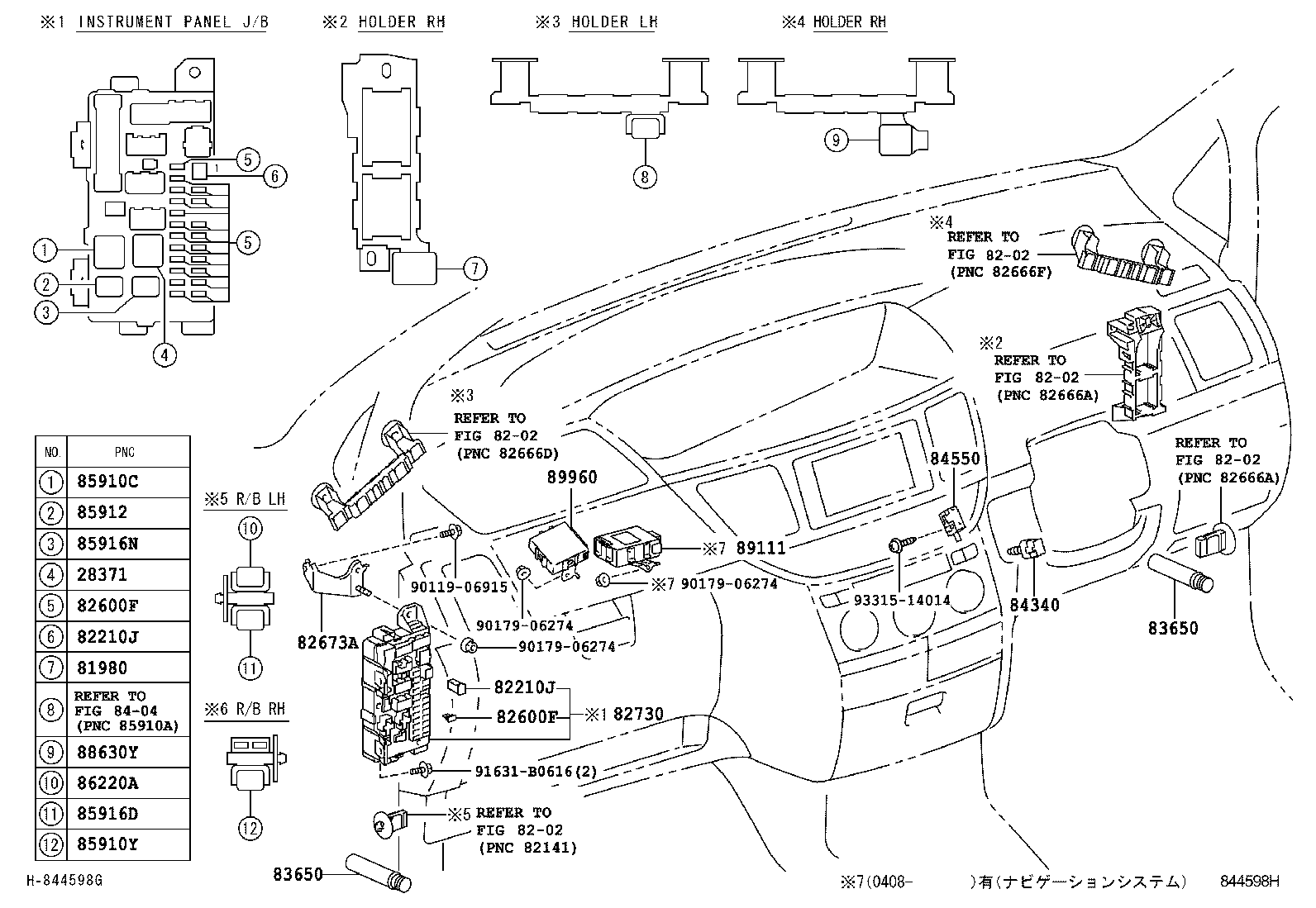

844598H 2001-11 → —

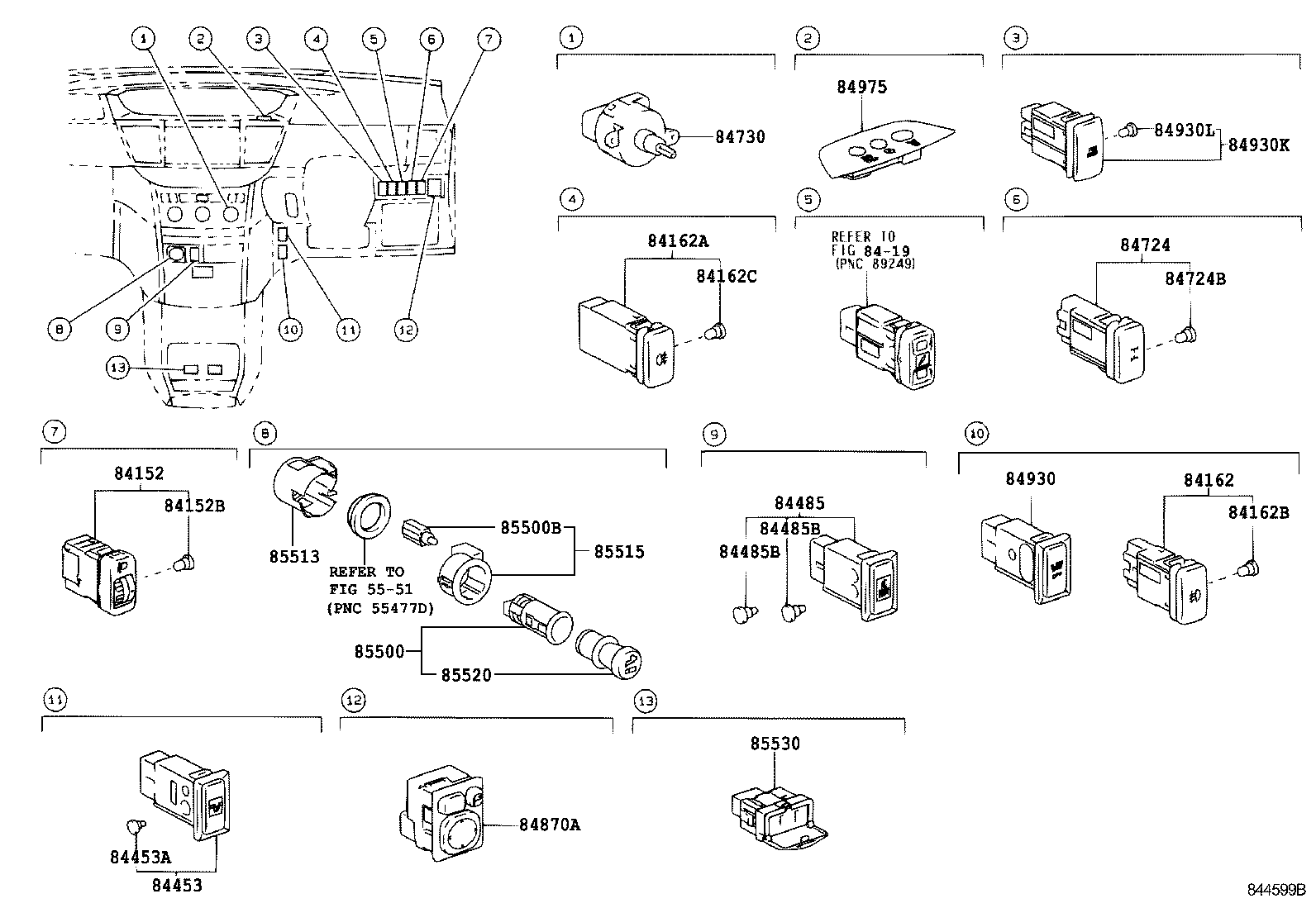

844599B 2001-11 → 2004-08

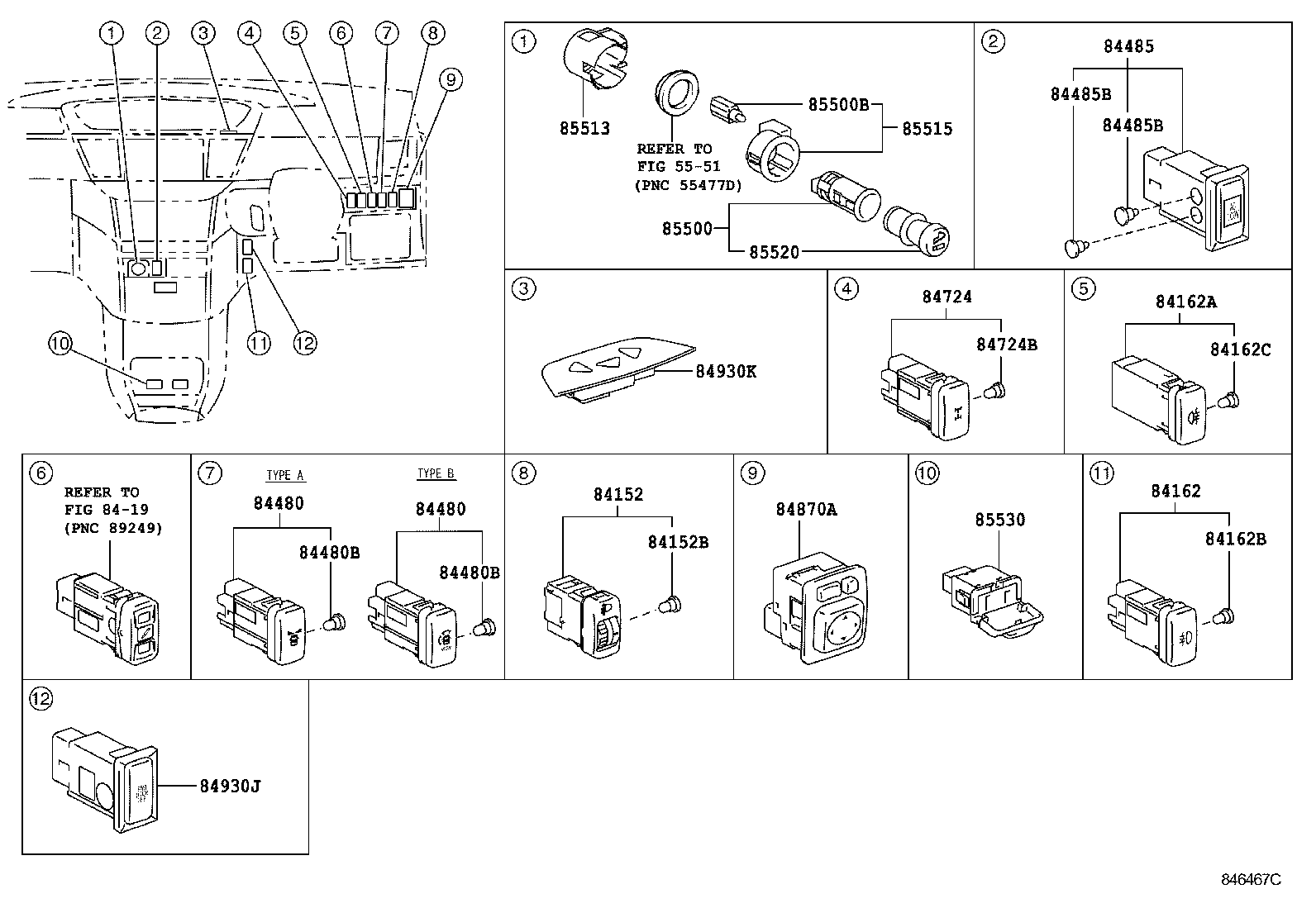

846467C 2004-08 → —

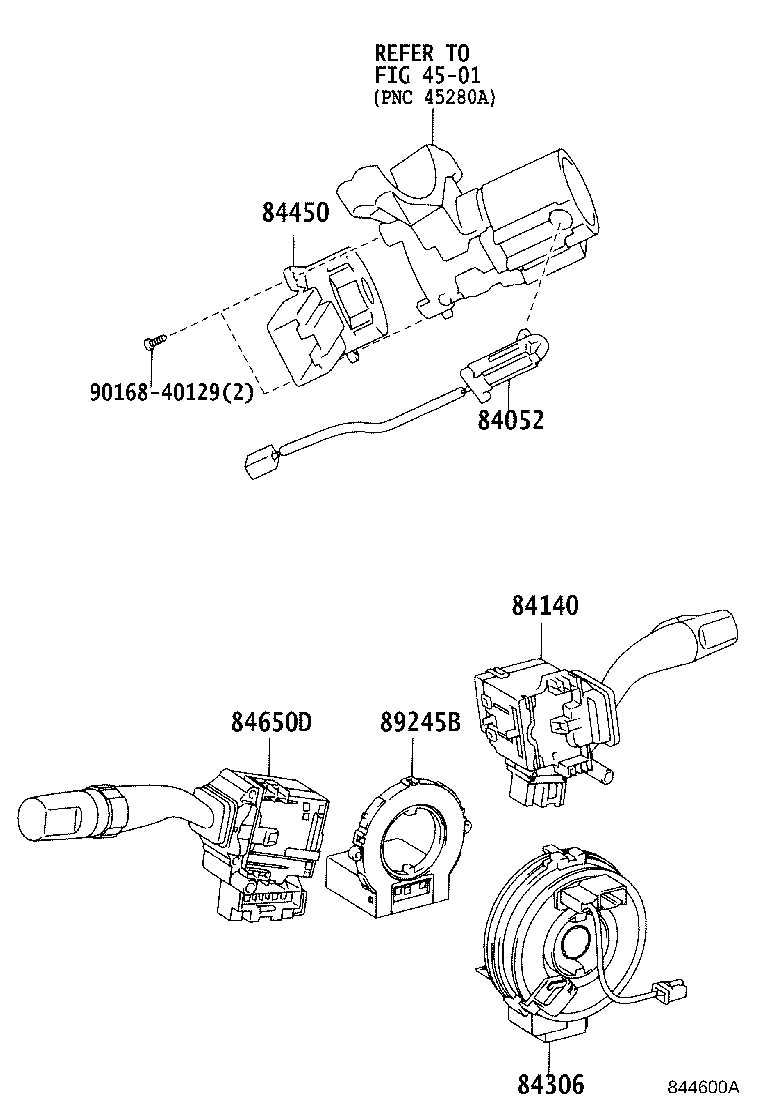

844600A 2001-11 → —

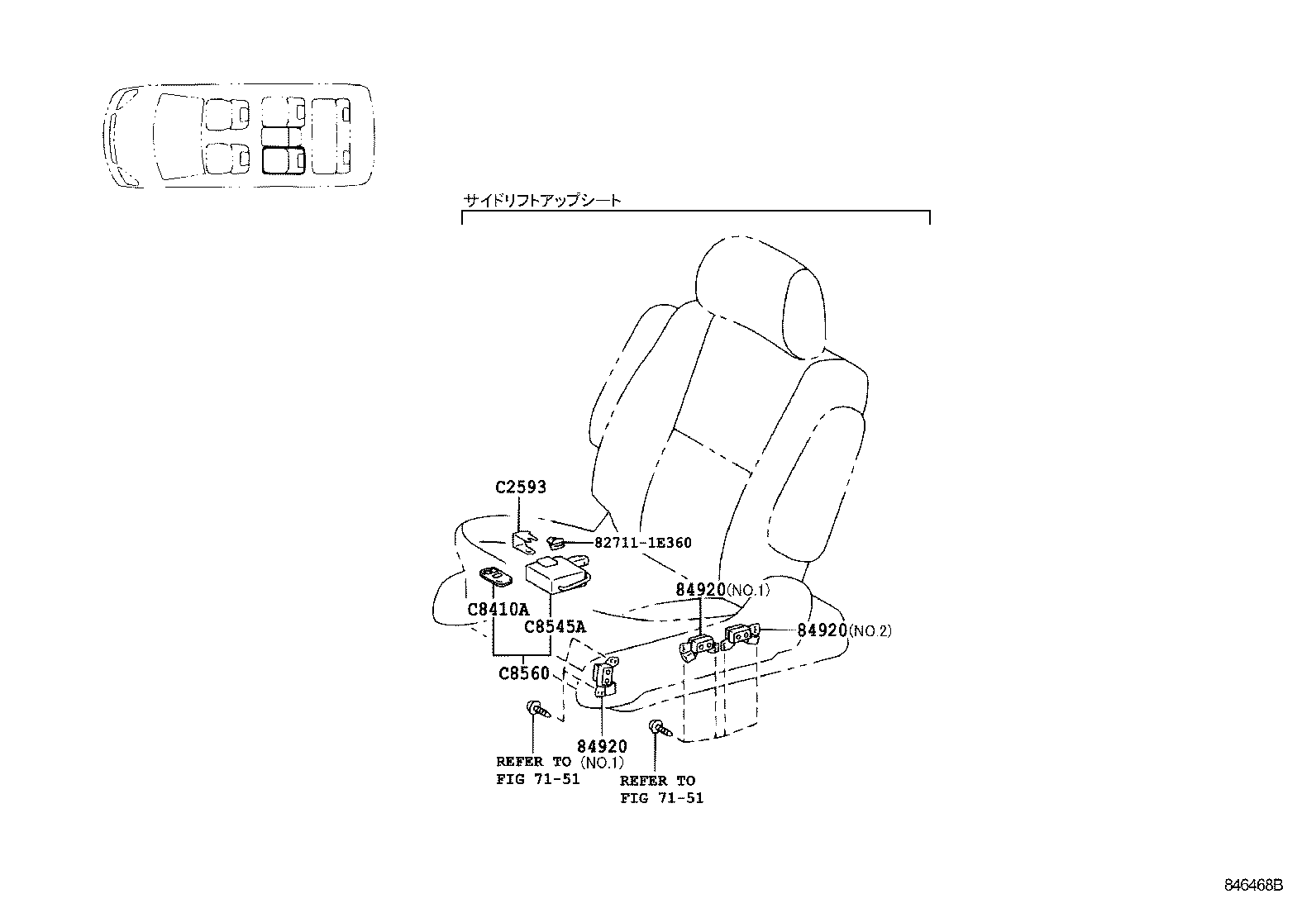

846468B 2004-08 → —

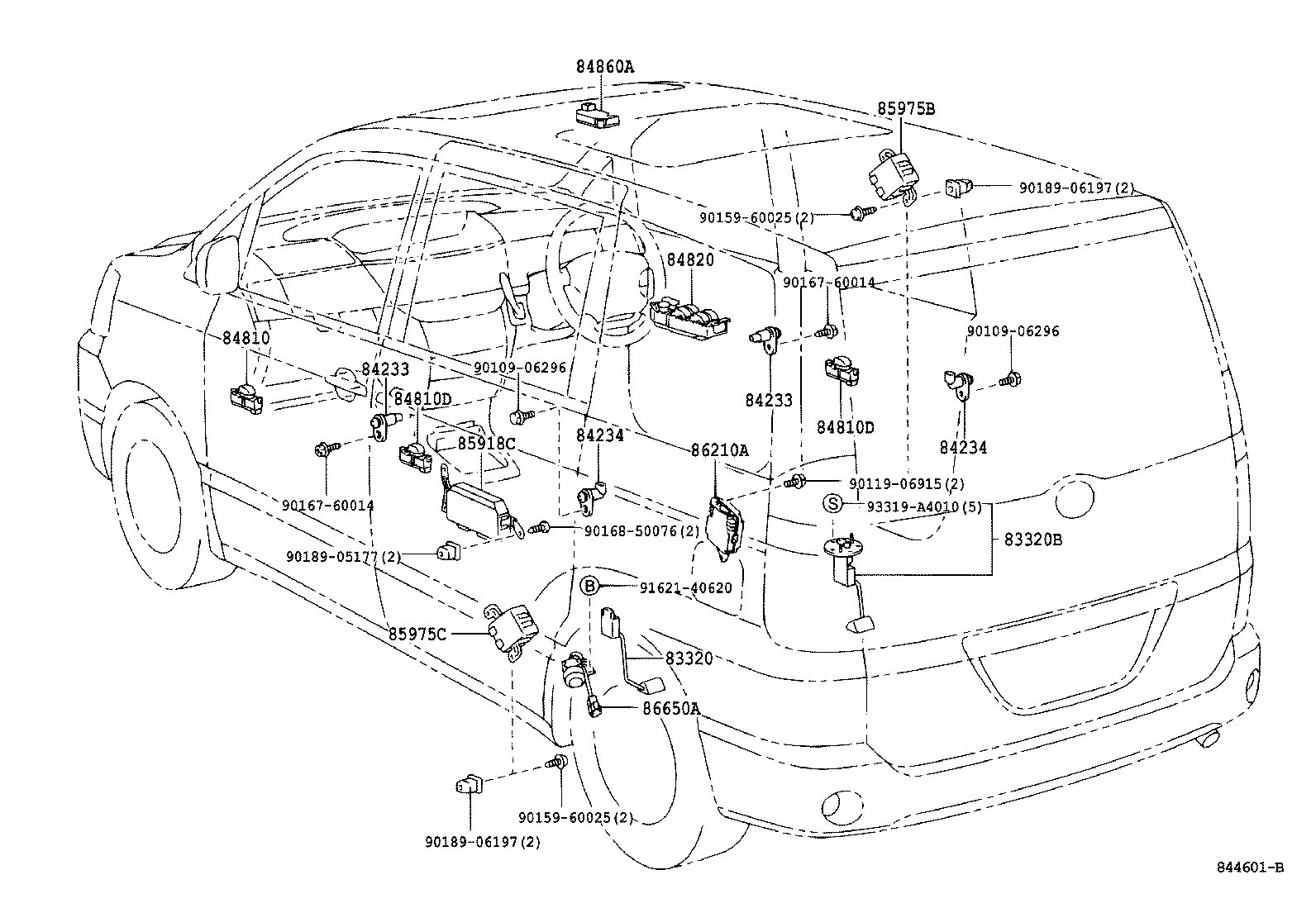

844601B 2001-11 → 2004-08

846469E 2004-08 → —

Part groups

PNC	Description
28300	Relay Assy, Starter
28371	Relay, Ignition, NO.1
28850	Sensor Assy, Battery Current
28865	Sensor, Battery Thermometer
81980	Flasher Assy, Turn Signal
82210J	Fusible Link
82600F	Fuse, Fuse Block
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82673A	Bracket, Junction Block, NO.1
82730	Block Assy, Instrument Panel Junction
82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82742A	Block, Engine Room Relay, NO.5
83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84052	Switch Assy, Un-lock Warning
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84152B	Bulb (FOR HEADLAMP LEVELING SWITCH)
84162	Switch, Front Fog Lamp
84162A	Switch, Rear Fog Lamp
84162B	Bulb, Fog Lamp Switch
84162C	Bulb (FOR REAR FOG LAMP SWITCH)
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84306	Cable Sub-assy, Spiral
84340	Switch Assy, Stop Lamp
84450	Switch Assy, Ignition OR Starter
84453	Switch, Idle UP
84453A	Bulb, Idle UP Switch
84480	Switch Assy, Main
84480B	Bulb, Main Switch Assy
84485	Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84485B	Bulb, Power Outlet(ACCESSORY SOCKET) Switch
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A	Bezel, Switch
84724	Switch, 4 Wheel Drive Control
84724B	Bulb, 4 Wheel Drive Control Switch
84730	Switch Assy, Heater Blower
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84820	Master Switch Assy, Power Window Regulator
84860A	Switch Assy, Sliding Roof
84870A	Switch Assy, Outer Mirror
84920	Switch Assy, Power Seat
84930	Switch Assy, Door Control
84930J	Switch Assy, Auto Slide Door Main
84930K	Switch Assy, Auto Slide Door Control
84930L	Bulb, Auto Slide Door Control Switch
84931C	Switch, Back Door Control
84975	Switch, Trip
85500	Lighter Assy, Cigarette
85500B	Bulb, Cigarette Lighter
85513	Cover, Cigarette Lighter
85515	Stay, Cigarette Lighter Bezel
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85530B	Socket Assy, Power Outlet, Rear NO.1
85535B	Cover, Power Outlet Socket, NO.1
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85910Y	Relay, Rear Heater
85912	Relay, Defogger
85913E	Relay, Heater, NO.3
85916D	Relay, Fog Lamp
85916N	Relay, Taillamp
85916P	Relay, Headlamp
85918A	Relay, Door Control
85918C	Relay, Door Control, LH
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85927B	Relay, Cooling Fan, NO.3
85930G	Relay, Acc
85934	Relay, Magnet-clutch
85975B	Relay, Slide Door Closer, RH
85975C	Relay, Slide Door Closer, LH
86210A	Inverter Assy, Voltage
86220A	Relay, Inverter
86530	Relay Assy, Horn
86650A	Buzzer Assy, Door Opening
88630Y	Relay, Rear Cooler
89111	Computer, Network Gateway
89222A	Computer, Multiplex Network Door
89245B	Sensor, Steering
89407	Sensor Sub-assy, Height Control, Rear RH
89438	Switch, Power Steering Oil Pressure
89465	Sensor, Oxygen
89615	Sensor, Knock Control
89960	Computer Assy, Headlamp Leveling
C2593	Bracket, Wireless Box, FR
C8410A	Switch Assy, Power Lift Control
C8460A	Switch Assy, Limit, LH NO.2
C8545A	Relay, Power Lift Control
C8560	Relay Assy, Lifter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
