Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

4 part groups · 2 illustrations

Illustrations

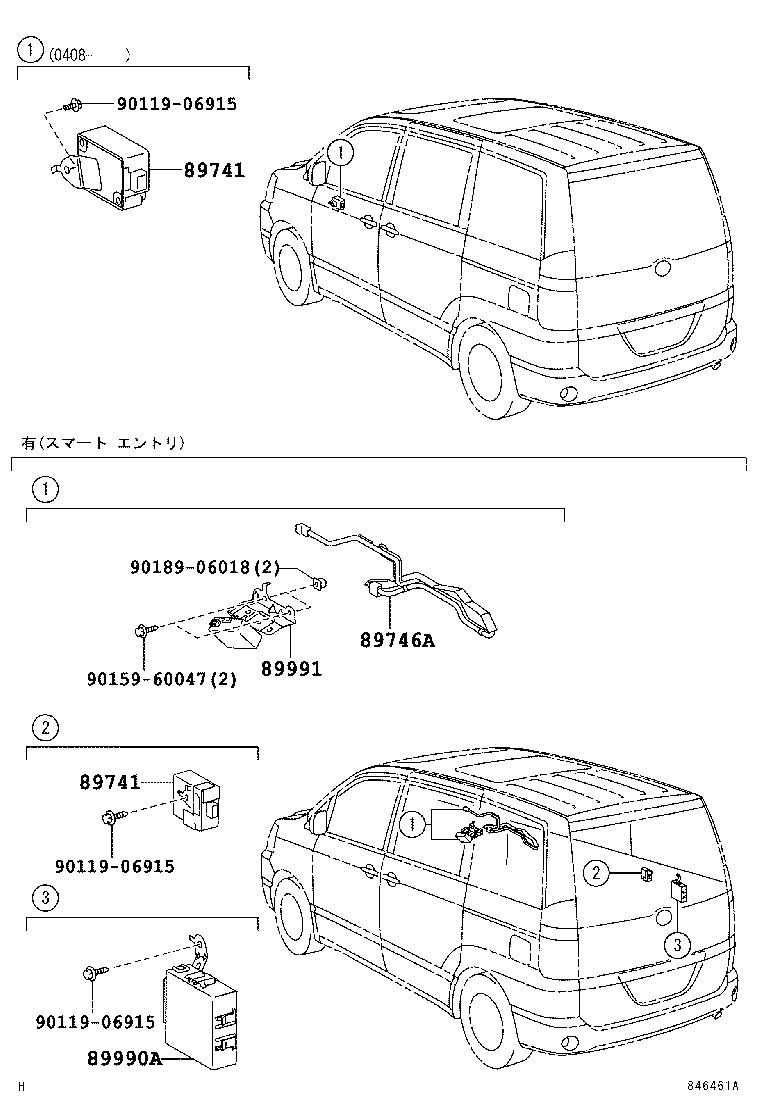

Figure 844586A 844586A 2001-11 → 2004-08 Figure 846461A 846461A 2004-08 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89746A Harness, Electrical Key Wire
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
