Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

13 part groups · 3 illustrations

Illustrations

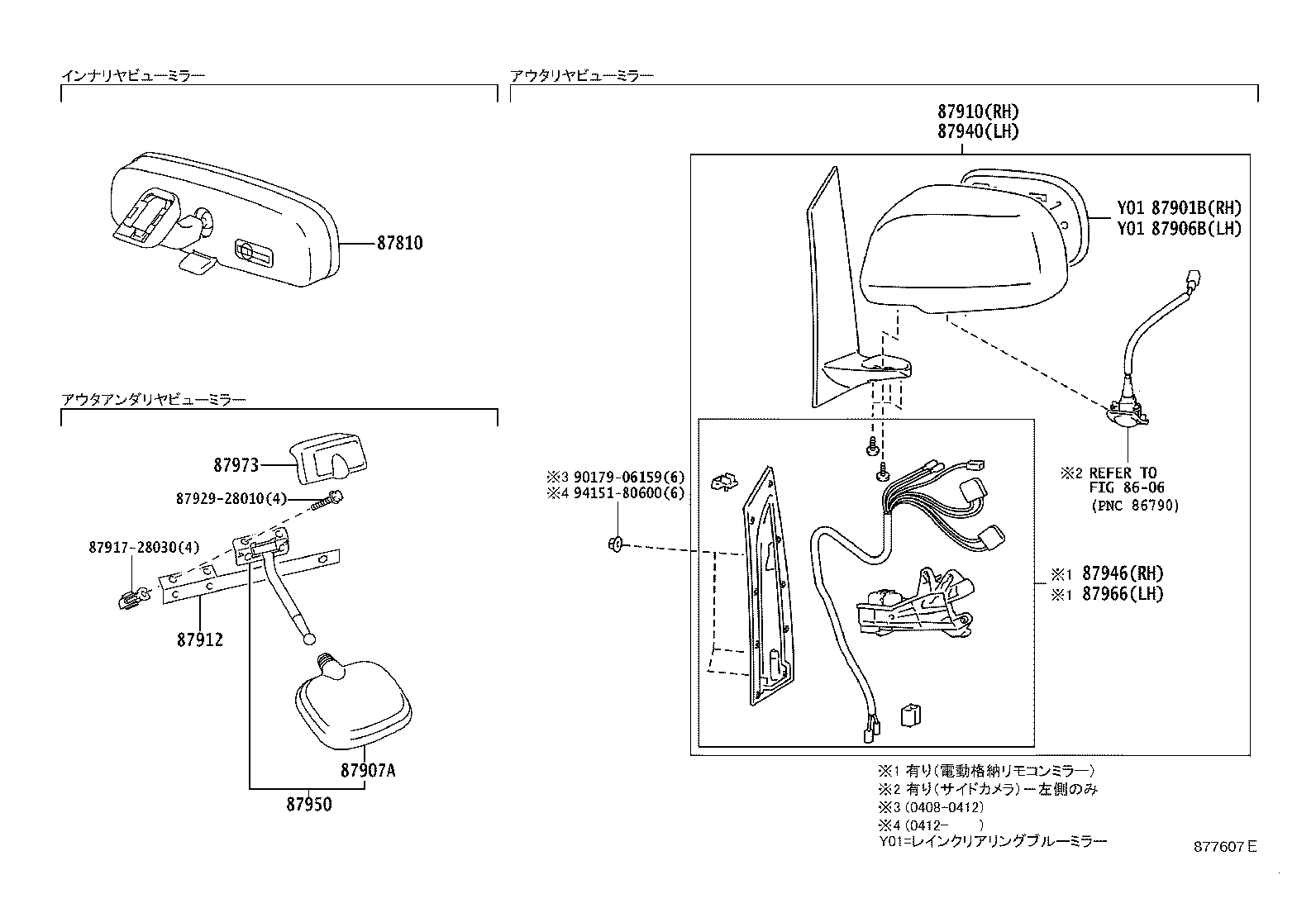

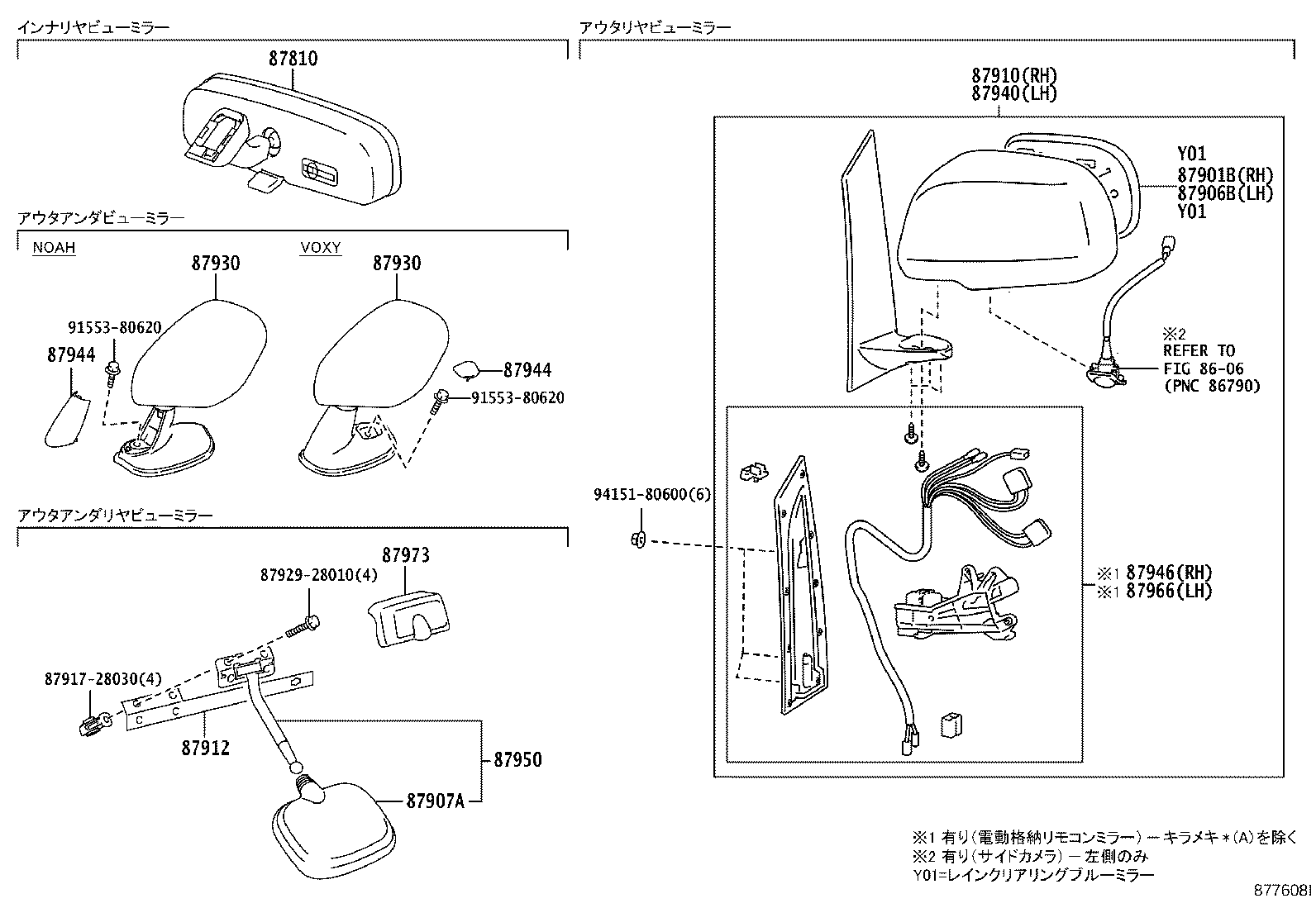

Figure 875277B 875277B 2001-11 → 2004-08 Figure 877607E 877607E 2004-08 → 2005-04 Figure 877608I 877608I 2005-04 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87907A Mirror Sub-assy, Outer Under Rear View
87910 Mirror Assy, Outer Rear View, RH
87912 Protector, Outer Mirror
87930 Device Assy, Front Fender Side View, LH
87940 Mirror Assy, Outer Rear View, LH
87944 Cover, Front Fender Side View Device, LH
87946 Retractor, Outer Mirror, RH
87950 Mirror Assy, Outer Under Rear View
87966 Retractor, Outer Mirror, LH
87973 Cover, Outer Under RR View Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
