Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

13 part groups · 4 illustrations

Illustrations

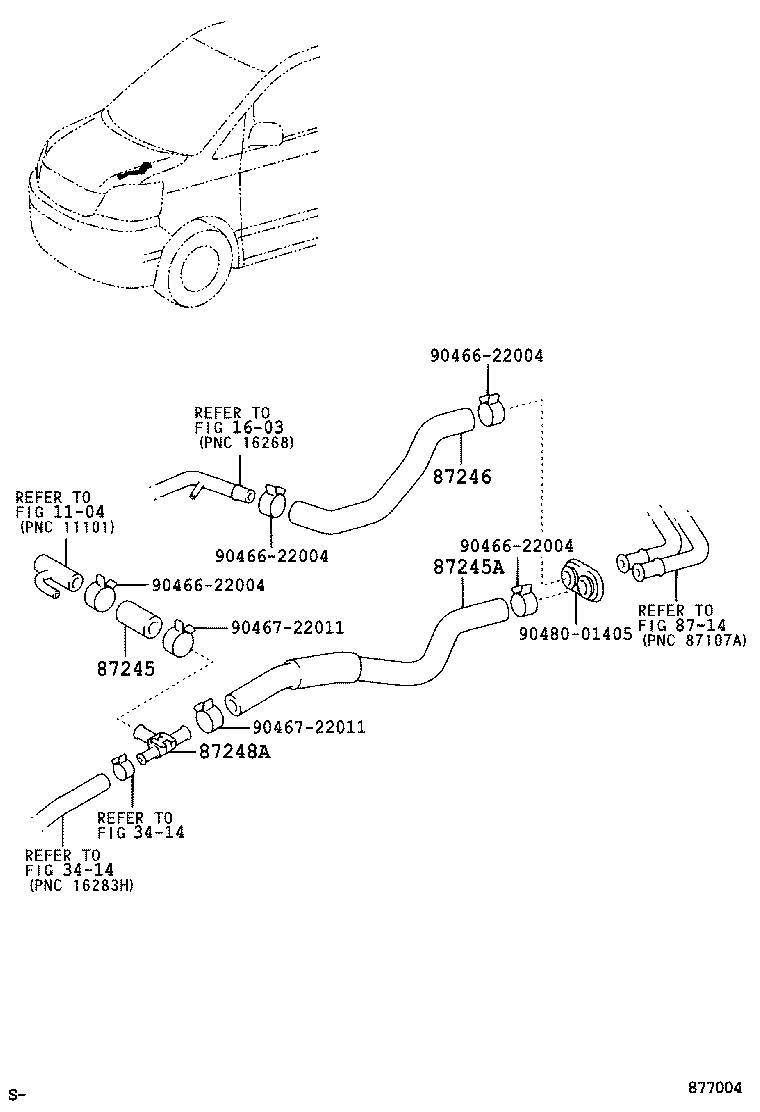

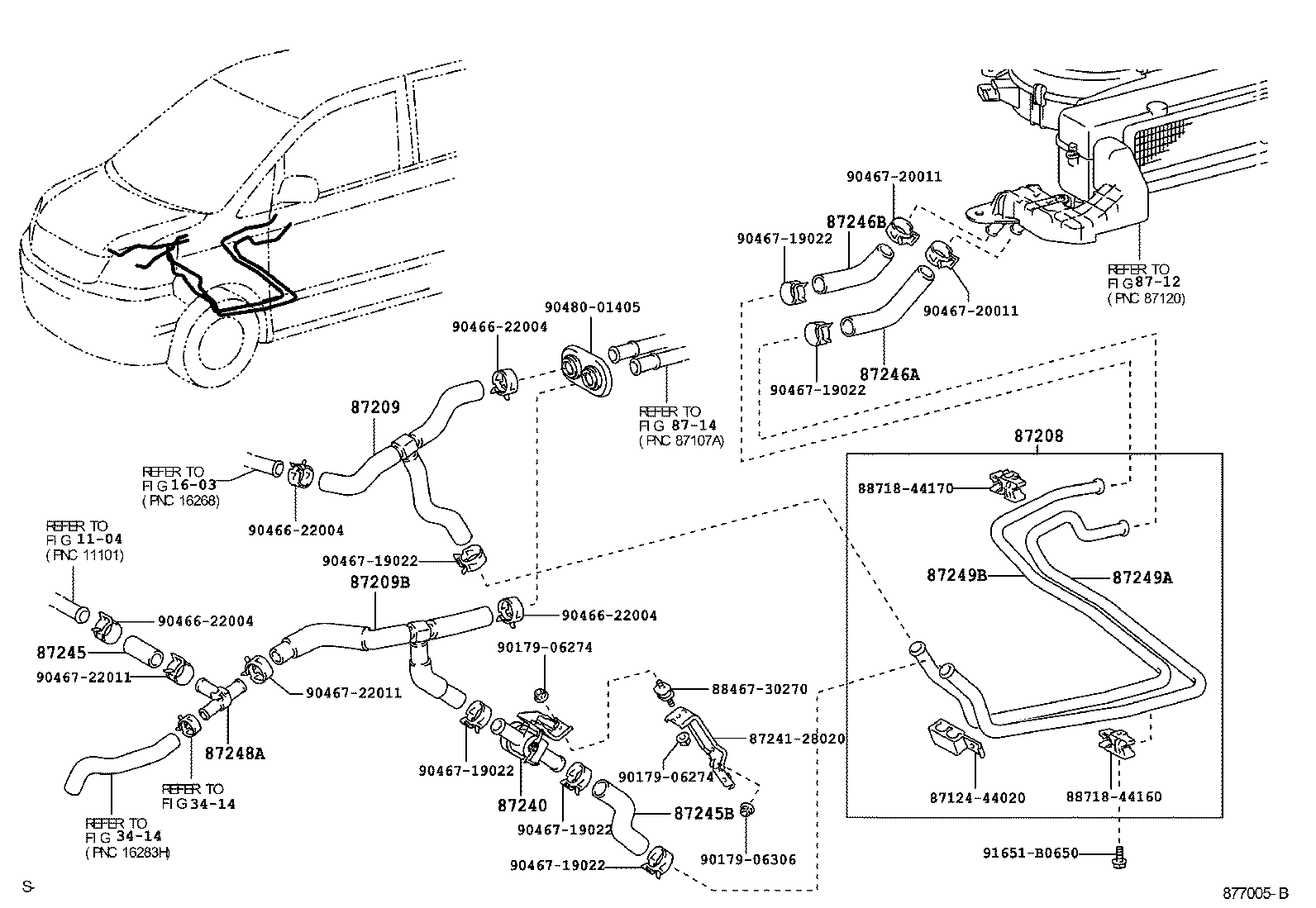

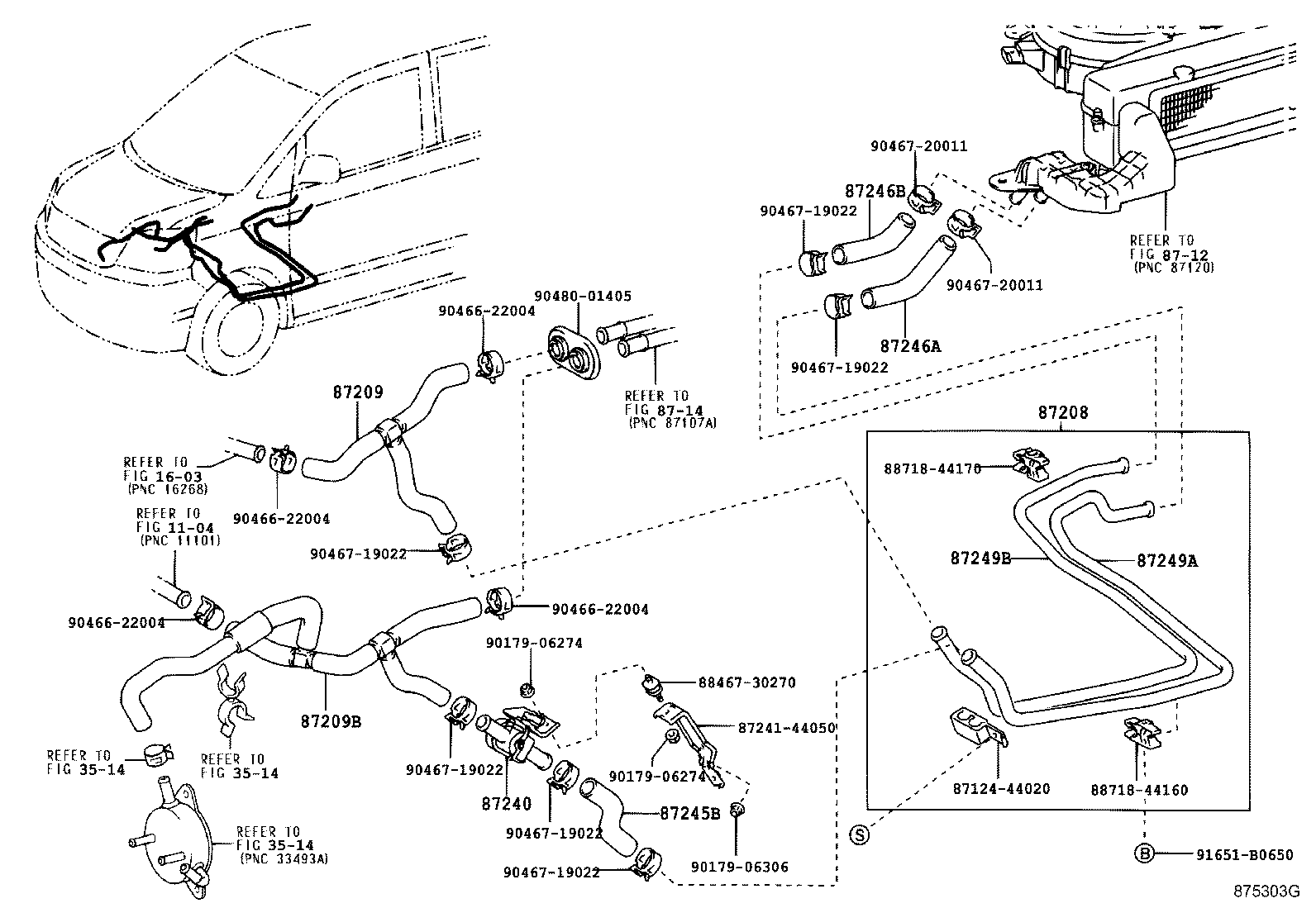

Figure 875302D 875302D 2001-11 → 2004-08 Figure 875303G 875303G 2001-11 → 2004-08 Figure 877004 877004 2004-08 → — Figure 877005B 877005B 2004-08 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87240 Valve Assy, Heater Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
