Toyota Noah/Voxy

2001-11 → 2007-06 · chassis AZR6# · catalogue 651160 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 4 illustrations

Illustrations

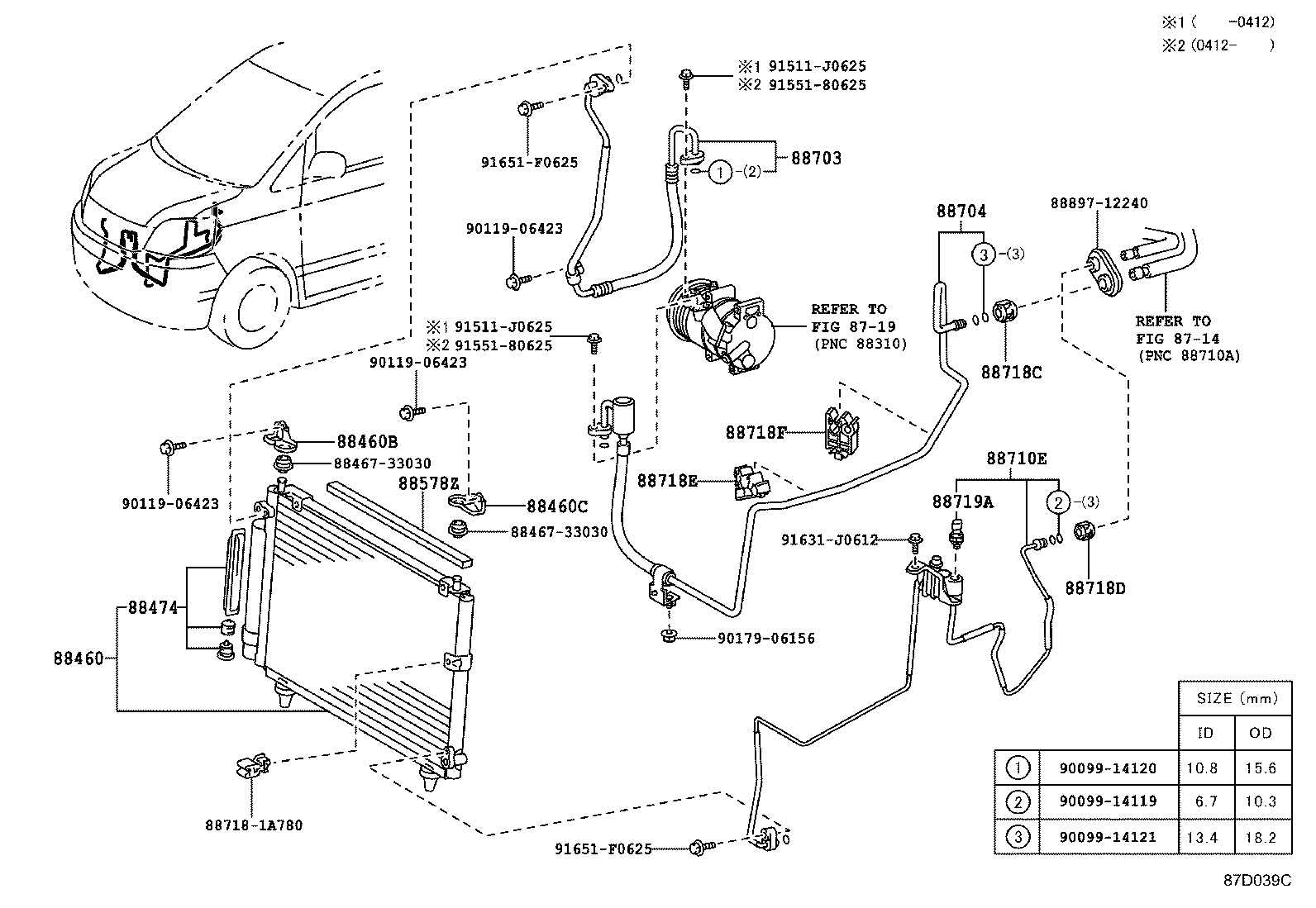

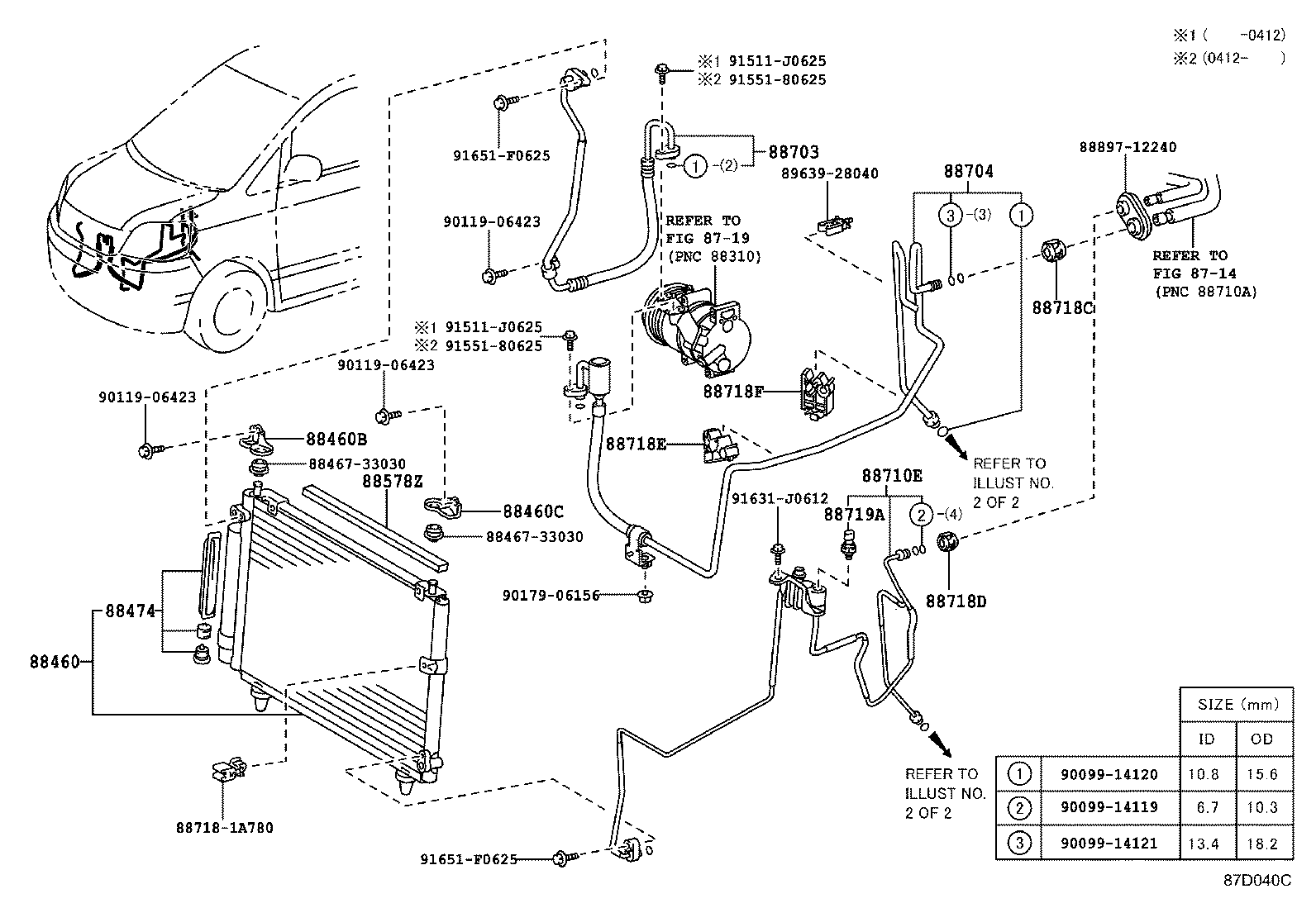

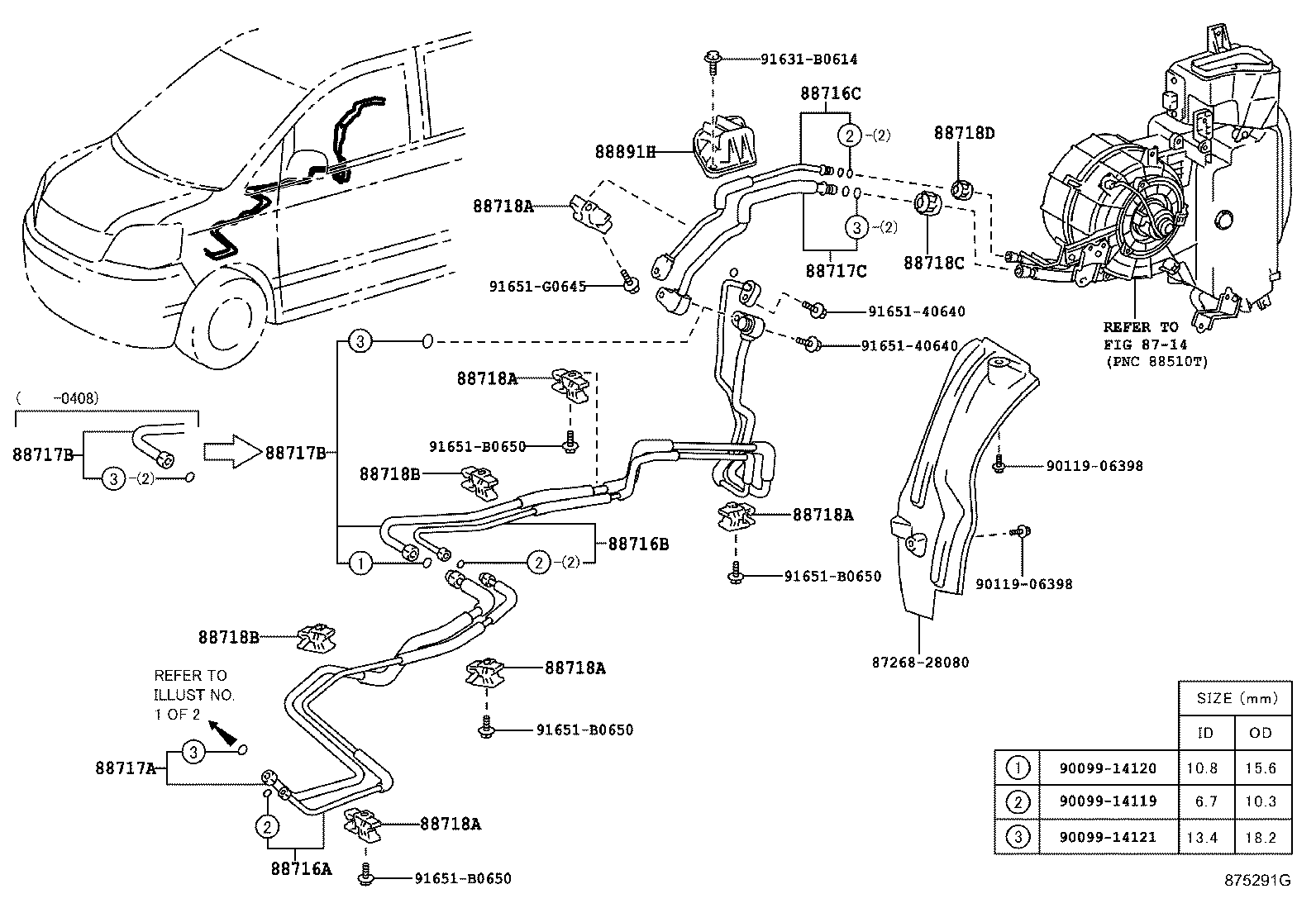

Figure 875273J 875273J 2001-11 → 2004-08 Figure 87D039C 87D039C 2004-08 → — Figure 87D040C 87D040C 2004-08 → — Figure 875291G 875291G 2001-11 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88474 Dryer, Cooler
88578Z Packing, Cooler, NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
