Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

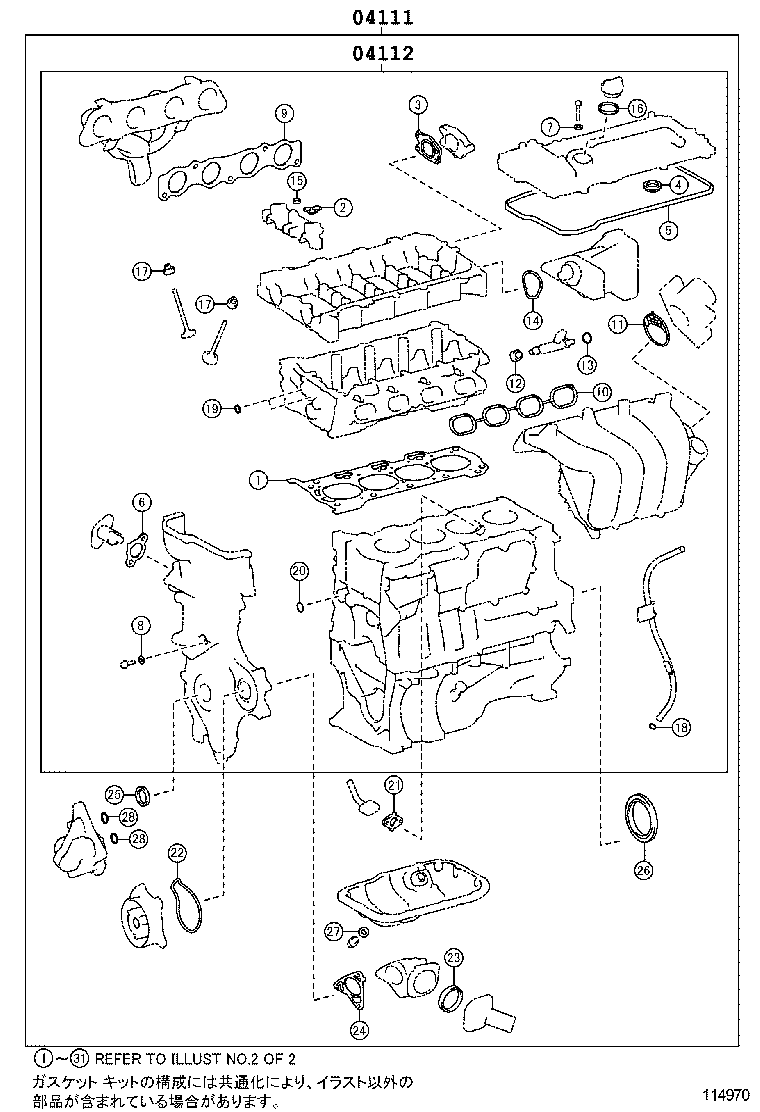

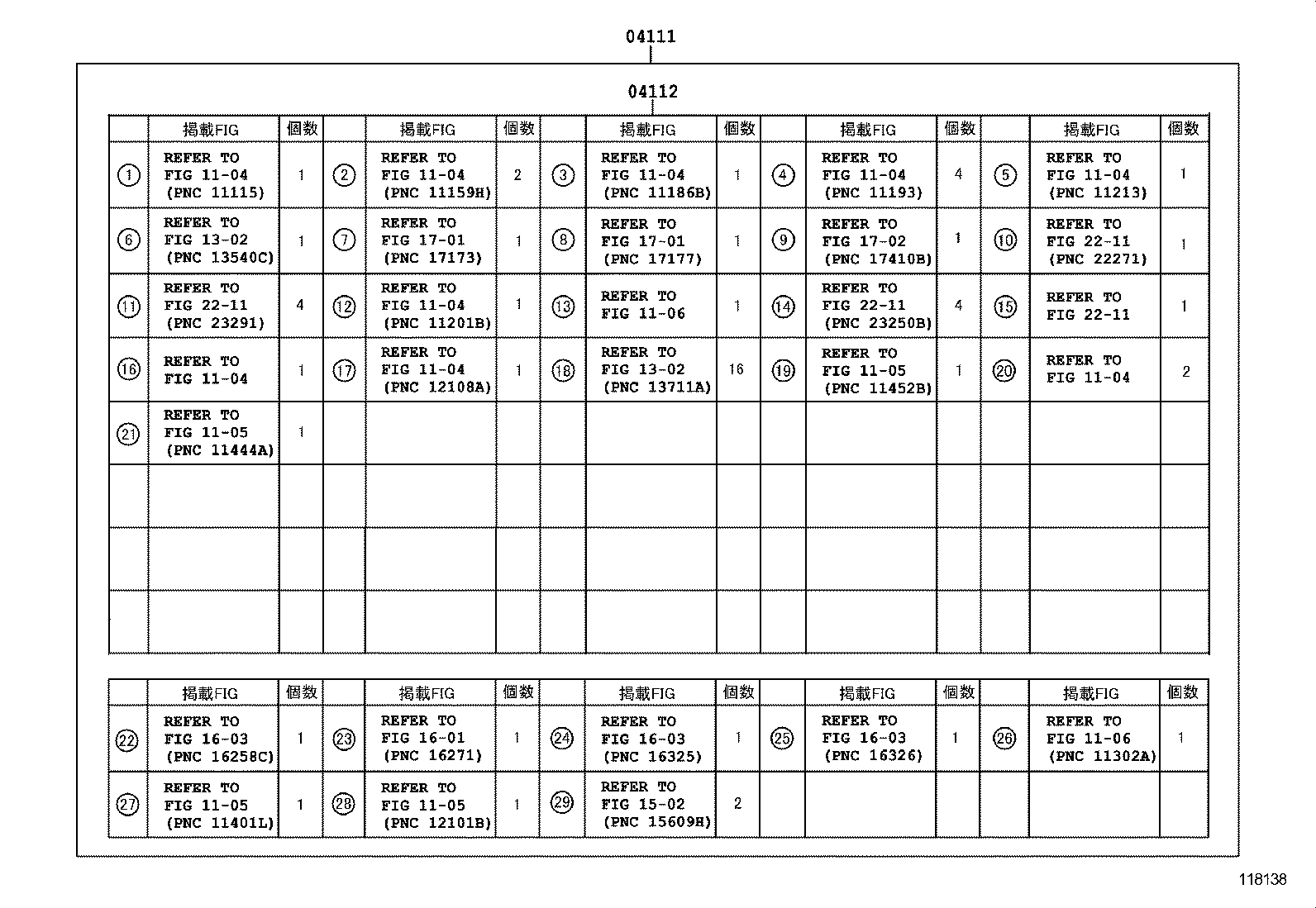

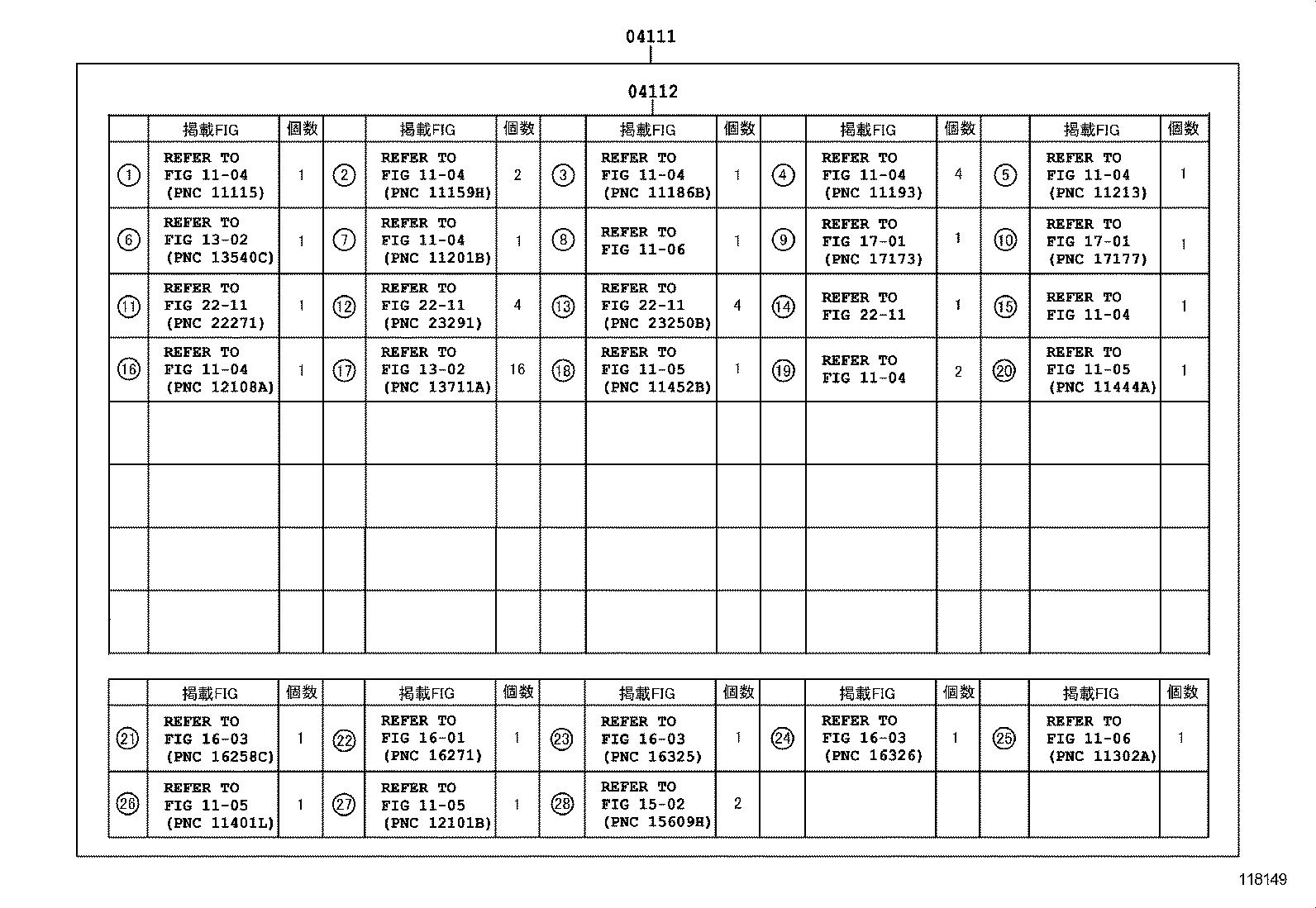

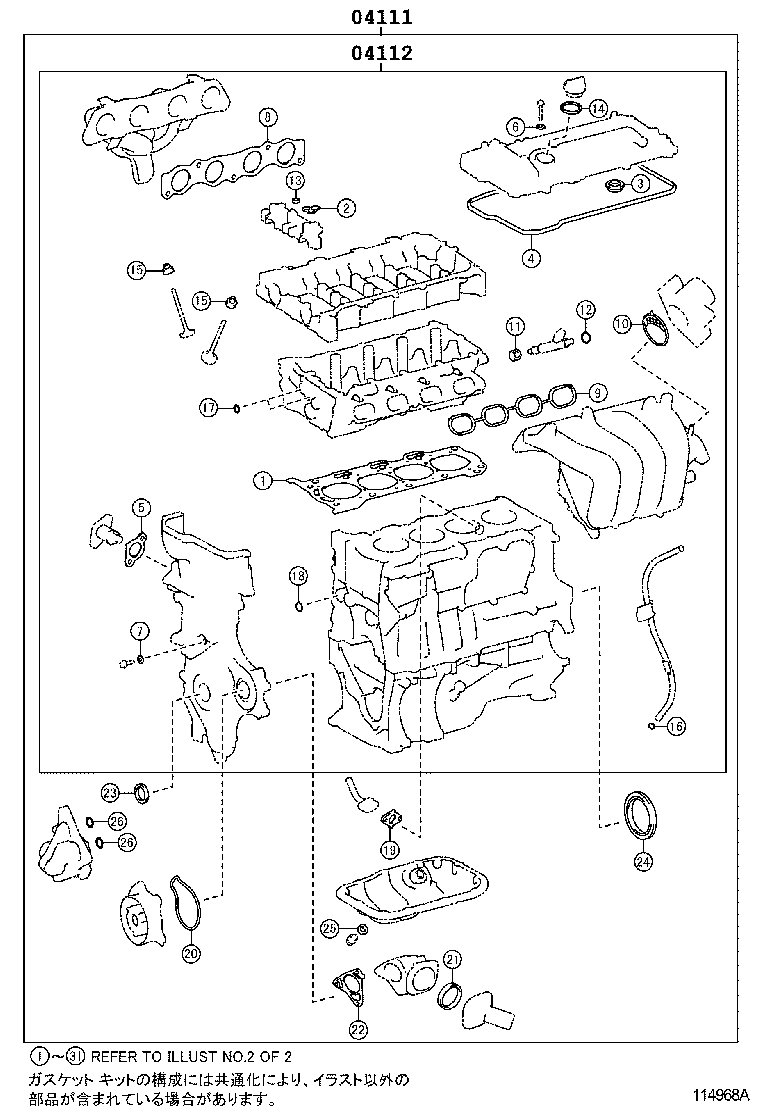

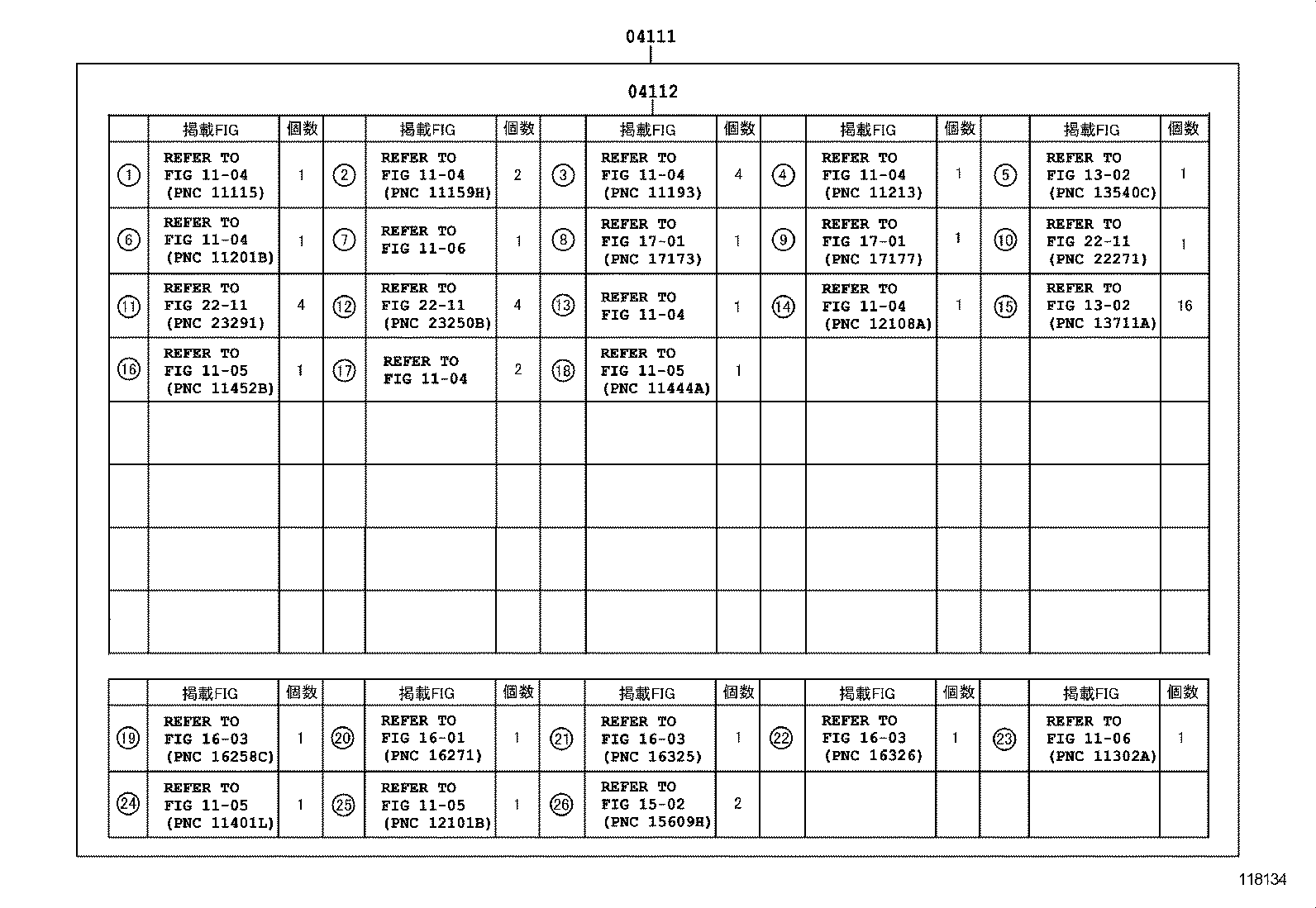

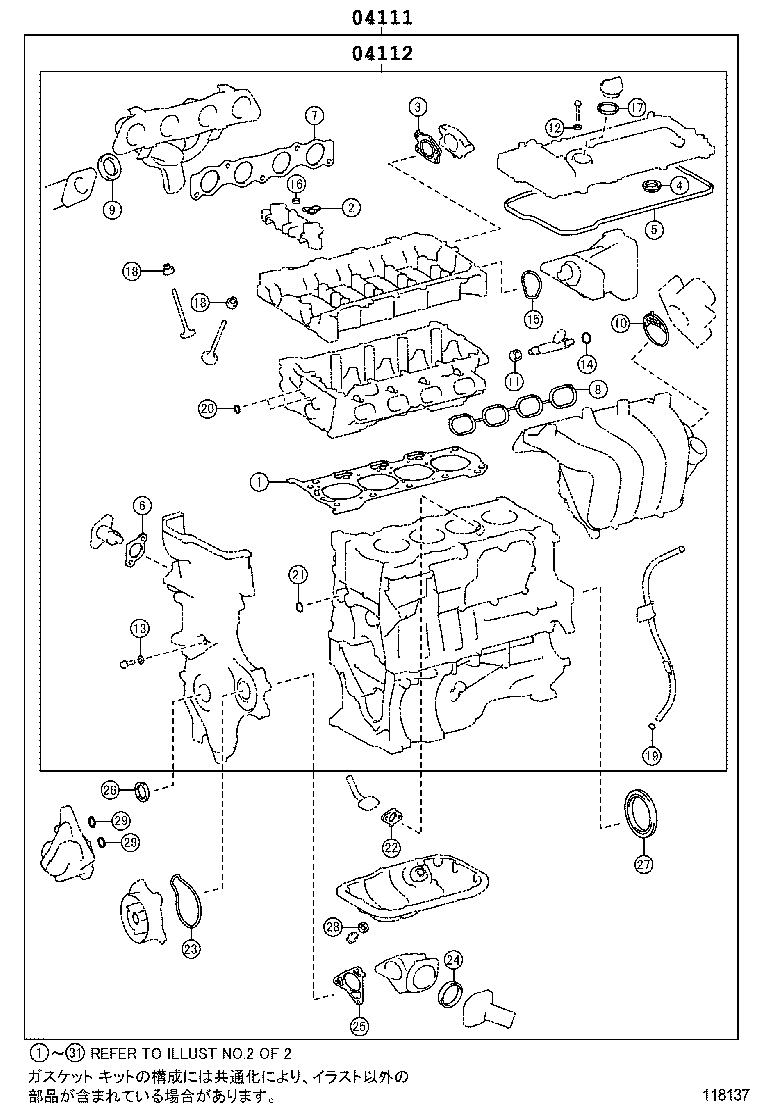

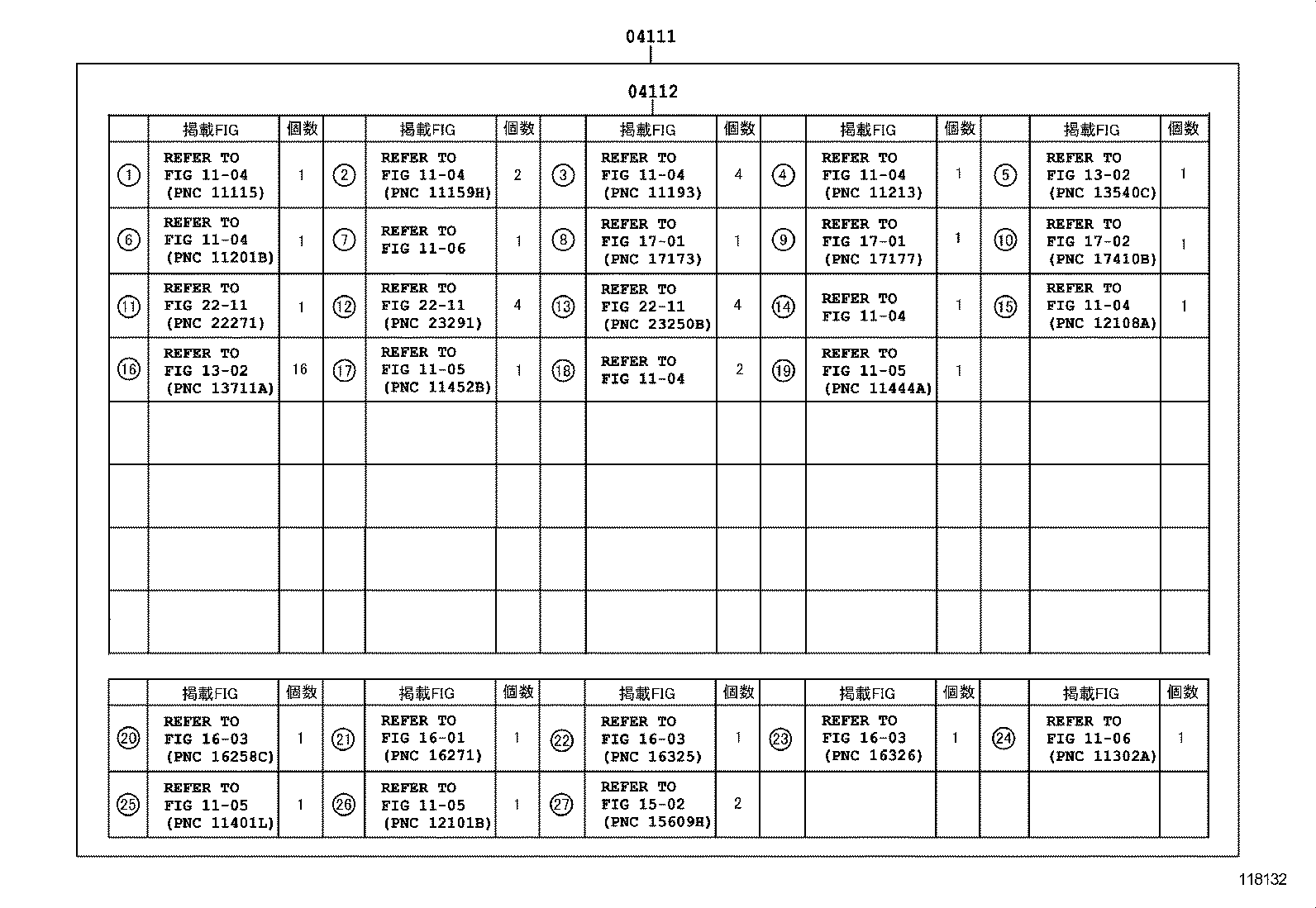

Figure 118131 118131 2007-06 → 2010-04 Figure 118132 118132 2007-06 → 2010-04 Figure 114968A 114968A 2007-06 → 2010-04 Figure 118134 118134 2007-06 → 2010-04 Figure 118137 118137 2007-06 → 2010-04 Figure 118137 118137 2010-04 → — Figure 118138 118138 2007-06 → 2010-04 Figure 118138 118138 2010-04 → — Figure 114970A 114970A 2007-06 → 2010-04 Figure 118149 118149 2007-06 → 2010-04

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
