Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

11 part groups · 4 illustrations

Illustrations

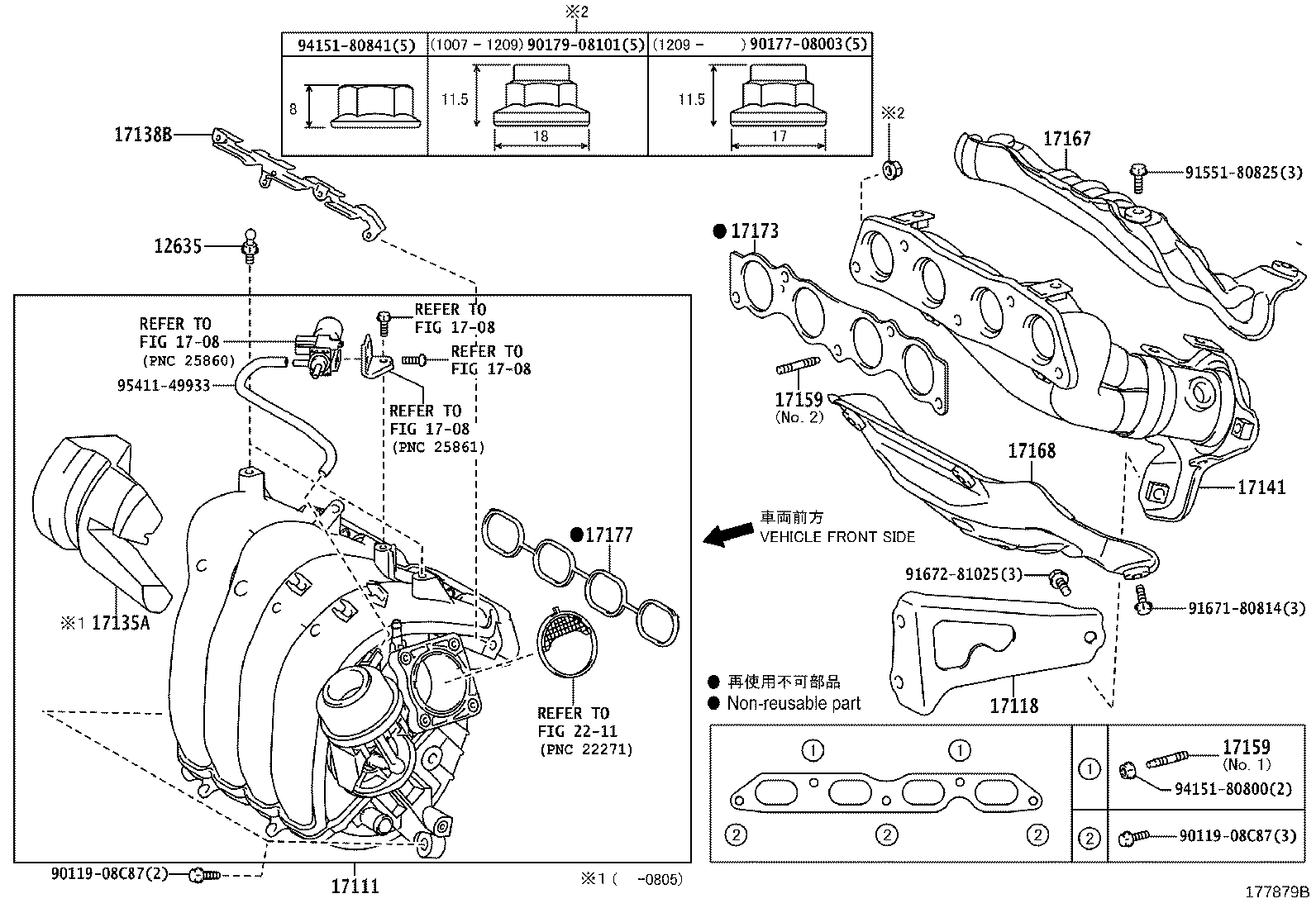

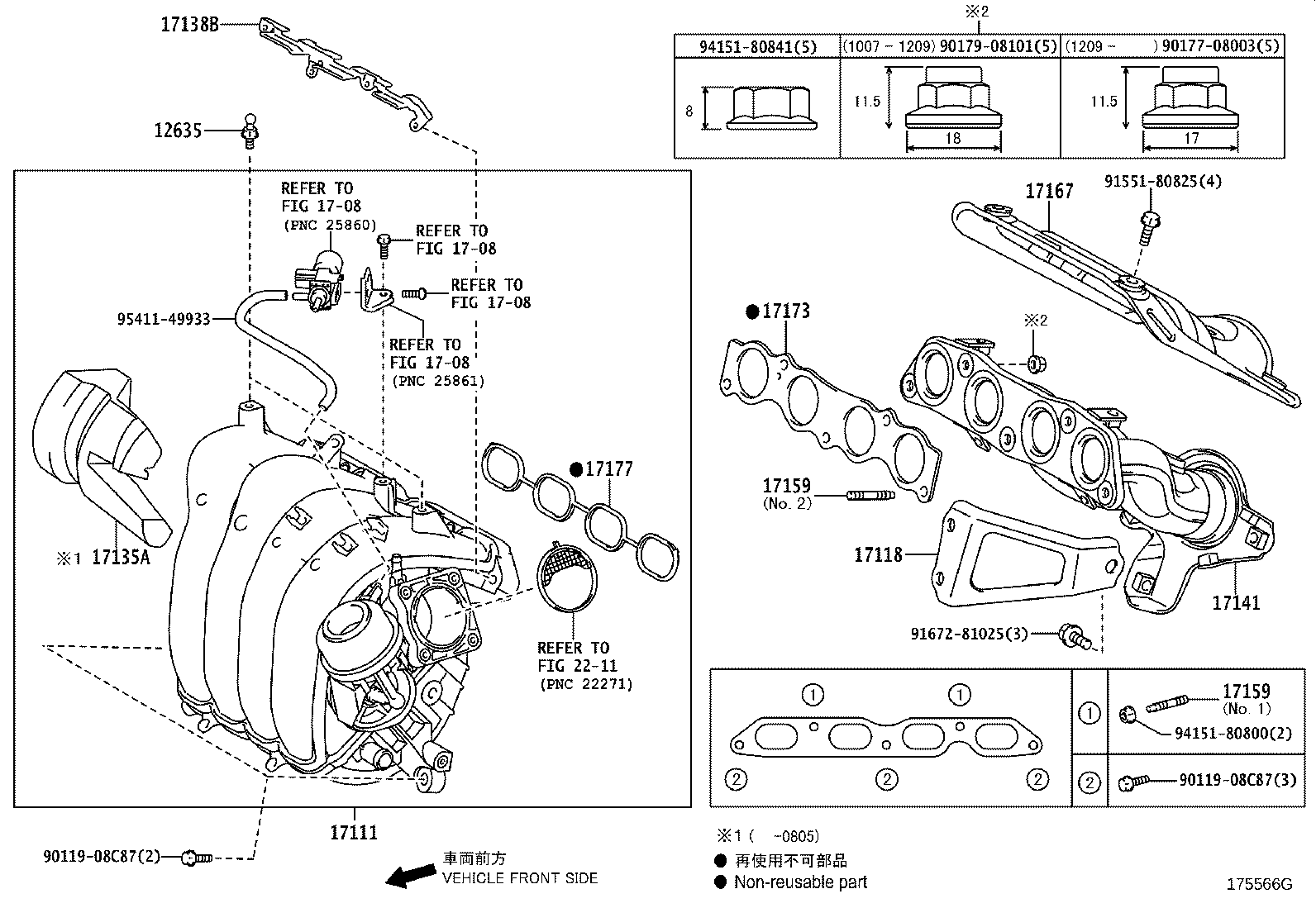

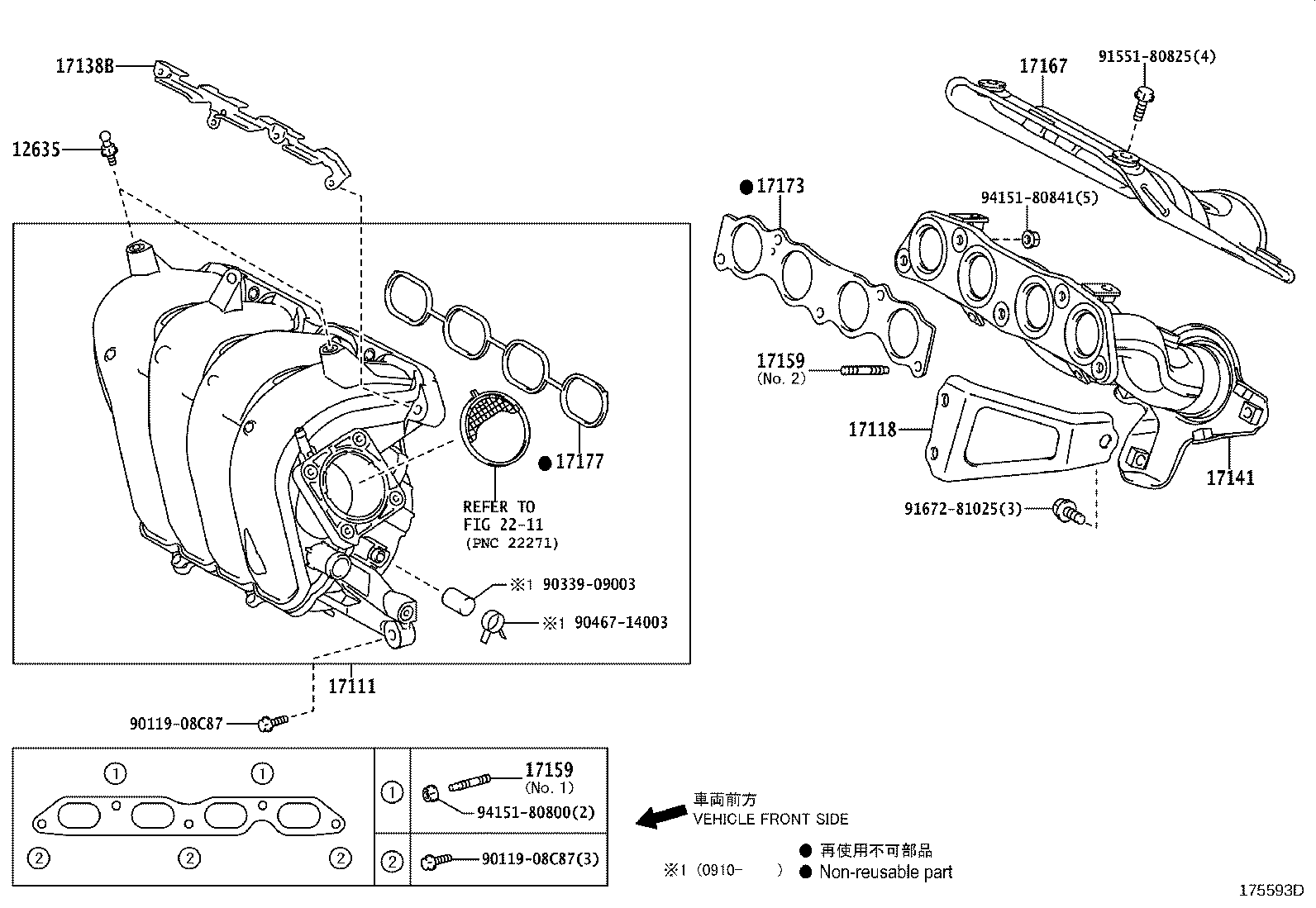

Figure 176753C 176753C 2007-06 → 2010-04 Figure 175593D 175593D 2007-06 → 2010-04 Figure 177879B 177879B 2007-06 → — Figure 175566G 175566G 2007-06 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
